Protective Case for 19.5/20 dBi Patch Antenna

The protective case for 19.5/20 dBi patch antenna is a practical and reliable solution for maintaining the performance of high-power patch antennas. The case from the brand is designed to protect antennas from moisture, dust, and mechanical damage during transportation and in field conditions, while not affecting radio wave characteristics in the operating bands.

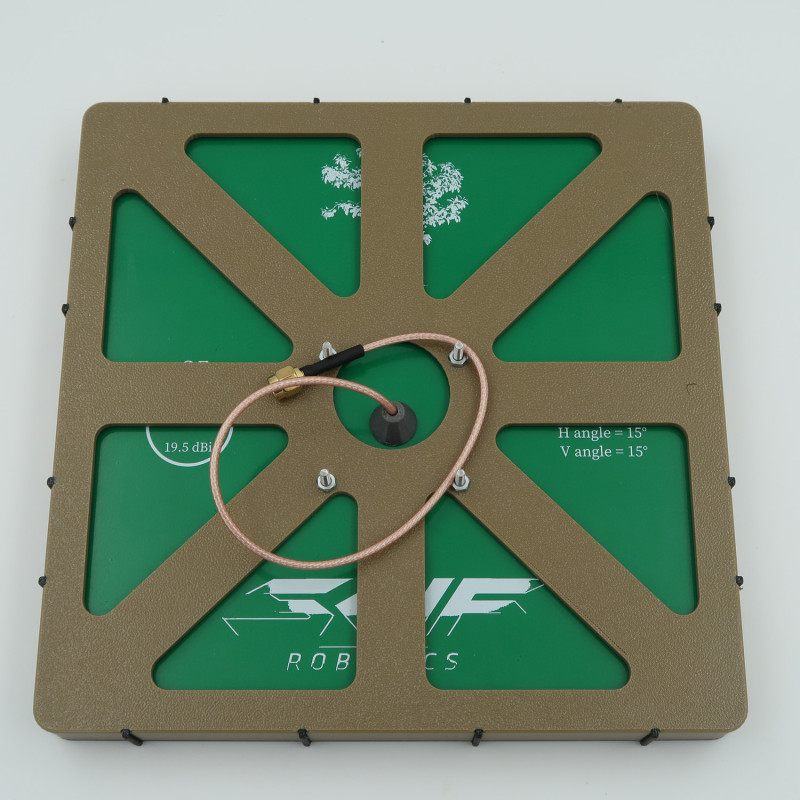

This case is compatible with a number of popular patch models and is suitable for installation in both stationary access points and on mobile platforms (drones, FPV systems). It is designed for use with 19.5 and 20 dBi patch antennas, ensuring the preservation of antenna properties within 4.9–6.0 GHz through its design and material selection.

Compatible models:

• Skif 19.5 dBi LHCP 4.9-6.0 GHz Patch
• Skif 19.5 dBi RHCP 4.9-6.0 GHz Patch
• Linear 20 dBi 5.0-6.0 GHz Patch

Description and Key Advantages

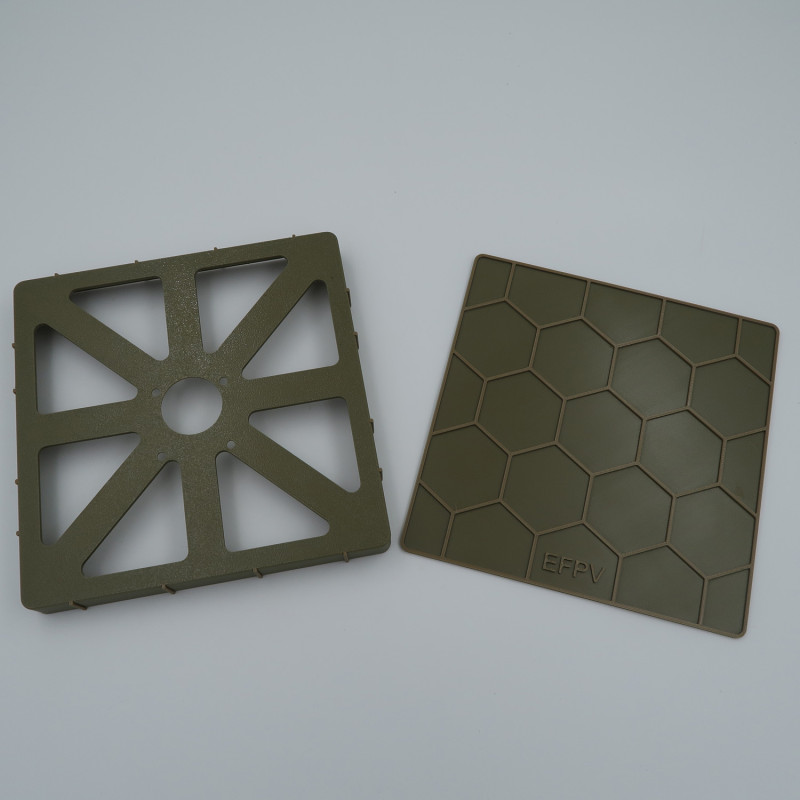

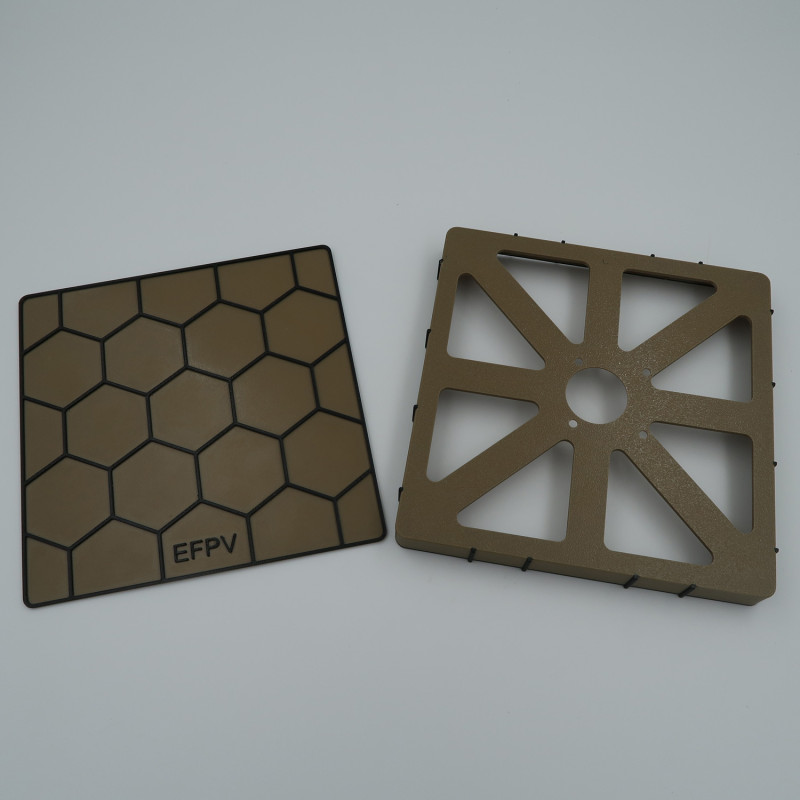

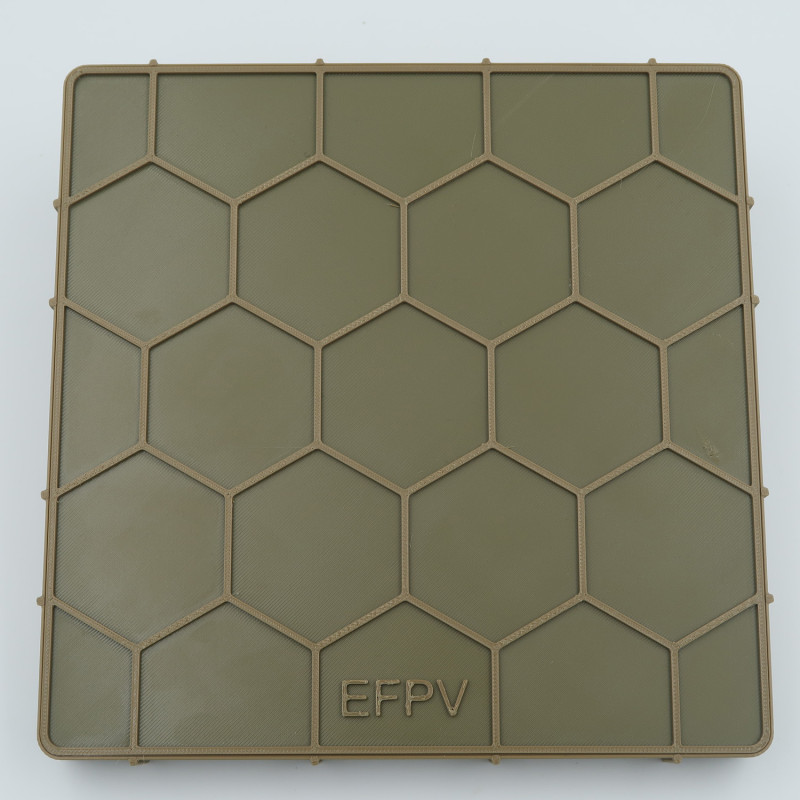

The case is made of durable plastic, ensuring light weight and long-term operation. Compact dimensions do not complicate installation and allow the use of standard mounts. The thoughtful geometry reduces the risk of damage during transportation and outdoor operation, and its weight of 120 g minimizes the load on mounting structures, which is important for unmanned platforms and mobile installations.

Manufacturer:. Product type: Antennas > Patch Antennas. Product name: Protective Case for 19.5/20 dBi Patch Antenna. All specified models and frequency ranges (Skif 19.5 dBi — 4.9-6.0 GHz; Linear 20 dBi — 5.0-6.0 GHz) are fully supported by this case.

Specifications:

Installation and Operation Recommendations

The case is recommended for external and internal installations in FPV systems, on drones, in stationary wireless links, and other solutions in the 4.9–6.0 GHz range. During installation, check the compatibility of the mounts with the selected antenna and ensure sealing of connections if operating in conditions of high humidity or dust. Thanks to its small dimensions of 203×203×22 mm and weight of 120 g, the case does not add significant inertial or static load to the structure.

This case will be a useful choice for engineers, drone operators, and users looking for a combination of protection, light weight, and preservation of antenna efficiency in the 4.9–6.0 GHz operating bands. The manufacturer confirms the quality of materials and compliance with requirements for working with high-gain 19.5–20 dBi antennas.
