Readytosky 13-inch Mark 4 v3 Carbon Fiber Frame
Readytosky MARK4 V3 Pro 13inch — this carbon frame is designed for building long-range drones. It has a diagonal motor-to-motor distance of 570mm and is equipped with 8mm carbon arms that are interconnected to increase structural rigidity. The frame is compatible with Micro 19mm cameras, which are secured in carbon side plates. Mounting holes for stacks of 30.5*30.5mm and 20*20mm are supported. The rear part provides space for installing a video transmitter, also with corresponding holes for both formats. The frame is optimized for analog video systems but also allows for the integration of digital video transmitters.
Features
-
8mm carbon arms interconnected to reduce deformation under load
-
Carbon side plates with a 19mm mounting size ensure stable attachment of Micro cameras
-
570mm-13inch wheelbase model adapted for long-range drones with propeller sizes up to 13 inches
-
Suitable for both analog and digital video transmitters
Specifications
MARK4 V3 Pro 13 inch
-

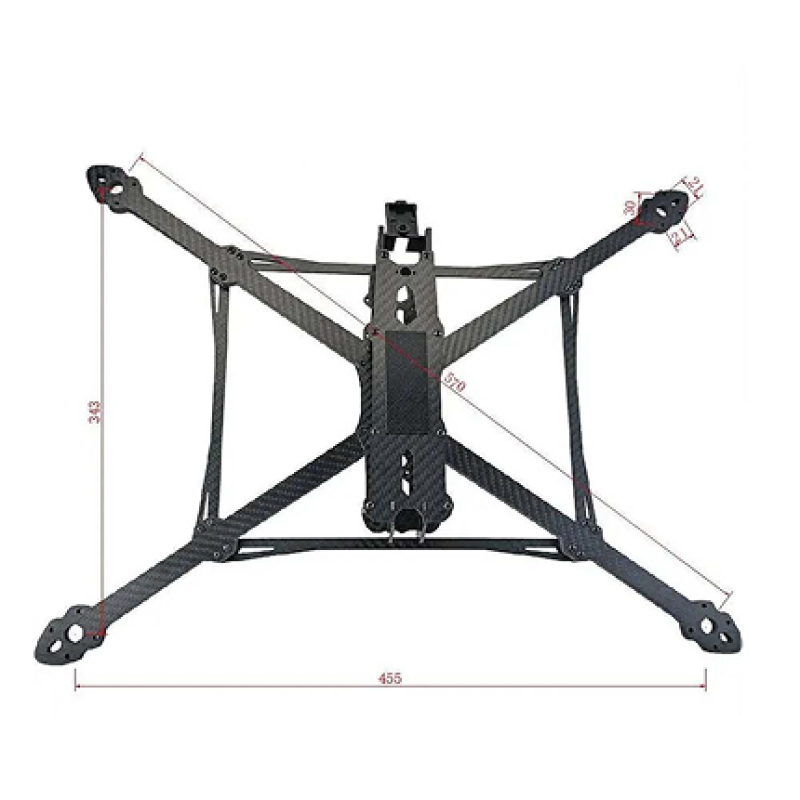

Frame size (motor-to-motor): 570mm
-

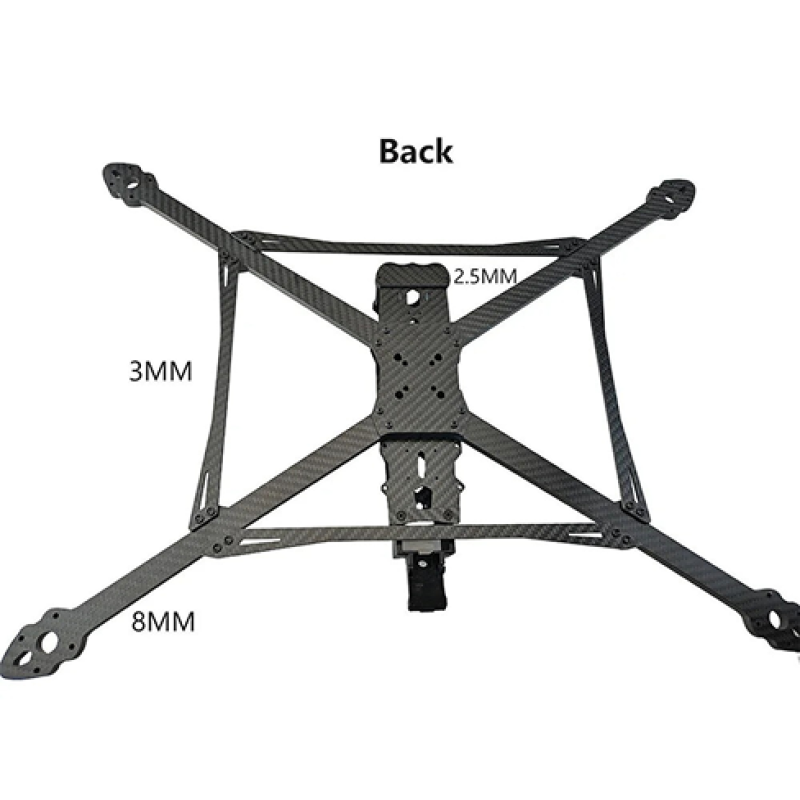

Arm thickness: 8mm
-
Top plate: 2mm
-
Bottom plate: 3mm
-
Camera mounting hole distance: Micro 19mm
-
Stack mounting holes: 30.5x30.5mm M3/20x20mm M2
-
VTX mounting holes: 30.5x30.5mm M3/20x20mm M2
-
Motor mounting holes: 30mm M4
-
Material: Carbon fiber
-
Color: Black
-
Weight: 520g
