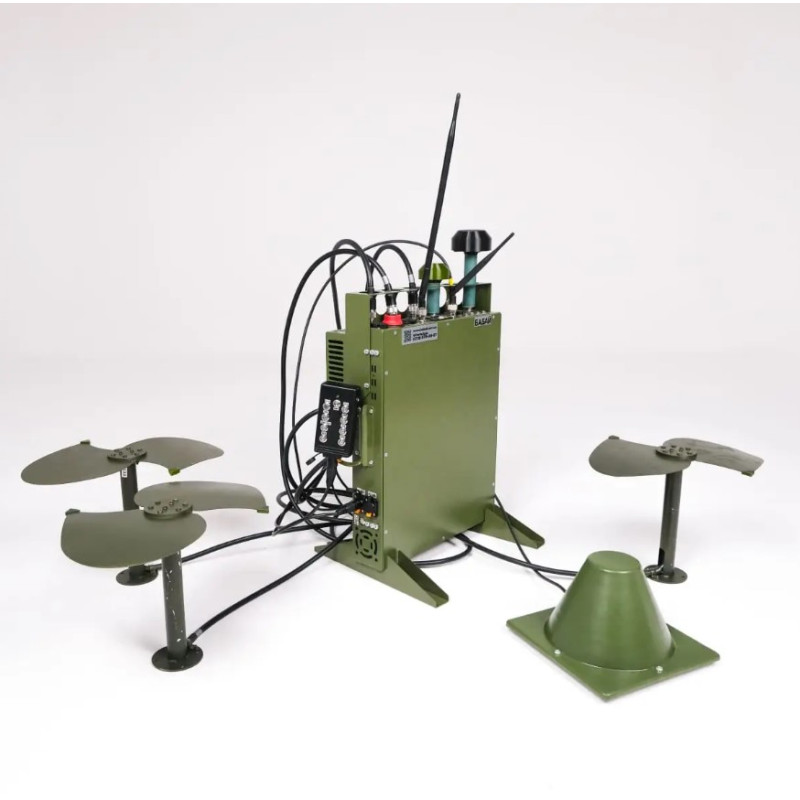

EW Jammer Babai 6M 300-5850 MHz Trench/Vehicle Babai
Brand: Babai. Type: Trench EW Jammer (EW Jammers > Trench EW Jammers). The "Babai 6M U" EW jammer is a versatile, advanced electronic warfare system designed to protect stationary positions, trenches, and fortifications from enemy drones. The device is equipped with six high-power jammers that provide reliable suppression of UAV control and video transmission channels across a wide frequency range: 300-400 MHz, 400-500 MHz, 500-700 MHz, 700-1000 MHz, 2300-2500 MHz, and 5725-5850 MHz, creating 360° dome coverage and an effective suppression zone at a distance of 50-200 m. The system's total radiated power is 370+ W.
One of the key advantages of the "Babai" EW jammer is its automatic operating mode: a built-in spectrum analyzer continuously monitors the radio environment and, upon detecting drone control or video transmission signals, instantly activates the corresponding suppression module or all modules simultaneously for maximum effectiveness. This allows the system to conserve energy while maintaining high protection efficiency.
The device's casing measures 52x38x8 cm and weighs 30 kg, making it convenient for installation in trenches or stationary positions; it includes legs for vertical placement. Power is supplied by a built-in 40 Ah (24 V) battery with an autonomy of 40 to 60 minutes, depending on the mode and number of jammers enabled; operation from an FPV battery is also possible. The system's power consumption is 1 KW, and a 10 A charger is included for quick recharging. The readiness time is 30-60 seconds, allowing for rapid response to aerial threats.
The "Babai" EW jammer has an IP54 protection rating, ensuring resistance to dust, water splashes, and vibrations. The system operates in a wide temperature range from -20°C to +40°C and is equipped with an integrated active cooling system to prevent overheating during intensive operation. Control is possible via a remote control (up to 3 m), twisted pair cable (up to 100 m), and via a web interface over Wi-Fi; the device also features voice alerts and a digital display with a battery charge indicator. The device is guaranteed until the end of martial law in Ukraine (free repairs, excluding cases of complete destruction, shrapnel damage, or flooding).
Key Advantages
- Automatic Operating Mode: Built-in spectrum analyzer quickly detects control and video transmission signals and activates necessary suppression modules.
- Powerful Drone Jamming: Six jammers (50-110+ W, total 370+ W) cover key UAV control ranges, ensuring protection of trench positions.
- Continuous 360° Protection: Dome coverage blocks drones from all directions.
- Overheat Protection: Active cooling ensures reliable operation without failures.
- Enhanced Energy Efficiency: Automatic mode reduces power consumption without loss of power.
- Flexible Power Supply: Built-in 40 Ah (24 V) battery, possibility to connect FPV batteries; autonomy up to 60 min.
- Setup and Diagnostics via Web Interface: Easy control and diagnostics via Wi-Fi, remote control, or twisted pair with voice prompts.
- Quick Readiness: Activation in 30-60 seconds.
- Warranty until the end of martial law in Ukraine: Confidence in the device's reliability in field conditions.
Frequency Range, Antenna Type, and Power
- 1. 300-400 MHz, 60+ W, Screw (modified dipole)
- 2. 400-500 MHz, 50+ W, Screw (modified dipole)
- 3. 500-700 MHz, 50+ W, Screw (modified dipole)
- 4. 700-1000 MHz, 110+ W, Mushroom
- 5. 2300-2500 MHz, 50+ W, Clover
- 6. 5725-5850 MHz, 50+ W, Clover
Technical Specifications
Below are the full technical parameters of the system:
| Parameter Name | Value |
|---|---|
| Total radiated power | 370+ W |
| Power supply | from battery, from FPV battery (220-24V) |
| Number of antennas (channels) | 6 |
| Case size (dimensions) | 52x38x8cm |
| Weight | 30 kg |
| Suppression range | 50-200m |
| System coverage radius | 360 degrees |
| Autonomy | 40 to 60 min (depending on operating mode and number of jammers enabled) |
| Built-in battery capacity | 40 Ah |
| Operating readiness time | 30-60 seconds after power-on |
| EW system control | via Wi-Fi, via remote control (up to 3 meters), twisted pair (up to 100 m) |
| Operating temperature range | -20C - +40C |
| Power consumption | 1 KW |
| Protection rating | IP54 |
| Charger power | 10 A |
| Voice operation alert | yes |
| Digital display battery charge indicator | yes |
Package Contents
- EW device and antennas — 1 pc.
- Antenna mounting brackets — 6 pcs.
- Device corner mounts — 4 pcs.
- Remote control — 1 pc.
- Remote control connection cable — 1 pc.
- Ethernet RJ-45 cable — 1 pc.
- XT90 power cable 3 m and clamps — 1 pc.
- N-type antenna connection cable (optional).
- Power supply for battery charging 25.2 V 10 A — 1 pc.
- Legs for vertical placement — 2 pcs.
- Instruction manual — 1 pc.
The "Babai 6M" system is ideal for protecting infantry positions, command posts, and fortifications where quick reaction, autonomy, and reliability are crucial in challenging field conditions. If needed, frequency ranges and antenna types can be customized for specific tasks.
