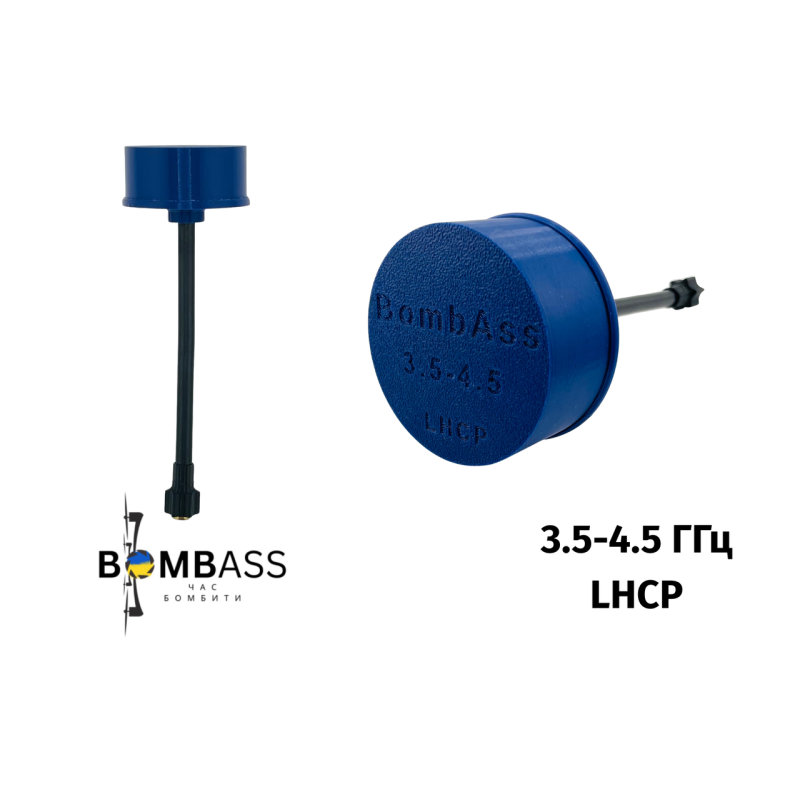

Clover Antenna 3.5-4.5 GHz LHCP

BombAss presents a compact and reliable clover antenna for FPV flights and professional unmanned systems. This antenna is designed for stable reception and transmission in the 3.5-4.5 GHz range and is ideal for use with VTX PEAKFVP THOR T35, ensuring a high-quality signal with minimal interference.

Technical Specifications

• Antenna type — clover
• Frequency — 3.5-4.5 GHz

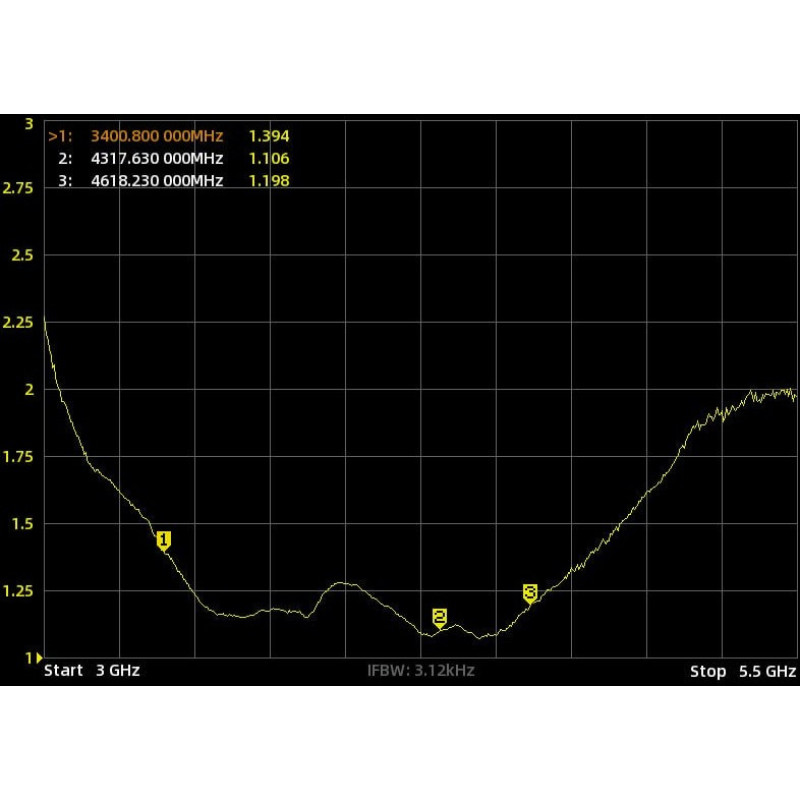

• Bandwidth — (VSWR up to 1.5) 1 GHz
• Connector type — SMA male (RG402)
• Antenna length — 14.5 cm
• Radiation pattern — circular LHCP
• Gain — 3.5dBi
• Water resistance — IP65
• Compatibility — Perfectly suited for VTX PEAKFVP THOR T35

This clover antenna combines compact dimensions with an effective LHCP (left-hand circular polarization) antenna pattern, providing improved signal stability against reflections and multipath interference. With a gain of 3.5dBi, it ensures an optimal balance between coverage and directivity, suitable for racing drones and common FPV stations.

The SMA male (RG402) connector provides a reliable and robust connection to video transmitters and other RF modules. The antenna's length of 14.5 cm makes it convenient for mounting on frames of various sizes without excessive load or reduced maneuverability of the device.

The IP65 water resistance rating indicates protection against dust and water splashes, allowing the antenna to be used in field conditions and during variable weather. The 1 GHz bandwidth (at VSWR up to 1.5) guarantees a wide operating frequency range and compatibility with various VTX configurations.

The antenna is positioned in the Antennas > Dipole Antennas category and is an excellent choice for users seeking a compact, reliable, and versatile option to improve video transmission quality. Installation is simple: thanks to the standard SMA connector, replacing or upgrading the antenna does not require special tools.

Advantages of this model: BombAss brand reliability, wide operating range of 3.5-4.5 GHz, effective LHCP polarization, correct bandwidth (VSWR up to 1.5), and IP65 protection for outdoor operation. If you need a compact antenna for FPV flights that combines signal quality and durability — this clover antenna will be a successful choice.
