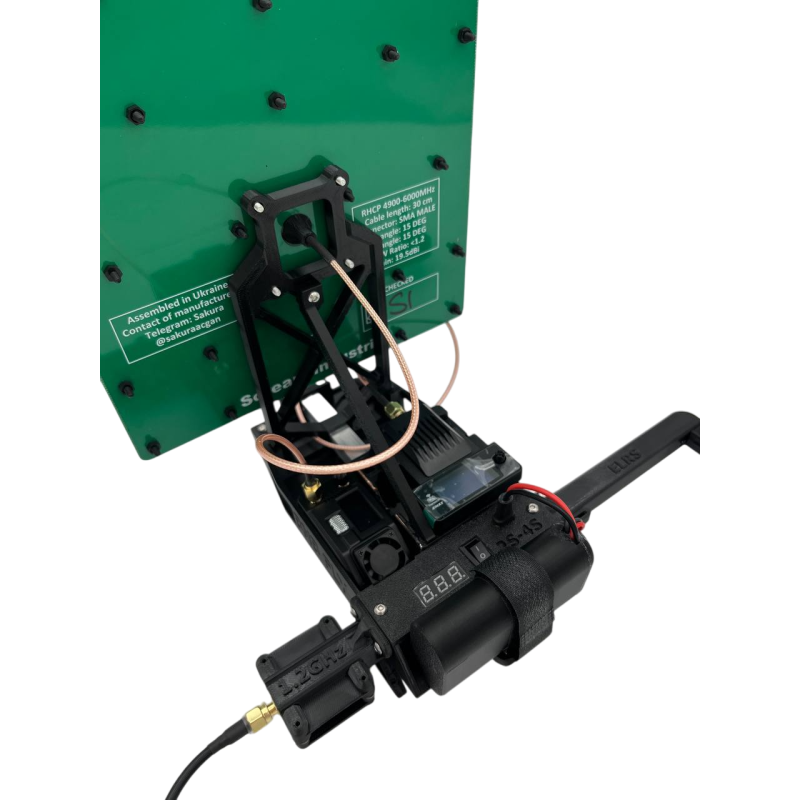

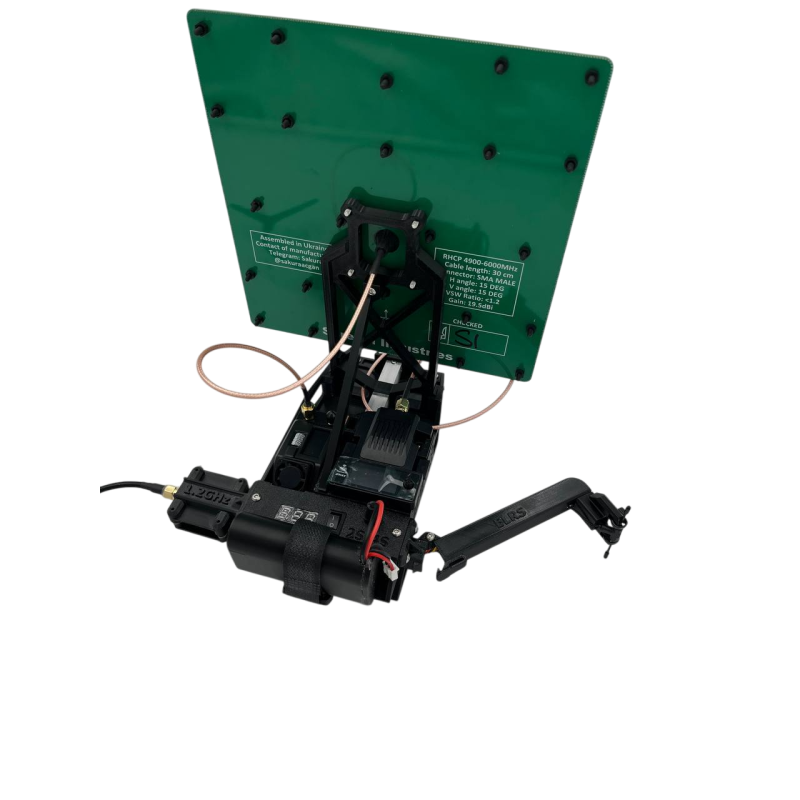

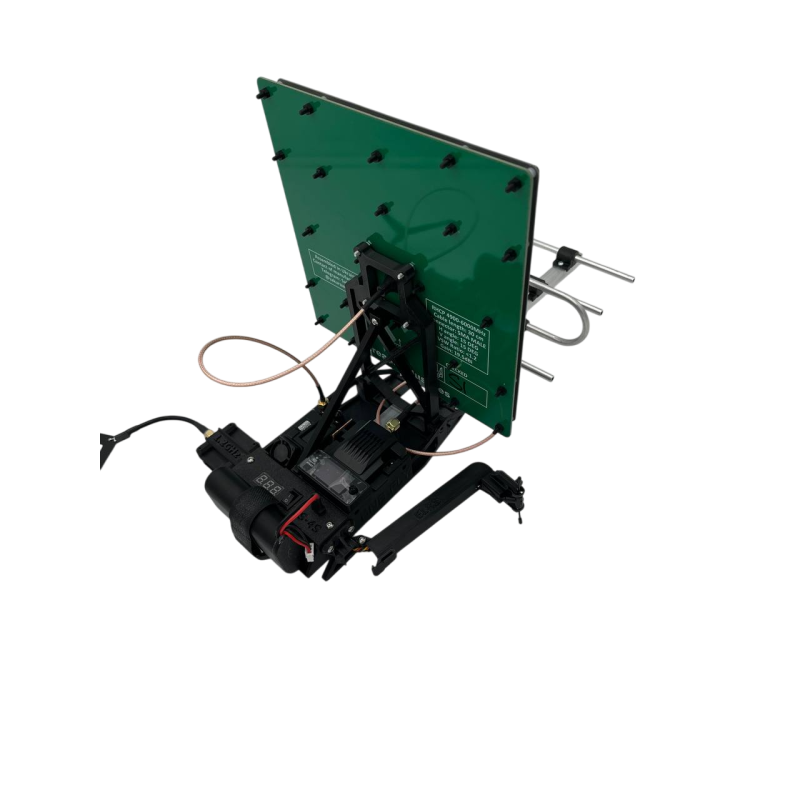

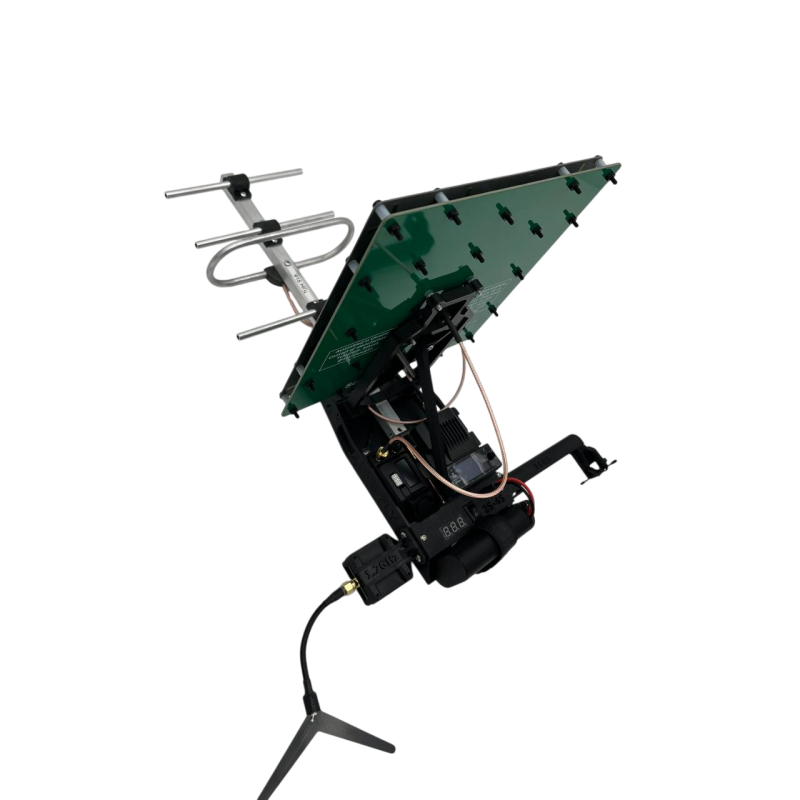

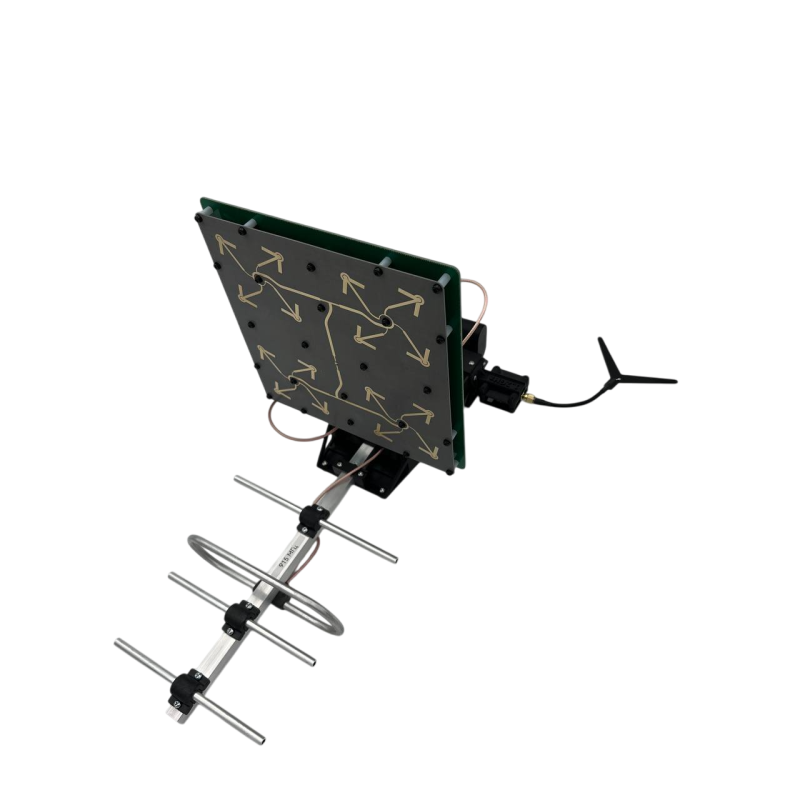

FPV Repeater 5.8/1.2GHz for Matrice 30 — a professional solution for drone operators and engineers who require reliable video and control transmission. The device is developed by the Ukrainian FPV drone equipment manufacturer BNBFly and is equipped with high-quality components. Product brand: SkyReach. Category: Ground Relay Stations. This repeater features a well-designed casing and secure mounting, ensuring stable operation even in challenging conditions.

The device includes proven modules and antennas that provide stable video streaming and control over long distances. It is designed for integration with the Matrice 30 platform and allows maintaining communication during complex tasks, filming, and inspections.

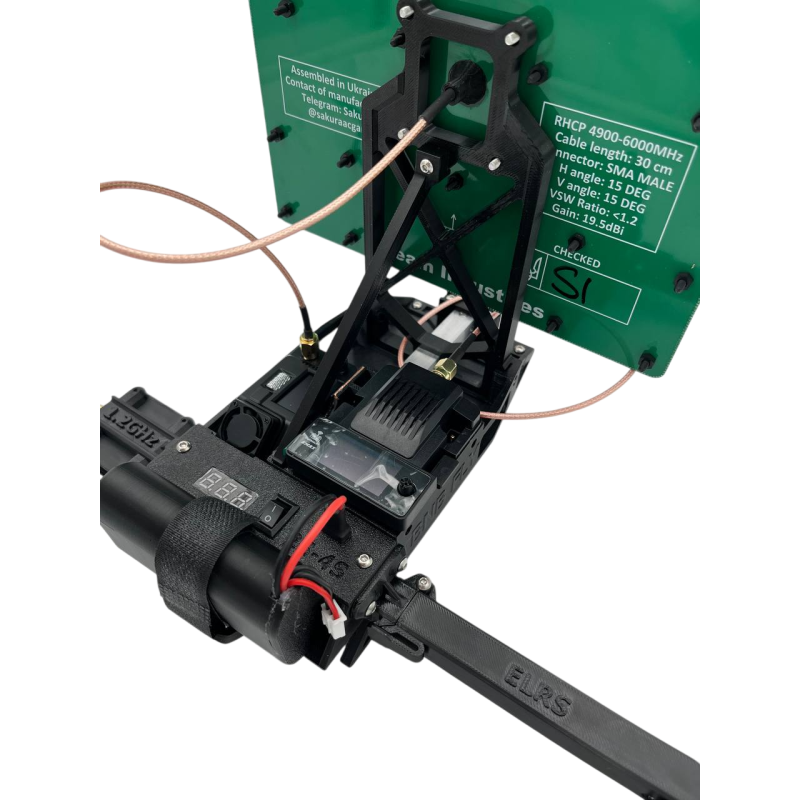

• High-quality antenna: Scream Industries 5.8GHz 19.5dBi RHCP for FPV, guaranteeing clear signal reception/transmission.

• Video receiver (VRX): compatible SkyZone Steadyview 5.8GHz or Foxeer Wildfire 5.8GHz, depending on customer preference.

• Powerful video transmitter (VTX): operates in the 1080-1360 GHz range, has 9 channels, and is equipped with a cooler to maintain reliable video transmission under load.

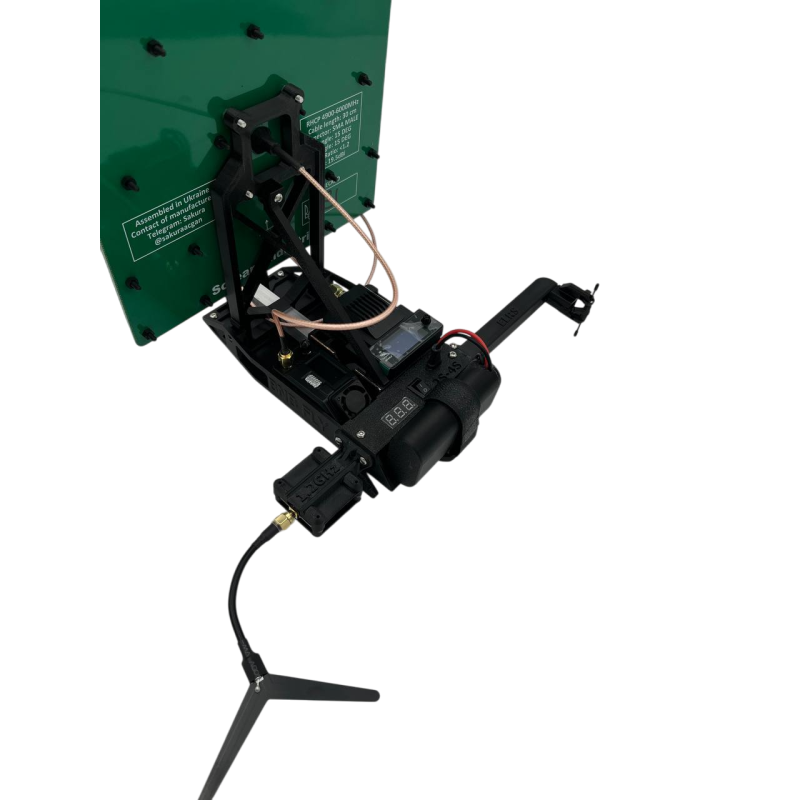

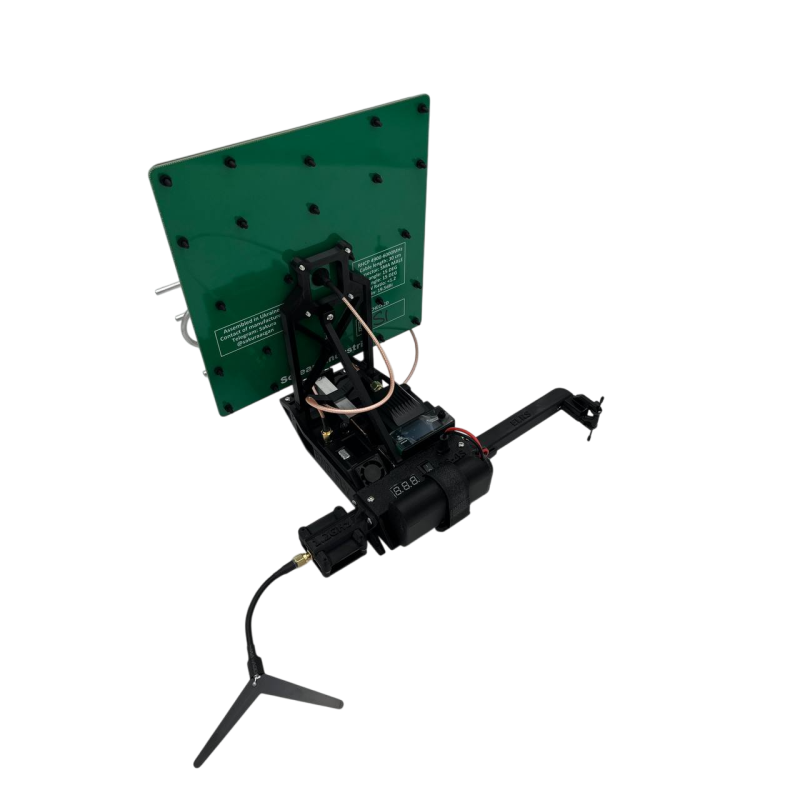

• Unique video transmitter antenna: equipped with an omnidirectional TrueRC Singularity 1.3 GHz antenna or a directional dipole for optimal coverage and increased sensitivity.

• Modern control system: uses TBS Crossfire as a receiver and Emax Aeris Link TX ExpressLRS 915 MHz (2000 mW) as a transmitter, ensuring maximum range and control reliability.

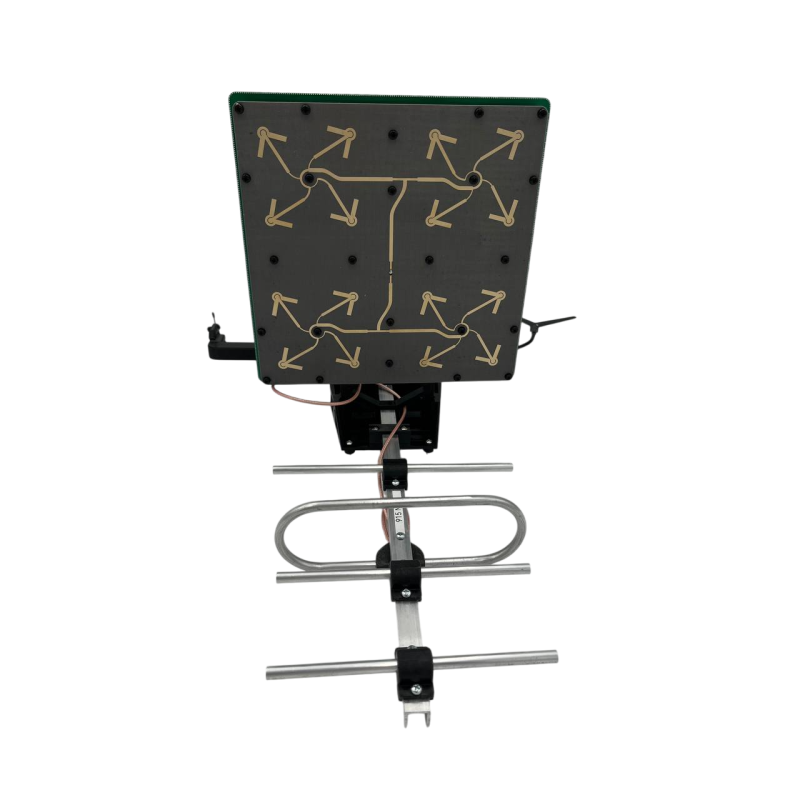

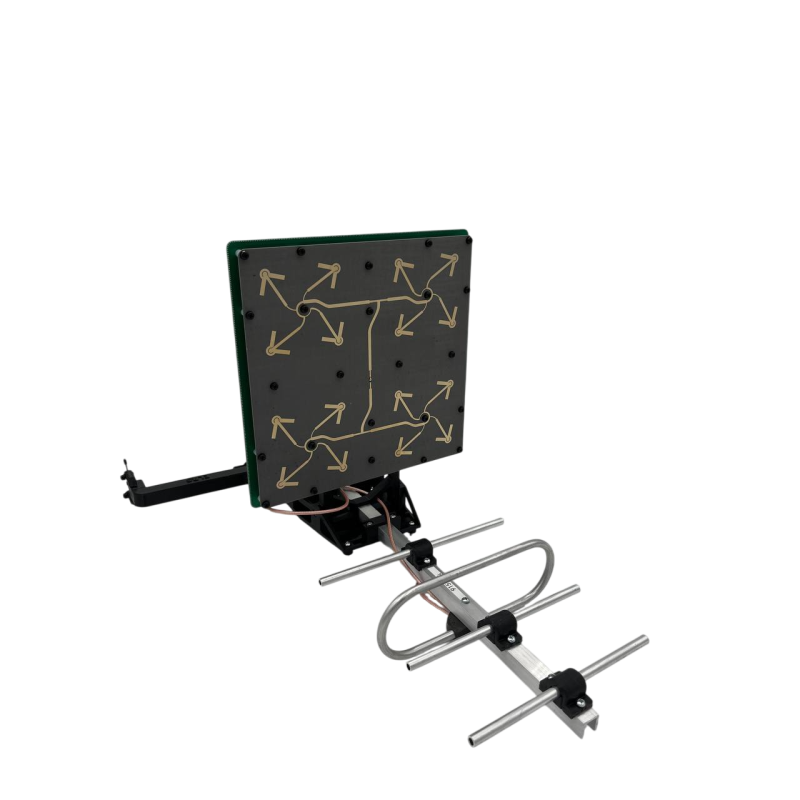

• Control antenna: Yagi 750 MHz with selectable frequency range from 700 to 1100 MHz for fine-tuning to specific tasks.

• Flexible power source: compatibility with 2-4s batteries ensures endurance and long operating time (battery not included).

Modification options: We offer the option to adjust or refine the equipment according to individual customer needs: replacement of reception/transmission modules, selection of alternative antennas, or adjustment of ranges for specific tasks.

Repeater Specification Form

Below are the key items considered in the configuration and specification of this repeater: manufacturer BNBFly, brand SkyReach, compatibility with Matrice 30, Scream Industries 5.8GHz 19.5dBi RHCP antennas, VRX SkyZone Steadyview or Foxeer Wildfire 5.8GHz, VTX 1080-1360 GHz with 9 channels and cooler, TrueRC Singularity 1.3 GHz antenna or dipole, TBS Crossfire + Emax Aeris Link TX ExpressLRS 915 MHz (2000 mW) control system, Yagi 750 MHz control antenna (700–1100 MHz), 2-4s power supply (battery not included).

By choosing this repeater, you get a ready-made solution for professional FPV use with the ability to fine-tune it for specific tasks and operator requirements. The device is suitable for applications in video filming, inspections, search and rescue operations, and other missions where stable video communication and control are critical.

For clarification of the configuration or to order individual modifications, please contact the seller. Choosing BNBFly and SkyReach — is an investment in reliability and professional quality equipment.
