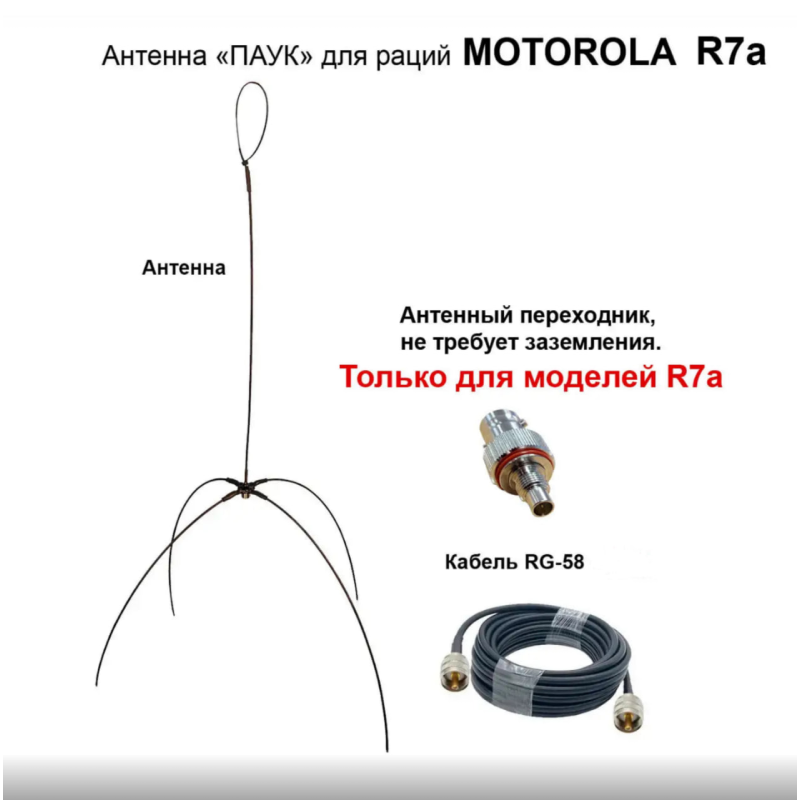

ANTENNA «SPIDER»
The "Spider" antenna is designed to enhance the reception and transmission of a portable two-way radio signal, thereby improving communication quality and range. The antenna was developed to meet the requirements of and for use by law enforcement and military agencies.

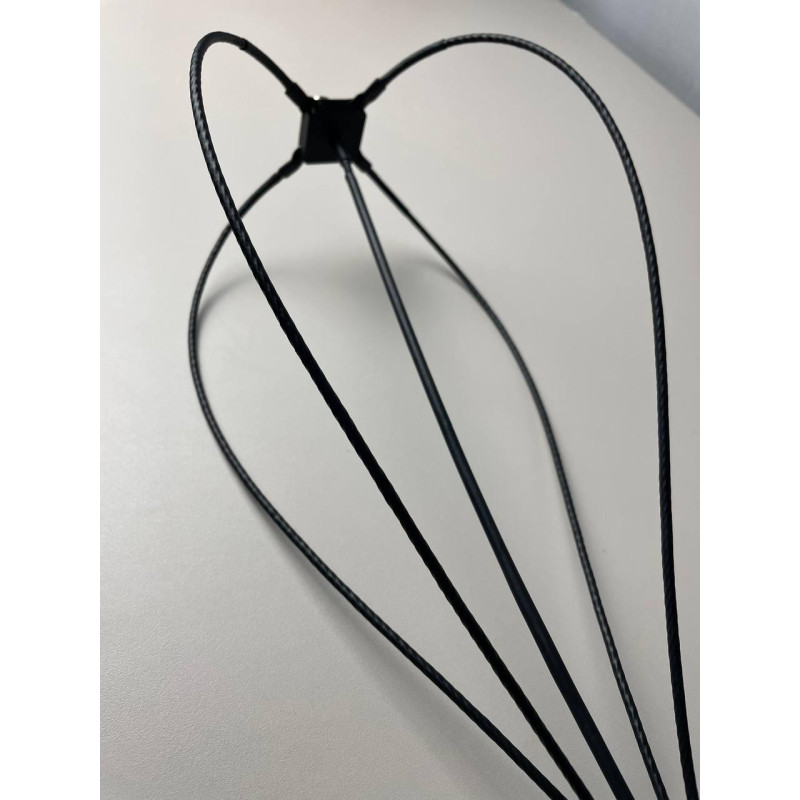

The antenna is made of flexible elements, allowing it to be folded during movement or active operations. It has proven excellent in field conditions during combat missions in various weather conditions, challenging terrain (altitude changes), dense forest plantations, etc. It significantly (2-3 times) increases the radio communication range for portable two-way radios from various manufacturers.
The antenna can be suspended at any height (house roofs, trees, poles, towers, etc.). It is convenient to use when it is necessary to provide radio communication with shelters (dugouts, bunkers, trenches, basements, etc.); in this case, the antenna is deployed externally, thus ensuring both personnel safety and reliable communication.

Electrical characteristics:
Type: 1/4 whip antenna ÷

Operating range: 136 MHz to 174 MHz
400 MHz to 470 MHz
Input impedance: 50 Ω
Horizontal radiation pattern: 360 (omnidirectional)
Polarization: vertical
Detailed description
Mechanical characteristics:

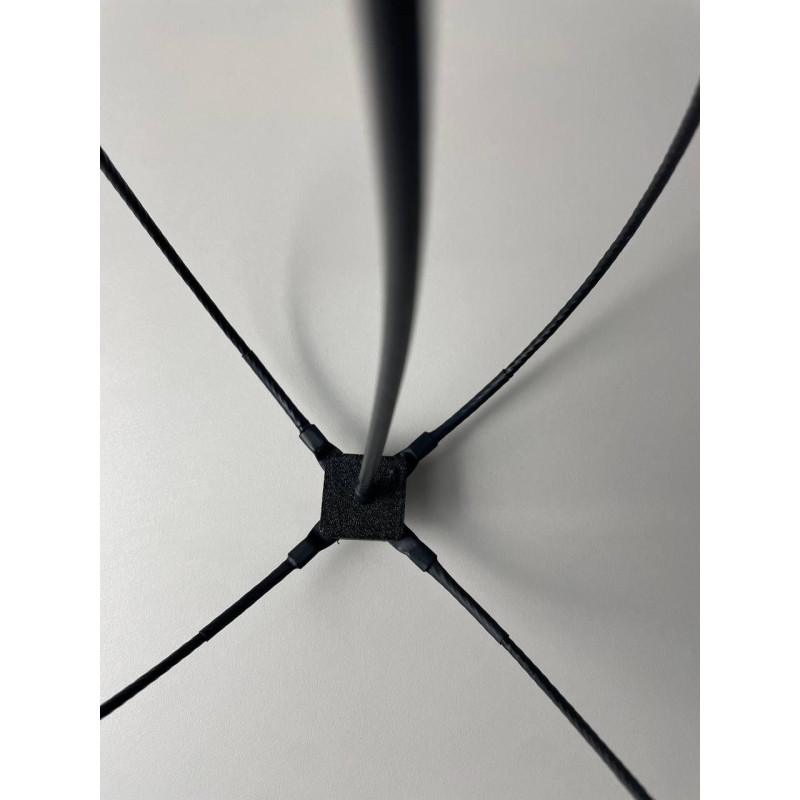

- length: 53 cm + four counterweights of 53 cm each.
- material: metal cable

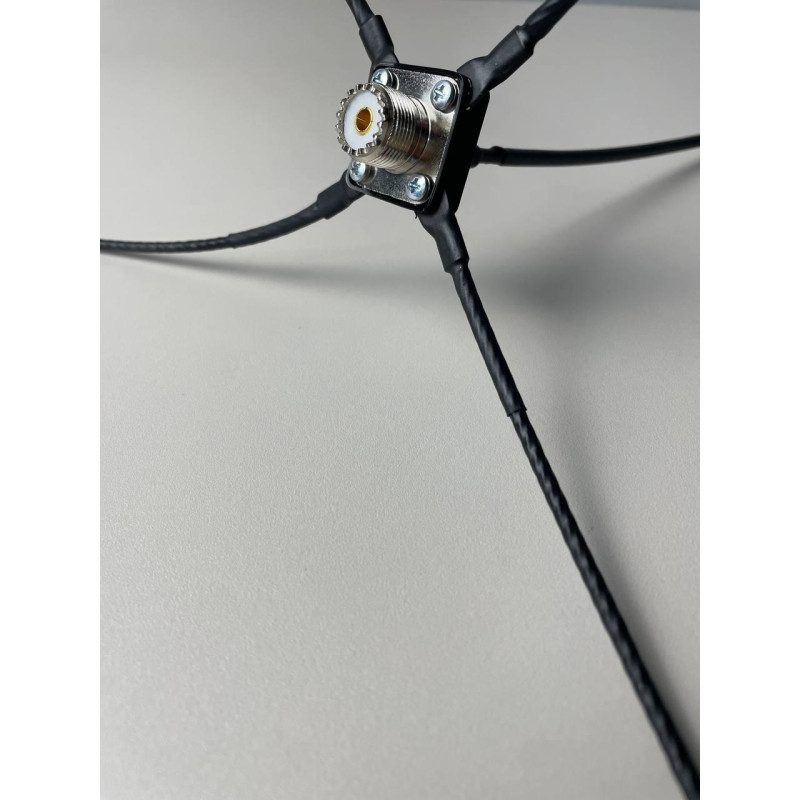

- connector type: PL-259 female
- color: black

The antenna has an omnidirectional radiation pattern. The radiating elements are enclosed in heat shrink tubing. A UHF PL-259 (female) connector is used to connect the antennas to the cable. All models are equipped with a universal mounting loop.
