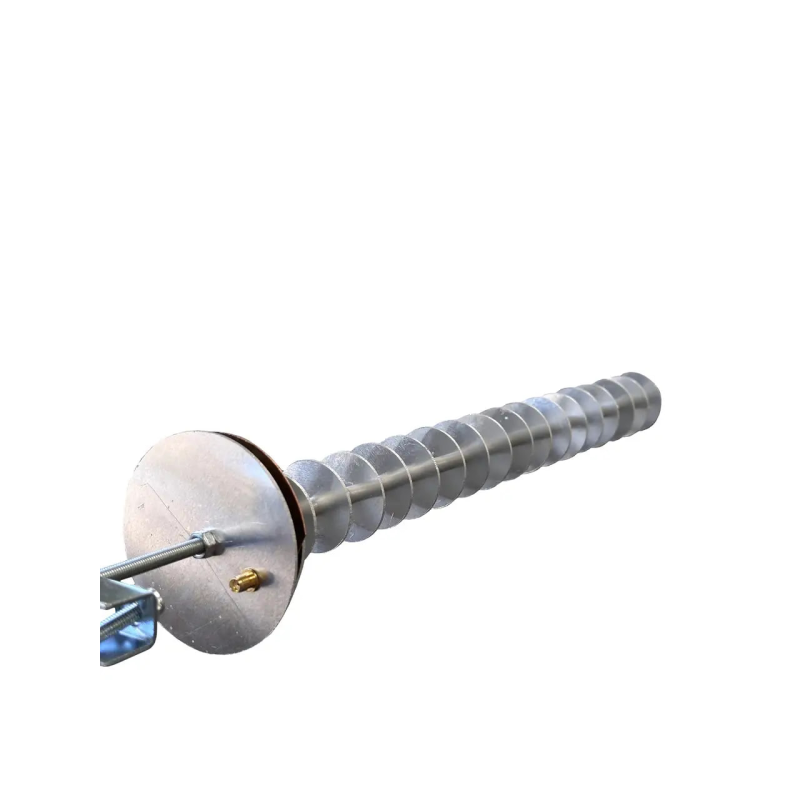

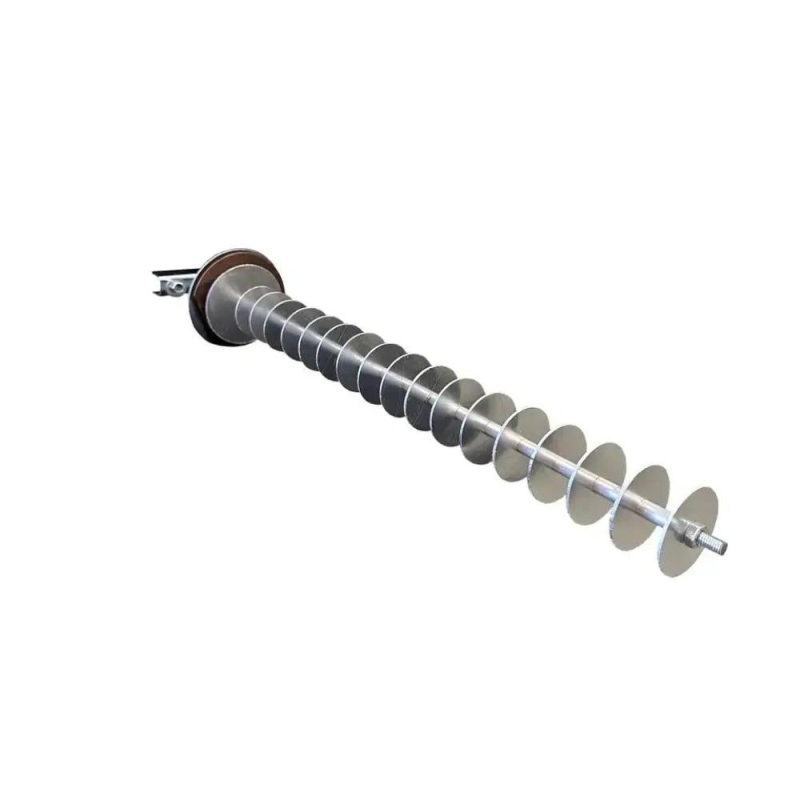

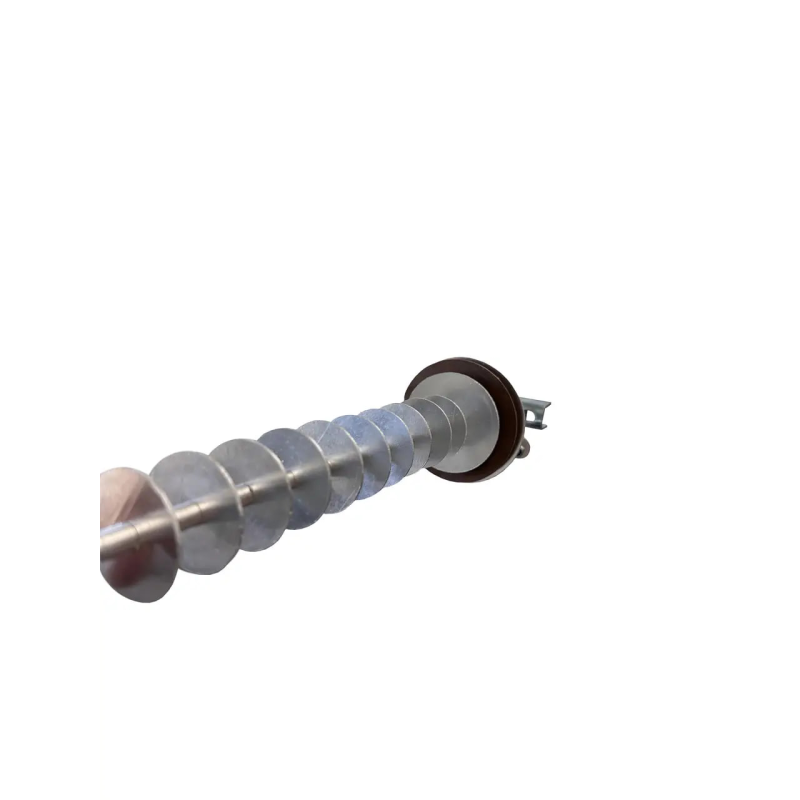

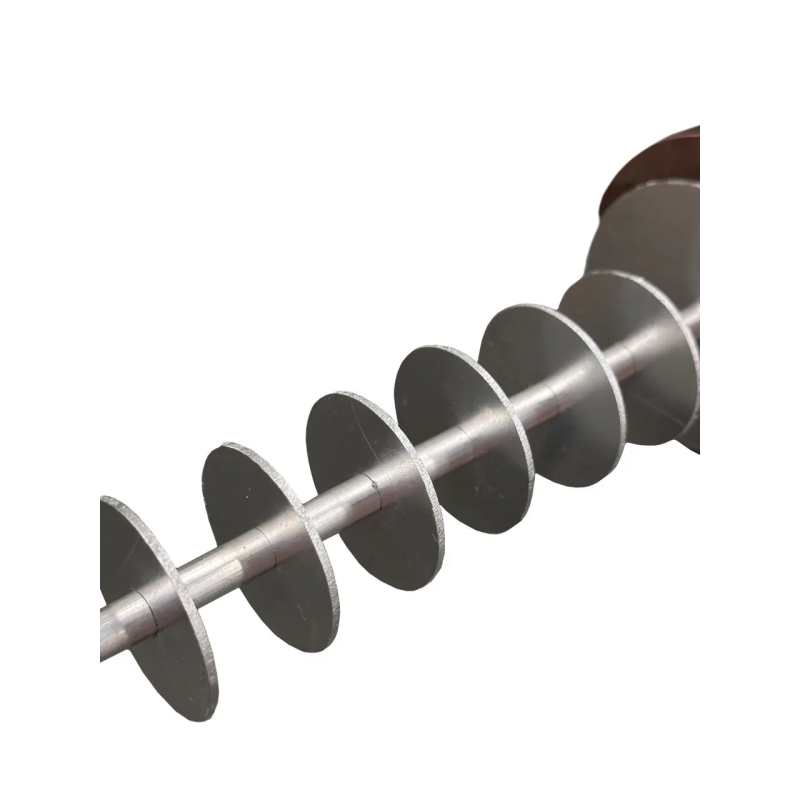

Yagi Antenna for Drone Ground Control Stations (2.1-2.3 GHz, 15 dBi) SKYNOVA
This proprietary Yagi antenna is an excellent choice for drone ground control stations, providing a flight range of up to 50 km. Thanks to its compact size (up to 50 cm) and robust design, it ensures reliable communication even in challenging operating conditions.
Advantages:
- ✅ Compact size: easy to transport and store.

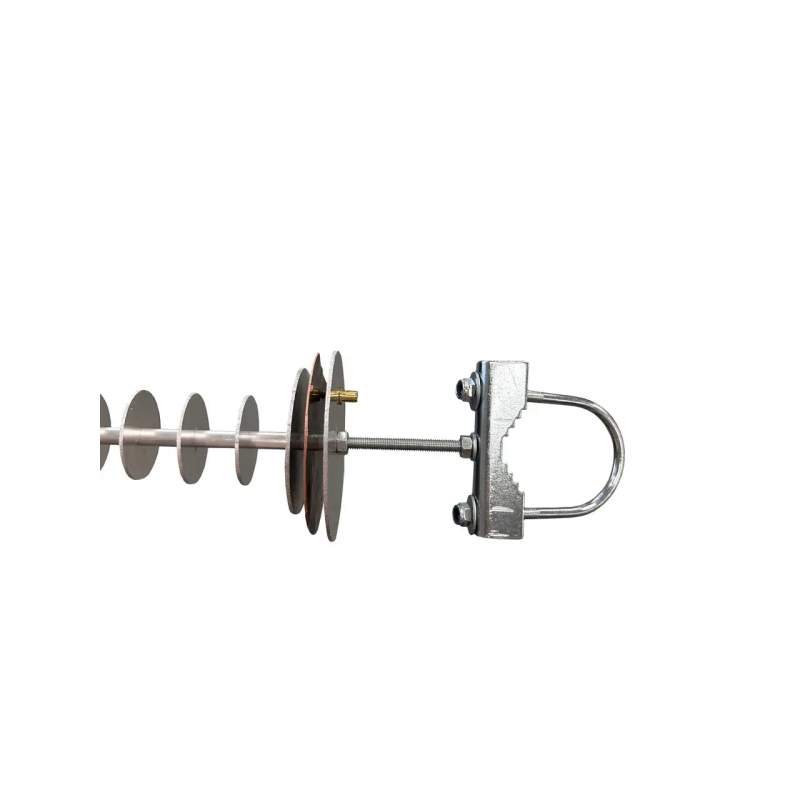

- ✅ Universal mounting: U-bolt pipe clamp for easy installation.

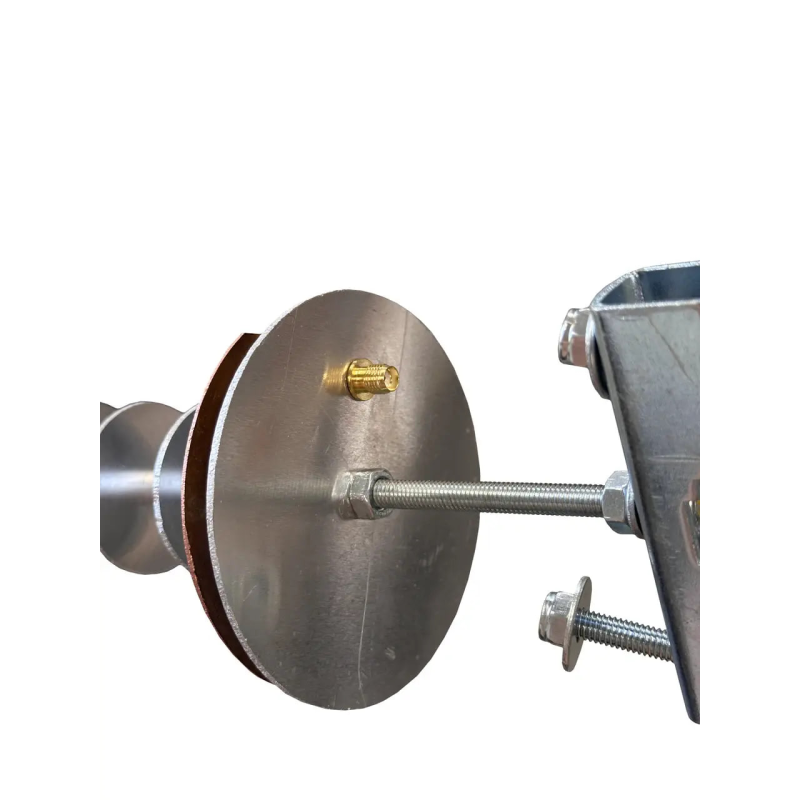

- ✅ Convenient connector: SMA-Female for connecting a cable of the required length.
- ✅ Reliable design: the antenna will not be damaged even by a fall.
Specifications:
- ✅ Gain: 15 dBi
- ✅ Frequency range: 2.1-2.3 GHz
- ✅ VSWR at center frequency: 1.1
- ✅ Materials: copper, aluminum
- ✅ Connector: SMA-Female
- ✅ Mounting: U-bolt
- ✅ Flight range: up to 50 km
- ✅ Polarization: linear (vertical or horizontal)
- ✅ Impedance: 50 Ohm
We are the manufacturer of this antenna and are ready to adapt it to your specific requirements for maximum efficiency. The quality and versatility of this antenna make it an excellent choice for controlling drones and other unmanned technologies.
