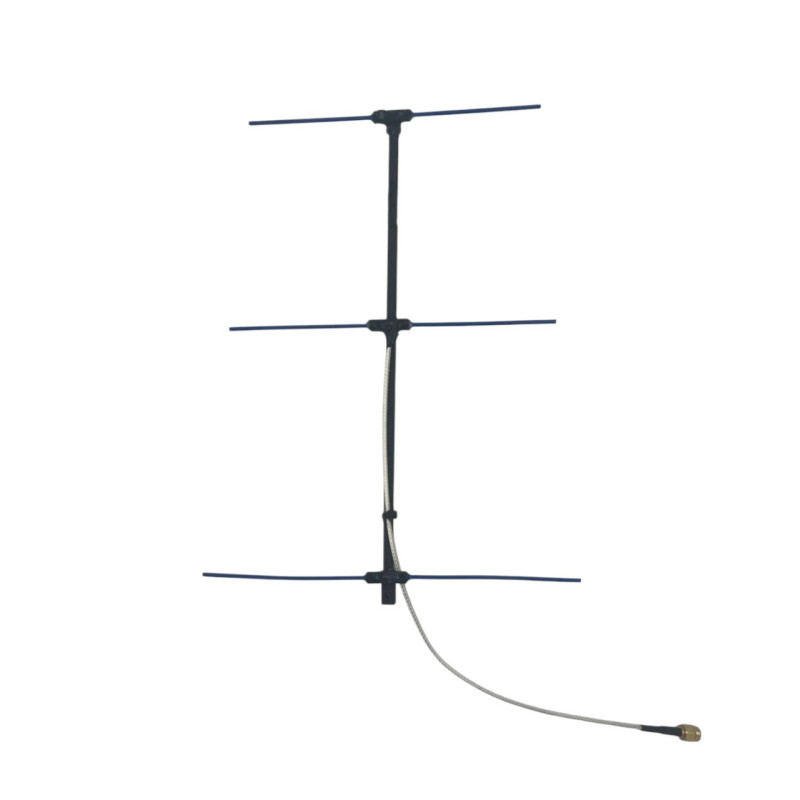

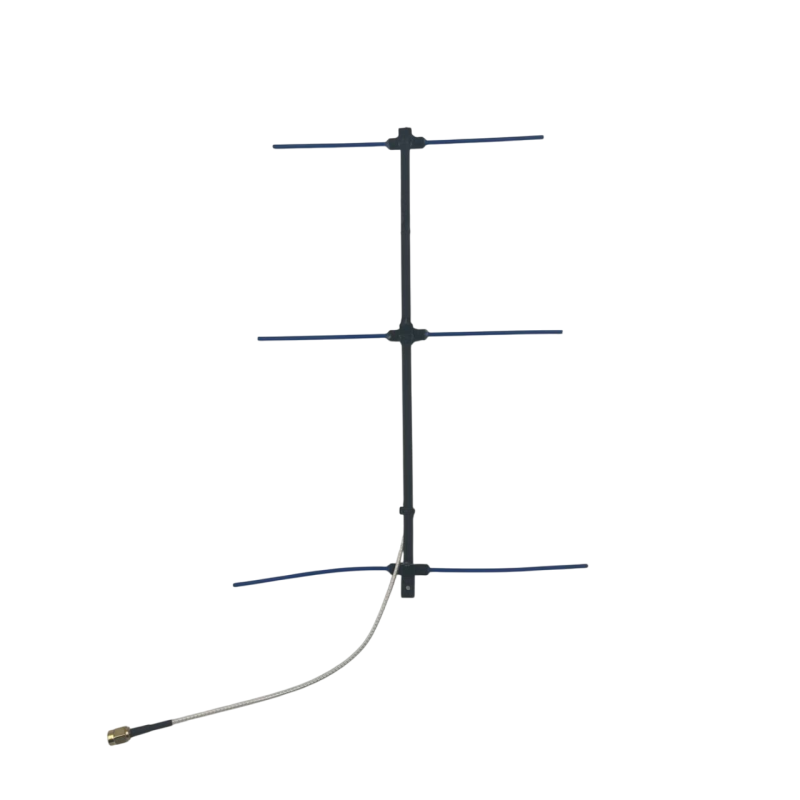

Yagi Antenna 1050MHz for Flying Repeaters 7.7dBi SMA by SkyReach

A professional directional Yagi antenna designed specifically for use in flying repeaters and FPV drones. This antenna is designed to operate in the 1050 MHz range, providing 7.7dBi gain and linear polarization, which makes the signal more stable over long distances and reduces transmission losses. The lightweight plastic construction features an SMA connector and a 240 mm connection cable, simplifying installation on platforms with limited space. The antenna weighs only 22 g, so it does not significantly affect the drone's lift capacity.

This model increases the communication range up to 15 km under optimal conditions and has an extended directional pattern: VSWR not exceeding 1.1, which guarantees minimal output power losses and maximum transmission efficiency. The antenna is ideal for repeaters, transmitters, and other devices where signal directionality and stable long-distance connection are important.

Available Frequency Options

In addition to the 1050 MHz model, the lineup includes options: 700 MHz, 750 MHz, 780 MHz, 800 MHz, 850 MHz, 900 MHz, 950 MHz, 1000 MHz, 1050 MHz.

Specifications

• Frequency: 1050 MHz
• Polarization: Linear
• Gain: 7.7 dBi
• Connection cable length: 240 mm
• Connector: SMA
• Material: Plastic
• Weight: 22 g
• Transmission range (approximate): up to 15 km
• VSWR: not exceeding 1.1

Package Contents

• 1 x Directional Yagi antenna

Manufacturer: SkyReach

Category: Antennas > Yagi Antennas

The SkyReach 1050MHz Yagi antenna is a reliable solution for those who need a directional signal with high gain and low weight for installation on FPV drones or autonomous repeaters. It combines a durable plastic casing, a convenient SMA connector, and technical parameters that allow it to operate at distances up to 15 km with low VSWR values, which is especially important for maintaining transmission quality and reducing power losses.
