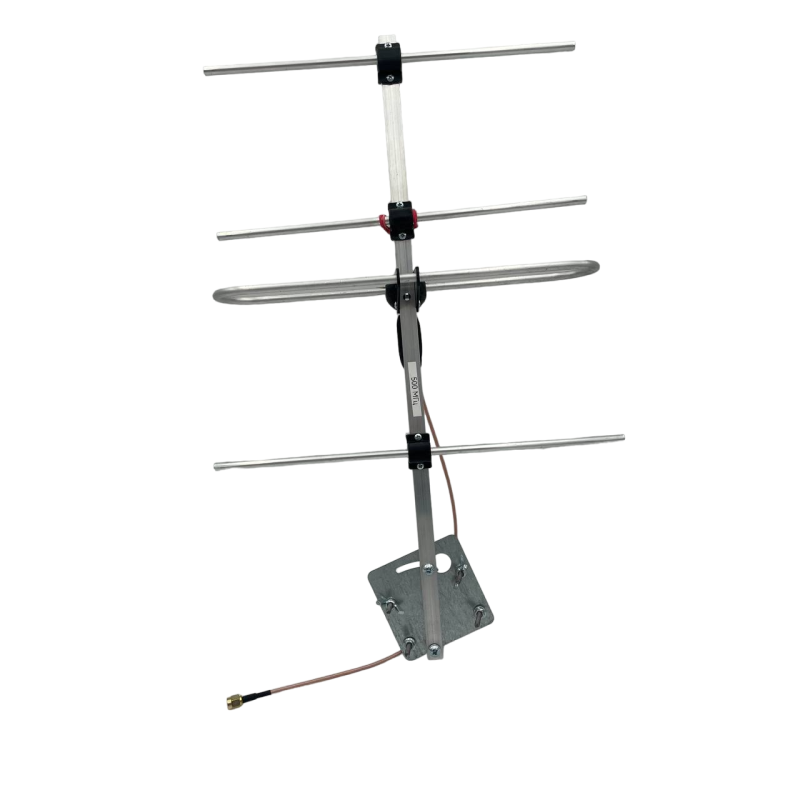

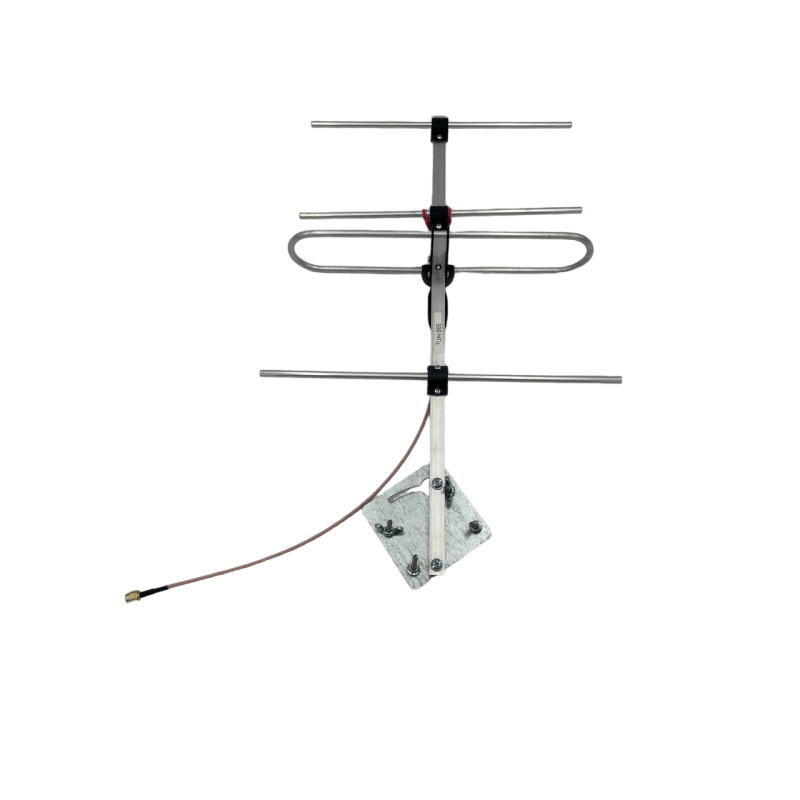

Directional mini Yagi antenna 500 MHz with 8.6 dBi gain

Manufacturer: SkyReach. Category: Antennas > Yagi Antennas. This directional mini Yagi antenna is designed for stable and powerful reception and transmission at 500 MHz. With its high gain and narrow beamwidth, it provides precise signal direction, minimizes interference, and improves communication quality in challenging conditions.

Key Features

• Frequency: 500 MHz
• Polarization: Linear
• Gain: 8.6 dBi
• Beamwidth: 40°
• Input Impedance: 50 Ω
• SWR: 1.1
• Number of Directors: 2
• Connection Cable Length: 410 mm
• Connector: SMA
• Material: Aluminum
• Dimensions: 370 x 198 x 60 mm
• Weight: 191 g

Advantages

• High Gain 8.6 dBi: Allows for stable and high-quality signal reception at distances where it is critical for system operation.
• Narrow Beamwidth 40°: Ensures precise direction and reduces the impact of side signals and interference.
• Low SWR (1.1): Minimizes signal reflection and loss, increasing the efficiency of the communication link.
• Corrosion-Resistant Material: Aluminum construction combines lightness and strength, making the antenna reliable for outdoor use.
• Compact Dimensions and Low Weight: 370 x 198 x 60 mm and 191 g allow for easy integration of the antenna into various installations and systems.
• SMA Connector and 410 mm Connection: Ensure easy installation and compatibility with a wide range of equipment.

The antenna is suitable for use in systems where precise signal direction, communication stability, and minimal losses at 500 MHz are important. It will be an excellent choice for radio communication, point-to-point amplification links, and specialized transceiving systems requiring high sensitivity and selectivity in a compact size.
When considering this model, pay attention to the compatibility of the SMA connector and your equipment's parameters (50 Ω) to achieve optimal performance. The antenna has a simple design and low weight, which facilitates mounting on masts, device enclosures, or in integrated solutions.
