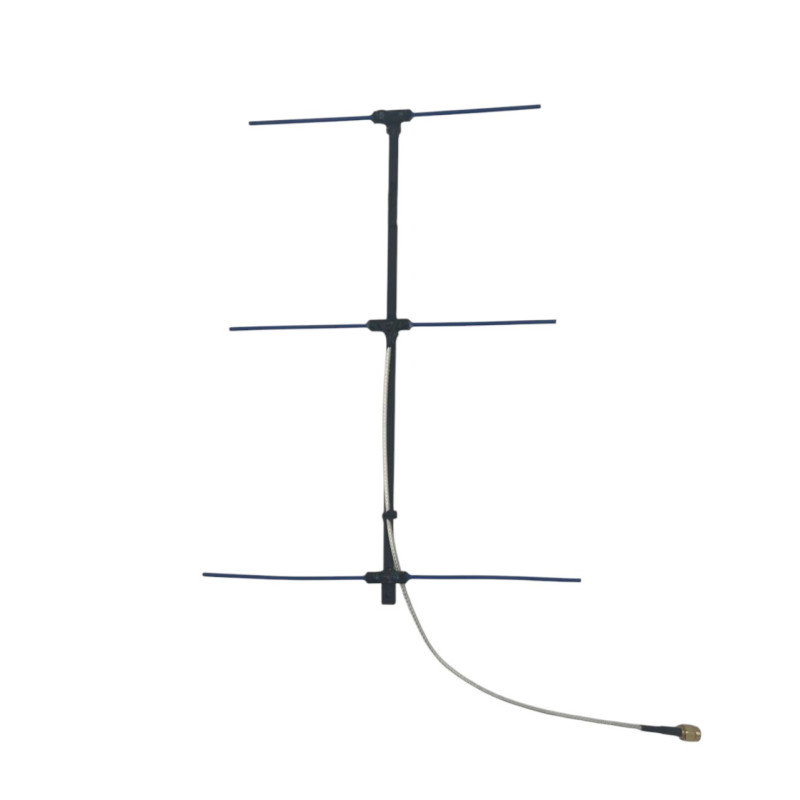

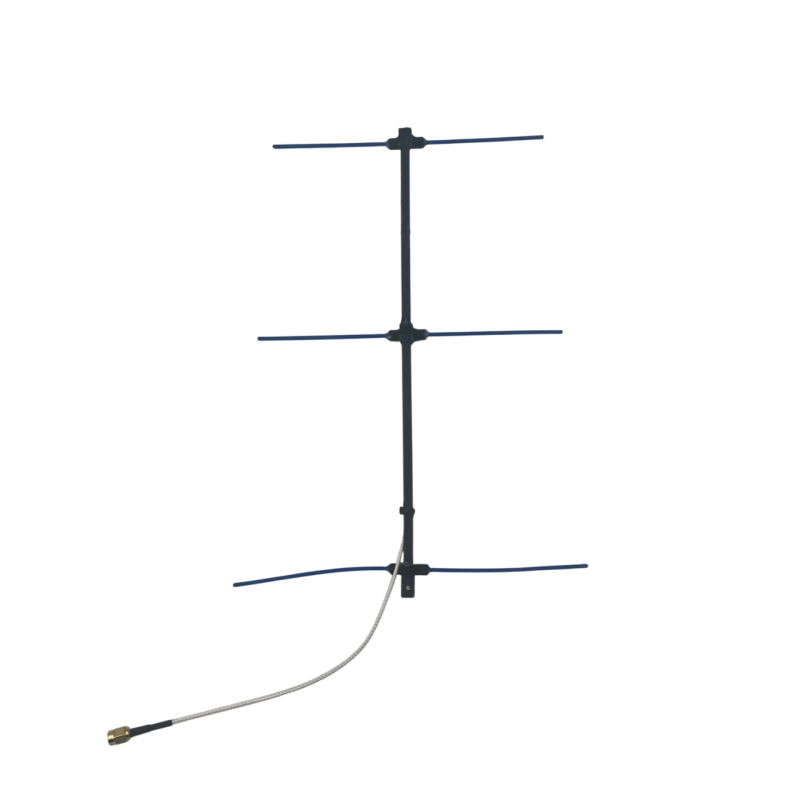

Yagi Antenna 1100MHz 7.7dBi SMA by SkyReach

The Yagi antenna for airborne repeaters for FPV drones from SkyReach is designed for reliable long-range signal transmission. This directional antenna is optimized for operation in the 1100 MHz frequency range and is equipped with an SMA connector, allowing for easy connection to common transmitters and repeaters.

With 7.7 dBi gain and linear polarization, the antenna provides a stable and clear radio signal even during long-distance flights, extending the communication range up to 15 km. The product is made of plastic, and the connection cable length is 240 mm. The antenna weighs 22 g, making it lightweight for installation on FPV drones and flight platforms.

Available Frequency Options

• 700 MHz
• 750 MHz
• 780 MHz
• 800 MHz
• 850 MHz
• 900 MHz
• 950 MHz
• 1000 MHz
• 1050 MHz
• 1100 MHz

Specifications

• Frequency: 1100 MHz
• Polarization: Linear
• Gain: 7.7 dBi
• Connection cable length: 240 mm
• Connector: SMA
• Material: Plastic
• Weight: 22 g
• Manufacturer: SkyReach
• Product Type: Antennas > Yagi Antennas
• VSWR not exceeding 1.1 (extended radiation pattern, minimal output power loss)

Package Contents

• 1 × directional Yagi antenna

The antenna is ideal for installation on repeaters, ground receivers, and any other devices requiring directional coverage in the ~1100 MHz range. Thanks to its compact weight and plastic casing, it does not overload the platform and withstands flight stresses. The item guarantees a high directivity coefficient and minimal signal loss, which is especially important for FPV flights and long-duration missions.
