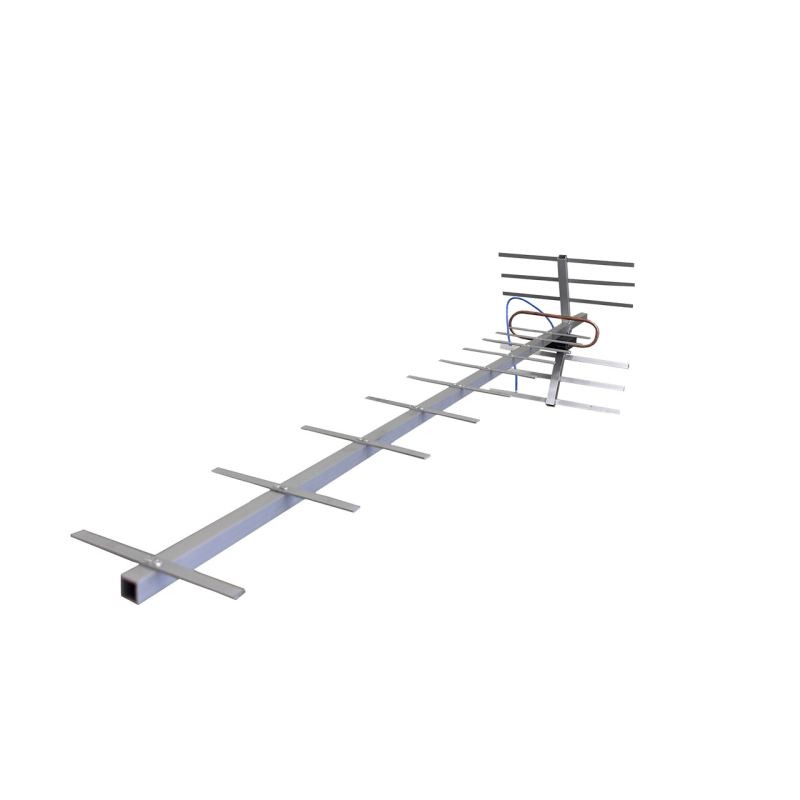

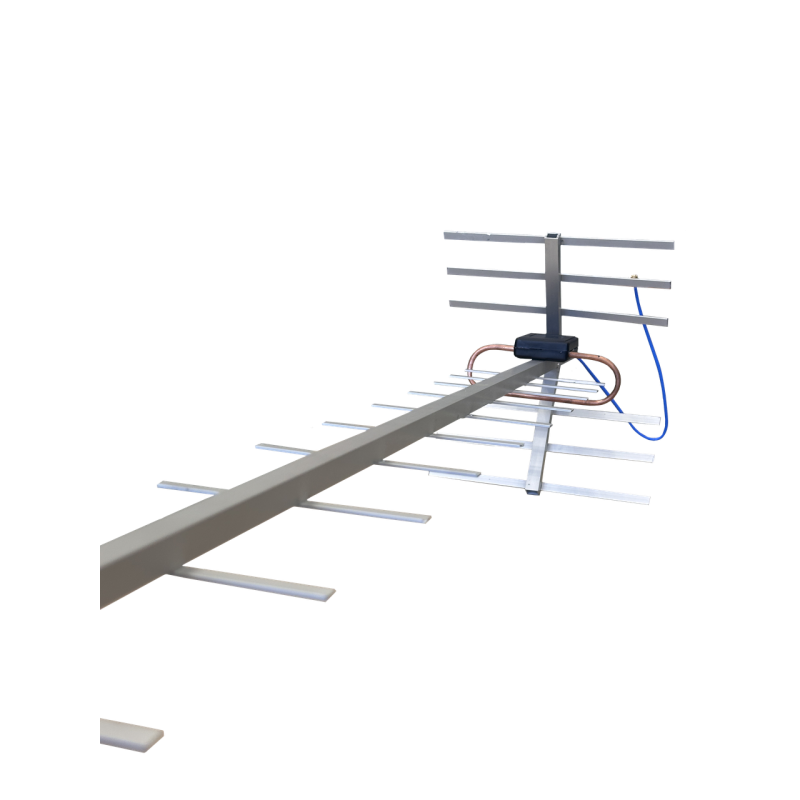

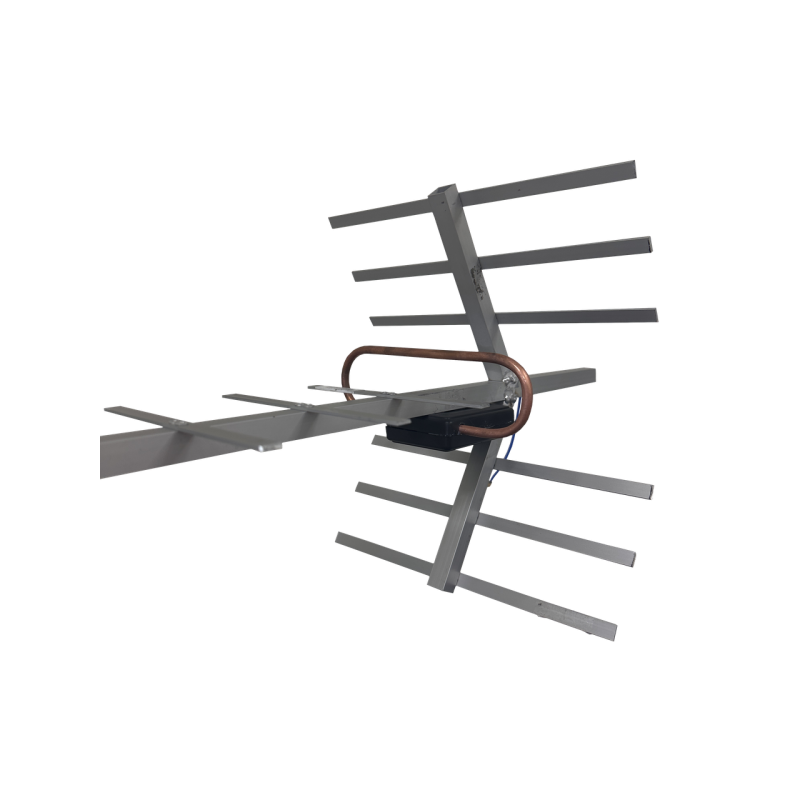

Yagi antenna for FPV system control
This antenna has a wide frequency range:
From 670 to 870 MHz (12-15dBi gain across the entire range)
Gain chart for 670-870 MHz antenna:
VSWR chart for 670-870 MHz antenna:
High-quality RG402 cable is used, with a transmission speed of 80% of the speed of light.

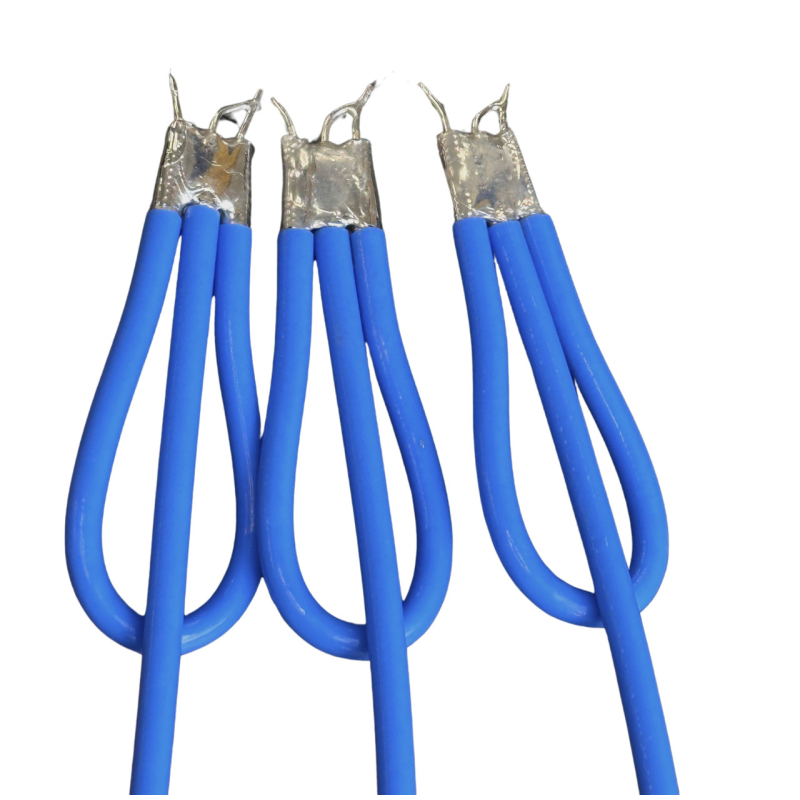

Balun for Yagi:
Specifications:
Antenna type: Yagi.
Purpose: FPV control on frequencies in the 670-870 MHz range.
Antenna material: aluminum.
Number of strengthening elements: 10.
Vibrator material: copper/aluminum.
Cable type: RG402.

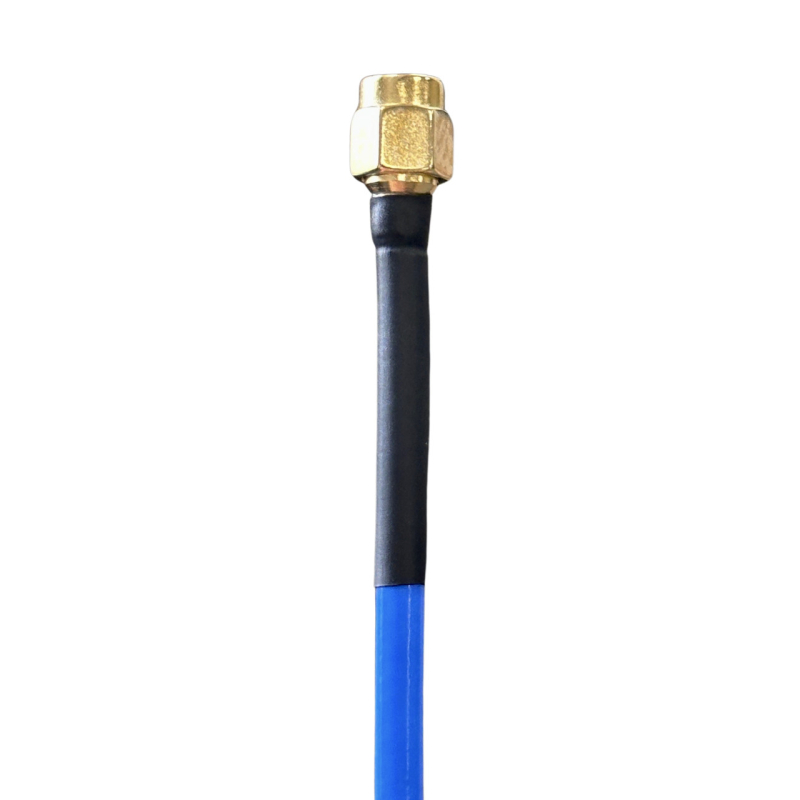

Connector type: SMA (for RG402 cable). Different connectors can be made for your devices.
Frequency: 670-870MHz (12-15dBi).
Connection cable length: 50cm (can be made longer upon request)

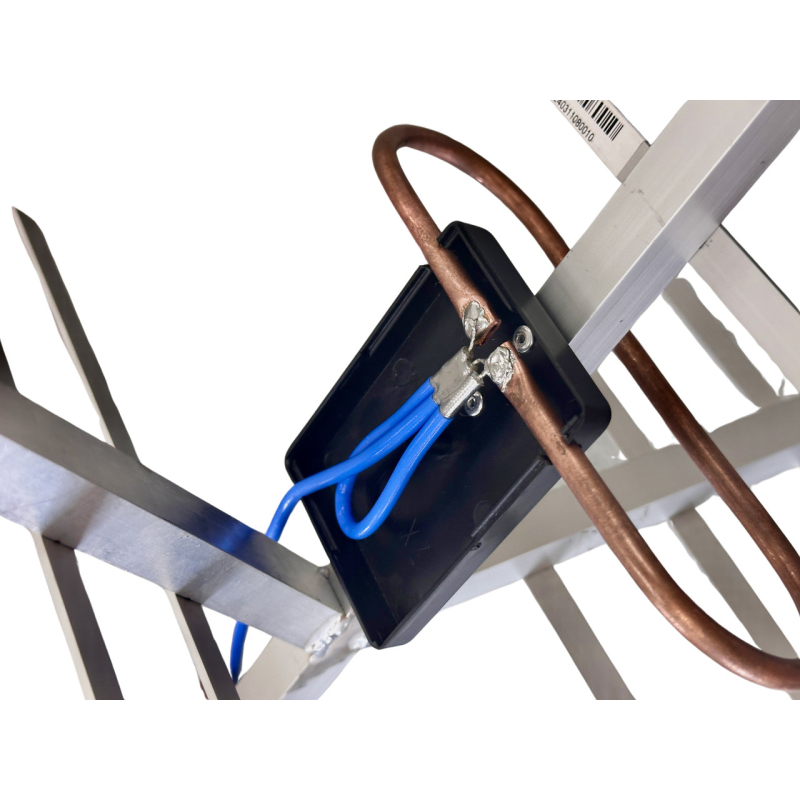

Balun: RG402 common ground (photo above).
VSWR: 1.2 (99% antenna efficiency)
