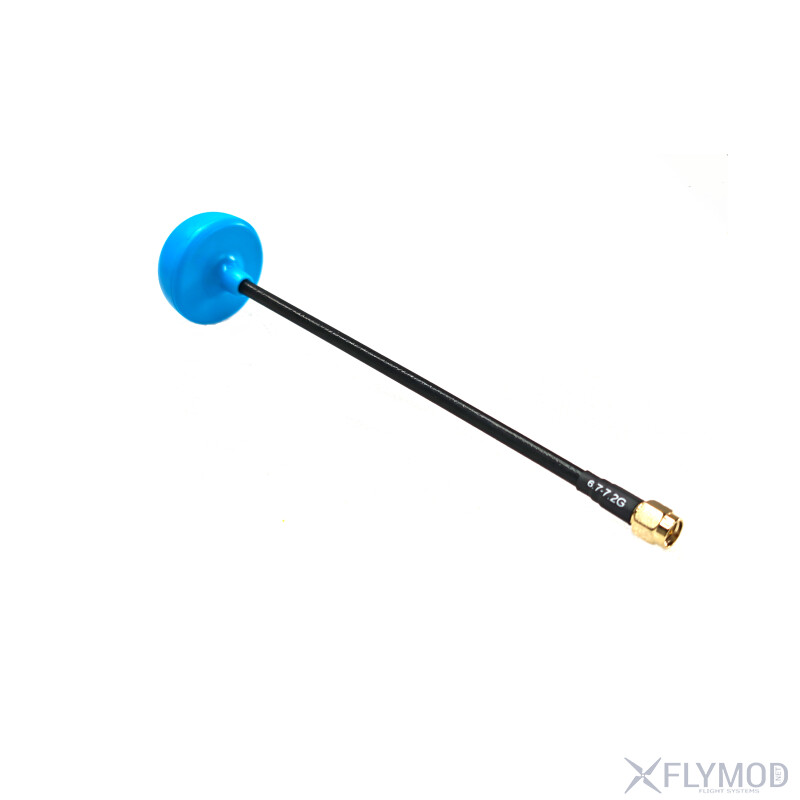

The Skyzone Mushroom Antenna is designed for stable operation in the high-frequency bands of 4.0-4.5GHz, 4.5-5.0GHz, 6.1-6.7GHz, and 6.7-7.2GHz. Thanks to its Right-Hand Circular Polarization (RHCP), it effectively minimizes the impact of multipath scattering. The omnidirectional radiation pattern ensures a stable signal. A durable casing and standard SMA connector make the antenna compatible with most modern video transmitters.

Features

• Available in certain frequency bands: 4.0-4.5GHz/4.5-5.0GHz/6.1-6.7GHz/6.7-7.2GHz
• Right-hand circular polarization helps reduce multipath signal scattering and improves connection stability
• Features a durable and reliable design

Specifications

• Frequency range: (option)
  • 4.0GHz-4.5GHz
  • 4.5GHz-5.0GHz
  • 6.1GHz-6.7GHz
  • 6.7GHz-7.2GHz
• Gain: 3dBi
• Polarization: Right-Hand Circular (RHCP)
• Directionality: Omnidirectional
• Connector: SMA
• Length (overall):
  • 4.0GHz-4.5GHz - 185mm
  • 4.5GHz-5.0GHz - 185mm
  • 6.1GHz-6.7GHz - 177mm
  • 6.7GHz-7.2GHz - 177mm
• Weight:
  • 4.0GHz-4.5GHz - 28g
  • 4.5GHz-5.0GHz - 28g
  • 6.1GHz-6.7GHz - 19g
  • 6.7GHz-7.2GHz - 19g

Package Contents

• 1 x Skyzone Mushroom Antenna 4.0-4.5GHz/4.5-5.0GHz/6.1-6.7GHz/6.7-7.2GHz (option)

Files

• Antenna Test Report (Passive-BW) 4.0-4.5GHz
• Antenna Test Report (Passive-BW) 4.5-5.0GHz
• Antenna Test Report (Passive-BW) 6.1-6.7GHz
• Antenna Test Report (Passive-BW) 6.7-7.2GHz
