Clover RHCP / Cloverleaf Antenna 4.9-6.2 GHz
Orders from 50 pcs. - 400 UAH per pc.
Orders from 100 pcs. - 380 UAH per pc.

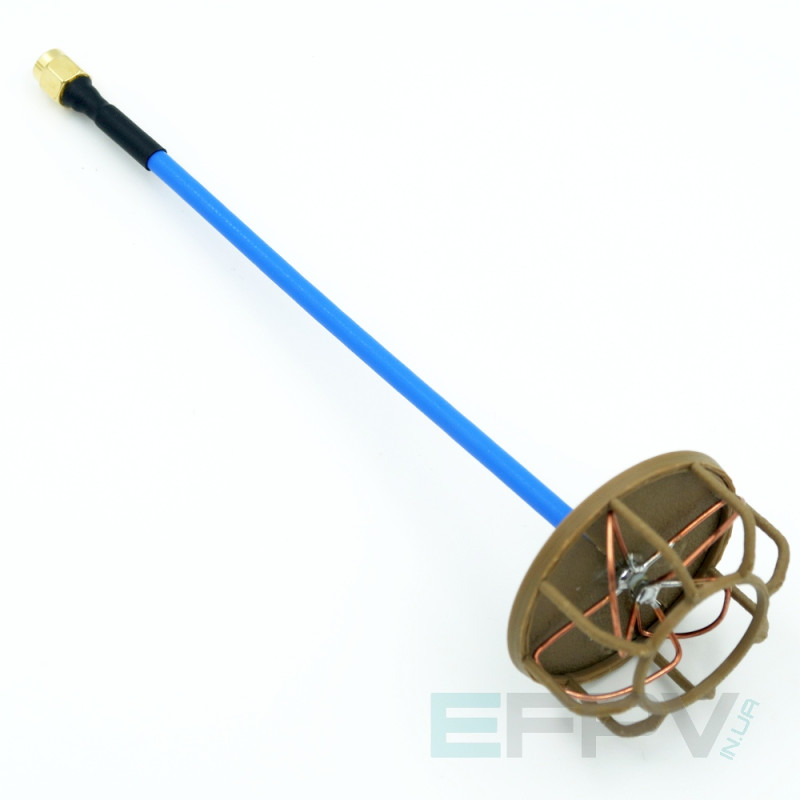

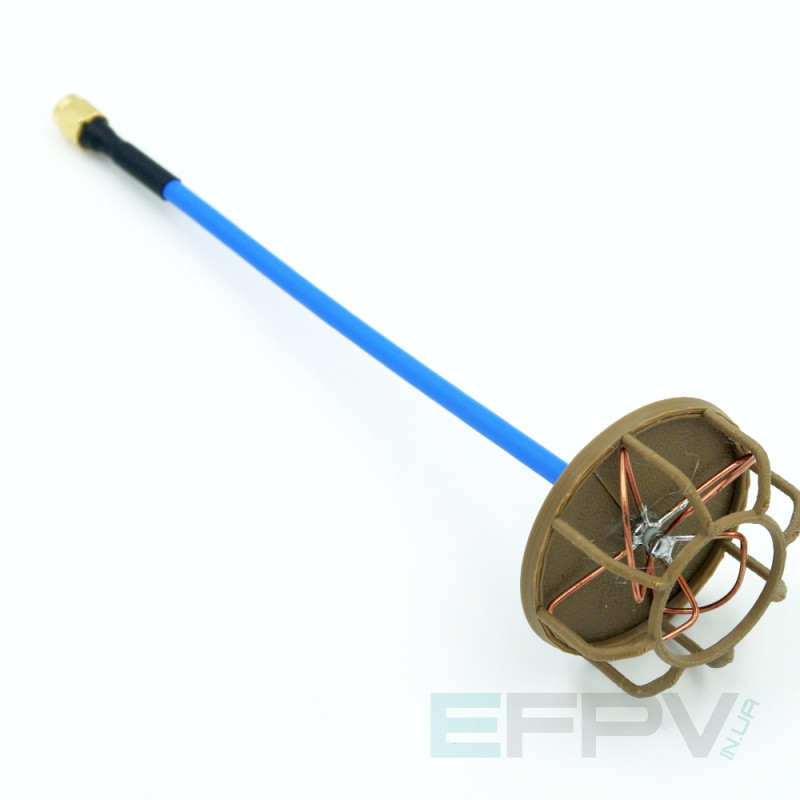

The Clover antenna (also known as Mushroom) from the brand — is a compact and reliable solution for stable wireless communication in the 4.9-6.2 GHz range. Its design resembles a three-leaf "clover" or mushroom, ensuring wide coverage and signal stability during maneuvering. The model combines lightweight plastic, a well-designed SMA connector, and optimal gain for applications ranging from FPV video transmission to industrial solutions.
Advantages and Purpose
The Clover / Mushroom RHCP antenna is suitable for users who value compactness and reliability: thanks to its right-hand circular polarization (RHCP), it minimizes signal loss during turns and reduces the impact of multipath reflections. The 360° beam angle provides uniform coverage around the antenna, making it ideal for drones, mobile platforms, and base stations where stable video communication and a telecommunication channel are crucial.
Technical Specifications
| Parameter | Value |
|---|---|
| Frequency Range | 4.9-6.2 GHz |
| Polarization | Right-Hand Circular (RHCP) |
| Beam Angle | 360° |
| Connector | SMA |
| Material | Plastic |
| Gain | 2.5 dBi |
| Size | 180*45*45 mm |
| Weight | 17 g |

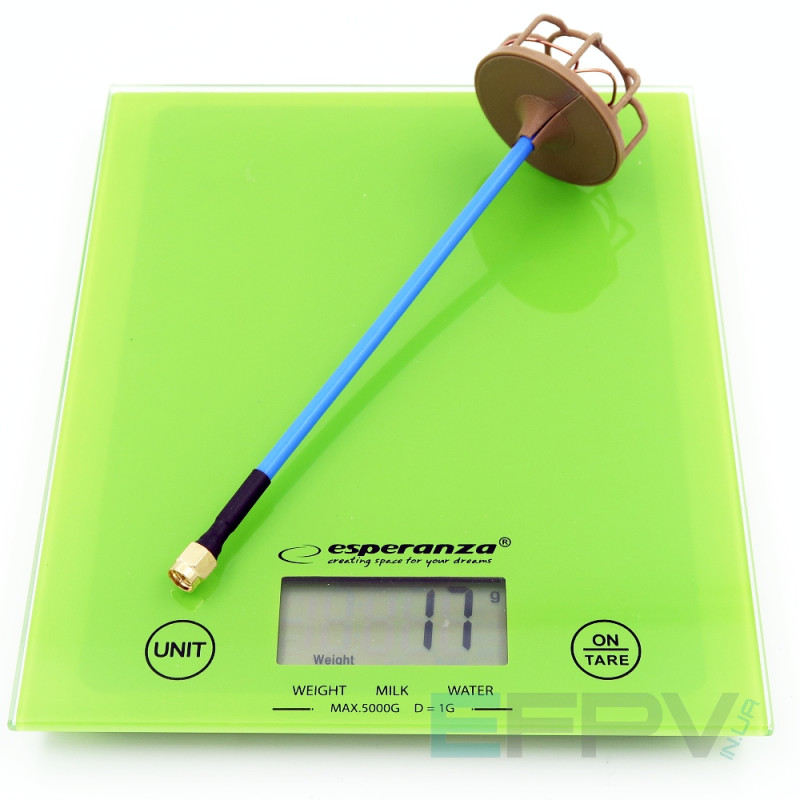

This model is made of lightweight yet durable plastic, ensuring minimal weight — just 17 g — and allowing for easy integration into drone and mobile device designs. The standard SMA connector makes it compatible with most transmitters and receivers on the market, ensuring versatility of application. The 2.5 dBi gain provides a balanced level of directivity and overall coverage in the specified frequency range.
Installation and Compatibility
The antenna has a standard SMA connector, so it can be easily connected to existing equipment with the appropriate interface. Its dimensions of 180x45x45 mm and low weight allow it to be mounted on drones, base stations, and other platforms where compactness and weight are important. Right-hand circular polarization (RHCP) reduces the impact of reflections and changes in reception orientation during movement.
Recommended for
- FPV enthusiasts and professionals who need stable video communication during flight.
- Engineers and technicians implementing wireless communication links in the 4.9–6.2 GHz range.
- Users who need a lightweight antenna with a universal SMA connector for quick installation and replacement.
The Clover / Mushroom RHCP antenna from — is a practical choice for a wide range of applications: from amateur FPV systems to professional telecommunication projects. Product category: Antennas > Circular Antennas > Clover - Mushroom Antenna.
