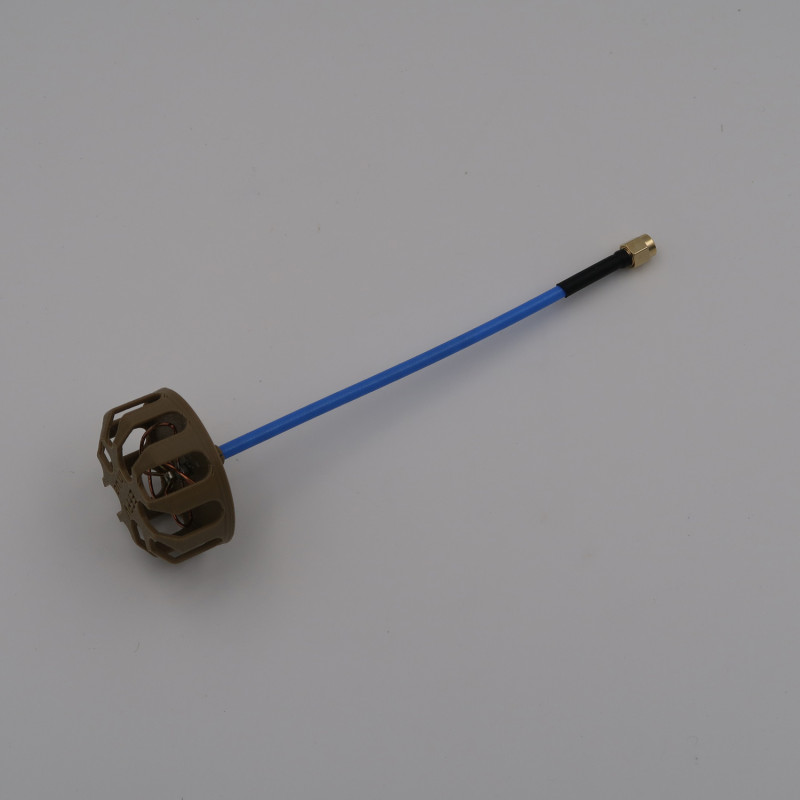

Clover (Mushroom) RHCP Antenna 6.0-7.5 GHz
The Clover (Mushroom) antenna is a highly efficient transmit-receive antenna for stable wireless communication in the 6.0-7.5 GHz range. The right-hand circular polarization (RHCP) model ensures reliable reception when equipment is rotating and reduces the effects of multipath signal propagation. Its compact "clover" or "mushroom" design makes the device lightweight, easy to install, and aesthetically pleasing, suitable for both amateur and professional solutions.
Manufacturer:. Product category: Antennas > Circular Antennas > Clover - Mushroom Antenna. This model is compatible with a wide range of radio transmitters and receivers where right-hand circular polarization and 360° coverage are required.
Advantages
- Stable right-hand circular polarization (RHCP) for reliable communication during maneuvering or equipment rotation;
- Operating range of 6.0-7.5 GHz, adapted for modern FPV and video applications;
- Uniform 360° coverage without "dead zones";
- Small dimensions of 180×40×40 mm and a weight of only 16 g allow easy integration of the antenna into compact platforms;
- Plastic housing ensures protection and minimal weight for field conditions;
- 2.5 dBi gain provides a balance between communication range and antenna compactness;
- SMA connector simplifies installation and quick antenna replacement in the field.
Technical Specifications
| Parameter | Value |
|---|---|
| Frequency Range | 6.0-7.5 GHz |
| Polarization | Right-Hand Circular (RHCP) |
| Beam Angle | 360° |
| Connector | SMA |
| Material | Plastic |
| Gain | 2.5 dBi |
| Size | 180×40×40 mm |
| Weight | 16 g |
The Clover / Mushroom RHCP antenna from is ideally suited for use in FPV systems, unmanned aerial vehicles, video transmitters, and other radio systems where reliable circular polarization and compact dimensions are required. With a gain of 2.5 dBi, the model provides high-quality signal reception and transmission without excessive increases in weight or overall dimensions. The SMA connector facilitates antenna installation and replacement during field operations.
The antenna demonstrates excellent performance in multipath propagation conditions and when equipment is maneuvering, making it suitable for both professional applications and amateur projects. The lightweight plastic housing and 16 g weight ensure easy mounting on various platforms, and the dimensions of 180×40×40 mm allow the antenna to be integrated even into compact equipment enclosures.
When choosing, pay attention to the compatibility of the SMA connector with your transmitter or receiver and the operating range of 6.0-7.5 GHz. The Clover / Mushroom RHCP antenna can be purchased in the online store.
