Clover LHCP Antenna / Left Clover 4.9-6.2 GHz
Orders from 50 pcs. - 400 UAH per pc.
Orders from 100 pcs. - 380 UAH per pc.

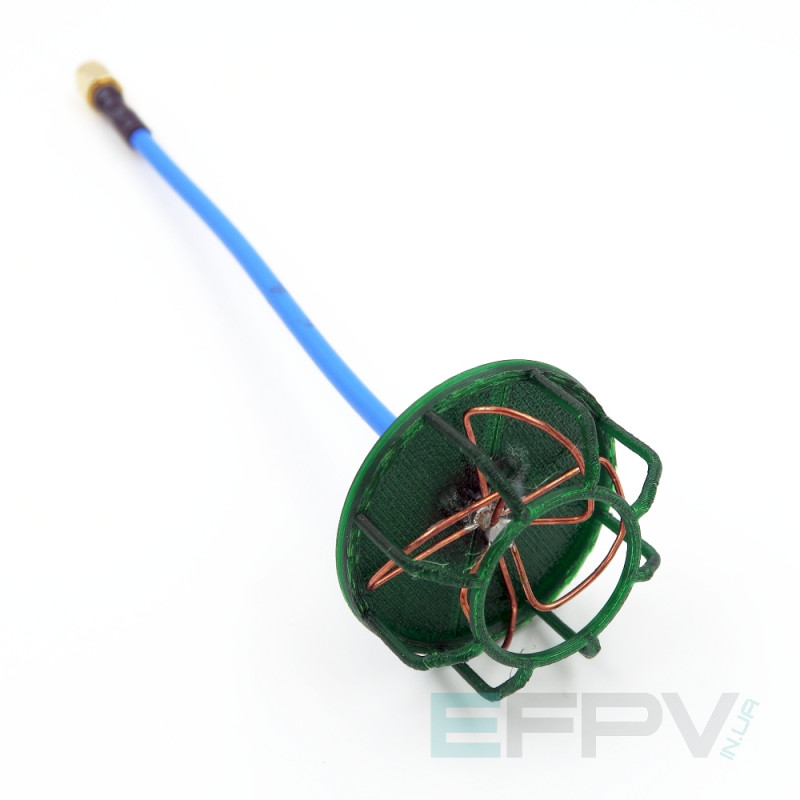

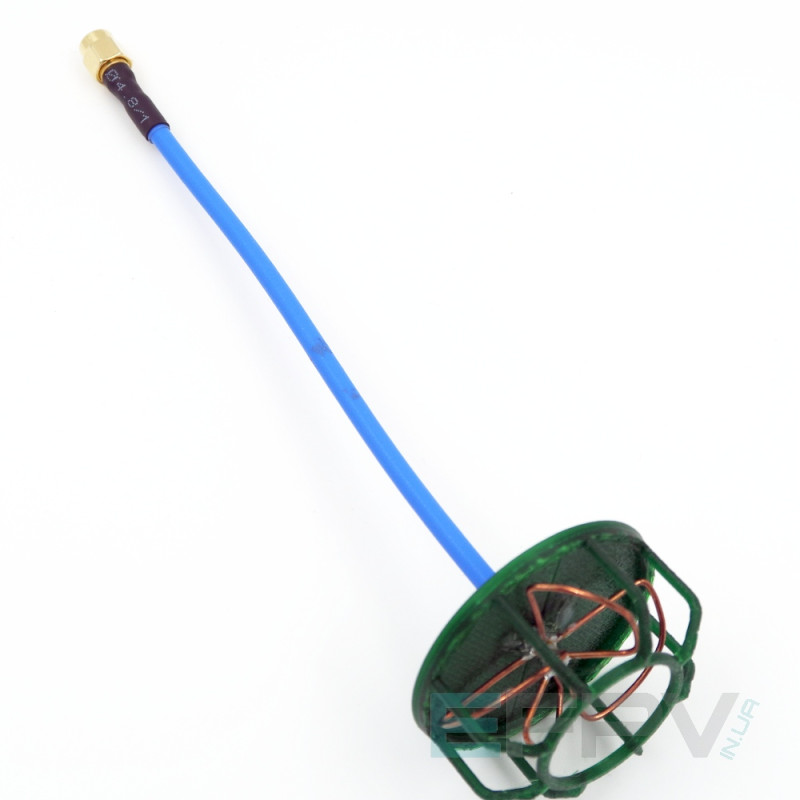

Product Description: The Clover (Mushroom) antenna is a compact and effective circularly polarized solution for the 4.9-6.2 GHz range. Thanks to its characteristic shape, resembling a three-leaf clover or a mushroom, the design provides uniform coverage in all directions and stable operation in interference conditions. The model is especially popular in FPV systems, wireless networks, and specialized radio communication applications where reliability, ease of installation, and versatility of operation are important.
The Clover/Mushroom antenna is made with a plastic casing, features left-hand circular polarization (LHCP), and is designed to provide 360° coverage. It combines small dimensions with good technical performance, making it suitable for both amateur and professional installations. Manufacturer:.
Advantages
- Left-hand circular polarization (LHCP) to reduce interference and improve connection stability.
- Wide operating range of 4.9-6.2 GHz, compatible with most modern transmitters and receivers.
- Compact size and light weight — 180*45*45 mm, 16 g — for convenient installation on drones and other equipment.
- Standard SMA connector for easy connectivity to most devices.
- Plastic casing provides protection and facilitates operation in field conditions.
Technical Specifications
| Parameter | Value |
|---|---|

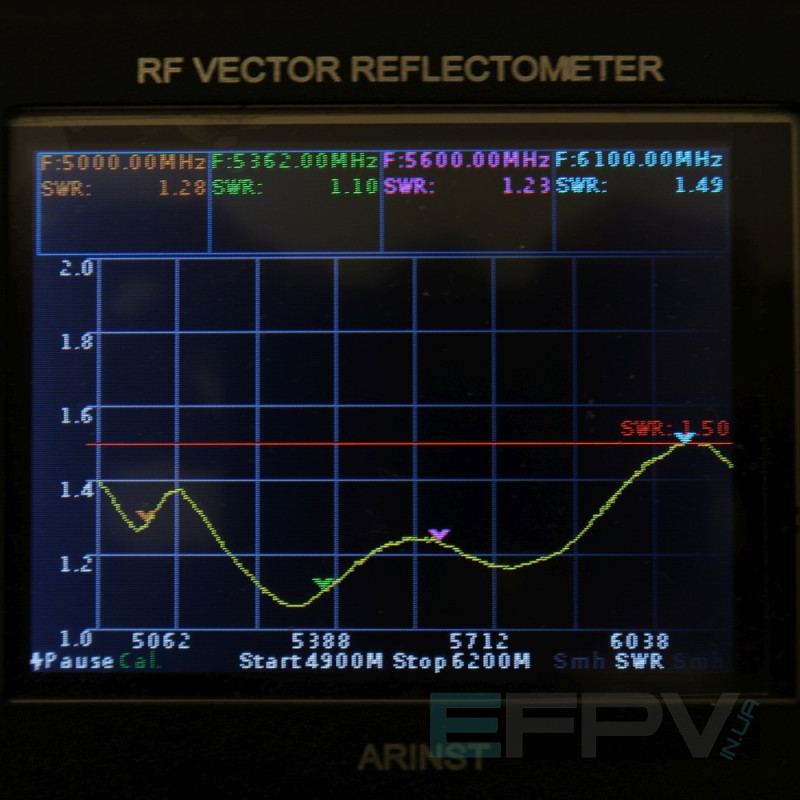

| Frequency Range | 4.9-6.2 GHz |
| Polarization | Left-Hand Circular (LHCP) |
| Beam Angle | 360° |
| Connector | SMA |
| Material | Plastic |
| Gain | 2.5 dBi |
| Size | 180*45*45 mm |

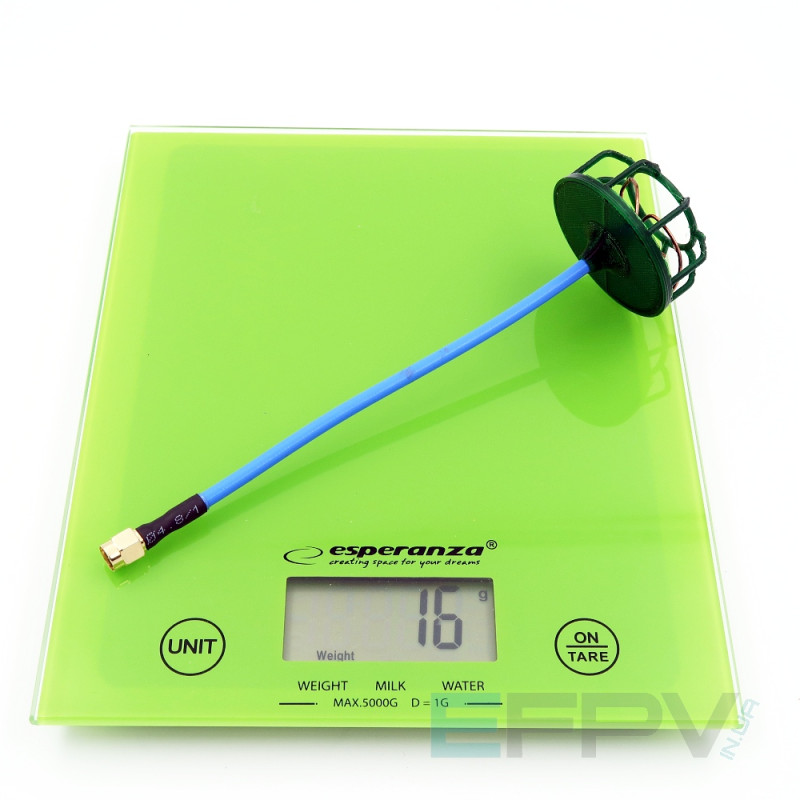

| Weight | 16 g |
| Manufacturer | |
| Product Type | Antennas > Circular Antennas > Clover - Mushroom Antenna |
This model is optimal for those seeking an easy-to-install and reliable antenna module for FPV flights, video transmissions, or creating wireless access points. Thanks to left-hand circular polarization, compatibility with receivers using the corresponding polarization is enhanced, and the risk of signal loss during platform rotation or banking is reduced. The small weight and dimensions have a negligible impact on the drone's overall mass, and the plastic casing facilitates installation and maintenance.
The Clover LHCP antenna from is available for order in the Flash Army online store. If you need a circular antenna with an operating range of 4.9-6.2 GHz, an SMA connector, and compact dimensions — this model will be a reliable choice for your projects.
