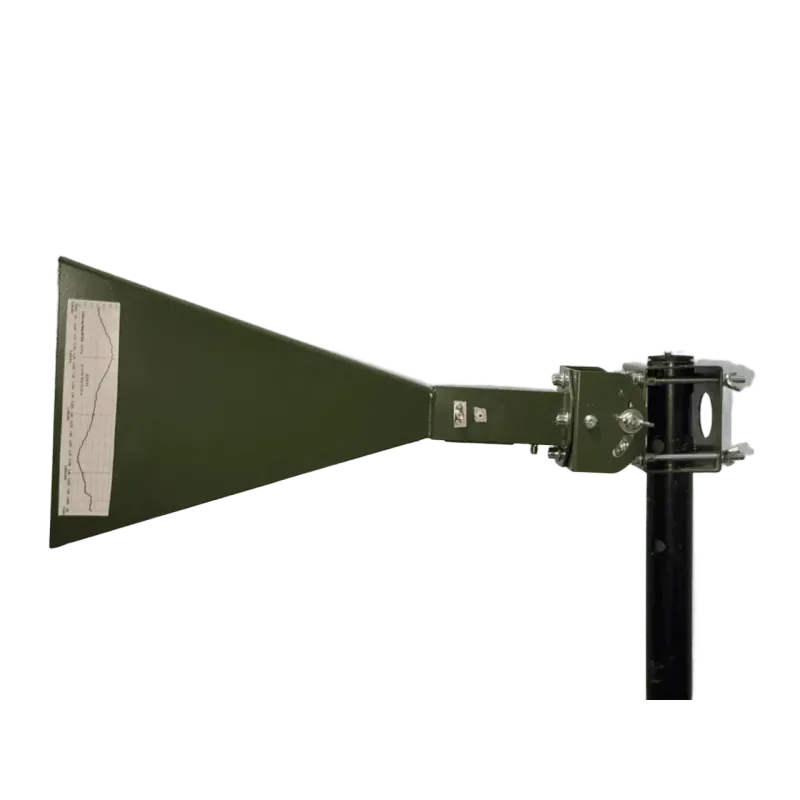

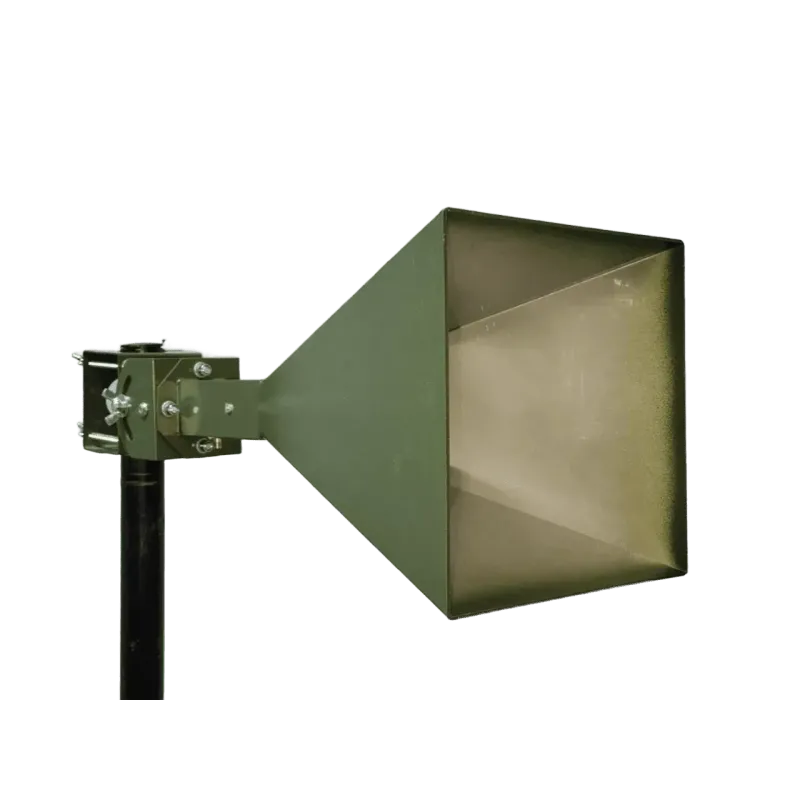

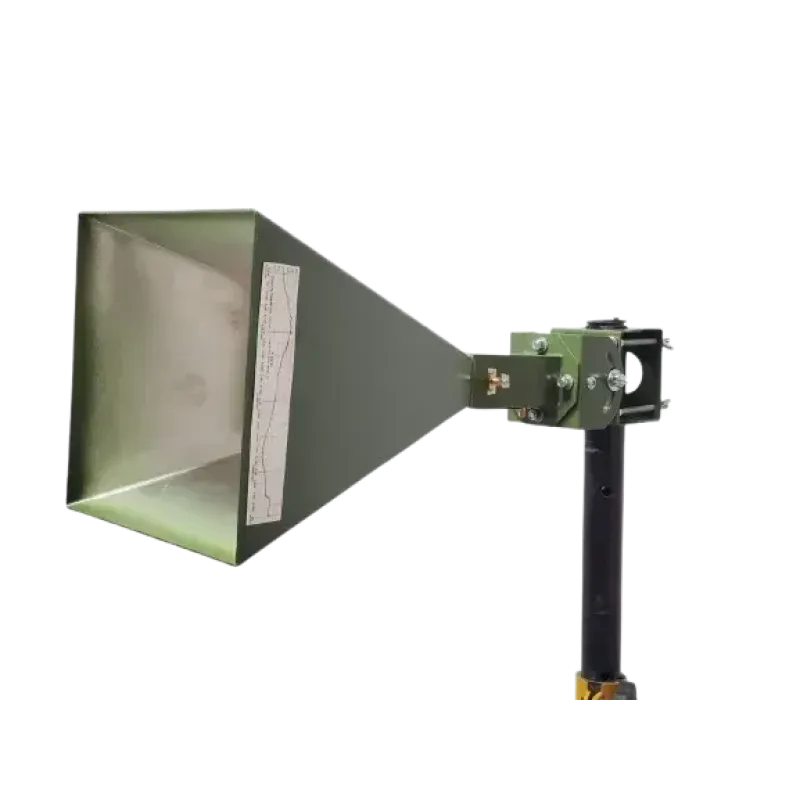

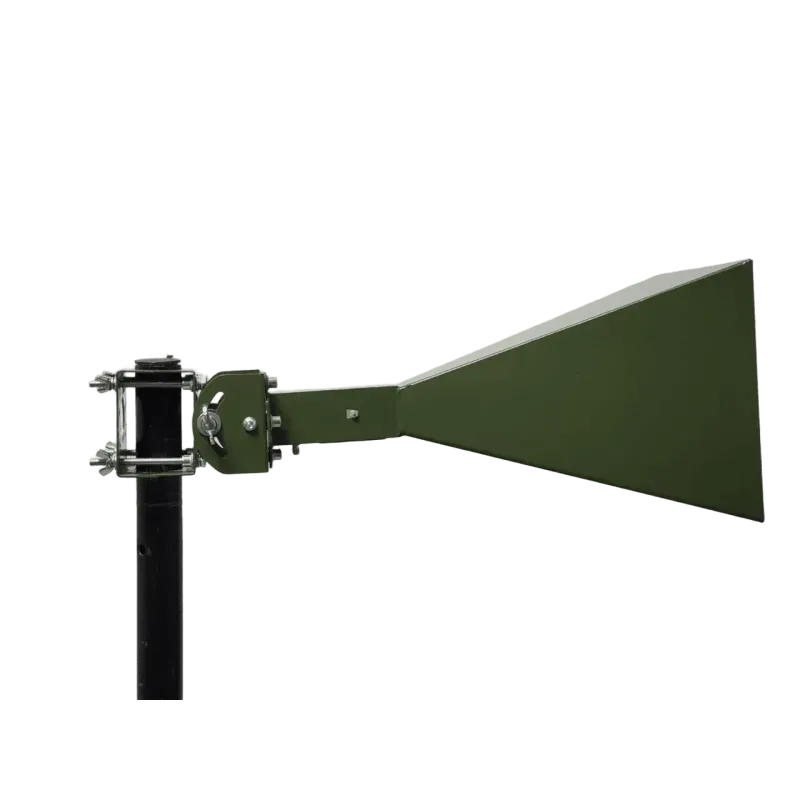

The HORN WiMAX horn antenna from TM «ROKS» is a professional high-performance solution for directional relay and building backbone communication channels in the 5-6 GHz range. Thanks to its high gain of 20 dB and linear polarization, the device ensures exceptional signal stability over significant distances, minimizing interference. This model is designed for specialists who value mobility and reliability, as it comes with a protective cover for convenient transport and field operation.
Purpose
-
Signal relay in WiMAX networks in the 5050-6000 MHz range.
-
Building stable point-to-point directional channels for corporate networks.
-
High-speed data and video stream transmission via wireless bridges.
-
Use in mobile communication complexes requiring rapid deployment.
-
Signal amplification in industrial areas with high levels of radio interference.
Technical Specifications
| Characteristic | Value |
| Operating Frequency Range | 5050-6000 MHz |
| Gain | 20 dB |
| Impedance | 50 Ohm |
| Polarization | Linear (vertical + horizontal) |
| Connector Type | SMA-female |
| Number of Connectors | 2 pcs. |
| Weight | 1.2 kg |
| Dimensions | 224x224x405 mm |
Materials and Construction
-
The antenna body is made of high-quality metal without additional painting to preserve maximum electrical characteristics.
-
The horn geometry is designed for a narrow beamwidth for precise energy focusing.
-
Compact design with an optimal balance of weight and dimensions.
-
Robust construction, resistant to mechanical stress during operation.
Functions and Capabilities
The horn antenna provides a high level of isolation between channels and allows working with modern data transmission protocols. The ability to simultaneously use vertical and horizontal polarization expands channel bandwidth. The device effectively suppresses side lobes of radiation, which is critically important for operation in a noisy environment.
Compatibility
-
Compatible with WiMAX repeaters and access points operating in the 5 GHz spectrum.
-
Suitable for any radio equipment with SMA-male connectors.
-
Integrates with 50 Ohm coaxial cables.
-
Allows mounting on individual brackets and masts (mounting hardware sold separately).
Advantages
-
High gain of 20 dB for long-distance operation.
-
Ukrainian production with full quality control cycle from TM «ROKS».
-

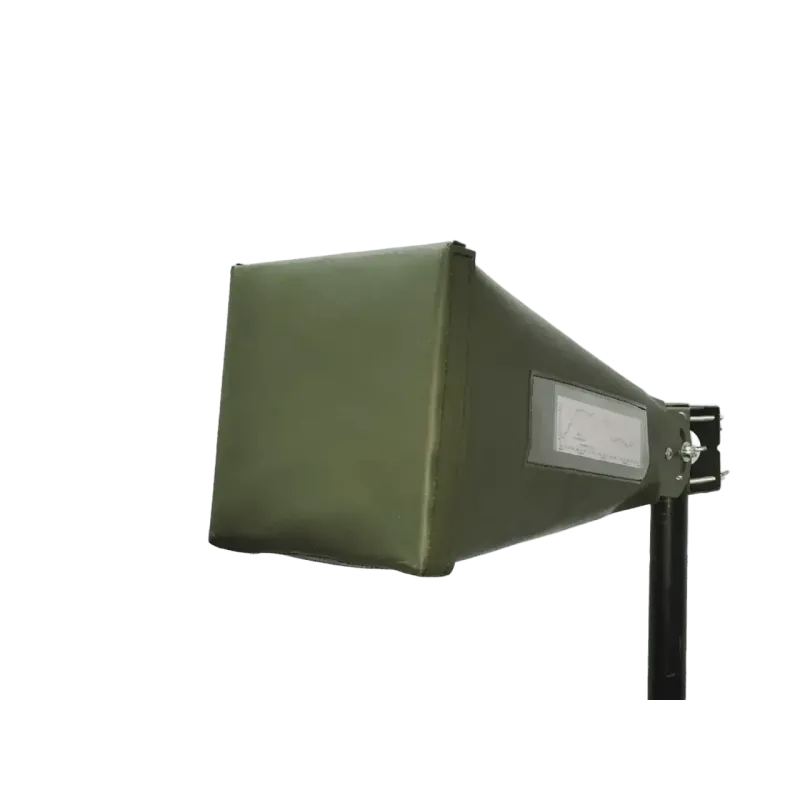

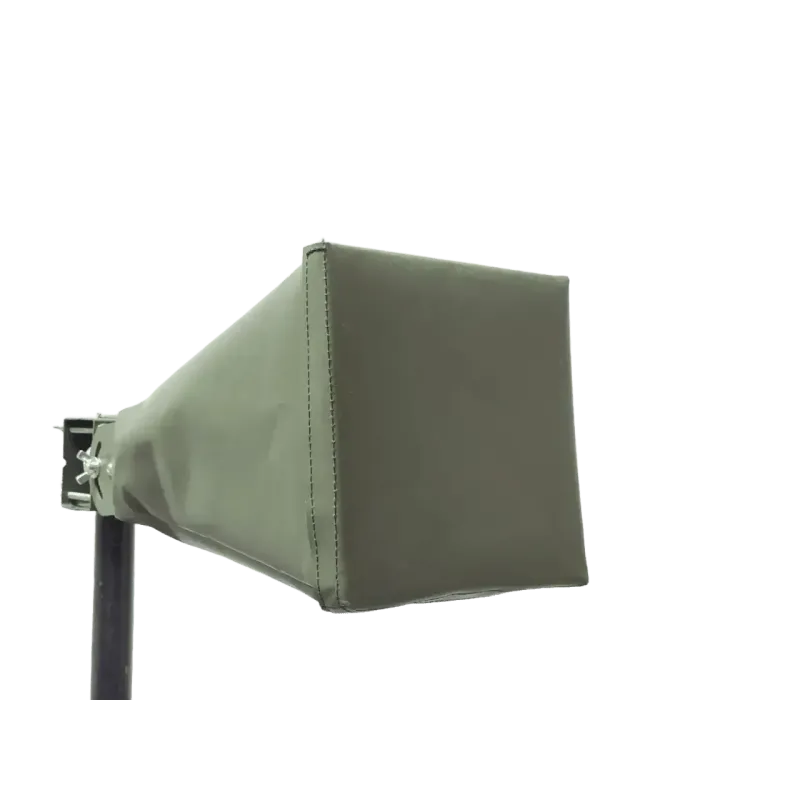

Protective cover included ensures safety during transport and outdoor use.
-
Absence of painting ensures purity of technical parameters.
-
Flexible mounting due to no specific mounting type requirement.
Package Contents
-
HORN WiMAX 5050-6000 MHz horn antenna (1 pc.)
-
Special protective cover (1 pc.)
-
Product passport / Technical documentation (1 pc.)
Packaging
-
Durable protective cover for transport.
-
Additional packaging in a cardboard box to protect the horn's geometric shape.
-
Marking with technical parameters and serial number.
Warranty and Service
The antenna comes with an official manufacturer's warranty from TM «ROKS». The company provides full technical support, professional consultations, and the ability to adapt equipment parameters to the specific needs of your project.
Order the HORN WiMAX 5050-6000 MHz antenna now to ensure flawless quality for your wireless communication!
