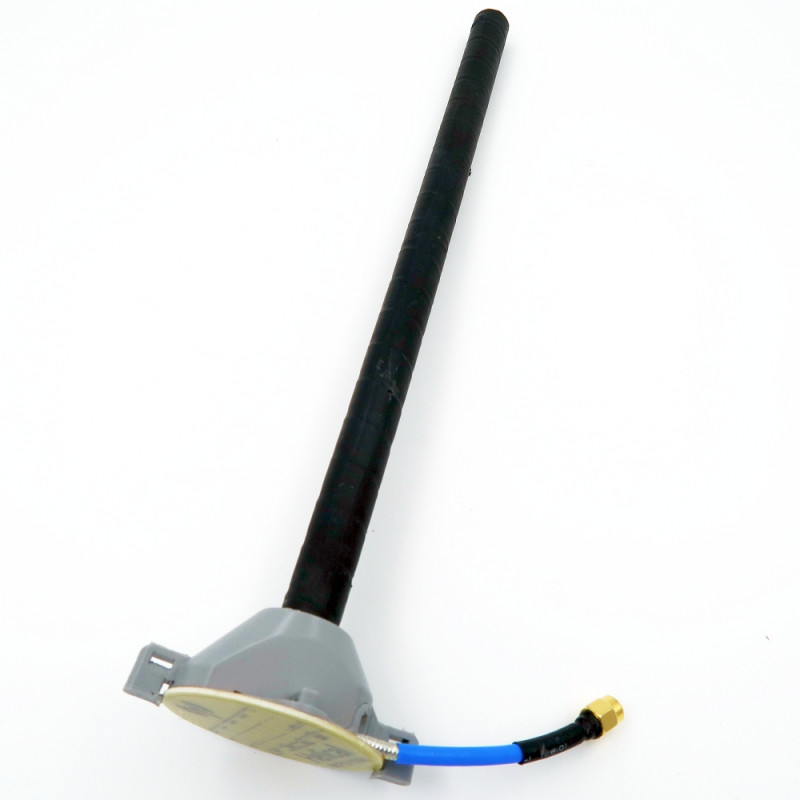

Helical LHCP 17.8 dBi Antenna — High-Performance Helical Antenna for 4.9-6.1 GHz

The Helical Antenna from [brand] is a compact and reliable helical antenna designed to provide stable directional communication in the 4.9-6.1 GHz range. Thanks to its helical design, the antenna demonstrates high gain of 17.8 dBi and supports left-hand circular polarization (LHCP), ensuring increased resistance to multipath signal propagation and better compatibility with equipment using such polarization.

Description and Advantages

This model is ideal for cases requiring directional coverage with a moderately narrow beam angle: the beam angle is approximately 35-40°, allowing for range and reception clarity without significant loss of beam width. The 22-turn design provides optimal helical characteristics for stable data reception and transmission over long distances. The housing material — plastic — ensures low weight and durability, while dimensions of 70*52*293 mm and a weight of only 81 g make installation simple and convenient on various platforms.

Technical Features

• Frequency Range: 4.9-6.1 GHz;
• Gain: 17.8 dBi;
• Polarization: Left-Hand Circular (LHCP);
• Number of Turns: 22;
• Beam Angle: 35-40°;
• Connector: SMA — universal for many types of equipment;
• Material: Plastic;
• Size: 70*52*293 mm;

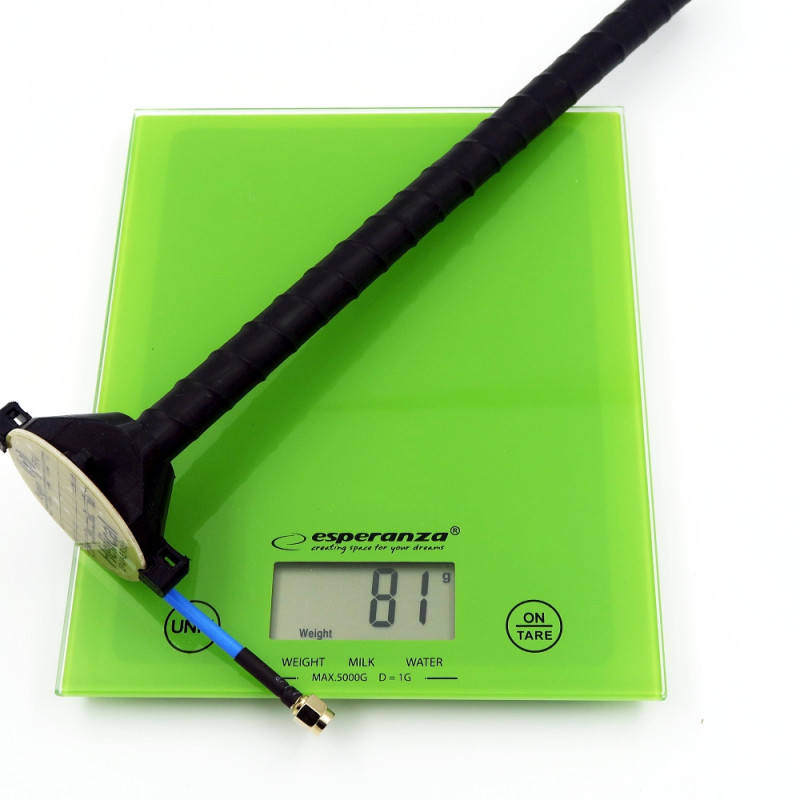

• Weight: 81 g;
• Brand: [brand];
• Product Type: Antennas > Circular Antennas > Helical Antenna.

Where to Use

The antenna is designed for professional and amateur use: satellite communication, video and telemetry transmission, unmanned systems, radio relay links, and other solutions where stable directional signal is important. LHCP polarization makes it an excellent choice in environments with interference and multipath propagation, and SMA connector ensures compatibility with a wide range of equipment.

Mounting and Compatibility

Thanks to its light weight (81 g) and compact size, the antenna is easy to mount on various platforms: drones, amplifiers, ground stations, and other mounting solutions. The model is compatible with devices featuring an SMA interface, simplifying integration into existing systems without additional adapters.

Technical Specifications

The Helical LHCP 17.8 dBi Antenna is a combination of high gain, compactness, and reliable design, making it an excellent choice for systems operating in the 4.9-6.1 GHz range. If you need signal stability at a distance and easy integration with SMA-based equipment — this model from [brand] is worth considering.
