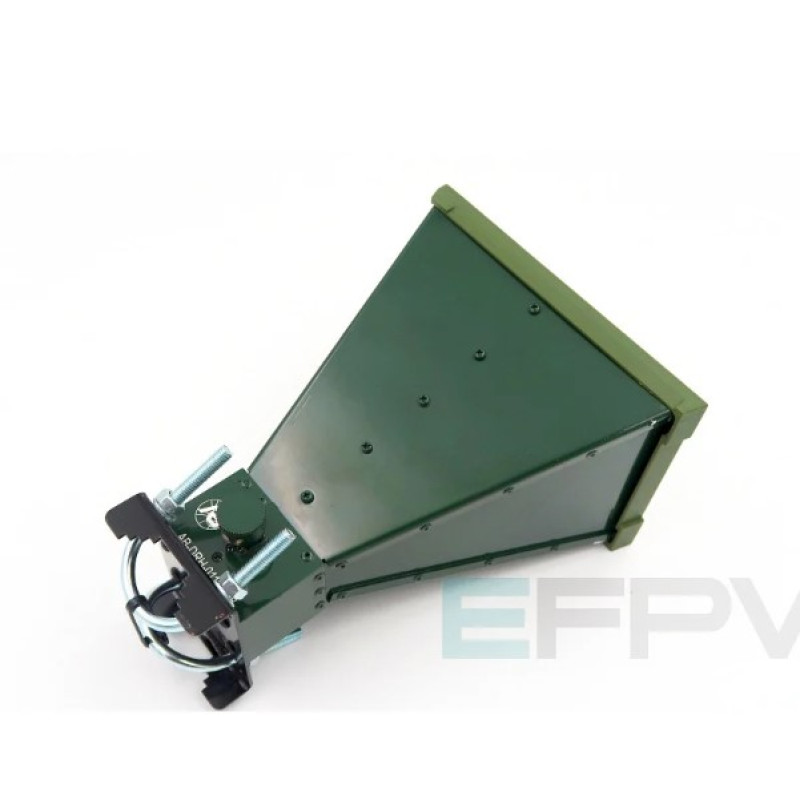

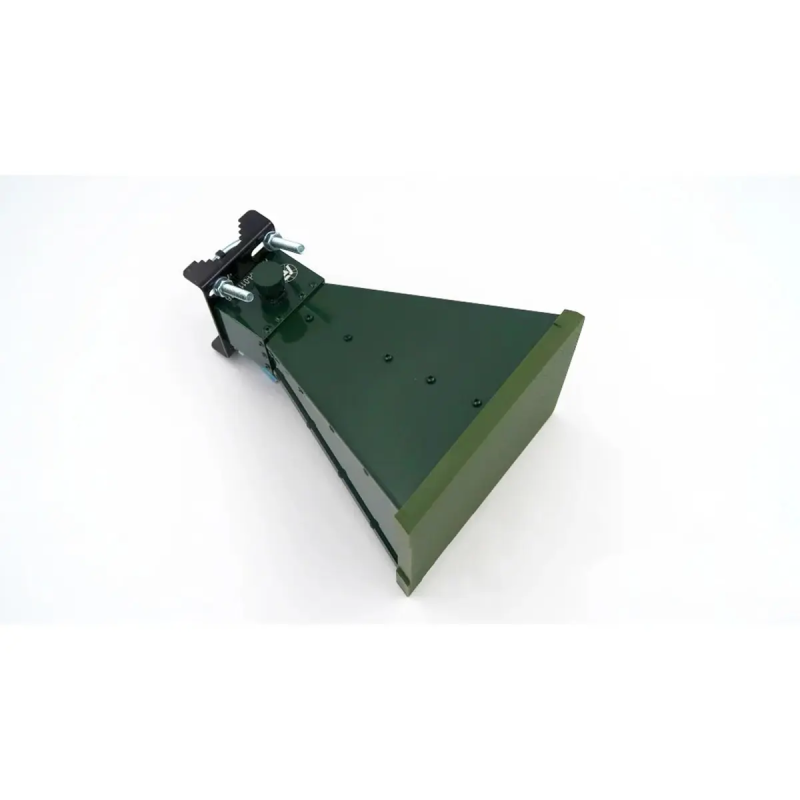

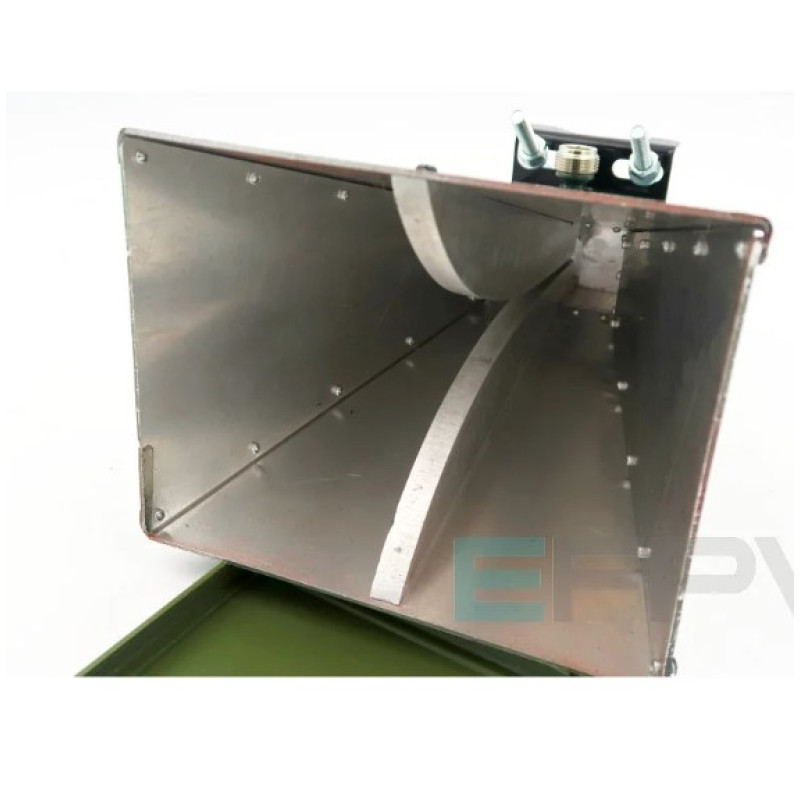

AB-DRH Broadband Horn Antenna — a high-performance solution for radio monitoring across a wide frequency range from 1.3 to 10 GHz. Thanks to its horn design, the antenna provides high directivity, stable signal gain, and reliable operation even in challenging communication environments.
The device effectively receives signals from various sources, including unmanned aerial vehicles, making it an optimal choice for SIGINT systems and professional spectrum monitoring.
This antenna will be a reliable solution for building ground control stations, relay points, and for ensuring long-distance communication in complex field conditions.
You can buy a horn antenna in our EFPV online store.

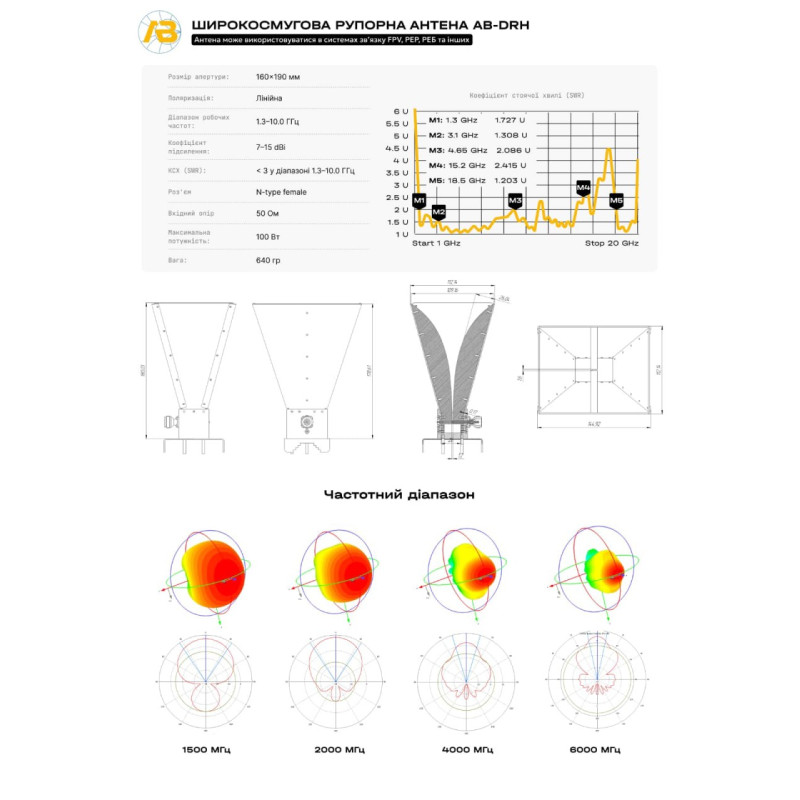

Specifications
- Aperture size: 160x190mm
- Polarization: linear
- Operating frequency range: 1.3...10.0 GHz
- Gain: 7-15 dBi
- VSWR: 1.3...10 GHz < 3
- Input impedance: 50 Ohm
- Max power: 100W

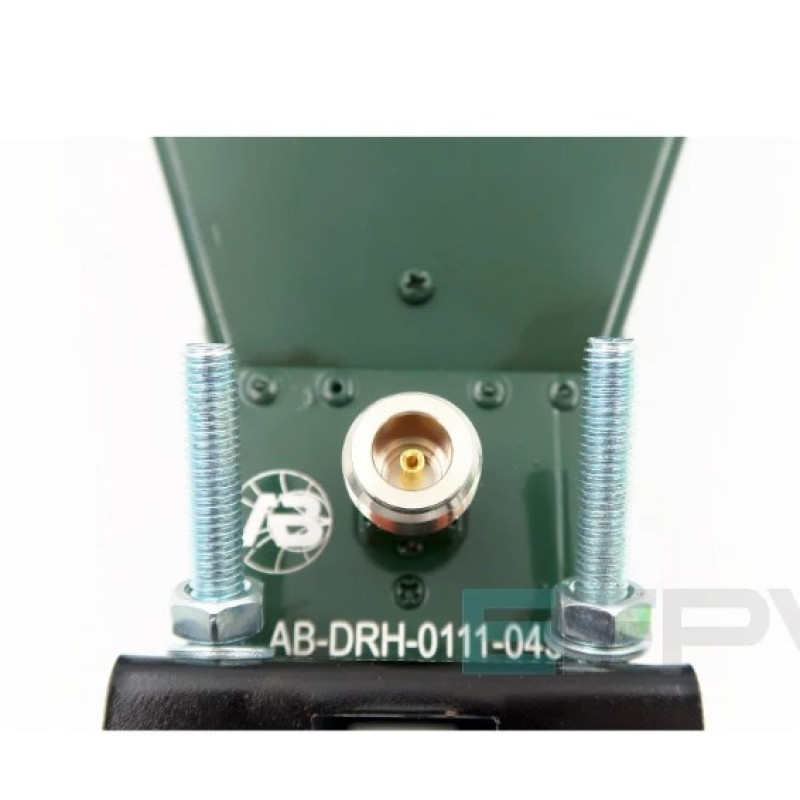

- Connector: N-type female
- Application area: FPV, SIGINT, EW, others
