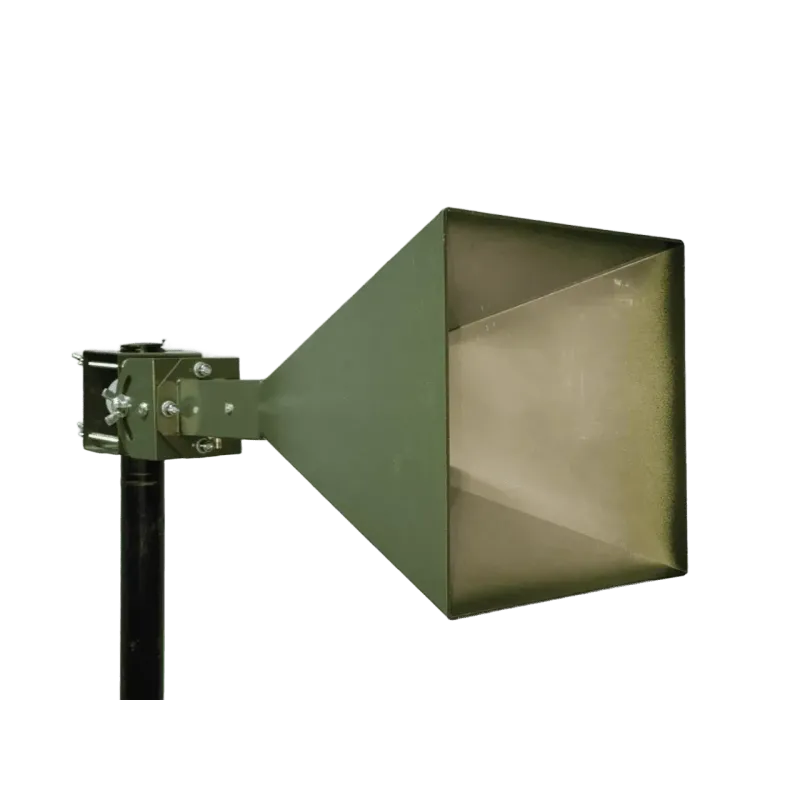

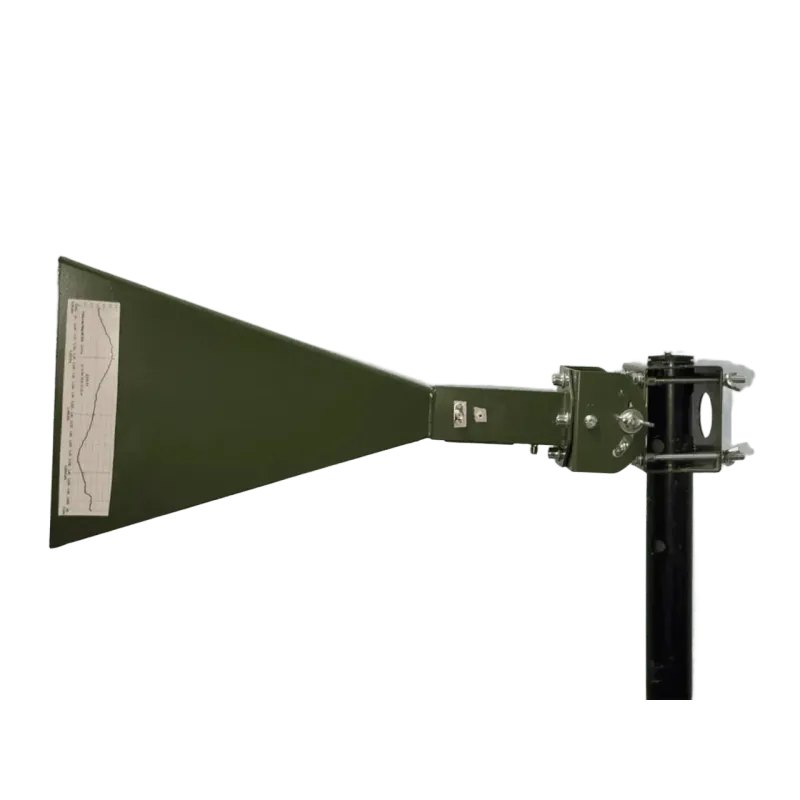

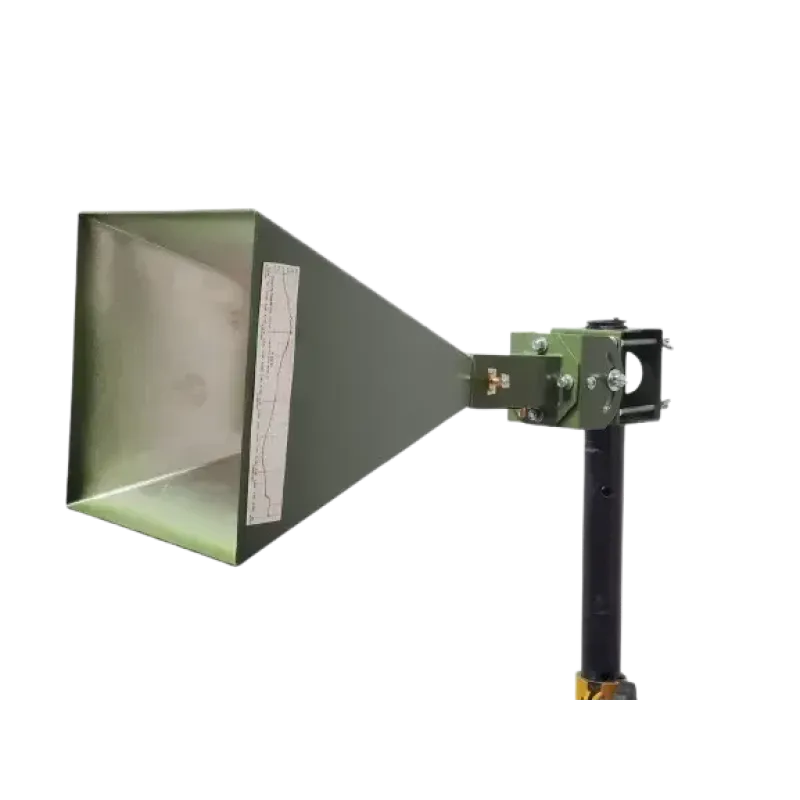

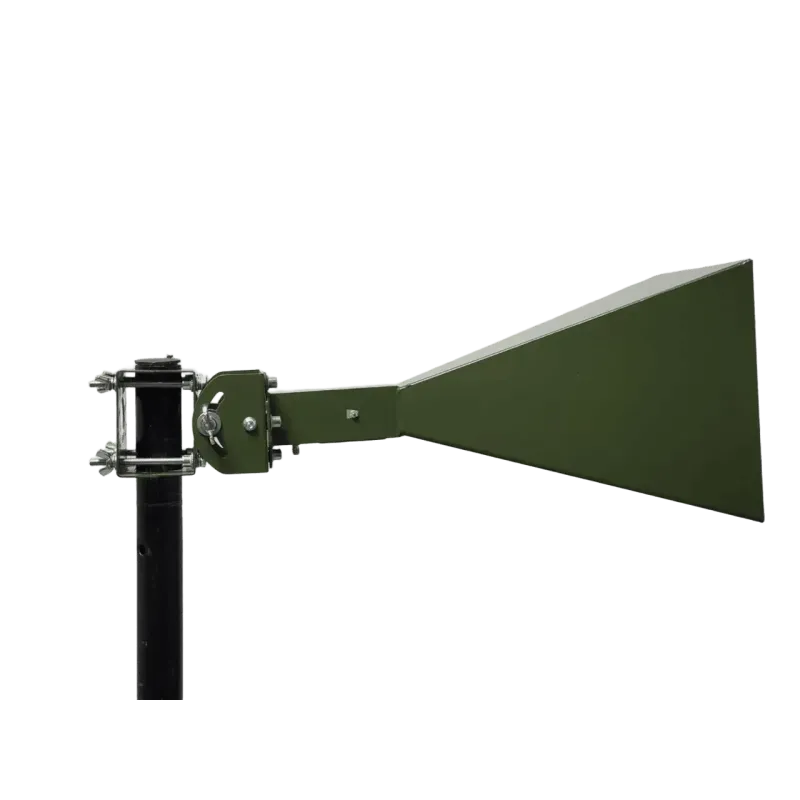

Unlock new possibilities for building stable and long-range communication channels with the professional HORN WiMAX horn antenna from TM "ROKS". Designed specifically for system integration and project solutions, this antenna combines high gain of 20 dB and exceptional signal clarity in the wide range of 5050-6000 MHz. Thanks to its basic "project-ready" configuration and reliable performance, it becomes an ideal foundation for creating powerful WiMAX repeaters and backbone links, where equipment quality determines the success of the entire network.
Purpose
-
Creation of directional WiMAX channels and signal relay in the 5-6 GHz spectrum.
-
Building stable point-to-point links between network nodes over long distances.
-
Use in project installations requiring individual selection of mounts and protective covers.
-
Optimization of network operation in a saturated radio environment due to the narrow directivity of the horn geometry.
Technical Specifications
| Characteristic | Value |
| Frequency Range | 5050-6000 MHz |
| Gain | 20 dB |
| Impedance | 50 Ohm |
| Polarization Type | Linear (vertical + horizontal simultaneously) |
| Connector Type | N-Type (Female) |
| Number of Connectors | 2 pcs. |
| Operating Range | 5 GHz |
| Dimensions | 224 x 224 x 405 mm |
| Weight | 1.2 kg |
Materials and Construction
-
Body made of high-quality metal with an emphasis on radio engineering precision.
-
Unpainted finish (golden metal hue) for flexibility in external design.
-
Classic horn geometry, ensuring minimal side lobes of radiation.
-
Compact and lightweight design to reduce wind load on masts.
Functions and Capabilities
The antenna provides simultaneous operation in vertical and horizontal polarizations, which is critically important for modern data transmission systems. High gain allows compensating for losses in long cable runs and provides an energy reserve for operation in difficult weather conditions. The horn design naturally rejects interference from adjacent directions, improving the signal-to-noise ratio (SNR).
Compatibility
-
Full compatibility with WiMAX equipment and repeaters operating in the 5 GHz band.
-
Integration with cable infrastructure via standard N-female connectors.
-
Ability to connect to any 50 Ohm impedance devices.
-
Adaptation to various types of mounts and brackets depending on site requirements.
Advantages
-
High gain (20 dB) for maximum communication range.
-
Wide operating frequency range (5050-6000 MHz) for flexible frequency planning.
-
Ukrainian production from TM "ROKS" with strict quality control of each product.
-
Project budget savings due to the absence of unnecessary standard accessories in the kit.
-
High interference immunity due to the characteristics of horn directivity.
Package Contents
-
HORN WiMAX horn antenna (1 pc.)
Packaging
-
Supplied in technical packaging that ensures the preservation of the horn's geometry.
-
Absence of decorative packaging elements to reduce logistics costs.
-
Each unit undergoes pre-sale inspection for connector integrity.
Warranty and Service
The antenna comes with an official manufacturer's warranty from TM "ROKS". Users have access to full technical support, installation consultations, and the possibility to adapt equipment parameters to specific customer requirements.
Choose a professional solution for your network — order the HORN WiMAX 20 dB antenna today to ensure flawless communication!
