HELICAL 5.0GHz 16dBi LHCP (Left-Hand Polarization) Antenna, 16-Turn, Open Type, SMA

Introducing the Helical 16 antenna from SkyReach — a reliable solution for directional wireless communication in the 4000-5300 MHz range. This model combines high gain of 16 dBi and left-hand circular polarization (LHCP), making it ideal for tasks requiring precise signal directionality and minimal losses due to polarization rotation.

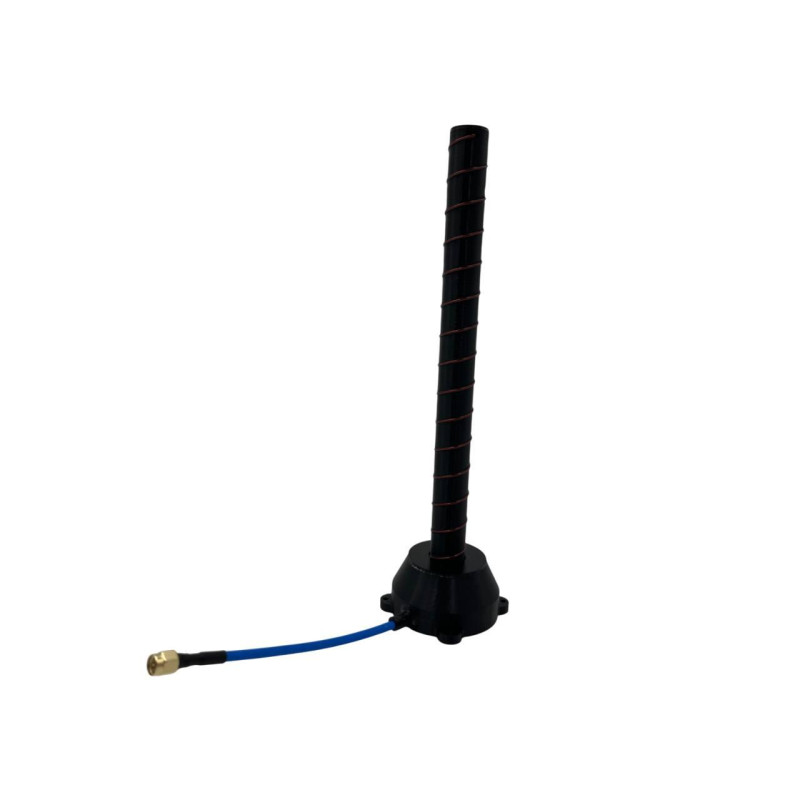

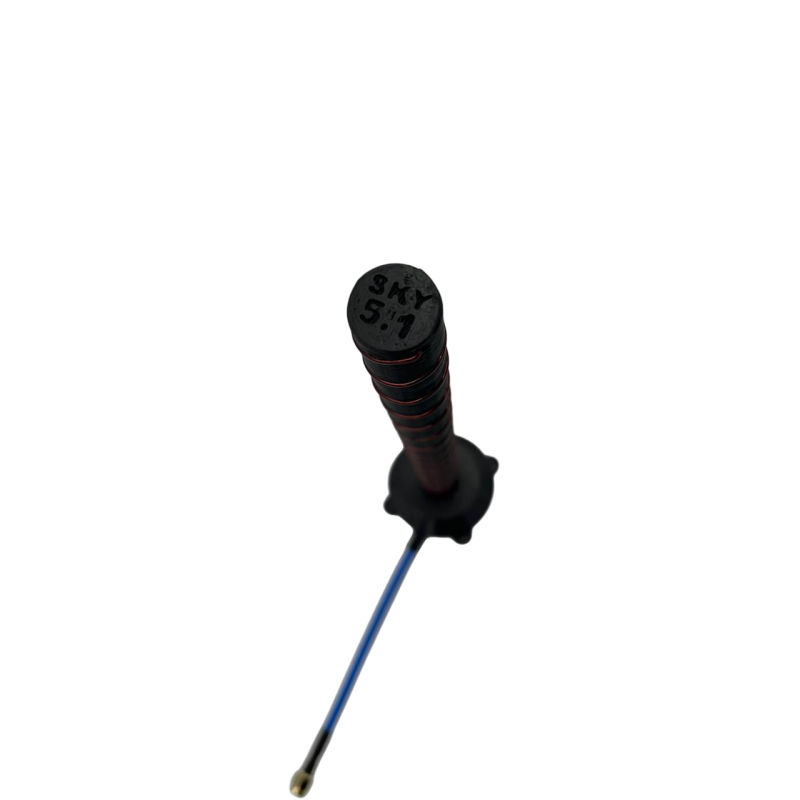

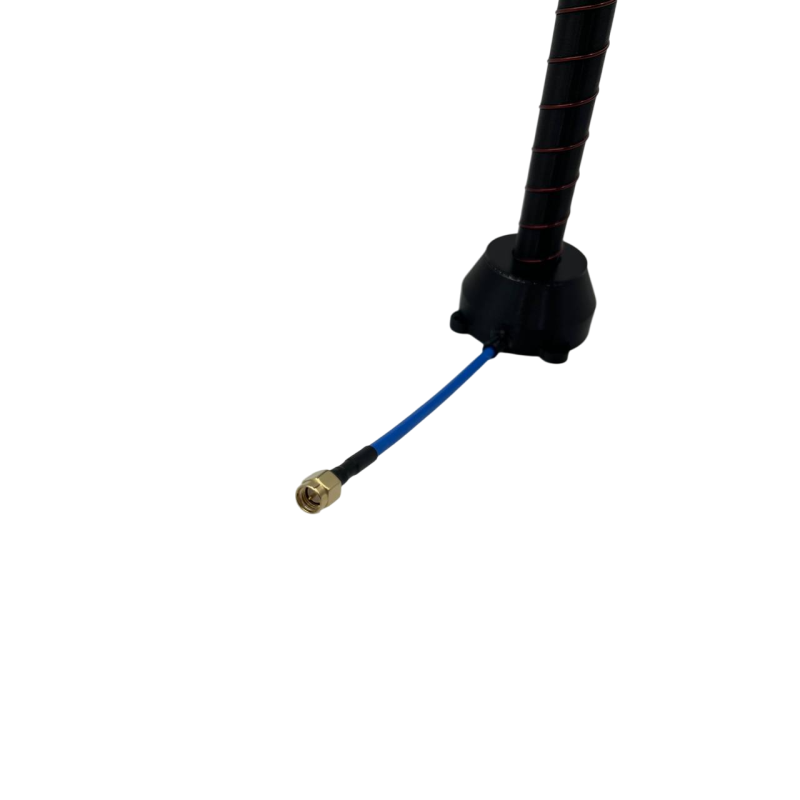

The antenna features an open design, consisting of 16 turns of a conductor made from 1 mm enameled copper wire, and a 54 mm diameter reflector. The antenna has compact dimensions and a short cable approximately 9 cm long with an SMA connector, simplifying installation and connection to various devices.

Key Technical Specifications

• Frequency Range: 4000-5300 MHz
• Beamwidth: 30 degrees
• Gain: 16 dBi
• Reflector Diameter: 54 mm
• Cable Length: approximately 9 cm
• Antenna Conductor: 1 mm enameled copper wire
• Turns: 16
• Polarization: LHCP (Left-Hand Polarization)
• VSWR: 1.2 (within the 4000-5300 MHz range, the antenna consistently has a VSWR below 1.2)
• 4600-5200 MHz: VSWR = 1.1
• Maximum Input Power: 50 W
• Connector: SMA
• Antenna Weight: g
• Quantity: 1 piece

The Helical 16 antenna provides focused coverage thanks to its 30-degree beamwidth, allowing signal energy to be directed to the desired area and reducing the impact of reflections. The consistently low VSWR (less than 1.2 across the entire range) ensures efficient power transfer and minimal reflections at the receiver or transmitter input. In the narrow 4600-5200 MHz range, the VSWR reaches 1.1, highlighting the antenna's high matching quality.

This antenna is suitable for use in point-to-point links, monitoring systems, antenna arrays, and other applications where circular (LHCP) polarization and stable gain in the 5 GHz band are required. The open design and quality materials ensure reliable operation in field conditions, and the standard SMA connector facilitates compatibility with equipment.

Manufacturer: SkyReach. Product Type: Antennas > Circular Antennas > Helical Antenna. The model is presented as a ready-to-install component with all specified parameters and technical characteristics.
