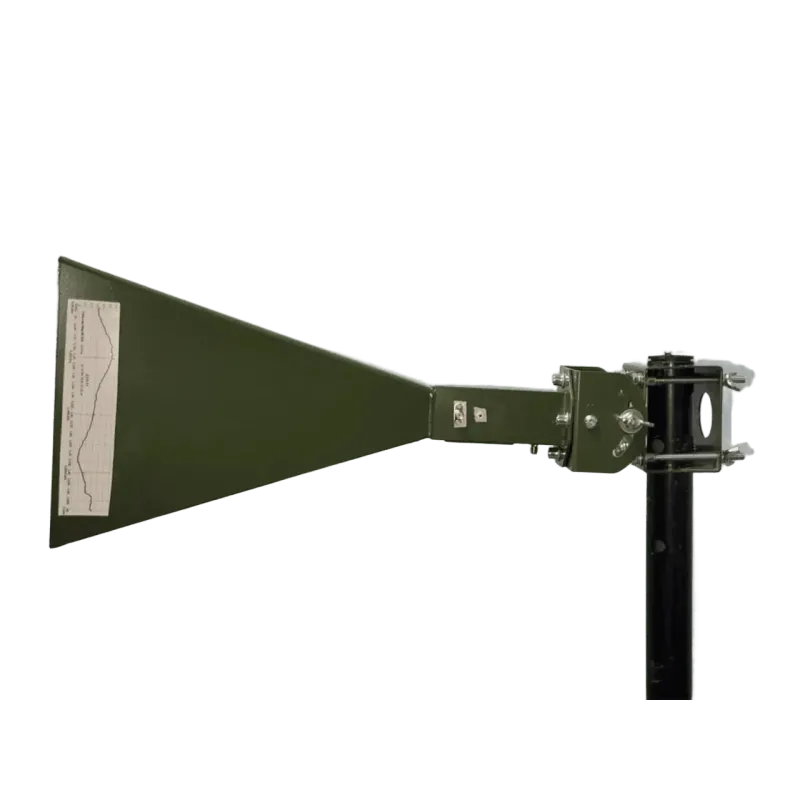

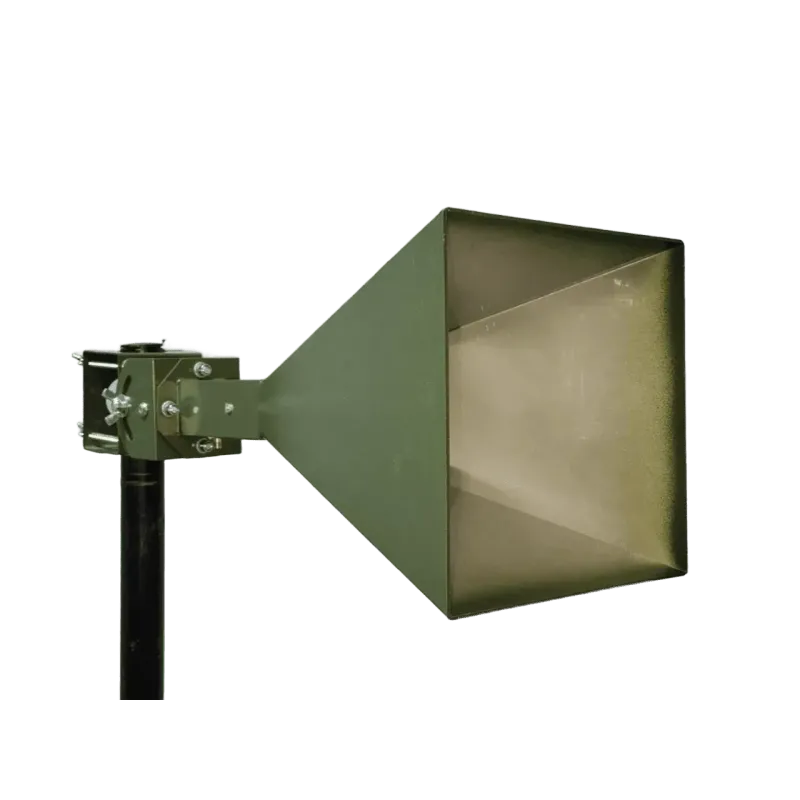

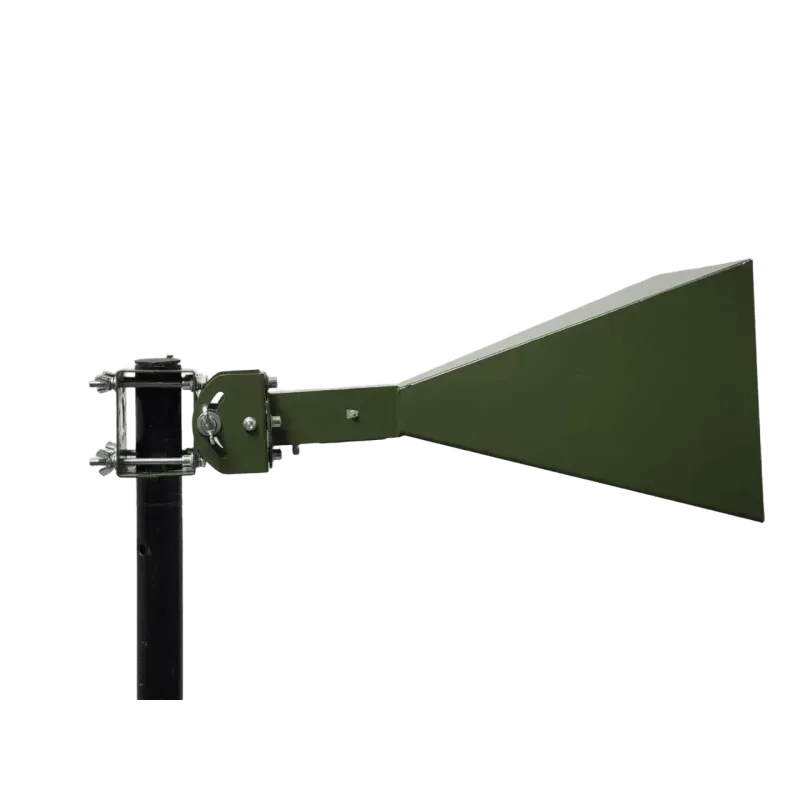

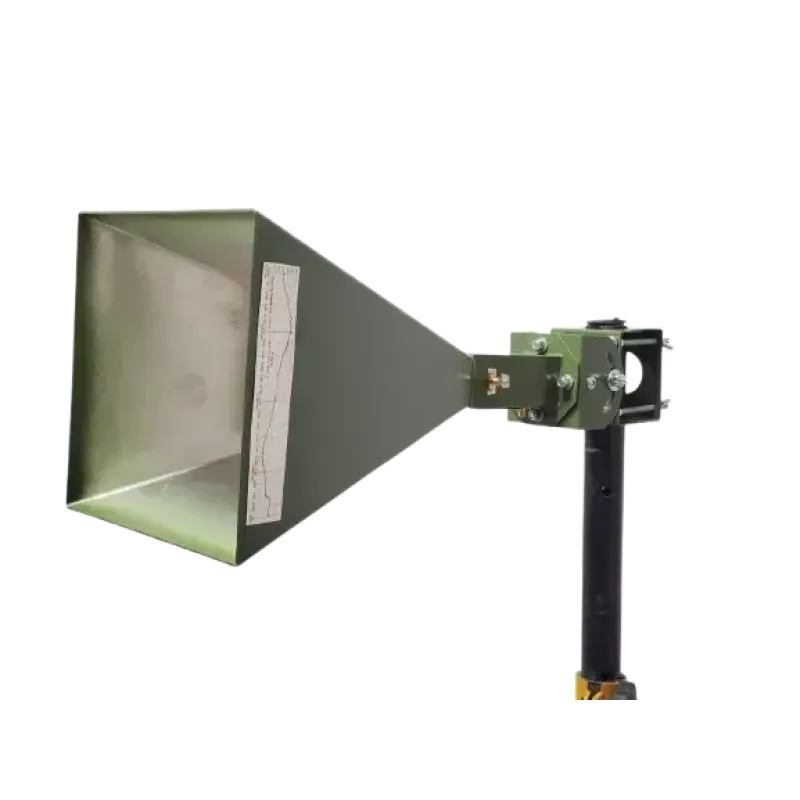

The HORN WiMAX 5050-6000 MHz horn antenna from TM «ROKS» is a professional, high-efficiency solution designed to provide stable and powerful wireless communication in the extended 5-6 GHz range. Thanks to its horn design, the antenna ensures ideal signal directionality and high gain of 20 dB, making it indispensable for overcoming obstacles in dense urban areas and transmitting data over long distances. This tool is designed for those who value the reliability of Ukrainian manufacturing and uncompromising signal quality.
Purpose
-
WiMAX signal relay in the 5050-6000 MHz range to extend coverage.
-
Building backbone communication channels (PTP) and infrastructure links.
-
Use in professional video surveillance systems for uninterrupted streaming video transmission.
-
Signal amplification in WiMAX access points and routers.
-
Communication stabilization at sites with high levels of radio interference.
Technical Specifications
| Characteristic | Value |
| Frequency range | 5050-6000 MHz |
| Gain | 20 dB |
| Wave impedance | 50 Ohm |
| Connector type | SMA-female (2 pcs) |
| Polarization | Linear (vertical + horizontal simultaneously) |
| Weight | 1.2 kg |
| Dimensions | 224x224x405 mm |
| Finish | Unpainted |
Materials and Construction
-
The casing is made of high-quality unpainted metal to maintain maximum conductivity.
-
Horn geometry for a clearly defined radiation pattern.
-
Reliable sealing of connection points.
-
Compact dimensions to reduce wind load on the mast.
-
Structural resistance to vibrations and mechanical impacts.
Functions and Capabilities
The antenna supports simultaneous operation in vertical and horizontal polarization, which significantly improves channel throughput. The horn shape minimizes radiation "side lobes", concentrating all energy on the target object and cutting off extraneous noise from neighboring networks.
Compatibility
-
Compatible with WiMAX repeaters and access points that have an SMA interface.
-
Works with any 5 GHz (5.1-5.9 GHz) equipment.
-
Suitable for standard coaxial lines with 50 Ohm impedance.
-
Mounting bracket is adaptable to most types of masts and poles.
Advantages
-
High gain of 20 dB for ultra-long-range communication.
-
Wide operating range covering the entire 5-6 GHz spectrum.
-
Full production and testing cycle in Ukraine (TM «ROKS»).
-
Protective cover included for operation in all weather conditions.
-
High interference immunity thanks to horn technology.
Package Contents
-
HORN WiMAX horn antenna (1 pc)
-

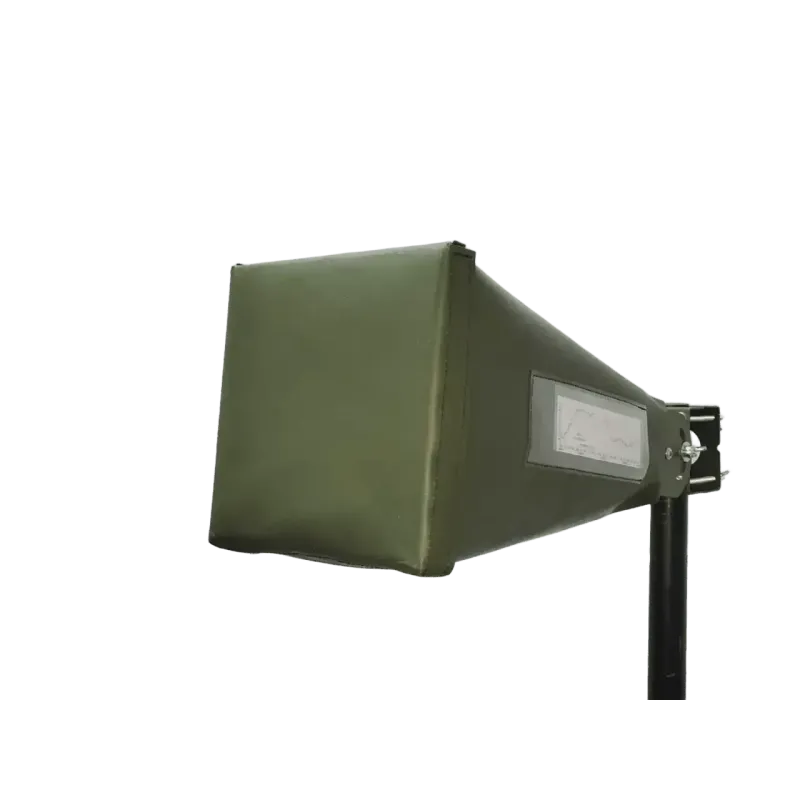

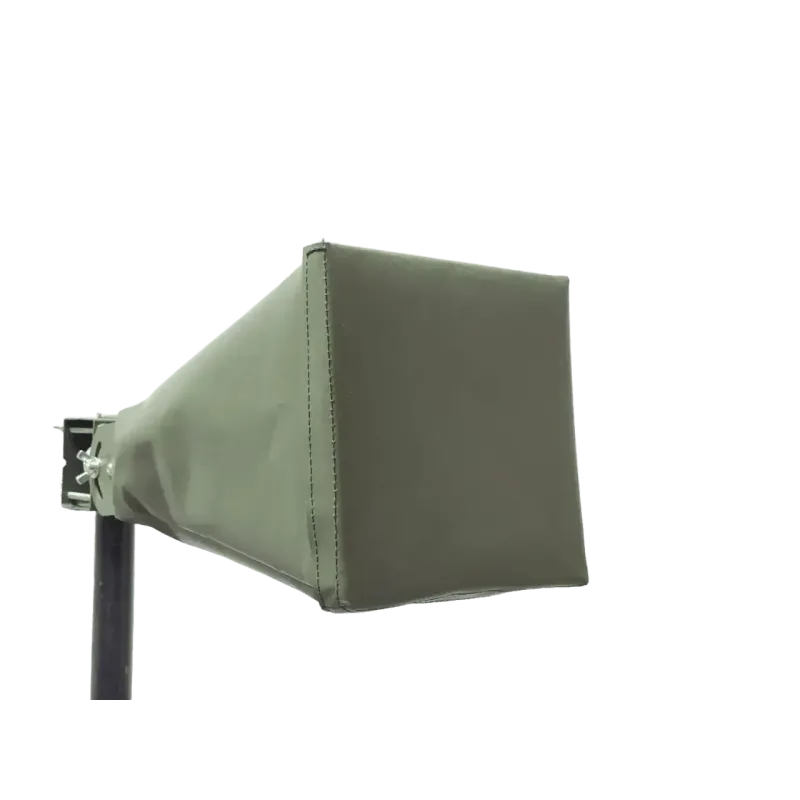

Protective radio-transparent cover (1 pc)
-
Mast/pole mounting kit (1 set)
-
Technical documentation (1 pc)
Packaging
-
Reliable packaging designed for transporting fragile radio equipment.
-
Protection against mechanical damage during delivery.
-
Compact packaging dimensions to optimize logistics costs.
Warranty and Service
The product comes with an official manufacturer's warranty from TM «ROKS». Users have access to professional technical support, setup consultations, and service maintenance at the company's production facilities in Ukraine.
Choose professional equipment from TM «ROKS» for stable communication even in the most challenging conditions — order your HORN WiMAX antenna now!
