HORN Wi-Fi RHCP-LHCP circular polarization horn antenna 2.3-2.6GHz 50Ohm Ntype female SMA option 400x400x660 is a high-quality S-band antenna designed for receiving and transmitting radio signals with left and right circular polarizations in the 2300 - 2600 MHz frequency range, supporting RHCP (Right-Hand Circular Polarization) and LHCP (Left-Hand Circular Polarization). The antenna is characterized by high directivity, low side lobes, and good matching with a 50 Ohm coaxial feeder.
Use this horn antenna to create reliable wireless connections in the 2.3-2.6 GHz range, ensuring high-quality data transmission and minimizing interference thanks to circular polarization. The antenna is ideal for use in conditions requiring stable coverage and high signal gain, for example, for organizing wireless networks in open spaces, warehouses, or for specialized radio frequency applications. The ability to choose between right and left circular polarization makes this antenna a flexible solution for various tasks.
Key features of the Horn Wi-Fi horn antenna
| Characteristic | Value |
|---|---|
| Operating frequency range | 2300 … 2600 MHz |
| Directivity coefficient in the operating frequency range, not less than | 18.5 dBi |
| Ellipticity coefficient in the operating frequency range, not more than | 0.5 dB |

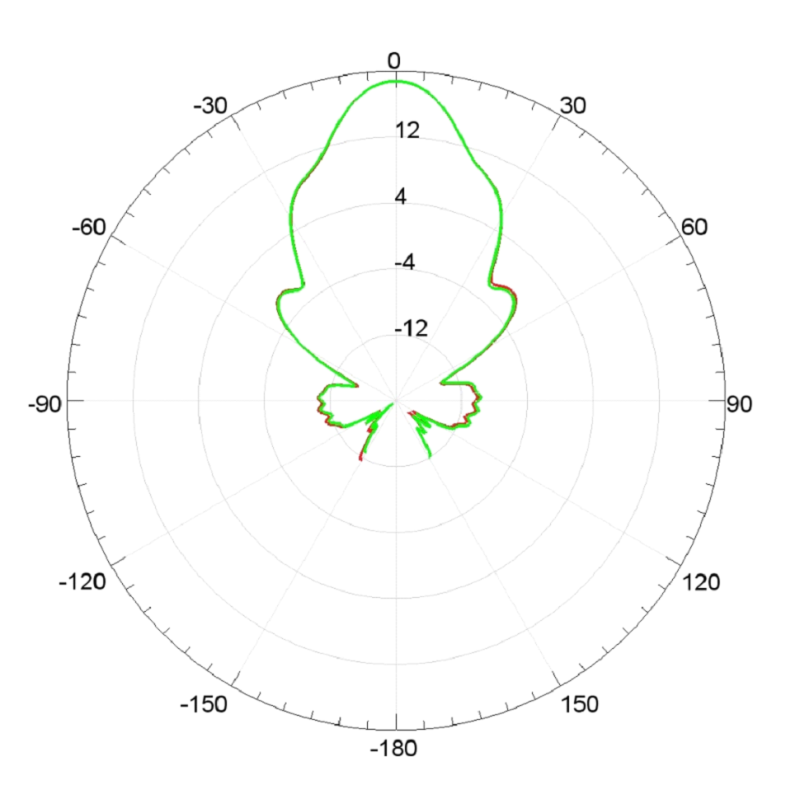

| Beamwidth at minus 3 dB level, not more than | 20 deg. |
| VSWR at coaxial connectors in the operating frequency range, not more than | 1.35 |

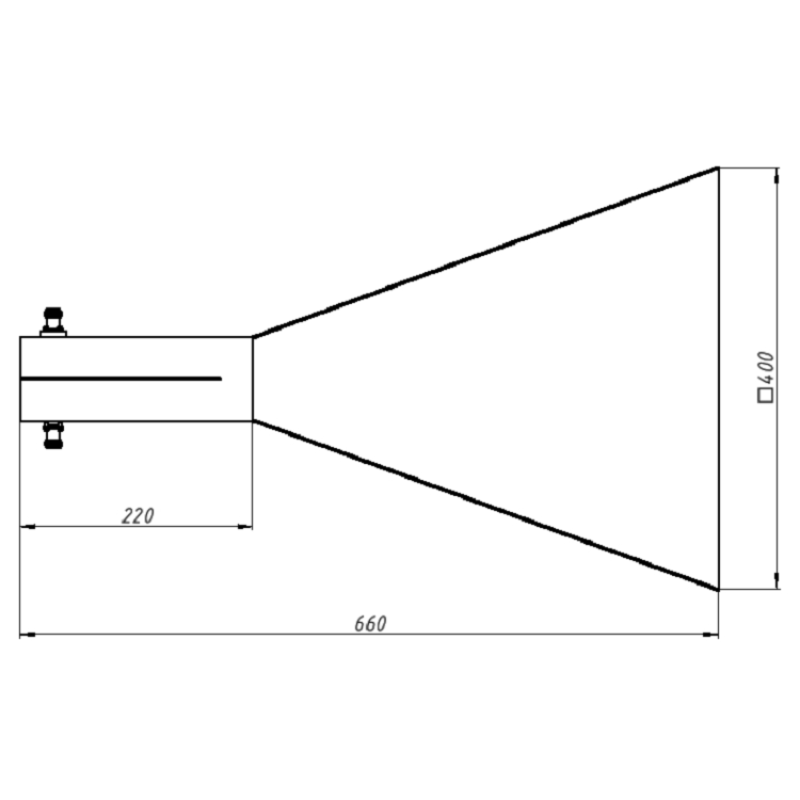

| Antenna dimensions | 400 x 400 x 660 mm |
| Antenna weight, not more than | 3.5 kg |
| Polarization | RHCP and LHCP (circular) |
| Wave impedance | 50 Ohm |
| Connector type | Ntype female (SMA option) |
Advantages of the Horn Wi-Fi horn antenna
The Horn Wi-Fi horn antenna is an excellent choice for professional use due to its numerous advantages. High directivity (18.5 dBi) ensures a concentrated signal in the desired direction, minimizing interference from other sources. Support for right (RHCP — Right-Hand Circular Polarization) and left (LHCP — Left-Hand Circular Polarization) circular polarization increases resistance to signal reflections and allows optimizing communication quality in complex radio frequency environments. A low ellipticity coefficient (0.5 dB) indicates high-quality circular polarization.
Features of Horn Wi-Fi antenna circular polarization
Circular polarization, implemented in the Horn Wi-Fi antenna, provides significant advantages compared to linear polarization, especially in conditions of multiple signal reflections. Circular polarization reduces signal losses during reflections from various surfaces and ensures more stable communication regardless of the orientation of the transmitting and receiving antennas. The ability to choose between right and left circular polarization provides additional flexibility when building wireless systems.
Useful antenna functions
- Support for right (RHCP — Right-Hand Circular Polarization) and left (LHCP — Left-Hand Circular Polarization) circular polarization.
- High directivity for a concentrated signal.
- Low side lobes for minimizing interference.
- Excellent matching with a 50 Ohm coaxial feeder.
- Wide operating frequency range of 2.3-2.6 GHz.
- Durable aluminum alloy construction.
- Option to choose connector type (Ntype female or SMA).
Antenna connector compatibility
The Horn Wi-Fi horn antenna is equipped with an N-female coaxial connector, which is a standard solution for professional radio frequency equipment and provides a reliable and high-quality connection to the feeder cable. There is also an option to order the antenna with an SMA female connector, which expands its compatibility with various types of radio electronic devices and measuring equipment.

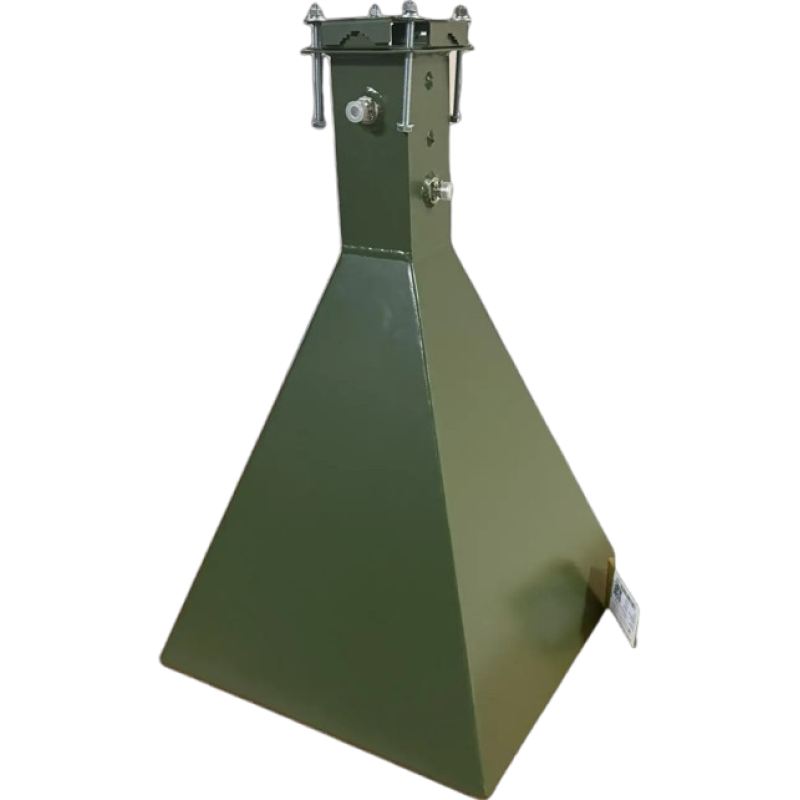

Structural features of the horn antenna

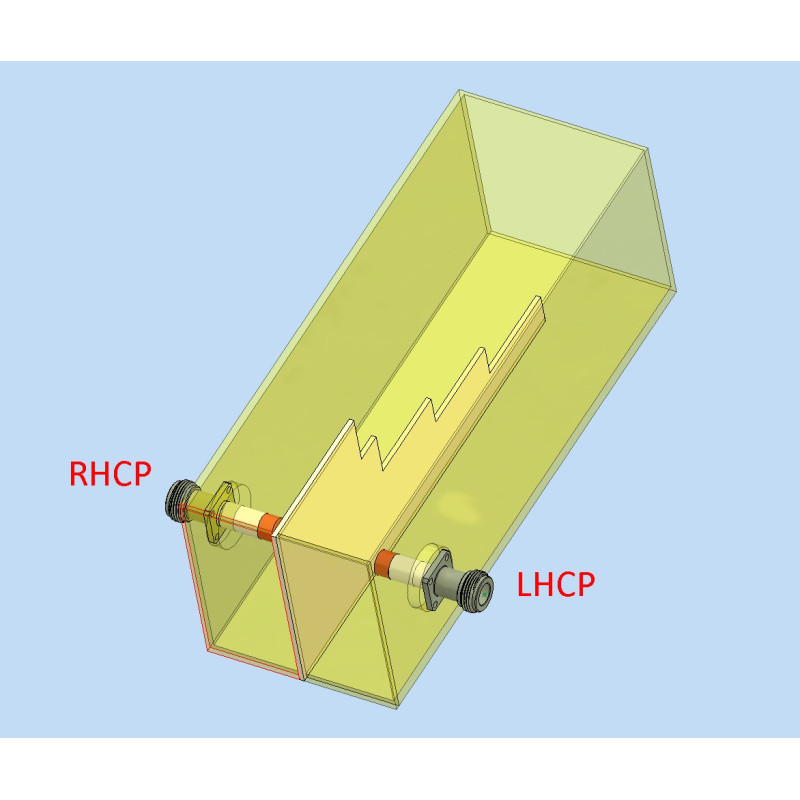

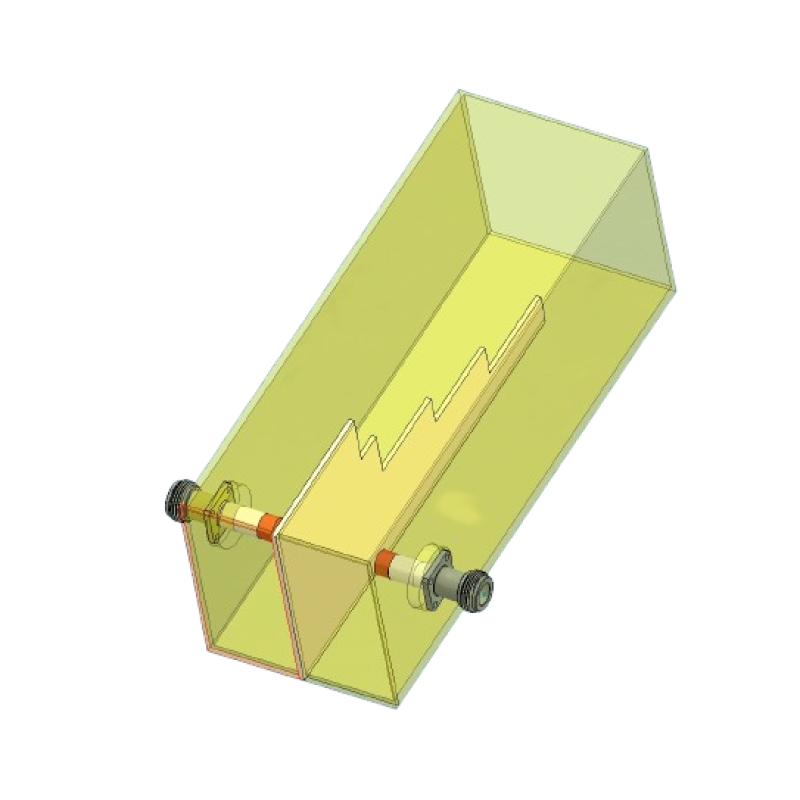

The Horn Wi-Fi horn antenna has a robust and reliable design, made in the form of a pyramidal horn based on a rectangular waveguide measuring 76 x 76 mm. The antenna is made of high-quality aluminum alloy, which ensures its durability and resistance to external influences. Elements of a coaxial-waveguide transition with an N-female coaxial connector (or SMA upon request) are mounted in the waveguide part of the horn.
Packaging
The Horn Wi-Fi horn antenna is supplied in reliable packaging that ensures its protection during transportation and storage. The packaging includes necessary fixing elements to prevent antenna damage.
The Horn Wi-Fi horn antenna with circular polarization is an ideal choice for professionals who need a high-performance and reliable antenna for operation in the 2.3-2.6 GHz range. Its high directivity, support for RHCP (Right-Hand Circular Polarization) and LHCP (Left-Hand Circular Polarization), as well as the option to choose the connector type, make it a versatile solution for various tasks. We recommend purchasing this antenna to ensure stable and high-quality wireless communication.
