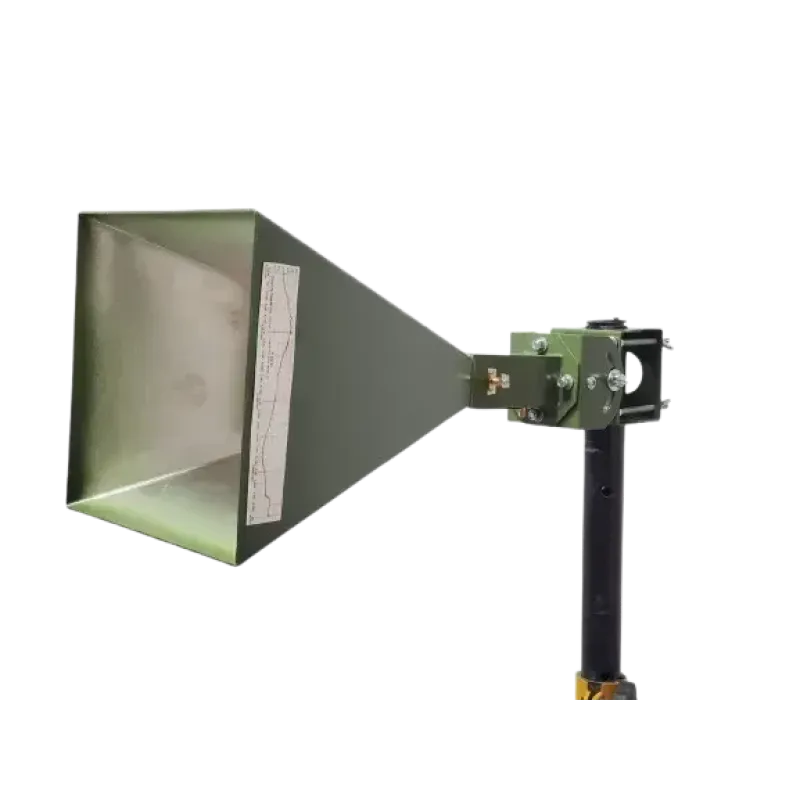

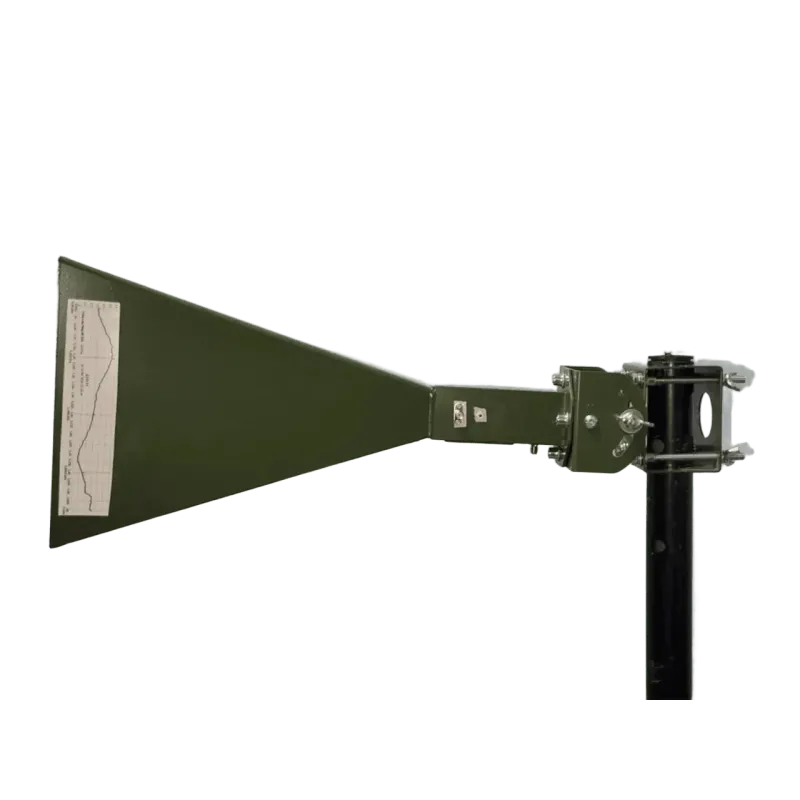

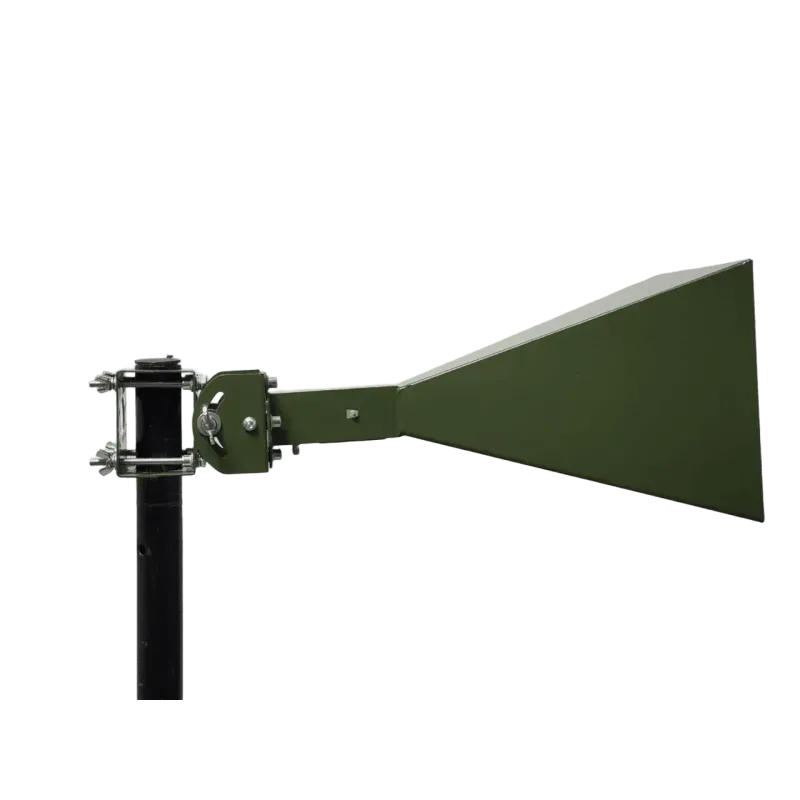

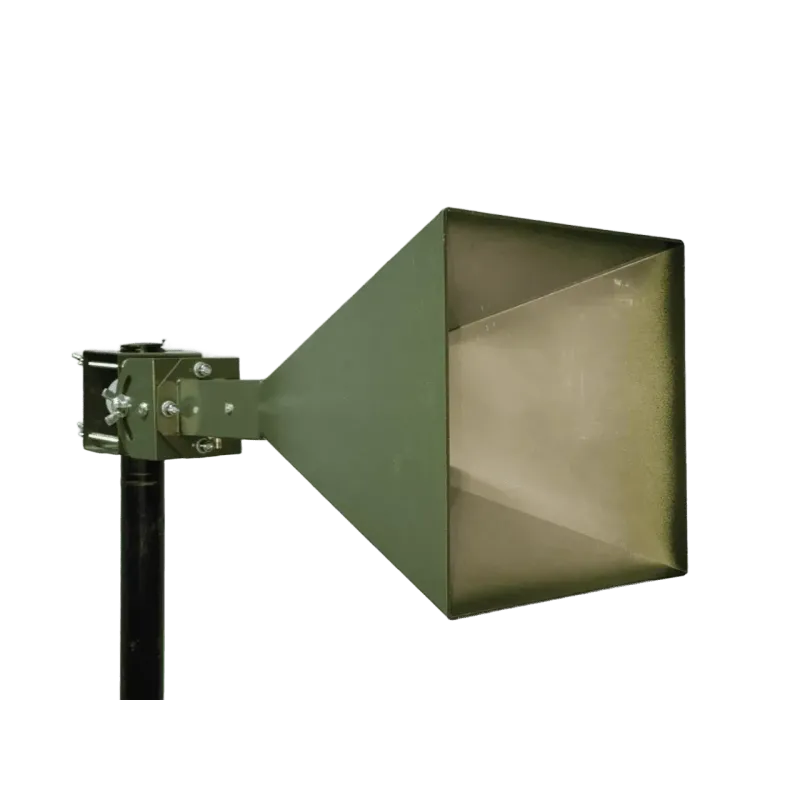

Unlock new possibilities for your network with the professional HORN WiMAX horn antenna from TM «ROKS». This high-tech tool is designed to create stable, highly directional communication channels in the 5-6 GHz range, ensuring exceptional signal clarity and protection against interference even in a saturated radio environment.
Purpose
-
Building backbone directional WiMAX links in the 5050-6000 MHz range.
-
Effective signal relay between network nodes over long distances.
-
Organizing access points for industrial facilities and corporate networks.
-
Operation in complex terrain where high beam energy concentration is required.
-
Use as part of mobile and stationary radio communication systems.
Technical Specifications
| Characteristic | Value |
| Operating Frequency Range | 5050-6000 MHz |
| Gain | 20 dB |
| Impedance | 50 Ohm |
| Connector Type | SMA-female (2 pcs) |
| Polarization | Linear (vertical + horizontal simultaneously) |
| Dimensions | 224x224x405 mm |
| Weight | 1.2 kg |
| Color / Coating | Gray / Unpainted |
Materials and Construction
-
The body is made of high-quality metal with an emphasis on the geometric precision of the horn.
-
Absence of an external cover (radio-transparent enclosure) for lighter construction and ease of integration.
-
Reliable SMA-female connectors with a long service life of connection cycles.
-
Robust mechanical base, resistant to vibrational loads.
-
Special design for simultaneous operation in two polarization planes.
Functions and Capabilities
The antenna forms a clearly directional radiation pattern, which minimizes "noise" from external sources and concentrates transmitter power in the desired direction. Thanks to wide spectrum support (5050-6000 MHz), the device provides flexibility in choosing operating frequency channels, avoiding conflicts with civilian Wi-Fi networks.
Compatibility
-
Compatible with repeaters and access points operating in the WiMAX 5 GHz standard.
-
Support for coaxial lines with 50 Ohm impedance.
-
Works with radio modules equipped with SMA-male connectors.
-
Integration into existing mast structures using the included mounting kit.
Advantages
-
High gain of 20 dB for maximum communication range.
-
Dual linear polarization for increased channel throughput.
-
Ukrainian production (TM «ROKS») with strict quality control at every stage.
-
Optimal weight and dimensions for mounting on high-rise structures.
-
Minimal signal loss due to direct horn radiation.
Package Contents
-
HORN WiMAX horn antenna (1 pc)
-
Mast mounting kit (1 set)
-
Technical passport/manual (1 pc)
Packaging
-
Cardboard box with damping inserts for safe transportation.
-
Marking indicating main technical parameters and serial number.
-
Protective film on connectors to prevent dust and moisture ingress.
Warranty and Service
The product comes with an official manufacturer's warranty from TM «ROKS». The company provides a full cycle of service support, including technical consultations on setup and the possibility of adapting antenna parameters to the specific needs of your project.
Order the HORN WiMAX 5050-6000 MHz antenna now to ensure impeccable communication quality!
