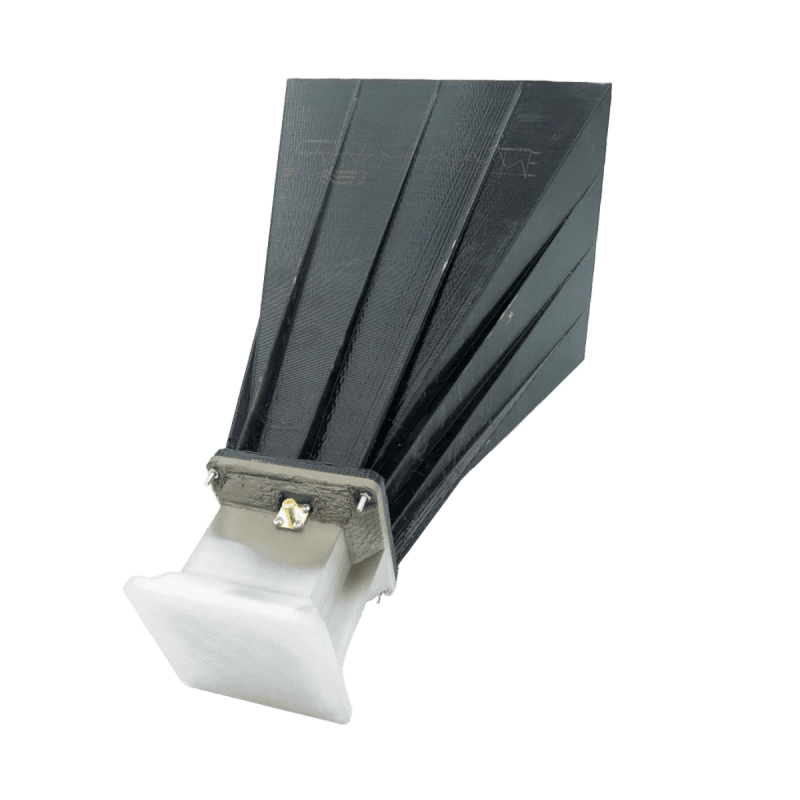

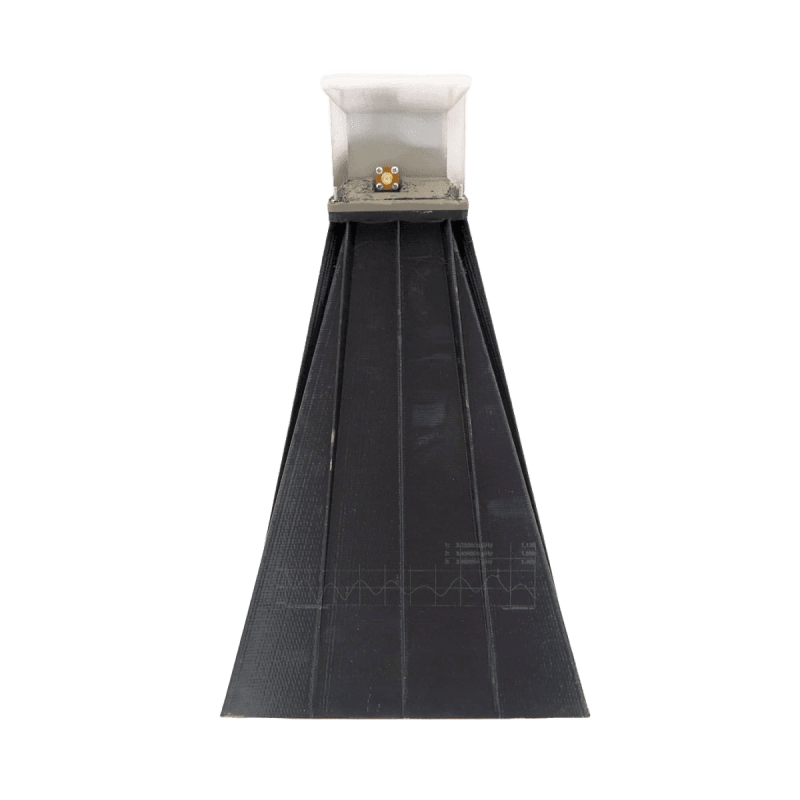

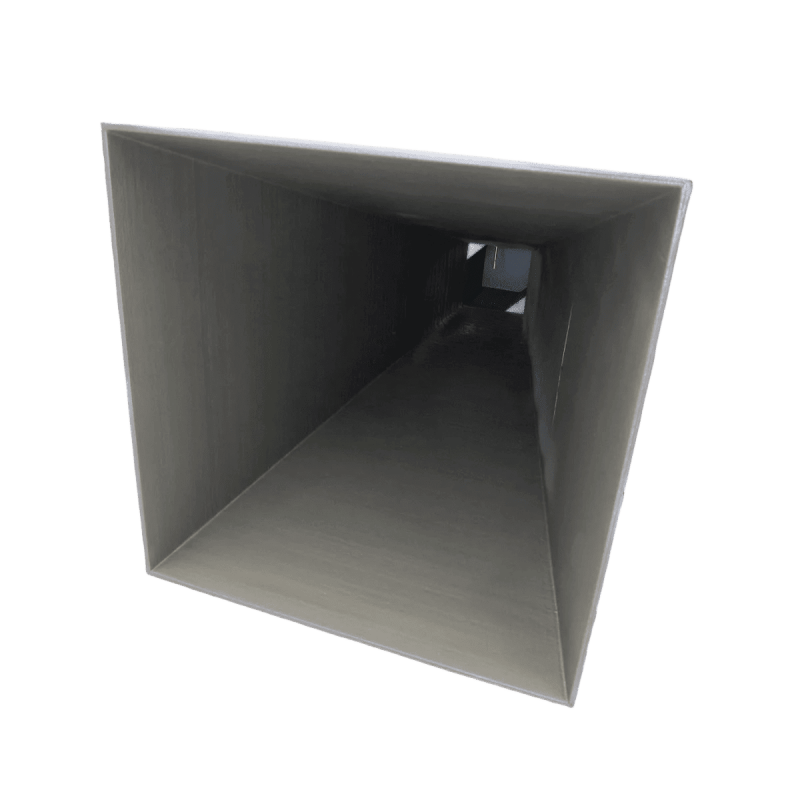

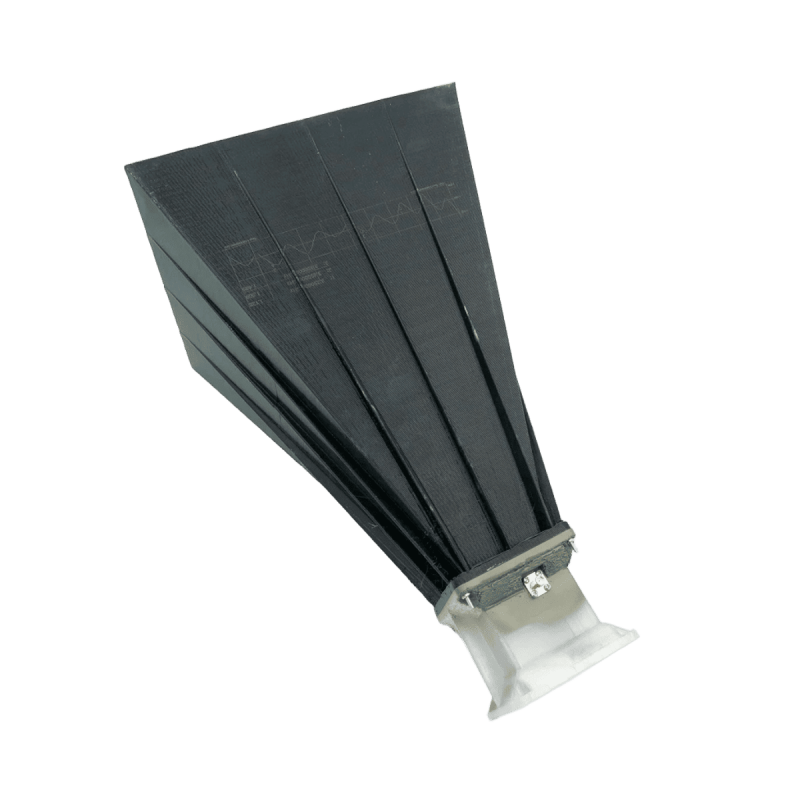

The HORN 3.0-4.0 GHz, RHCP plastic horn antenna is specialized equipment designed to provide stable and long-range communication in conditions where reliability is critical. It effectively solves the problem of unstable signals and radio interference, ensuring reliable operation of FPV systems, repeaters, and military drones. Thanks to its unique design and high technical characteristics, this antenna allows for clear signal reception over significant distances, which is key to successful combat and reconnaissance missions.

Antenna Purpose

•

  For military FPV drones: The antenna provides stable video communication over long distances, allowing pilots to effectively control drones and perform tasks in complex conditions.



•

  For relay systems: High gain and a narrow beamwidth make it ideal for building relay points that extend radio signal coverage.



•

  For ground control stations: Using this antenna in ground stations allows for powerful and stable signal reception from remote objects, increasing control effectiveness.



•

  For monitoring and reconnaissance: High directivity allows focusing on a specific direction, which is critically important for reconnaissance missions and data collection.

Key Features

Design Features

•

  Directional operation: A narrow beamwidth allows energy to be focused in one direction, minimizing the impact of external interference and ensuring maximum efficiency.



•

  Right-Hand Circular Polarization (RHCP): This feature provides a stable signal, as it is less susceptible to multipath reflections and interference common in urban and field conditions.



•

  Housing material: Durable plastic protects internal components from mechanical damage and environmental exposure, ensuring longevity and reliability in operation.



•

  Compactness and low weight: Despite its high performance, the HORN 3.0-4.0 GHz, RHCP plastic horn antenna has optimal dimensions and weight, simplifying its transport and installation.



•

  Standard SMA connector: The universal connector allows easy connection of the antenna to most modern systems, such as FPV receivers, repeaters, and other radio modules.

Advantages and Usage Features

•

  Reliable signal over long distances: Thanks to its high gain of 20 dBi, the HORN 3.0-4.0 GHz, RHCP plastic horn antenna ensures signal transmission over significant distances, which is critically important for military and rescue operations.



•

  Interference resistance: Directional operation and circular polarization help minimize the impact of noise and interference from other radio sources, guaranteeing clear and stable communication.



•

  Durability and weather resistance: The plastic housing provides reliable protection against moisture, dust, and temperature fluctuations, allowing the HORN 3.0-4.0 GHz, RHCP plastic horn antenna to be used in all weather conditions.



•

  Ease of installation and integration: Thanks to the standard SMA connector, the antenna easily integrates into existing systems without the need for complex adapters or converters.



•

  Optimization for FPV systems and drones: This antenna is specifically designed to meet the needs of FPV pilots and military drone operators, making it an indispensable tool for performing critical tasks.

Compatibility

•

  FPV receivers and transmitters: Compatible with most FPV systems operating in the 3.0-4.0 GHz range.



•

  Relay systems: Ideal for use in repeaters to extend coverage area.



•

  Military drones and UAVs: Designed for use with drones requiring a stable and secure communication channel.



•

  Ground control stations: Easily connects to ground stations to provide reliable communication with aircraft.



•

  Video surveillance systems: Can be used for long-distance video signal transmission.

How to choose the right horn antenna?

•

  Frequency range: Ensure that the antenna's frequency range (in our case, 3.0-4.0 GHz) matches your equipment's frequencies to ensure maximum efficiency.



•

  Gain (dBi): Choose an antenna with sufficient gain for your task. The higher this value, the further the signal will be transmitted.



•

  Polarization type: For combating interference and multipath reflections, circular polarization (RHCP or LHCP) is ideal.



•

  Connector type: It is important to check that the antenna's connector (e.g., SMA) is compatible with your equipment's connector.



•

  Material and weight: For field conditions, it is better to choose lightweight and durable plastic antennas that can withstand various weather conditions.

Mounting, Installation, and Setup

Mounting a horn antenna does not require special skills. Installation involves securing the antenna on a tripod or mast. It is important to correctly aim the antenna towards the object with which communication needs to be established, as it has a narrow beamwidth. Setup involves connecting the antenna to the receiver or transmitter using a cable with appropriate connectors (in this case, SMA). Once connected, the system is ready for operation.

Package Contents and Packaging

The HORN 3.0-4.0 GHz, RHCP plastic horn antenna is supplied without an additional case, ensuring compactness and minimal weight. Typically, the package includes only the antenna itself. The product is packed in a sturdy cardboard box to prevent damage during transportation.

Advantages of purchasing this antenna

By purchasing this antenna, you will gain significant advantages that solve the main problems associated with radio signal transmission. You will be able to ensure stable and reliable communication over long distances, which is critically important for military operations, FPV flights, and relaying. The antenna's high directivity minimizes the impact of external interference, and its robust design ensures durability in extreme conditions.

Warranty and Service

A 12-month manufacturer's warranty is provided, confirming high quality and reliability. Our company provides full service support, consultations on setup and operation, and the possibility of post-warranty service.

Comparison with other models

Frequently Asked Questions (FAQ)

Can I use this antenna with equipment operating on other frequencies? No, the antenna is designed for optimal operation in the 3.0-4.0 GHz range. Using it on other frequencies will significantly reduce efficiency and communication quality.

What type of cable is needed for connection? You will need a coaxial cable with SMA connectors on both ends. Cable length can affect signal quality, so we recommend using the shortest and highest quality cable possible.

Does this antenna require special installation? No, it is sufficient to mount it on a stable surface and aim it in the desired direction. For best results, it is recommended to use a tripod or mount that allows for precise directional adjustment.

Will this antenna work in rainy weather? Yes, the plastic housing provides reliable protection against moisture and dust, allowing the antenna to be used in all weather conditions.

Why is circular polarization needed? Circular polarization reduces the effect of multipath reflections that occur from buildings, trees, and other obstacles, providing a more stable and reliable signal.

Don't delay, choose the HORN 3.0-4.0 GHz, RHCP plastic horn antenna today to ensure reliable and stable communication in the most challenging conditions!
