Video Goggles for FPV Skyzone SKY04O 5G/5.8G OLED with SteadyView Receiver

SKYZONE SKY04O OLED 5/5.8 GHz FPV goggles are among the popular models in this brand's line of FPV goggles with OLED displays. The goggles feature a 48-channel Steadyview receiver, a 1280x960 display, DVR support, and Head Tracker. This new SKY04O is largely similar to the SKY04X, with the main difference between the 04X and 04O being the resolution and FOV (diagonal).

The built-in SteadyView receiver merges two signals into one, making the image more stable and clear even in challenging flight conditions. With modular bays, the goggles offer more opportunities for upgrades and improvements.

The new optics in these goggles provide a wide field of view (38 degrees) and also feature focus adjustment (-6~+2). This means there is no longer a need for diopter lenses.

No more confusing multi-function buttons or 5-way joysticks; with wheel control in the SKYZONE SKY04O, the goggles have become very easy to navigate.

The 1024*768 high-resolution OLED screen, with vibrant colors and high contrast, now allows the pilot to discern more details.

Advanced screen customization options have been added: aspect ratio can be switched, there are 4 preset screen settings and 3 custom settings for indoor and outdoor flights or different weather conditions.

Features

• 1024*768 OLED screen, high resolution, vibrant colors, high contrast
• Steadyview DVR receiver with 60 FPS, best reception
• Wide field of view - 38°
• Focus adjustment from -6 to +2, for farsighted and nearsighted people
• Supports 4:3/16:9 aspect ratio
• 4 preset screen settings and 3 customizable settings for various situations
• Modular bay for upgrade possibilities

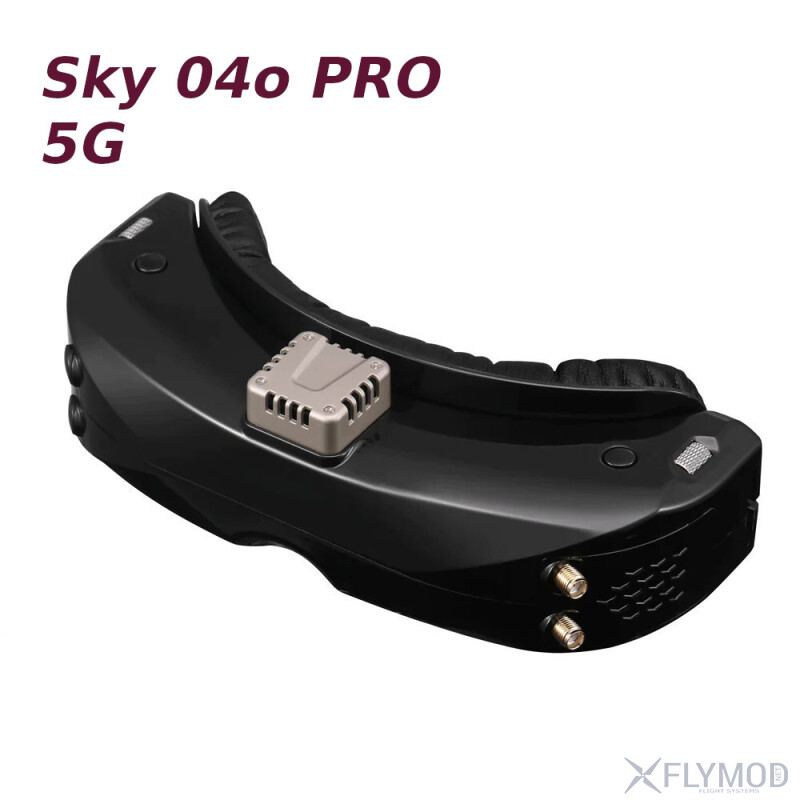

The PRO version features a higher resolution of 1920x1080, a 42° field of view, and MJPEG DVR at 60fps.

Specifications

• Model: SKY04O
• Screen: OLED
• Resolution:
  • 04o: 1024x768
  • 04o PRO: 1920x1080
• FOV (diagonal):
  • 04o: 38°
  • 04o PRO: 42°
• Aspect Ratio: 4:3/16:9
• Focus: -6~+2 (adjustable)
• Interpupillary Distance (IPD): 58~71 mm
• Receiver: 5.0/5.8 GHz 48-channel
• 3D Function: Side By Side half
• Language: 10 languages
• Power Supply: DC 6.5-25.2V/USB 5V
• Power Consumption: 720 mA at 12V
• DVR:
  • 04o: H264, 60 fps, MOV 6 Mbps, supports SD cards up to 128 GB
  • 04o PRO: MJPEG, 60 fps
• Head Tracker: 3-axis accelerometer, 3-axis gyroscope
• Antenna Connector: SMA
• Dimensions: 185*75*67 mm
• Weight: 262 g

Package Contents

• 1x Skyzone SKY04O OLED FPV Goggles
• 1x Receiver Module
• 2x Faceplates (wide and narrow)
• 2x Soft Spacers
• 1x Zipper Case
• 1x Power Cable
• 1x Headtracker Cable
• 2x 2dD Antennas
• 1x Video/Audio Cable
• 1x USB-C Cable
• 1x User Manual
