Emax ECO II Series 2807 3-6S 1300KV Motor

Brand: Emax. Category: Drones & Quadcopters > Drone Components > Drone Spare Parts > Motors. Product Type: Drones & Quadcopters > Motors.

The Emax ECO II Series 2807 3-6S 1300KV model is an optimized brushless motor specifically designed for 7-inch propellers, heavy-lift, and long-range multirotors. The 3-6S and 1300KV configuration provides a wide range of battery compatibility and allows for a combination of high speed and excellent throttle response, making the motor a versatile solution for both agile and cargo platforms.

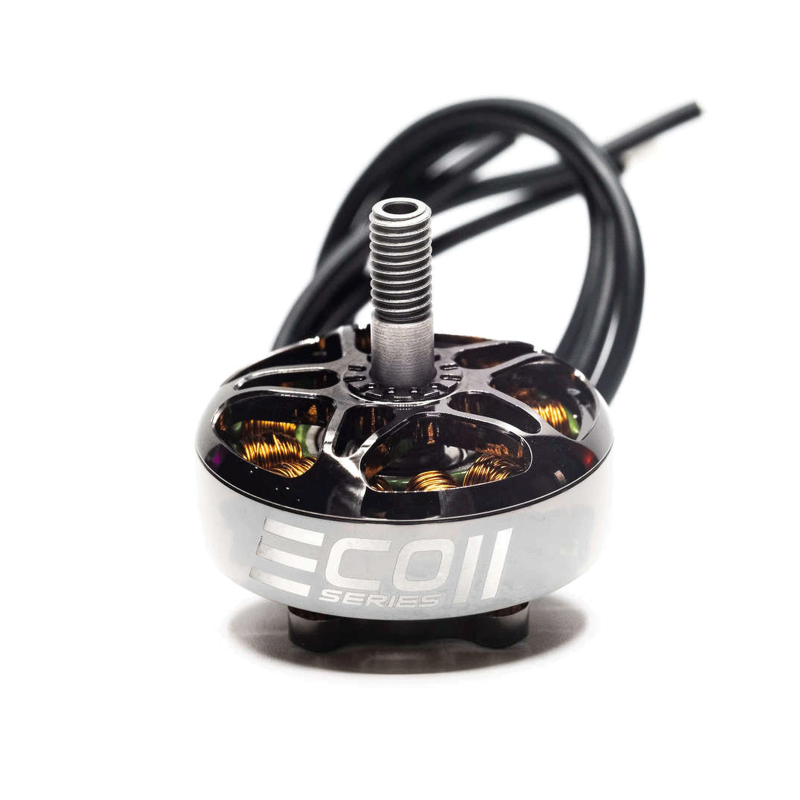

Engineering updates in the ECO II series highlight Emax's commitment to balancing price and quality. The motor bell features a rounded shape with reinforced mounting points for increased mechanical strength under intense loads. The outer surface of the bell is mirror-polished, adding a modern look and protecting the housing from external influences.

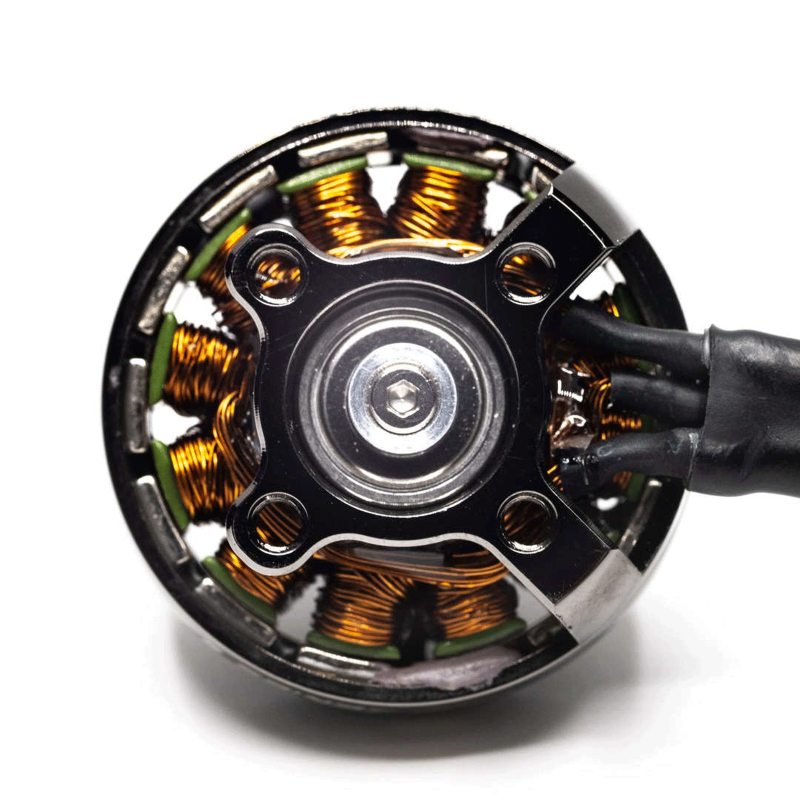

To improve dynamics and torque, the ECO II uses powerful N52SH magnets instead of the previous N48, providing better control response and increased thrust. The motor is equipped with a large 12mm EZO precision bearing for maximum smooth operation, a steel shaft for durability, and multi-strand winding for stable performance under load. The wires are made of 200mm long silicone, 18 AWG cross-section — this ensures flexibility during connection and resistance to vibrations. The motor's mounting dimensions are 19x19 mm, making it compatible with typical frames and mounting plates.

Advantages of the ECO II Series

• Rounded bell design with reinforced mounting points for increased strength.
• Mirror-polished surface for protection and a modern aesthetic.
• N52SH magnets for improved performance compared to N48.
• Large 12mm EZO precision bearing for the smoothest motor operation.
• Mounting size: 19x19 mm, compatible with typical frames.
• Steel shaft for increased reliability and durability.
• Multi-strand winding for stable operation under load.
• 200mm silicone wires, 18 AWG cross-section for flexible and reliable connection.

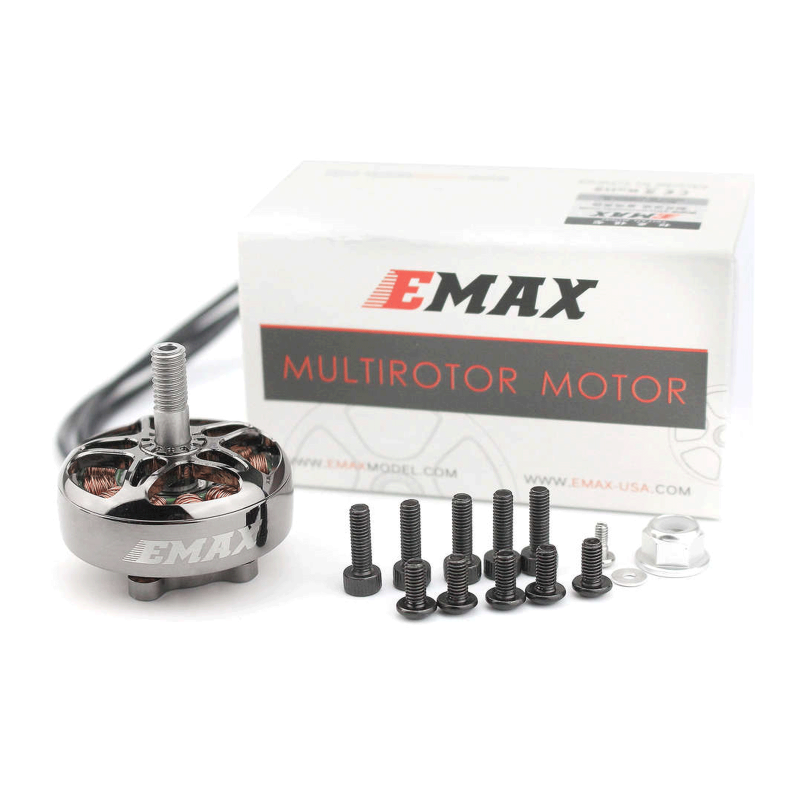

Package Contents

• ECO II 2807 Brushless Motor (Emax ECO II Series 2807 3-6S 1300KV).
• 5 M3*10 screws.
• 5 M3*8 screws.
• 1 M5 aluminum lock nut.
• 1 washer and screw for the shaft.

The ECO II series from Emax is a logical step forward for pilots seeking an affordable yet effective motor with high thrust, reliability, and modern design. If you need a motor for 7-inch propellers, long flights, or for lifting heavier loads — the Emax ECO II 2807 1300KV will offer the necessary performance and operational stability.
