GIFT! Video Splitter with 3 Outputs VA-Sp-1/3
Receive a gift from VideoLink when you purchase equipment for drone video systems! Buy any equipment for drone video systems — FPV cameras, video transmitters, receivers, goggles, remotes, or other components — and get a VideoLink VA-Sp-1/3 Video Splitter as a gift. This is a practical bonus for those who want to expand the functionality of their FPV system and enhance flight convenience.
_____________
1 pc as a gift per 1 item in the order !!!
_____________Description and Purpose

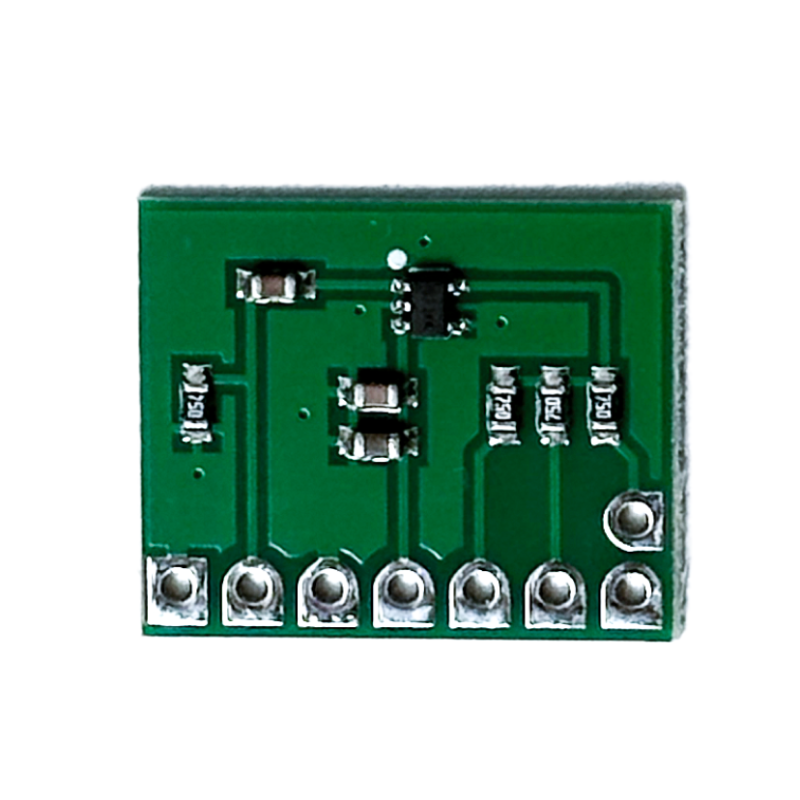

The VA-Sp-1/3 linear video amplifier-splitter is designed to restore video level and amplitude-frequency characteristics (AFC) after passing through a radio path or a long cable line, as well as for simultaneous video signal distribution to multiple devices. The device can be used both in a receiving station and directly on the drone, making it a versatile accessory for professional and amateur FPV systems.
Advantages
- Compact size and low power consumption.
- Provides simultaneous video signal distribution to 3 independent outputs.
- Supports main video standards for compatibility with various devices.
- Amplification without significant signal distortion.
Technical Specifications
| Supported Standards | PAL, Secam, NTSC, SD video |
| Frequency Band | from 50 Hz to 7 MHz |
| Gain Non-uniformity | not more than 1 dB |
| Dimensions | 22 x 15 mm |
| Power Supply | +5 V +/- 0.25V |
| Current Consumption | up to 30 mA |
| Number of Inputs | 1 |
| Number of Outputs | 3 |
| Gain | x1.0 +/- 5% |
| Maximum Input Video Signal Swing | 1.5 V |
| Maximum Output Video Signal Swing at Load | 75 Ohm, 1.5 V |
Brand: VideoLink. Product Category: Drones & Quadcopters > Drone Accessories. The VA-Sp-1/3 model combines compactness (22 x 15 mm), stable gain (x1.0 +/- 5%), and low power consumption (up to 30 mA) with +5 V +/-0.25 V power supply, making it an ideal choice for installation in confined spaces on equipment or in a receiving station. The device guarantees video signal quality preservation in the range from 50 Hz to 7 MHz with gain non-uniformity of no more than 1 dB and compatibility with PAL, Secam, and NTSC.
As a gift when purchasing equipment for drone video systems, this VideoLink video splitter will help you connect goggles, a recording device, and a monitor simultaneously without losing signal quality. This is a simple and effective solution for expanding your FPV station.
