FPV 5.8GHz DUAL Repeater for Matrice 30 — SkyReach
The FPV 5.8GHz DUAL Repeater for Matrice 30 from SkyReach is a specialized solution for professional video monitoring and extending the control range of unmanned systems. The device is designed for use in fields where stable video signal transmission and long-distance operation are crucial. Equipment modification is possible according to customer needs.
Description and Purpose
The repeater ensures video signal reception in the 5.0-5.8GHz range with subsequent transmission to the operator at 1.2GHz, which effectively overcomes obstacles and reduces the impact of external interference sources. The device is compatible with high-performance DJI Matrice 30 and DJI Matrice 300 platforms (specify when ordering), making it an ideal choice for integration into existing surveillance and reconnaissance systems.
Advantages
- Increased video transmission reliability thanks to combined antennas (patch and helix).
- Flexible control range options — 433-2800MHz at customer's choice.
- Support for popular ELRS and TBS TX modules for compatibility with various transmitters.
- Up to 2 hours of continuous operation on a single battery charge, ensuring long flights or extended standby.
Technical Specifications
Technical Specifications| Compatibility | DJI Matrice 30, DJI Matrice 300 (specify when ordering) |
| Operating time | Up to 2 hours on a single charge |
| TX module support | ELRS/TBS |
| Control range | 433-2800MHz at customer's choice |
| Control antenna | 433-2800MHz at customer's choice |

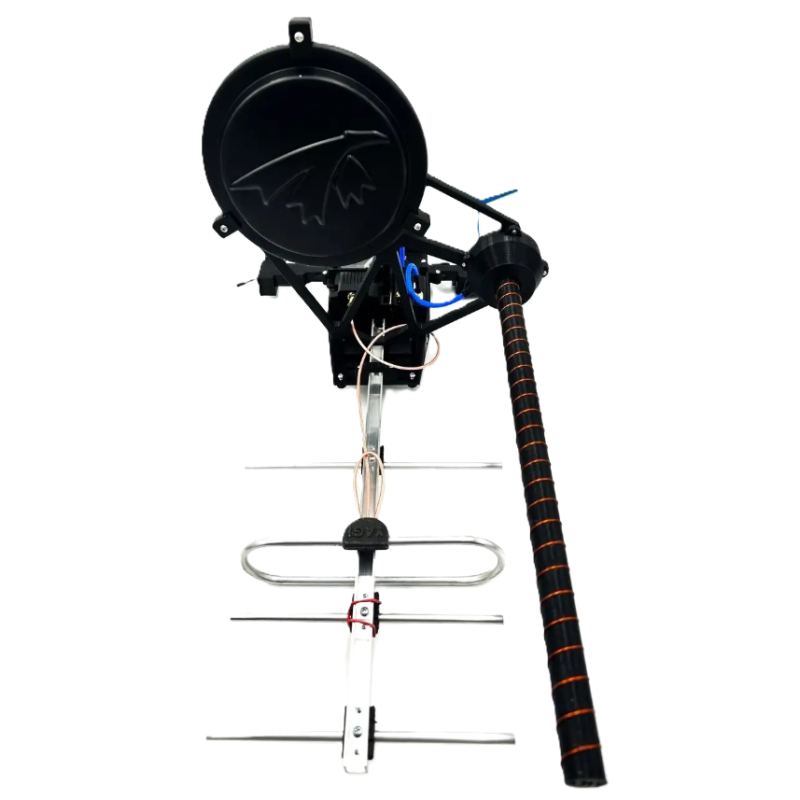

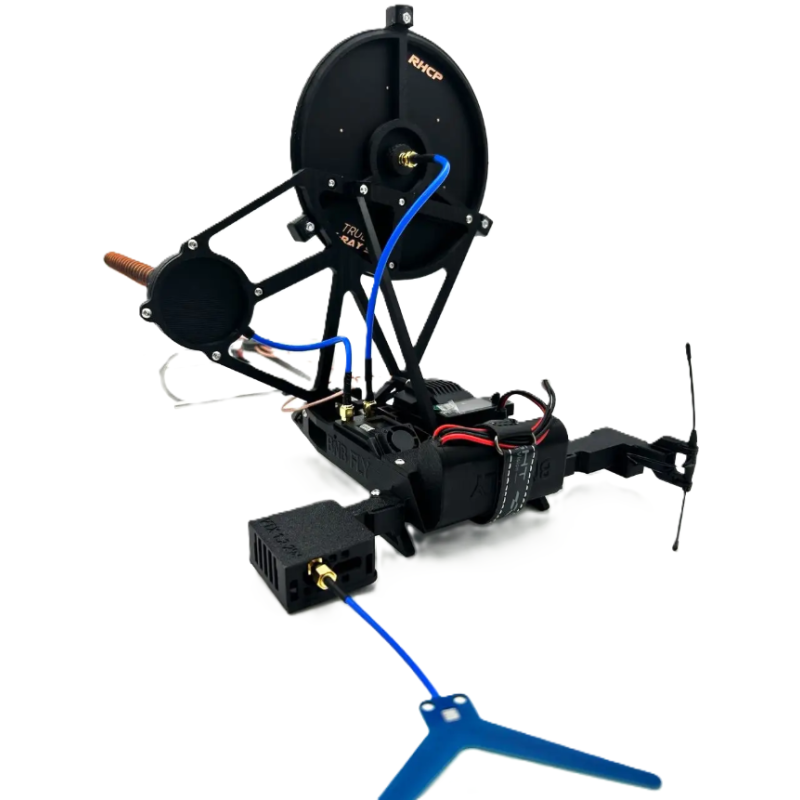

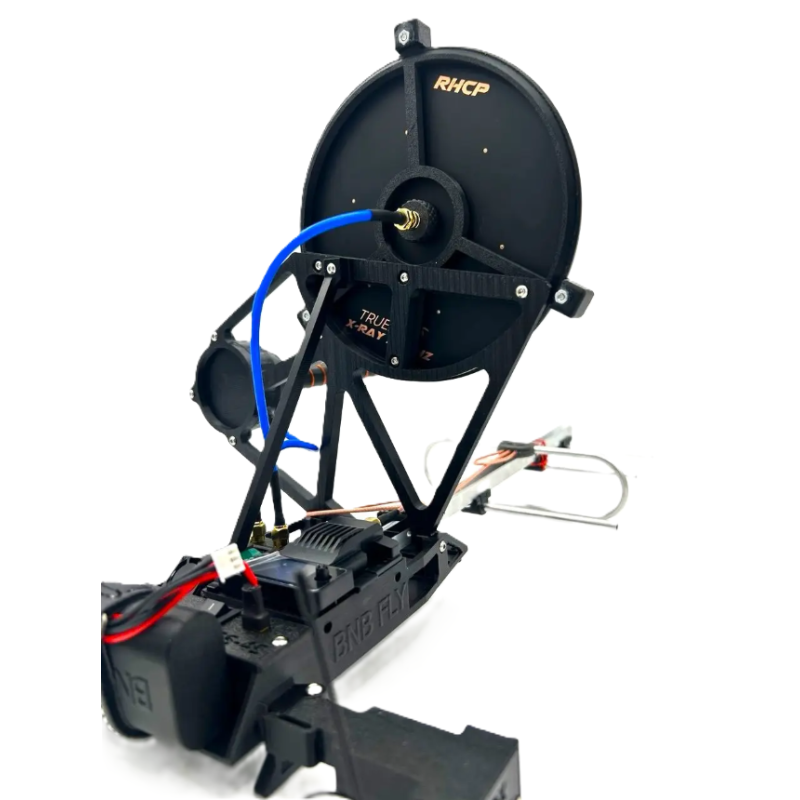

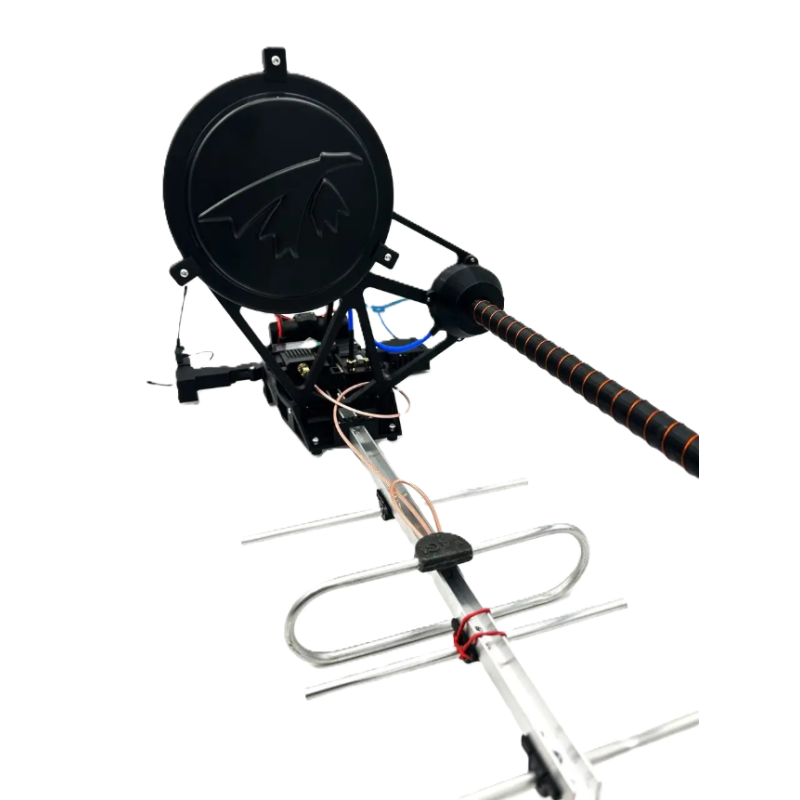

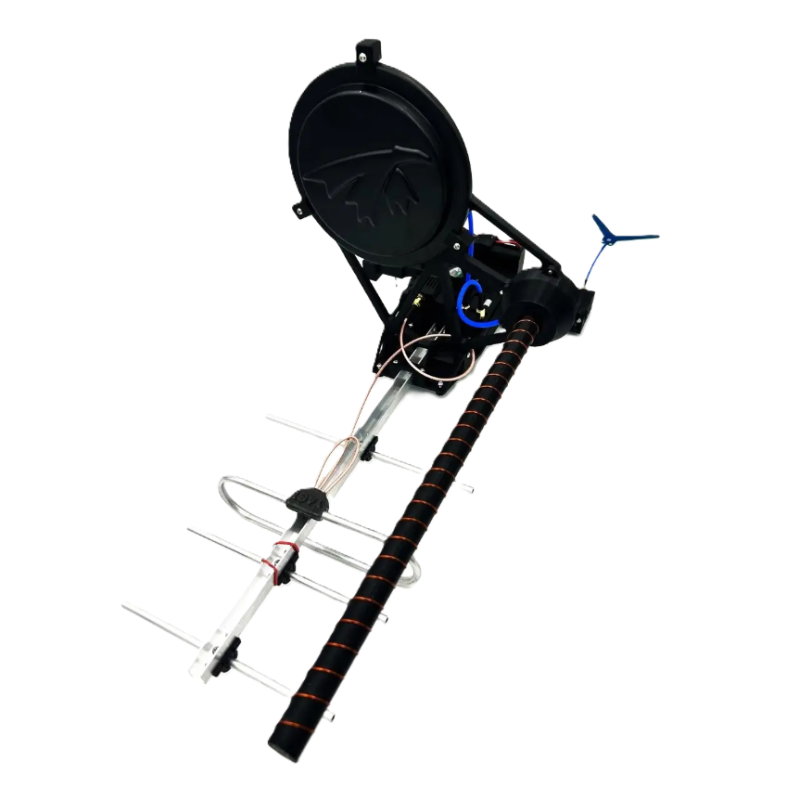

| Video reception antennas | TrueRC 5.8GHz Patch Antenna and Helix 27 turns 18dBi |
| Video signal range (reception) | 5.0-5.8GHz |
| Video signal transmission frequency to operator | 1.2GHz |
| Power elements | 2S 21700 battery (1 pc.), connector - XT30 |
| Mounting | 4 screws (included) |
| Package contents | Repeater with all necessary modules and antennas, battery - 1 pc, mounting adapter - 1 pc. |

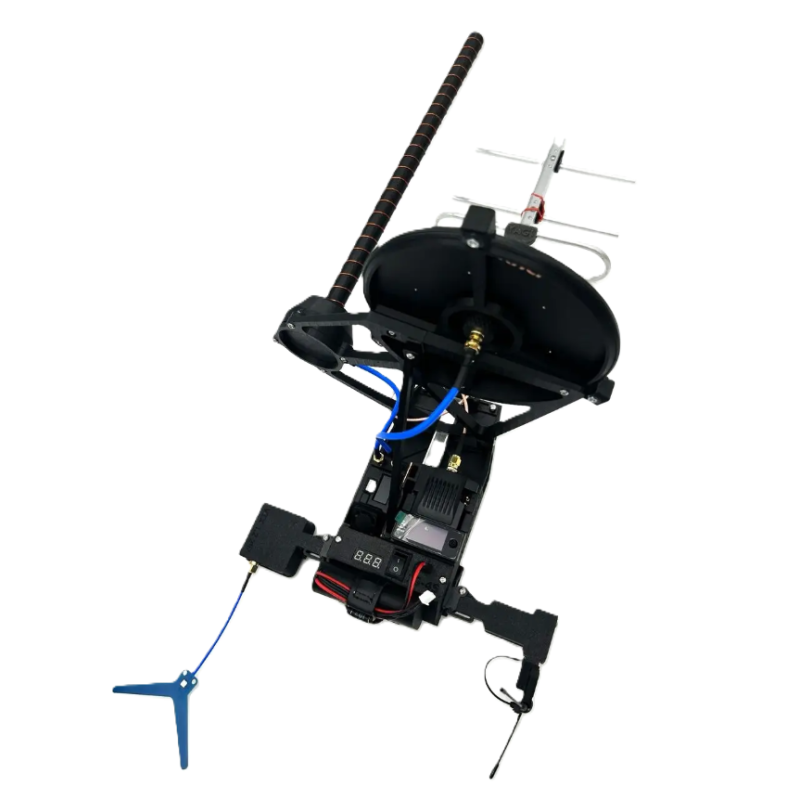

The repeater comes fully equipped: a repeater unit with integrated modules and antennas, one 2S 21700 battery with an XT30 connector, a mounting adapter, and a set of 4 screws for installation. Thanks to ELRS and TBS module support, the device easily integrates into existing control and data transmission systems.
The device is intended for use as part of Ground Repeater Stations in applications such as search and rescue operations, object and terrain monitoring, industrial and infrastructure inspections, and special operations where remote video transmission from UAVs is required. The specified compatibility with DJI Matrice 30 and Matrice 300 allows for quick integration of the repeater into operator workflows without significant additional modifications.
If you need a custom control frequency configuration or specific antennas to increase range/reliability, SkyReach offers equipment modification to meet your requirements. For compatibility clarification with a specific drone configuration or to order non-standard options, please contact our specialists.
Product category: Ground Repeater Stations. Manufacturer: SkyReach. Model: FPV 5.8GHz DUAL Repeater for Matrice 30.
