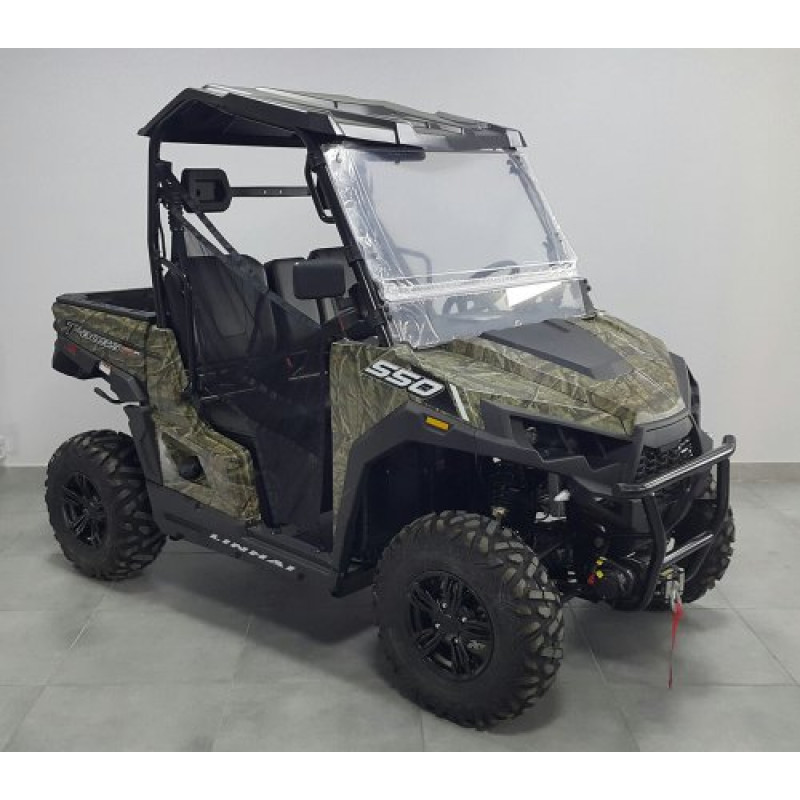

LINHAI T-BOSS 550 EFI 4x4 Quad Bike
The LINHAI T-BOSS 550 EFI quad bike is a versatile and powerful all-terrain vehicle from the LINHAI brand, combining modern aggressive design, thoughtful construction, and an attractive price. The model belongs to the category: Motor Vehicles > Quad Bikes and is suitable for both extreme off-road rides and utility work on a plot or in the countryside.
General Information
The model is manufactured at modern facilities in China, which helps reduce costs without compromising quality. The quad bike is equipped with a 500 cm3 four-stroke gasoline engine with an EFI injection system, ensuring economical fuel consumption and reliable electric starter ignition. Brand: LINHAI. Vehicle type: Motor Vehicles > Quad Bikes.
Key Advantages
- High off-road capability thanks to 4x4 all-wheel drive and the ability to lock the rear differential.
- Economical fuel-injected engine with an average fuel consumption of only 7 L/100 km.
- Liquid cooling system ensures stable engine operation in various conditions.
- Convenient automatic transmission (V-belt variator) with L/H/neutral/reverse modes.
- Robust tubular metal frame with the option to attach additional storage boxes and extensive configuration possibilities (tow hitch, winch, roof, windshield).
Configuration and Safety
The LINHAI T-BOSS 550 EFI comes with a rich factory configuration: rearview mirrors, handguards, an instrument panel with an LCD screen, alloy wheels, tow hitch, roof, winch, and windshield. The braking system features hydraulic disc brakes on each front wheel, actuated by a hand lever, and a hydraulic disc on the rear axle, actuated by a foot pedal; brake hoses are reinforced. The parking brake locks the rear caliper with a manual actuator and a lock on the handlebars.
The electrical system includes front lenses with H4 35W halogen lamps (low/high beam), front and rear marker lights, brake light, turn signals, horn, and speedometer. The battery is a sealed lead-acid type, 12V 18Ah.
Technical Specifications
| Engine power, hp | 33 |
| Wheel formula | 4x4 |
| Engine type | gasoline, 4-stroke, EFI injector |
| Engine displacement, cm3 | 500 |
| Engine start system | electric starter |
| Cooling system | liquid |
| Rated engine speed, rpm | 7000±150 |
| Torque, Nm / rpm | 39 at 5500 |
| Transmission (gearbox) | automatic (V-belt variator) |
| Transmission modes | L/H/neutral/reverse |
| Rear differential lock | yes |
| Final drive | direct |
| Front brakes | hydraulic, disc on each wheel actuated by hand lever (combined with rear brake) |
| Rear brake | hydraulic, disc on wheel axle actuated by foot pedal (combined with front brakes) |
| Parking brake | locks rear caliper with manual actuator and handlebar lock |
| Brake hoses | reinforced |
| Tire size | front 25x8-12, rear 25x10-12 |
| Fuel tank capacity, L | 26 |
| Dimensions, LxWxH mm | 2730x1460x1890 |
| Front suspension | independent, McPherson struts |
| Rear suspension | independent on double A-arms with anti-roll bar |
| Average fuel consumption, L/100 km | 7 |
| Configuration | rearview mirrors, handguards, instrument panel with LCD screen, winch, alloy wheels, tow hitch, roof, windshield |
| Electrics | front lenses with H4 35W halogen lamps (low/high beam), front and rear marker lights, brake light, turn signals, horn, speedometer |
| Battery | sealed lead-acid, 12V 18Ah |
| Plastic body kit | high-strength ABS plastic (front bumper, side mudguards, fender flares) |
| Metal body kit | tubular, integrated into the frame with the option to install additional storage boxes |
The LINHAI T-BOSS 550 EFI is a reliable choice for those seeking a versatile quad bike with a good combination of price, configuration, and technical specifications. It allows for easy completion of work tasks, towing loads with the tow hitch, and maximum enjoyment from off-road adventures. Control is intuitive, making the model suitable for both experienced riders and beginners.
