EW Jammer Prymara 2.4 and 5.8 GHz Spektrum
Brand: SPEKTRUM. Product type: EW Jammers > Trench EW Jammers. This is a utilitarian system designed for the rapid suppression of control and data transmission channels in the 2.4 and 5.8 GHz bands, with quick battery replacement and remote control capabilities. The device's design allows it to be used in a positional (trench) configuration or installed in a vehicle for mobile operation.
Description and Purpose

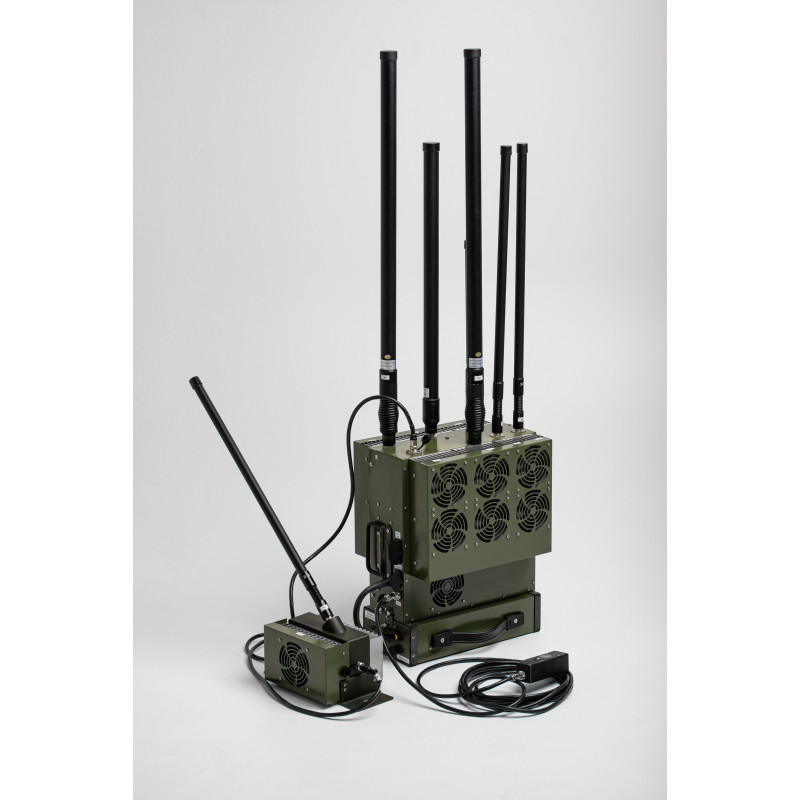

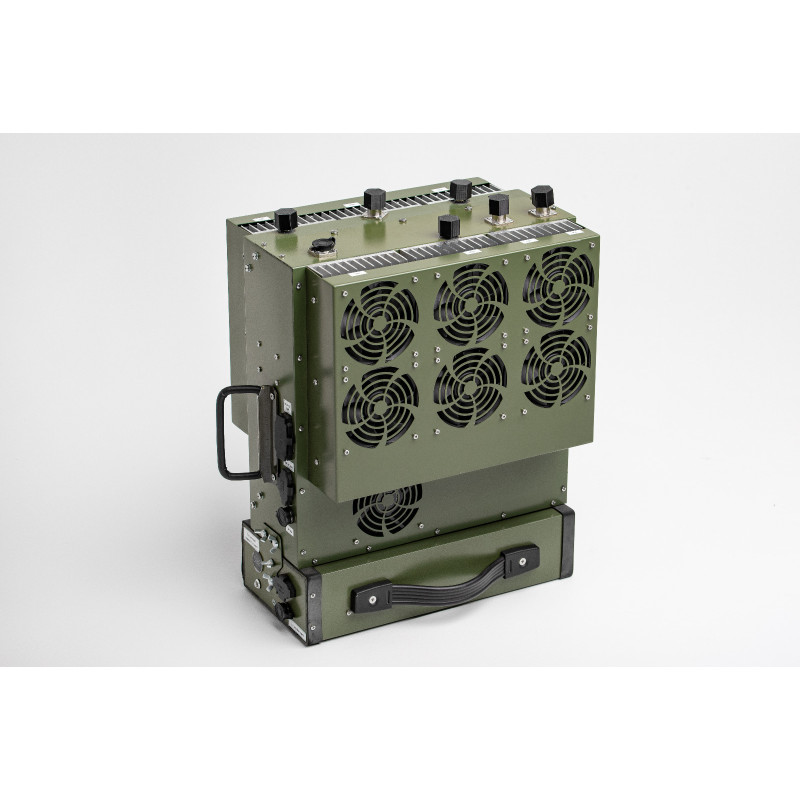

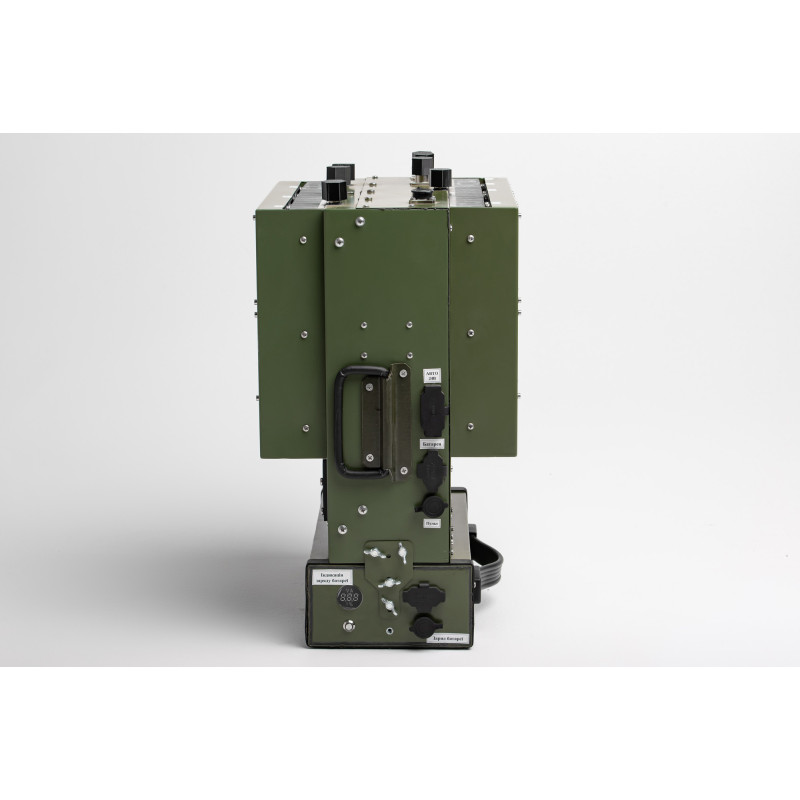

The Prymara EW jammer operates in the 2.4 and 5.8 GHz frequency bands and is equipped with three interference generators, providing a total radiated power of 150 W (50 W per generator). The device features an active cooling system and is housed in a durable aluminum casing, enhancing reliability in field conditions. The system's mobility is ensured by the ability to quickly replace the battery or recharge from a vehicle's electrical system, making Prymara convenient for use in both stationary positions and vehicle configurations.
Technical Specifications
| Frequency range | 2.4 and 5.8 GHz |
| Number of interference generators | 3 pcs. |
| Radiated power | 150 W | 50 W each |
| Power supply | 24V Battery |
| Nominal battery capacity | 40 A·h | 1000 W·h |
| Recommended charge voltage, V | 25.2 |
| Recommended charge current, A | 10 to 40 |
| Maximum continuous discharge current, A | 100 |
| Autonomy | Can use vehicle's electrical system for recharging or quick battery replacement |
| Cooling | Active |
| Casing | Metal, aluminum |
| Weight | Interference generator block up to 13 kg. Battery block up to 9 kg |
| Dimensions mm (L, W, H) | Interference generator block 350×150×350; Battery block 350×160×80 |

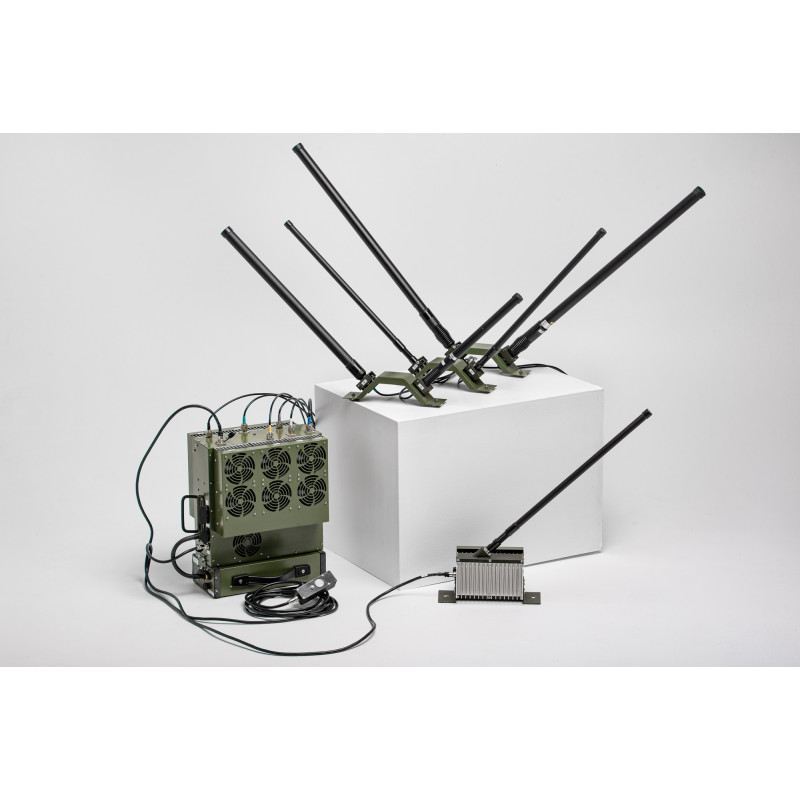

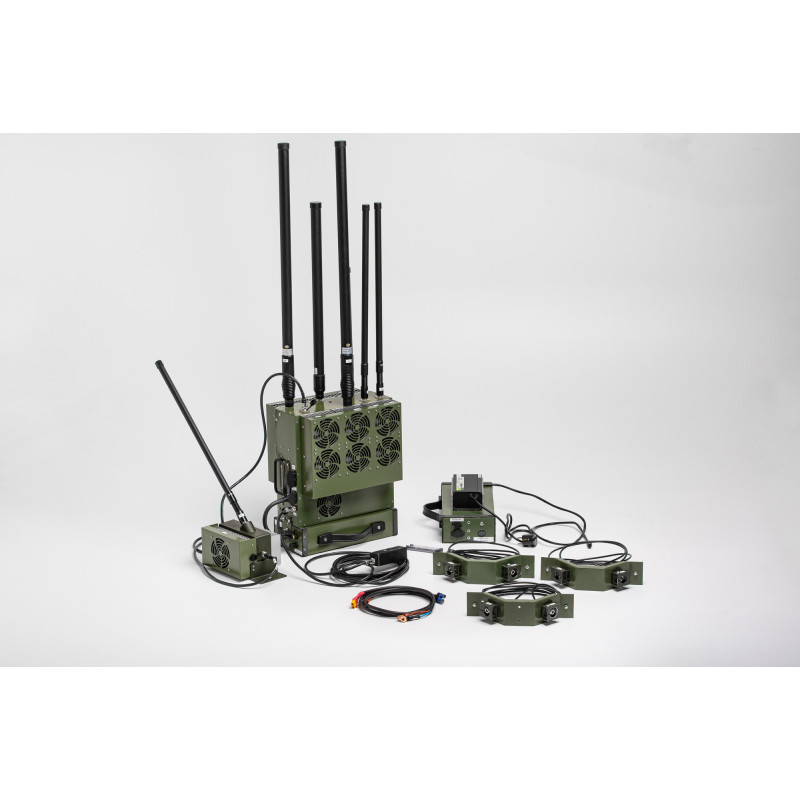

Package Contents
- 1) Block with interference generators

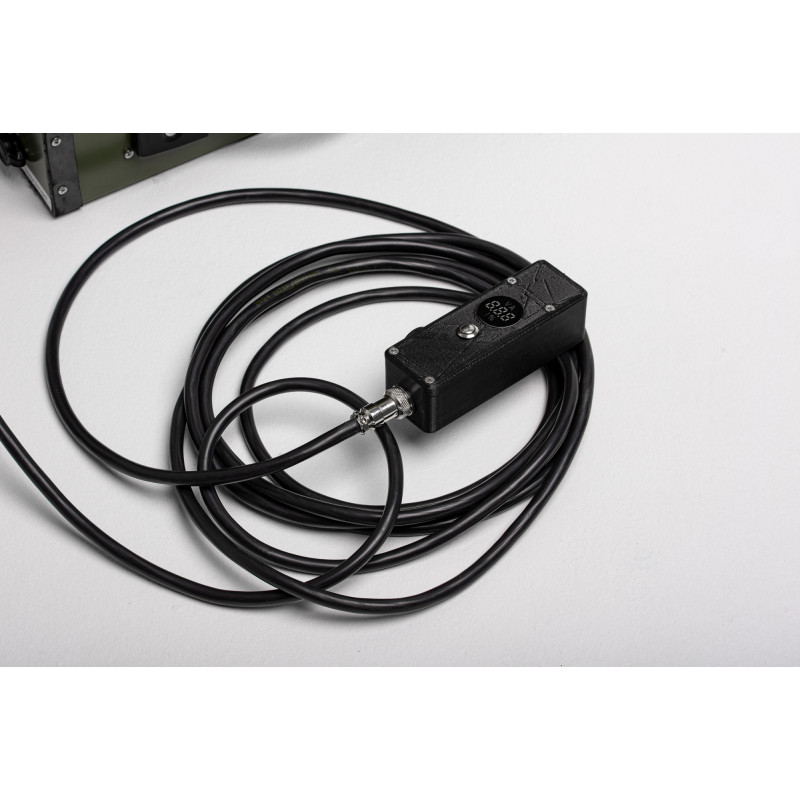

- 2) Remote control with 5 m cable
- 3) Battery block
- 4) Power cable for connecting the battery block with XT90-XT90 connectors
- 5) Cable for connecting and charging from vehicle's electrical system with terminal - EC8, 5 m long
- 6) Charger 25.2 V 10A

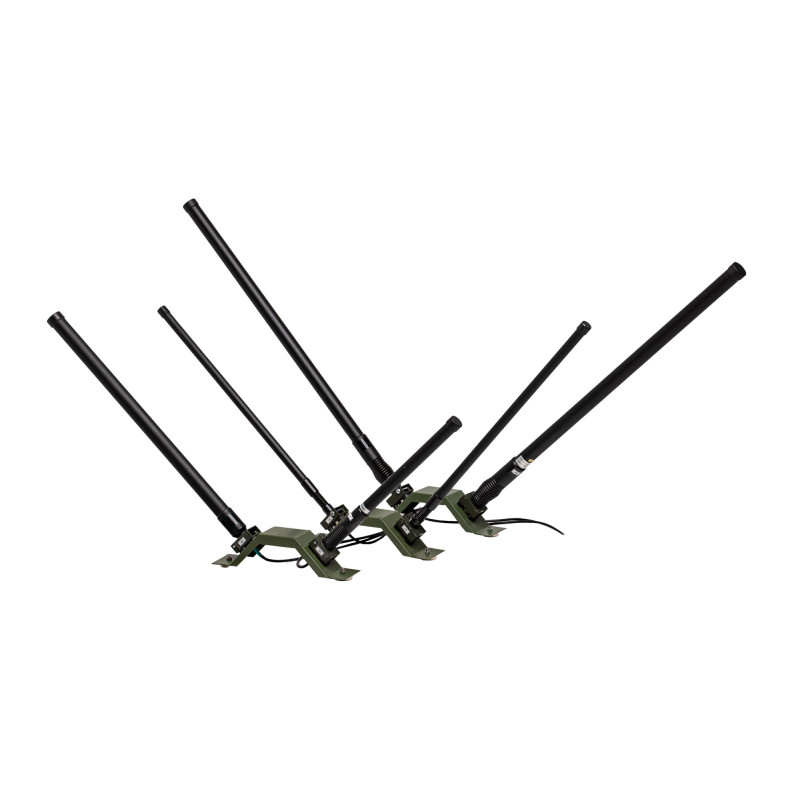

- 7) Mounts for antenna installation on vehicles with 2.5 m coaxial extensions
- 8) Omnidirectional or directional antennas with cables
- 9) Mounts for installation inside vehicles
Modifications and Custom Options
This EW jammer is assembled to individual order for specific frequencies. Possible options and parameters, agreed upon during ordering, allow optimizing the system to the customer's needs and application conditions:
- 1) Three form factors: larger casing for 100-watt generators; smaller casing for 50-watt generators; backpack version.
- 2) External power supply voltage: 12/24 V.
- 3) Current consumption: up to 40 A (at 24 V).
- 4) Number of interference generators: 4 to 8 (depending on order).
- 5) Antennas: omnidirectional "collinear" or directional.
- 6) Possible frequencies: 300 — 5900 MHz.
Prymara is a versatile solution for electronic countermeasures in field conditions and in vehicles. Its design accounts for the need for rapid response: quick battery replacement, the ability to connect to the onboard electrical system, various form factors, and antenna types make the system flexible in application. The weight and dimensions of the blocks allow for equipment integration into a vehicle or placement in a stationary position, while active cooling ensures stable operation under prolonged and intensive loads. All additional technical details, precise frequency ranges, generator powers, antenna types, and casing form are agreed upon individually when ordering to achieve optimal effectiveness.
