TETRIS UGV for Logistics or Mining Operations

Brand: RobotsUA. Category: Drones & Quadcopters > Unmanned Ground Vehicles (UGVs).

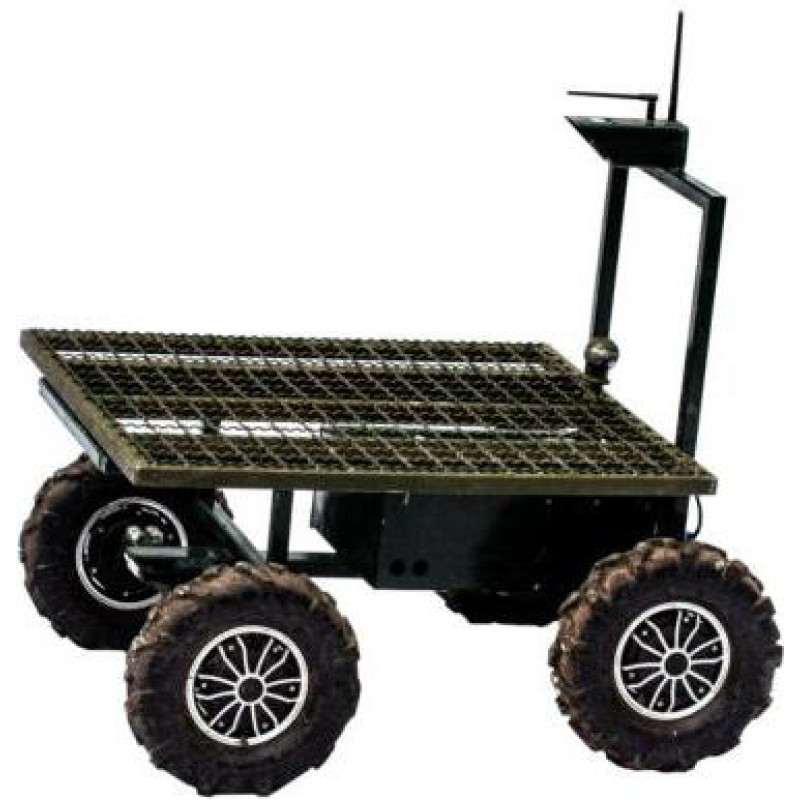

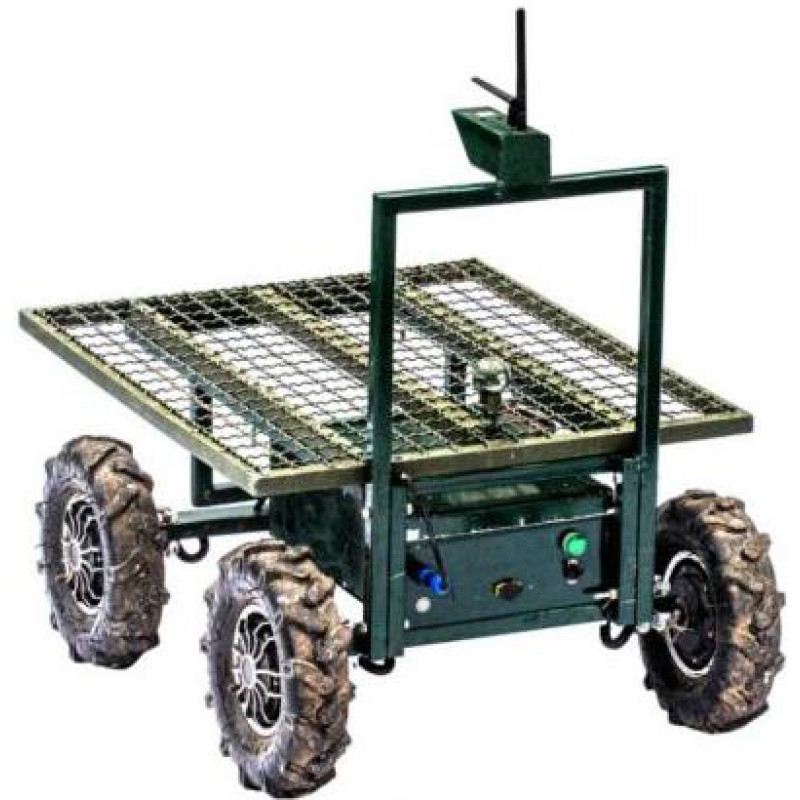

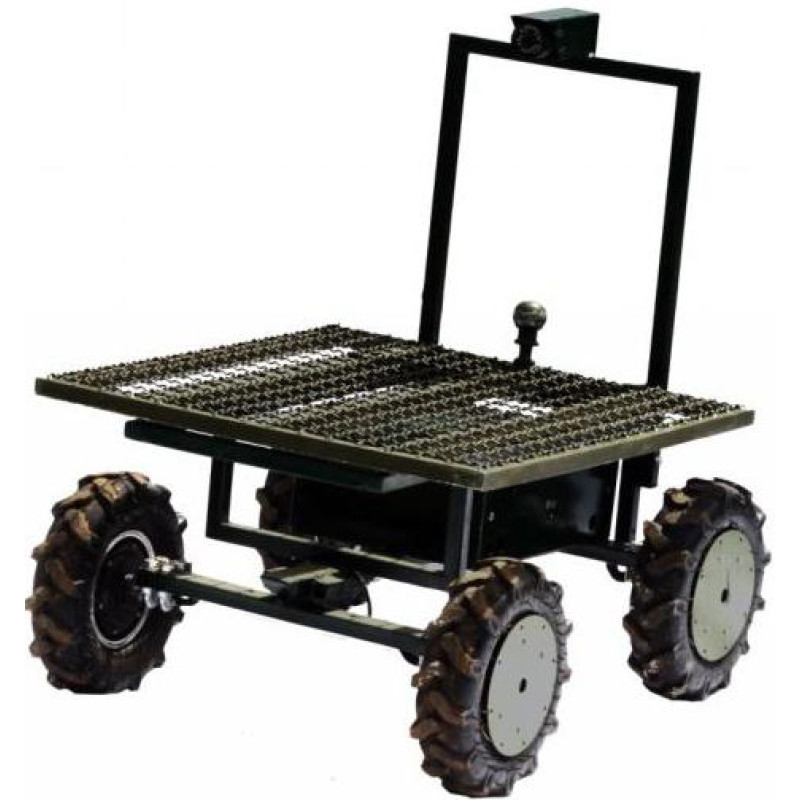

TETRIS is a compact, small-sized unmanned ground vehicle designed for logistics and mining tasks. The platform's design ensures high cross-country capability, maneuverability, and reliability when operating in challenging conditions, making it suitable for both military operations and civilian engineering and rescue work.

Primary Use Cases:

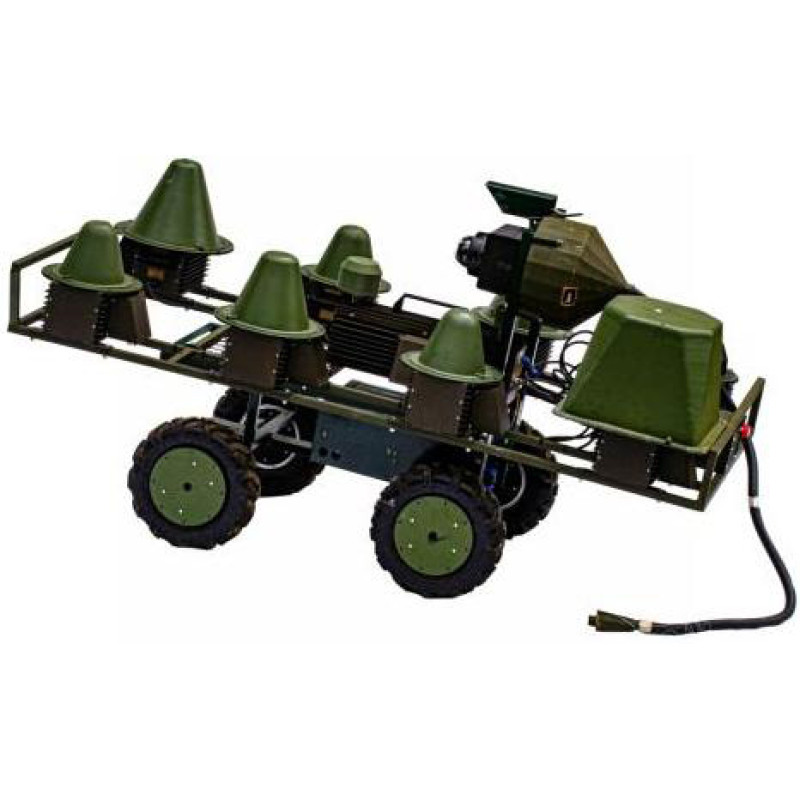

• mining — dropping 3 TM62 mines;
• logistics/kamikaze with a payload up to 50 kg;
• towing a trailer weighing up to 110 kg;
• transporting EW (electronic warfare) equipment;
• clearing paths of anti-personnel mines using a mine plow and a probe for disarming tripwires.

Communication:

• analog video 4.9–6.0 GHz — up to 4 km over rough terrain;
• optional digital video 2.1–2.4 GHz — up to 3 km over rough terrain;
• secure, EW-resistant control 750–860 MHz;
• fiber optic up to 25 km (optional) for increased range and data link stability.

Design Features:

• front running gear, significantly aiding in overcoming obstacles higher than the UGV frame;
• minimal turning angles for efficient operation in confined spaces;
• a multi-purpose, lightweight, powerful, and low-maintenance system, optimized for field conditions.

Package Contents:

• drone (TETRIS platform);
• control panel;
• 7'' monitor;
• 1.5 m probe for disarming tripwires;
• 6 Ah charger (10 A optional);
• operating manual and link to training video course;
• optional: additional battery, trailer, night camera, mast.

Physical Characteristics:

• dimensions: 800×600×500 mm;
• platform weight: 50 kg;
• recommended payload capacity: 50 kg;
• range: up to 15 km.

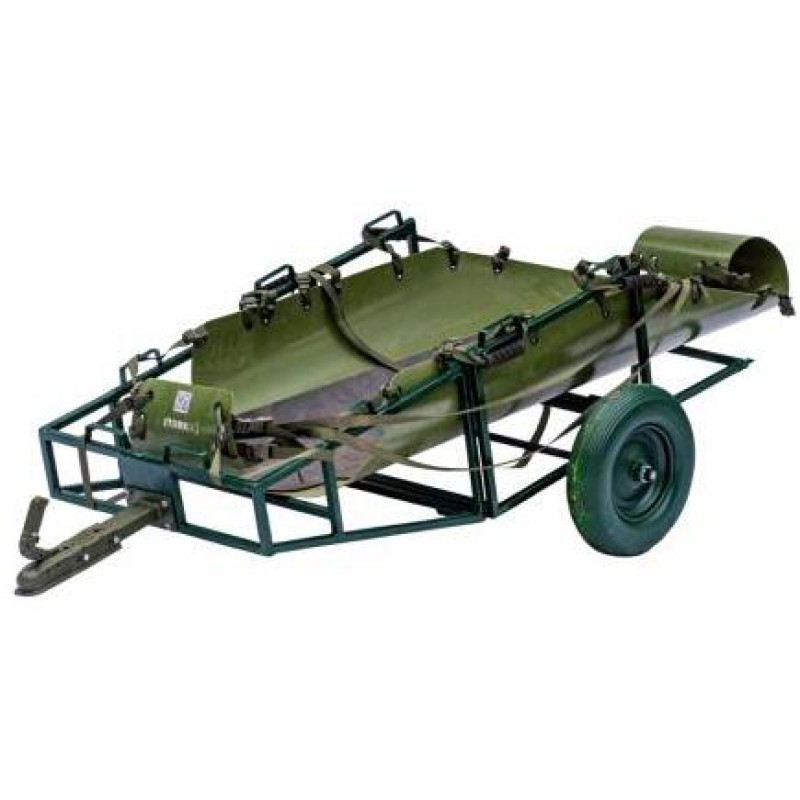

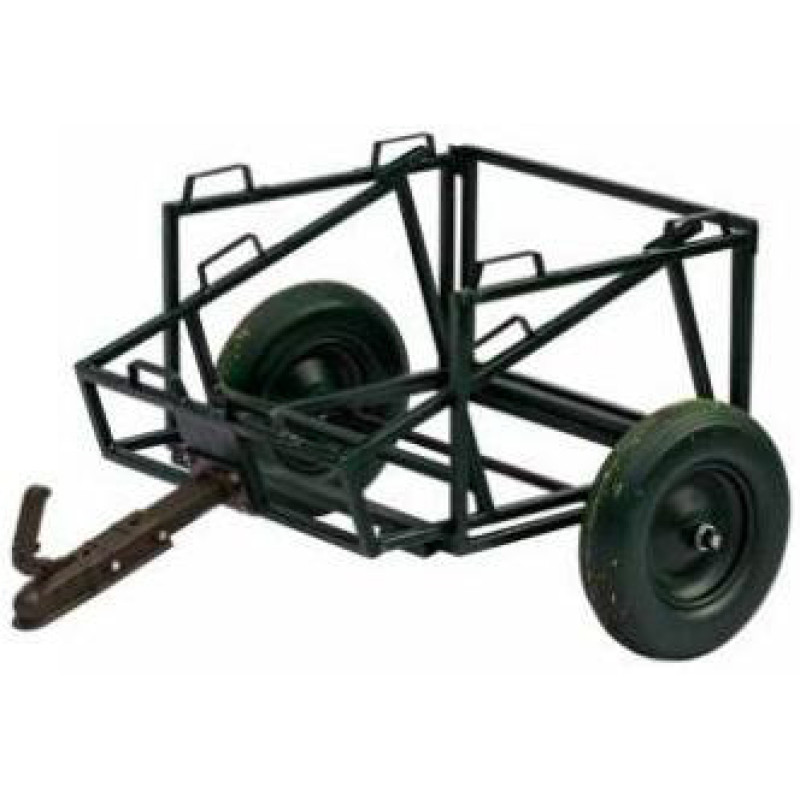

* Trailer cost — 20,000 UAH (optional).

The TETRIS unmanned ground vehicle from RobotsUA is optimized for a wide range of tasks: from cargo delivery and convoy escort to remote-controlled mining operations. Various video communication options — both analog and digital — provide flexibility in choosing data transmission channels according to terrain conditions and the level of electronic interference. The ability to connect a fiber optic cable increases the range and safety of operations when performing critical tasks.

The system is distinguished by simple technical operation, the possibility of quick battery replacement, and the installation of additional equipment (trailer, night camera, mast), which expands its functionality and allows the platform to be adapted to specific customer tasks. The recommended payload capacity, compact dimensions, and weight of 50 kg make TETRIS convenient for transport and rapid deployment in the field. A range of up to 15 km and the ability to tow a trailer weighing up to 110 kg add versatility in performing logistics and specialized operations.

The delivery package includes a control panel and a 7'' monitor, a 1.5 m probe for working with tripwires, a 6 Ah charger (with a 10 A option), as well as an instruction manual and access to a training video course. Optional modules — an additional battery, a trailer (trailer cost 20,000 UAH), a night camera, and a mast — allow expanding the platform's functionality for specific tasks.

The TETRIS unmanned ground vehicle meets the requirements for mobility, maintainability, and communication security, making it an effective tool for military and civilian services. If you need a compact, reliable, and multi-purpose platform for cargo delivery, demining, or performing related technical tasks — TETRIS from RobotsUA will be the optimal solution.
