The Amaga PLUS vehicle EW jammer kit from Magura with remote modules is designed for effective suppression of UAV control and telemetry channels in the 2.1–2.7 GHz and 5.7–5.9 GHz bands with a total radiated power of 260 W. It is a ready-made field solution with a remote module architecture, active cooling, and a wired control panel. The aluminum enclosures with IP65 protection ensure resistance to moisture and dust. The kit's weight does not exceed 12 kg, and the readiness time is up to 10 seconds after power-on.

Key Advantages

• High total power: 260 W of radiation (4 modules of 65 W each), allowing simultaneous coverage of key FPV bands 2.4 GHz and 5.8 GHz.
• Remote architecture: modules are housed in separate protected enclosures with their own active cooling — stable operation even during prolonged use.
• Quick start: readiness time up to 10 seconds after power-on.
• Convenient control: wired control panel with a 10-meter cable, jammer operation indication, and battery voltmeter.
• Autonomy and universal power supply: built-in Li-ion battery 24 V 40 Ah provides up to 1.2 hours of operation at maximum load; power from the vehicle's onboard network 12–24 V via a 40 A charger is also provided.
• Dome QFH antennas: 4 quadrifilar helical antennas with circular polarization in a protected enclosure with magnetic mounting — covering 2.1–2.7 GHz and 5.1–6.0 GHz.
• Effective cooling: 4 fans on each remote module.
• Modularity: possibility of configuration for specific tasks — jammer modules for various frequency bands are available by separate order.

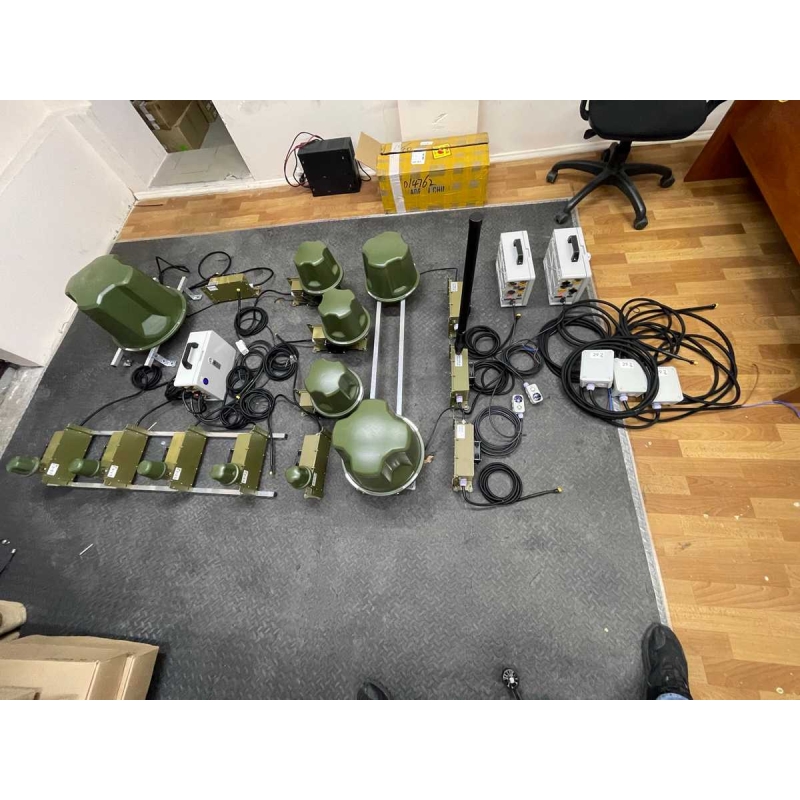

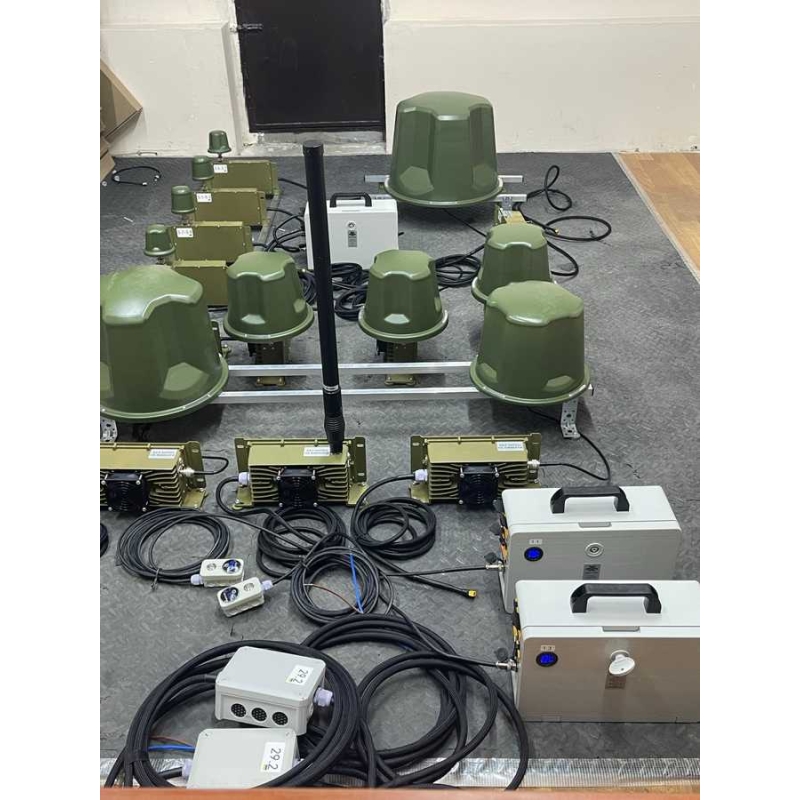

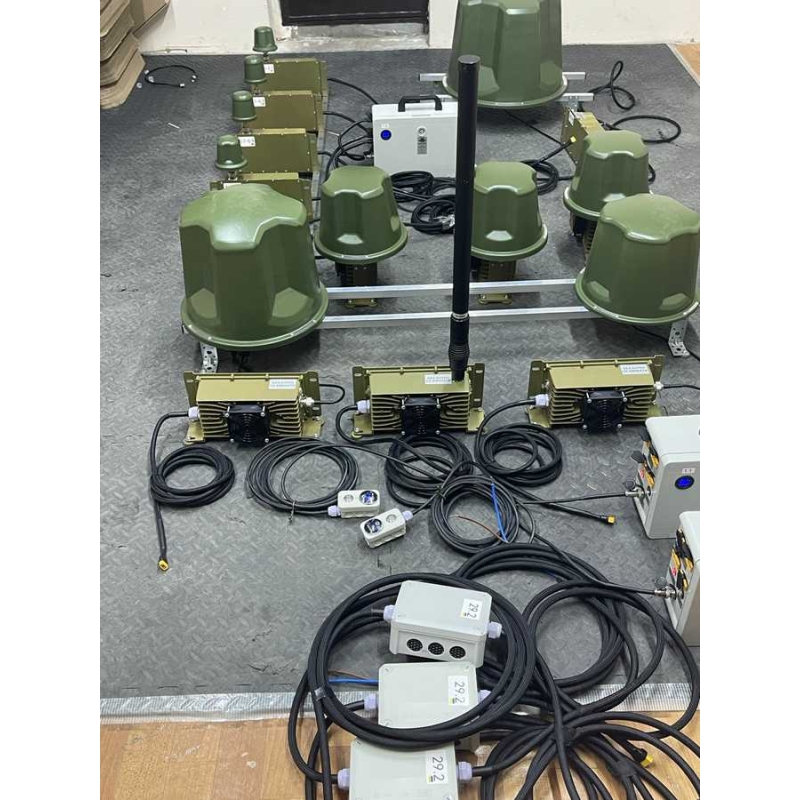

Kit Contents

• Amaga PLUS control unit
• Amaga PLUS remote EW module (set of remote enclosures for modules)
• Control panel with jammer operation indication and voltmeter, 10 m cable
• Car charger DC 12–24 V, 40 A
• Li-ion battery 24 V 40 Ah (autonomy up to 1.2 hours at max. load)
• RF jammer modules 4×65 W: 2100–2300 MHz, 2300–2500 MHz, 2500–2700 MHz, 5700–5900 MHz
• Dome-type QFH antennas, 4 pcs: 2× QFH 2.4 GHz (coverage 2.1–2.7 GHz) and 2× QFH 5.8 GHz (coverage 5.1–6.0 GHz)

Additional Modules and Bands (by order)

Jammer modules for specific bands are available: 5.8 GHz and 2.4 GHz at 50 W each; LoRa 720–1020 MHz and 700–1050 MHz at 100 W each; 2×GaN 100 W in the 700–1020 / 400–700 / 1000–1400 MHz bands; 65-watt modules for the 300–400, 400–500, 500–600, 600–700, 700–830, 830–960, 960–1100, 1000–1200, 1100–1400, 1900–2100, 2100–2300, 2300–2500, 2500–2700, 2700–2900, 3150–3300, 3300–3450, 5150–5250, 5700–5900 MHz bands. For availability and parameters, please contact Magura company managers.

Technical Specifications

Testing and Quality

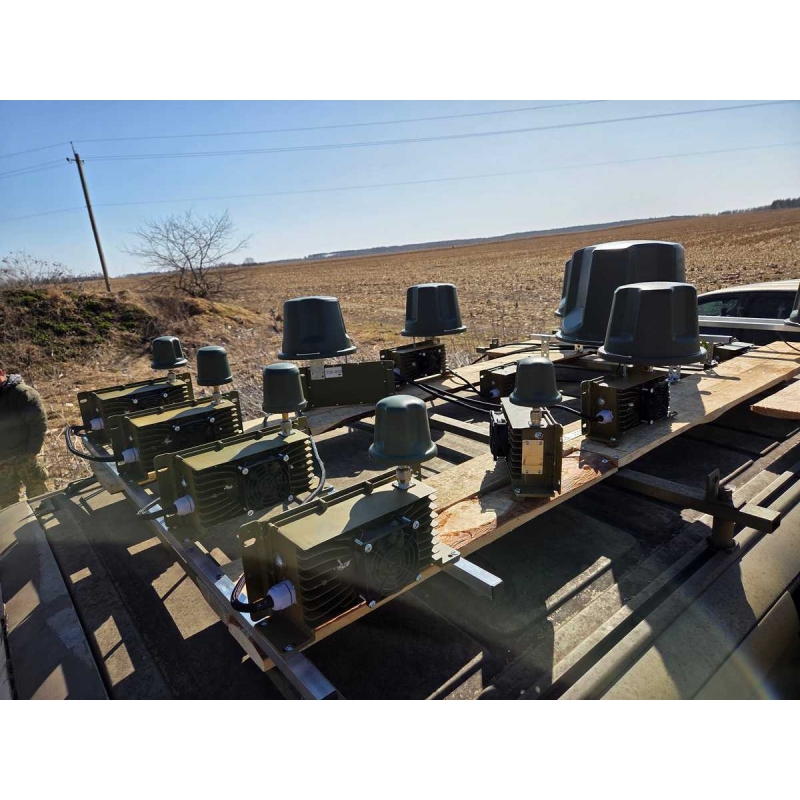

The Amaga PLUS EW jammer has undergone comprehensive testing — both field tests (FPV flights with the EW jammer installed on a vehicle at a distance of about 4 km from the communication mast, with stability of jamming recorded) and laboratory tests (measurements on high-precision spectrum analyzers, signal analyzers, and VNA vector network analyzers: output power, spectral mask, out-of-band emissions, harmonic level, VSWR, and antenna path matching).

Operating Warnings

• Never turn on the EW jammer without connected antennas.
• Before turning on, check the reliability of cable connections and the correspondence of module and antenna bands.

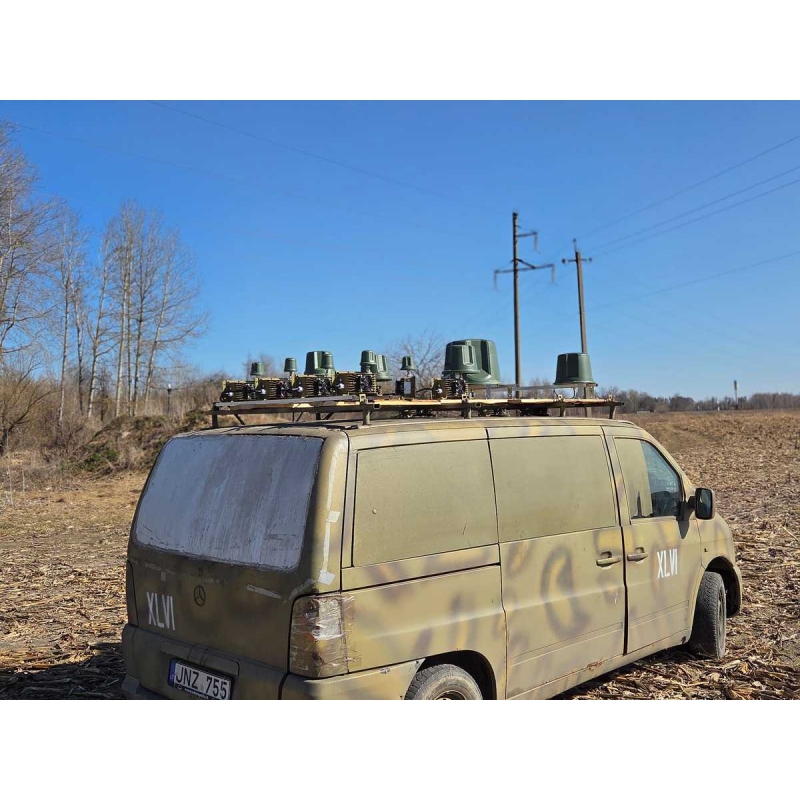

The Amaga PLUS EW jammer from Magura Military-Industrial Complex is a ready-made solution for simultaneous suppression of FPV channels in the 2.4 GHz and 5.8 GHz bands, where high total power, remote architecture, and rapid deployment are important. The device is ideal for installation on a vehicle or for integration into stationary protective complexes. The manufacturer provides a minimum 1-year warranty and a refund policy if the EW jammer does not pass customer tests. For ordering additional options or clarifying parameters, please contact the manufacturer's representatives.
