10" Drone Frame by Brother Hood (disassembled frame)
Brand: Brother Hood
Country of origin: Ukraine
Configuration: Disassembled frame

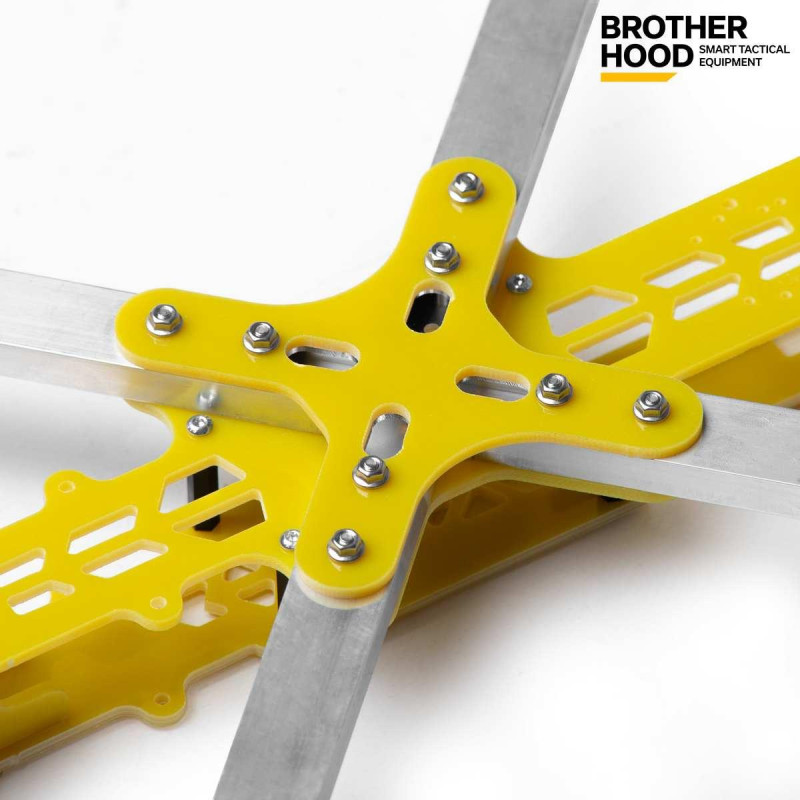

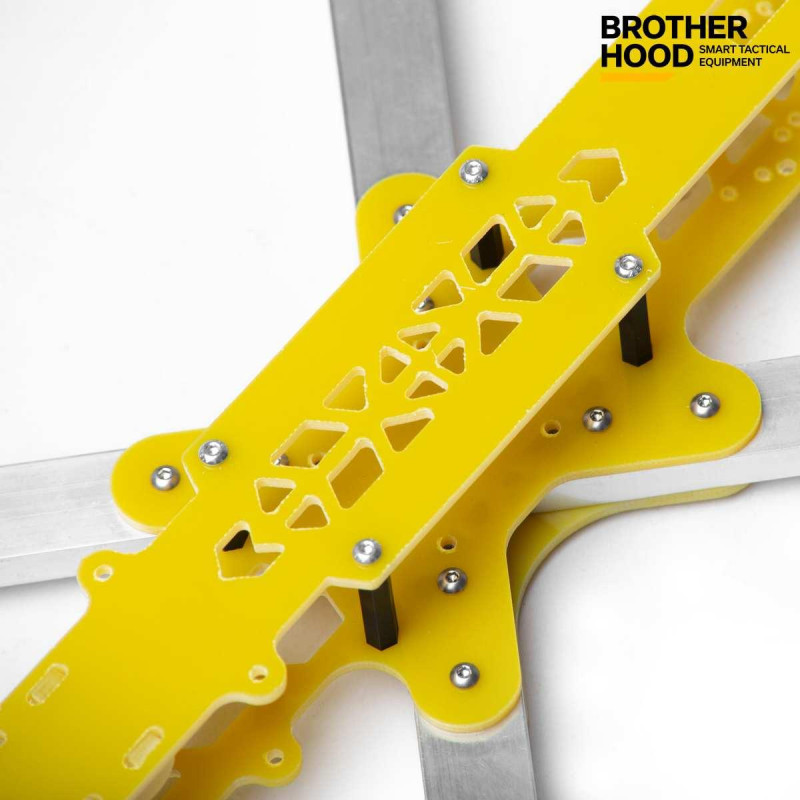

The 10" drone frame by Brotherhood is a well-designed kit for assembling a reliable multi-copter, combining the lightness of aluminum arms with the strength of STEF-1 fiberglass laminate for the top, bottom, and additional plates. This combination of materials ensures excellent resistance to external influences with minimal weight, making the frame optimal for racing, freestyle, and universal applications.
Materials and design features
Material: aluminum alloy for arms; STEF-1 fiberglass laminate for body plates. The combination guarantees structural rigidity while maintaining an acceptable weight. The frame is optimized for 10" propellers and allows for changing mounting holes for motors and other elements to adapt to individual needs and various mounting configurations.
Weight
| Indicator | Value |
|---|---|
| Assembled frame weight | 360 g |
| Fiberglass laminate weight | 138.5 g |
| Arm weight | 192 g |
Dimensions and compatibility
| Parameter | Size (mm) |
|---|---|
| Size with arms351×351×44 | |
| Size without arms | 258×91×34 |
| Distance between motor centers | 319 |
| Motor mounting size | 19 |
| Camera mounting size | 19 |
Structural elements
| Element | Size (mm) |
|---|---|
| Arm (aluminum profile), wall | 10×20×237 / 1.5 |
| Bottom plate (fiberglass laminate) | 258×91×3 |
| Top plate (fiberglass laminate) | 258×45×3 |
| Camera bracket (fiberglass laminate) | 31×26×3 |
| Additional plate (fiberglass laminate) | 91×91×3 |
Configurations and services
- The frame is offered in two configurations: assembled frame and disassembled frame. In both options, all parts and hardware are included in the price.
- Additional service: frame painting of your choice.
- Possible individual design changes: modification of mounting holes for motors and other elements upon request.
- Orders are accepted for any quantity of ready-made drones or individual elements.
This frame is designed for users seeking a reliable platform with the possibility of customization to their own needs: from changing mounts to painting and individual design. Thanks to the materials used, the frame demonstrates high corrosion resistance and durability, while precise dimensions and standardized mounting holes simplify the installation of motors and cameras. The assembled weight is 360 g, making the structure balanced for maneuverability and endurance.
Additional information: the frame is optimized for 10" propellers; adjustments for other components are possible; all prices are quoted without VAT. The manufacturer accepts orders for modifications and serial assembly, so you can receive a finished product precisely to your technical requirements.
If you need additional technical parameters or a custom project — contact the manufacturer to discuss structural changes, painting, and complete sets. The disassembled frame kit includes all necessary elements for mounting and subsequent assembly.
