EW Jammer "Amaga 1-400" – 1-channel 420-480 MHz protection from Magura VPK

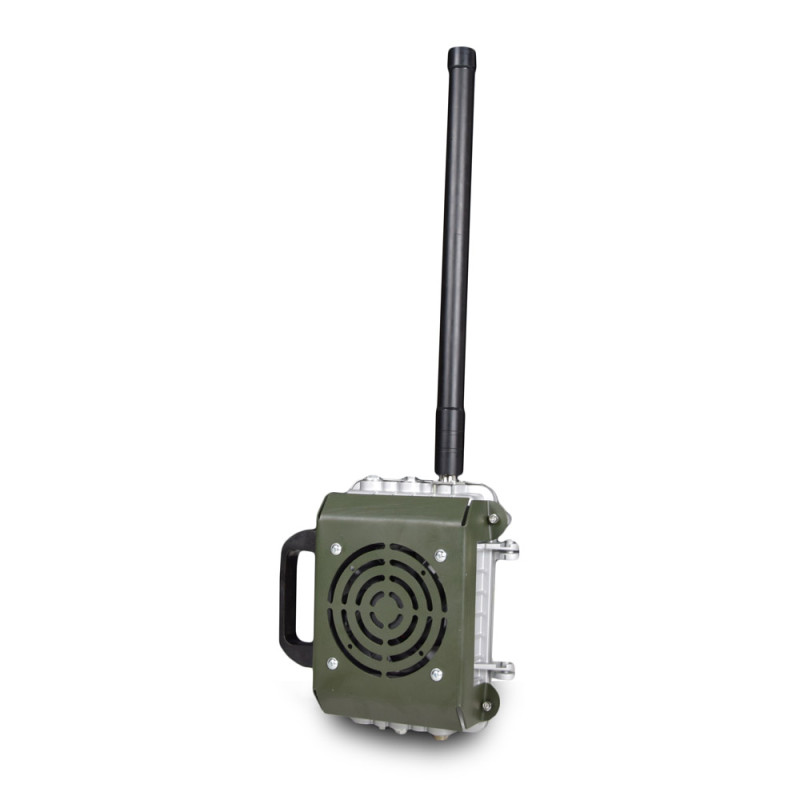

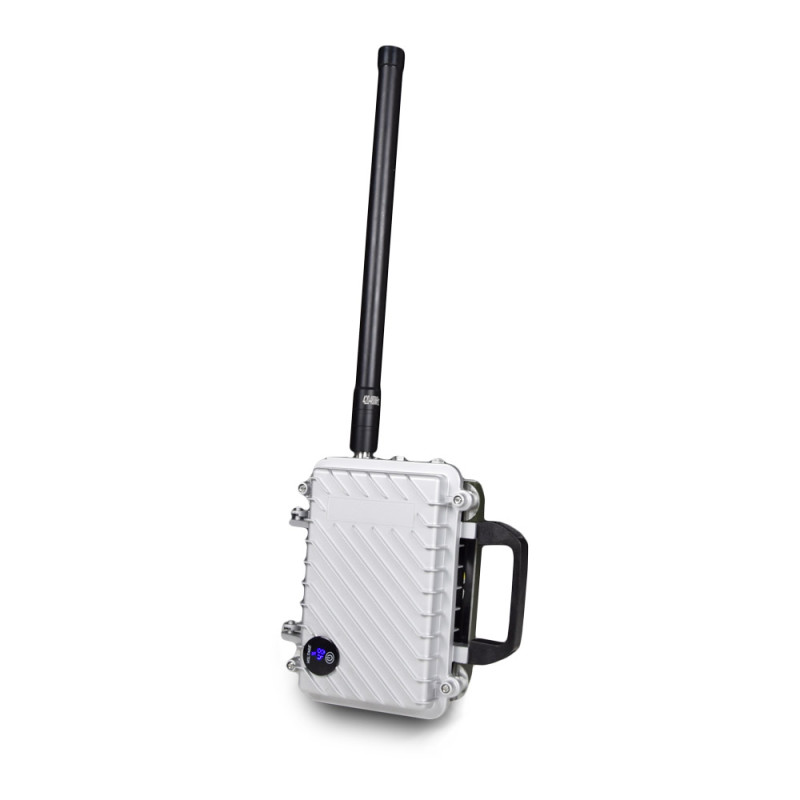

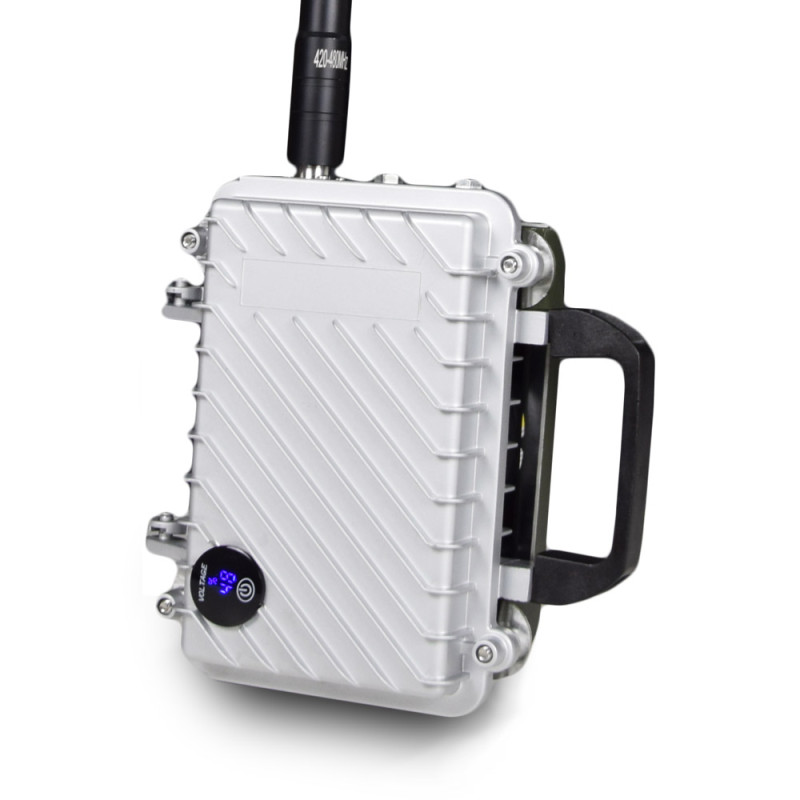

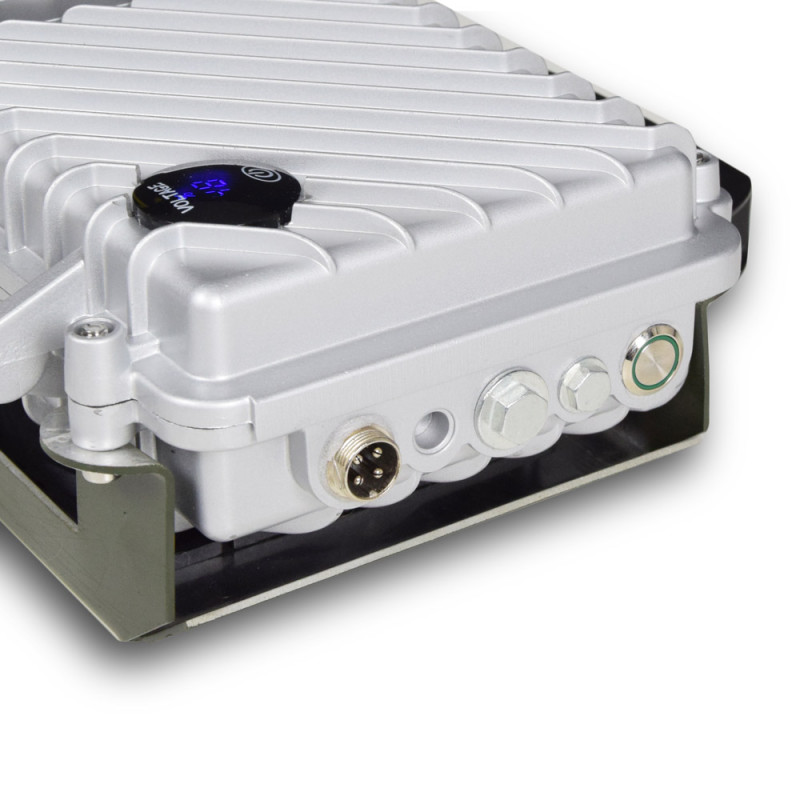

The "Amaga 1-400" handheld EW monoblock from Magura is designed for effective suppression of UAV control channels and other radio devices in the 420-480 MHz range. This compact and robust device combines ease of use, autonomous operation, and high reliability in field conditions. Its aluminum casing with IP65 protection ensures resistance to moisture and dust. The device weighs approximately 2.7 kg and has dimensions of 240x160x80 mm, making the "Amaga 1-400" convenient for carrying in a backpack or mounting on a vehicle.
Key Advantages
- Compactness and Mobility: a lightweight monoblock, convenient for individual use, portable, and suitable for mounting on equipment.
- Wide Frequency Range: factory-tuned to 420-480 MHz, with the possibility of retuning to other frequencies for individual orders.
- Autonomy and Ease of Use: built-in 8 Ah battery provides up to 1.5 hours of operation without external power; intuitive one-button control with jammer operation indication.

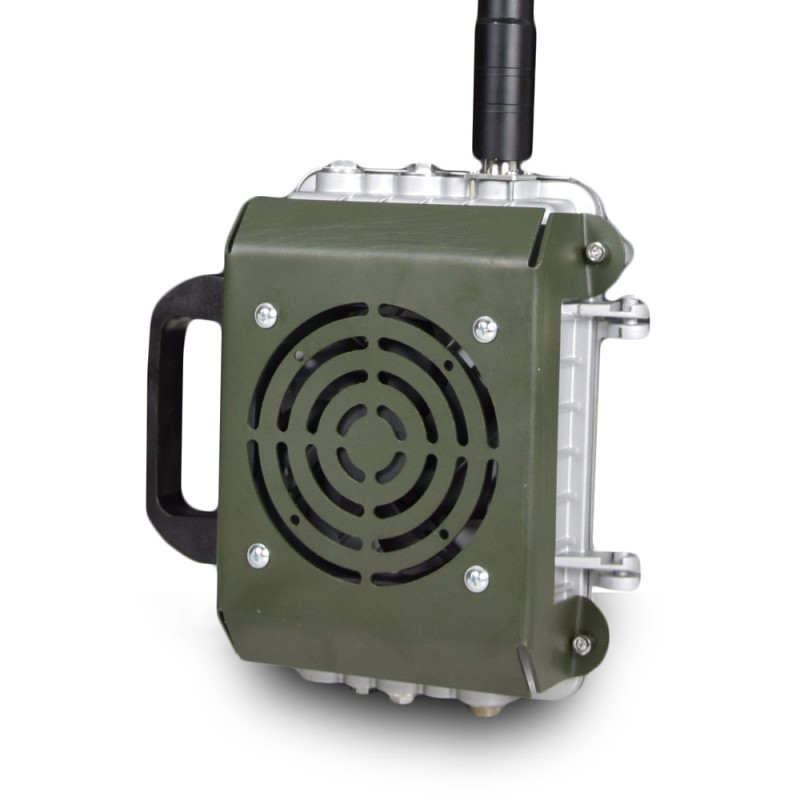

- Effective Cooling: active cooling system maintains stable operation without overheating even during intensive use.
- Modularity: possibility of equipping with external antennas and other components to expand functionality and adapt to specific tasks.
Additional Frequency Ranges (on order)
300-400 MHz, 400-500 MHz, 420-480 MHz, 500-600 MHz, 600-750 MHz, 700-850 MHz, 720-860 MHz, 860-970 MHz, 970-1100 MHz, 1100-1200 MHz, 1100-1280 MHz. For availability and parameters, please contact Magura managers.
Technical Specifications
| Parameter | Value |
|---|---|
| Total Emission Power | 50 W |
| Frequency Range | 420-480 MHz |
| Jamming Type | VCO, sawtooth, with thermal protection and circulator |
| Antenna | Collinear omnidirectional, length 400 mm, 3 dBi, VSWR |
| Battery | 8 Ah, up to 1.5 hours of autonomous operation |
| Cooling | Active cooling system |
| Casing | Aluminum casing with IP65 protection |
| Dimensions | 240x160x80 mm |
| Weight | 2.7 kg |
The "Amaga 1-400" EW jammer from Magura VPK is a reliable solution for rapid suppression of UAV control channels and other radio devices in field conditions, where deployment speed, autonomy, and equipment protection are crucial. The device is suitable for both individual use and integration into stationary or mobile protection systems. For ordering additional options or clarifying parameters, please contact the manufacturer's representatives.
