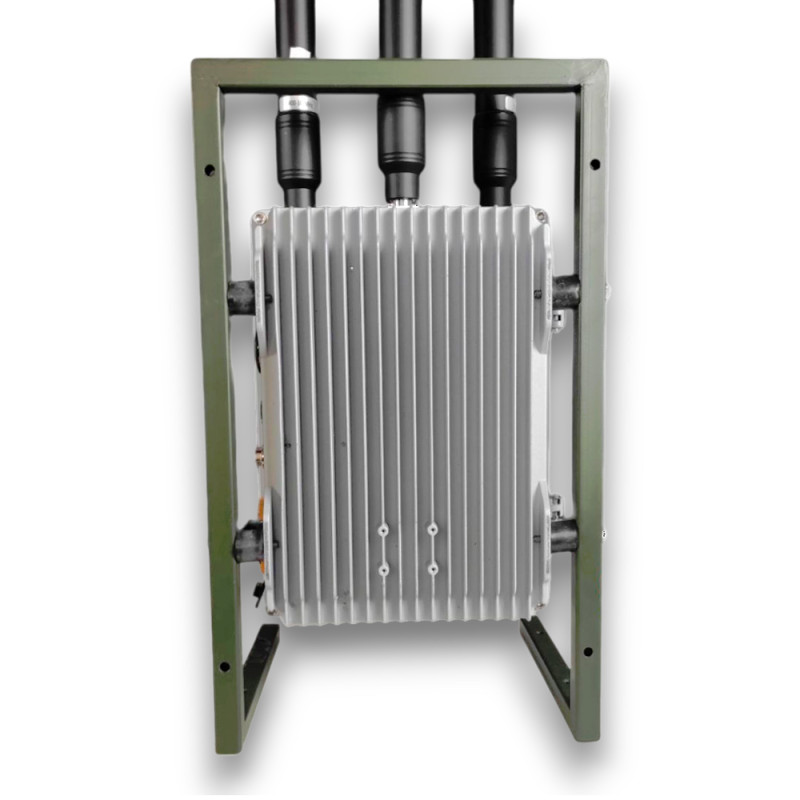

3-Band EW Jammer 300-600 MHz 150 W "Amaga 3.2" – by Magura VPK

The professional electronic warfare (EW) jammer Magura – model "Amaga 3.2" is designed for reliable signal jamming across three bands with a total radiated power of 150 W. This is a compact mobile system with a built-in 24 Ah Li-ion battery, capable of being powered by external 12–24 V DC sources or by the included 220 V power supply unit, making it ideal for field and vehicle applications. Jamming type: VCO, "sawtooth," with thermal protection and circular polarization. Designed for EW operations requiring rapid deployment, operator protection, and stable performance across a wide temperature range. Product type: EW Jammers > Trench EW Jammers.

Package Contents

• EW device "Amaga 3" – 1 pc.
• Set of collinear antennas – 3 pcs.
• Control panel with 10m cable – 1 pc.
• 12-24 Volt power cable – 1 pc.
• 220 Volt charger – 1 pc.
• Operating manual.
• Vehicle mount for external antennas – 1 pc.

Technical Specifications

• Total radiated power: 150 W.
• Jamming type: VCO, "sawtooth," with thermal protection and circular polarization.
• Collinear circular omnidirectional antennas 600 mm, 3 dBi, VSWR = 1.1.
• Effective range: 100–400 m (depending on application conditions).
• Built-in battery: Li-ion 24 Ah.
• Continuous operation time from battery at maximum load: 1.5 hours.
• Power supply: 12–24 V DC or via included 220 V power supply unit. Amass XT60E – F connector with sealed plug.
• Power consumption: up to 450 W.
• Cooling: active, 4 fans.
• Housing: aluminum, IP65 protection rating.
• Weight in deployed state: no more than 12 kg.
• Control: wired remote 6m (package also includes a remote with 10m cable).
• Jamming operation indication on the remote.
• Battery charge indication on both the remote and the housing.
• Readiness time: no more than 1 min.

Advantages

• Simultaneously covers most popular communication bands, ensuring a wide range of applications.
• Includes mounting and cables for external antennas, allowing quick deployment on position or in a vehicle.
• Optionally, other antenna types can be installed – cloverleaf, quadrifilar, patch, etc.
• Effective active cooling ensures stable operation across a wide temperature range.
• Module operation indication clearly shows device status.
• Dual indication allows constant monitoring of battery status.
• Convenient remote control protects the operator and allows monitoring EW status from a distance; standard 6m cable, custom lengths up to 25m available.
• All cables in protective braiding.
• Powerful charger allows quick device charging.
• Built-in battery – "all-in-one" in a dust and moisture-protected housing; possibility of operating from internal battery, external source, or both simultaneously.
• Compact protective frame is convenient for transport and performs several functions:
  • serves as a carrying handle;
  • protects the device, connectors, and antennas;
  • allows placing or mounting the EW jammer on any surface;
  • rubber shock absorbers protect against vibrations;
  • ensures better cooling;
  • possibility to connect two devices into one to increase power or coverage areas.

Optionally, we can equip with quadrifilar antennas for vehicle use +12,000 UAH to the price.

Configuration Options and Frequency Bands

The device can be configured for various frequency bands (MHz):

• 300–400
• 400–500
• 500–600
• 600–750
• 700–850
• 420–480
• 720–860
• 860–970
• 970–1100
• 1100–1280
• 2400
• 5800

The "Amaga 3.2" model from Magura VPK combines mobility, an IP65 dust and moisture-protected housing, various power options, and rapid deployment on the battlefield or in a vehicle. The control panel, status indication, and the possibility of expanding antenna solutions make this EW jammer a flexible and reliable solution for a wide range of EW operations.
