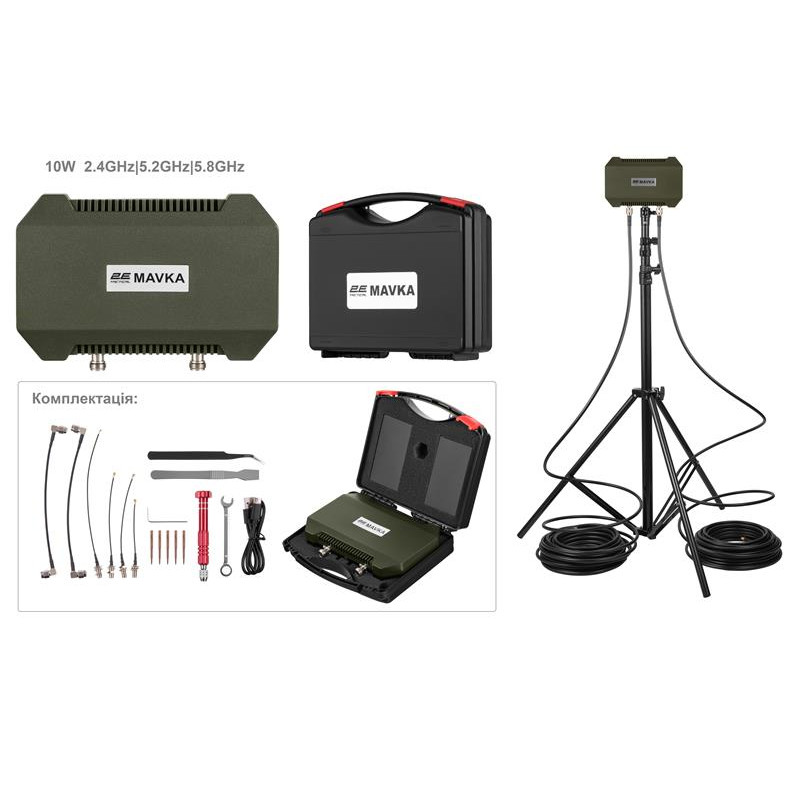

The 2E MAVKA GREEN tri-band active directional antenna is an updated tactical active antenna that is more productive thanks to modified N-type connectors, which allow the use of longer cables with less signal attenuation. Its characteristics, including increased flight range and incredible signal stability, are ensured by low-noise, high-quality 10W power amplifiers. The 8000 mAh battery capacity provides long battery life, and the high-speed USB Type-C port allows for fast charging.
The first active antenna designed for new DJI models operating on 3 frequencies.
Operating range: 2.4G-2.5G/5.15-5.85 GHz
Output power: 5 W*2 / 40 dBm
Two tri-band amplifiers are used for two ports with TX/RX operating mode for each.
N-type allows the use of external cables up to 35 meters long without loss of amplification effect (provided a high-quality coaxial cable with minimal attenuation per meter is used)
Maximum compatibility with remotes modified for Alientech, Avengers, ForHawks, Alisa or others (using 2E cables and 2E adapters)
Equipped with a rigid protective case for transportation and storage.
| Parameter | Specification | |
| Frequency range | 2400-2500MHz | 5150-5850MHz |
| Maximum output power | 40dBm(10W) | 40dBm(10W) |
| Antenna gain | 15dB±1 | 18dB±1 |
| Battery capacity | 8000mAh | |
| Receive gain | 16dB±1 | 16dB±1 |
| Transmit gain | 18dB±1 | 18dB±1 |
| Trigger input power | Min:3dBm Max:23dBm | Min:3dBm Max:23dBm |
| EVM | 3%@33dBm 802.11g 54Mbps OFDM 64QAM BW 20MHz | 3%@33dBm 802.11a54Mbps OFDM 64QAM BW 20MHz |
| Noise figure | ||
