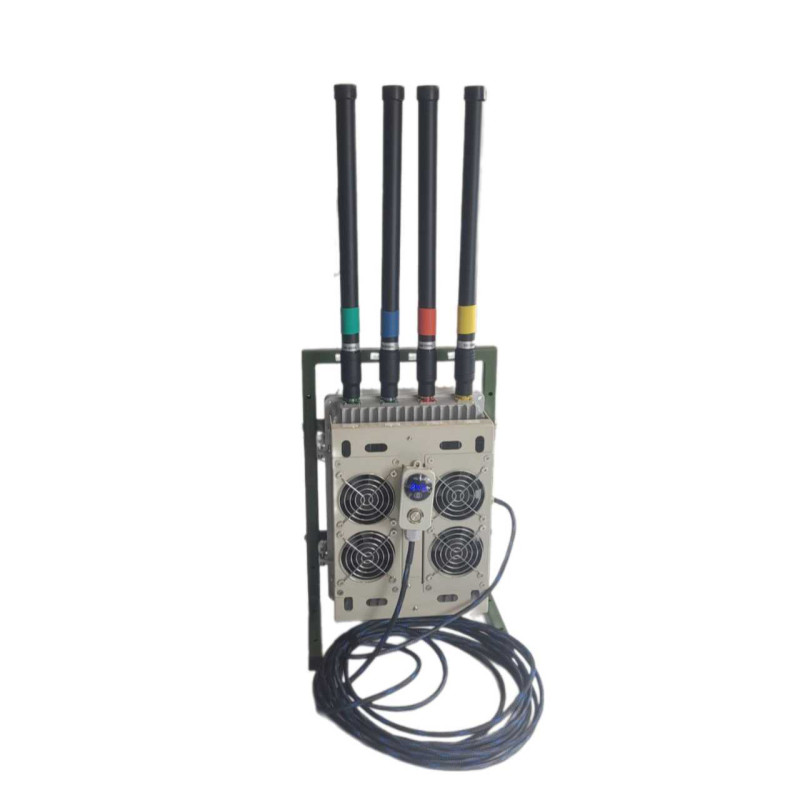

4-Band EW Jammer 200W "Amaga 300-750 MHz" – by Magura VPК

The 4-band EW jammer "Amaga 4" from Magura is a modern mobile electronic warfare system designed for reliable signal suppression across a wide frequency spectrum. The device has a total radiated power of 200 W, a robust aluminum housing with IP65 protection for field operation, and a quick readiness time (up to 30 seconds).

Package Contents

EW device "Amaga 4" — 1 pc.
Set of collinear antennas — 4 pcs.
Control panel with 10 m cable — 1 pc.
12-24 V power cable — 1 pc.
220 V charger — 1 pc.
Operating manual — 1 copy.
Car mount for external antennas — 1 pc.

Technical Specifications

Frequency range: tunable to popular frequencies from 300 to 1280 MHz, as well as non-standard 2400 MHz and 5800 MHz.
Total radiated power: 200 W.
Jamming type: VCO, "sawtooth", thermal protection with circulator.
Antennas: collinear circular omnidirectional, 600 mm height, 3 dBi, VSWR=1.1.
Effective range: 100–400 m (depending on terrain conditions and obstacles).
Power supply: built-in Li-ion 24 Ah battery; autonomous operation time up to 1.2 hours at maximum load.
Cooling: active, using 4 fans for stable operation under load.
Housing: aluminum, dust and moisture protected, IP65 standard.
Weight: no more than 12 kg.
Control: wired remote control (6 m; optionally up to 25 m). Includes remote control with 10 m cable.
Indication: battery status and module operation are displayed on both the housing and the remote control.
Readiness time: up to 30 seconds after power-on.

Advantages

1. Wide frequency range — covers most popular and non-standard frequencies, ensuring versatility of application.
2. Ease of use — intuitive remote control with dual status indication on the remote and housing.
3. Powerful cooling — active system with 4 fans guarantees stable operation under load.
4. Durable housing — aluminum construction with IP65 dust and moisture protection for reliable field operation.
5. Mobility — compact frame with a handle for transport and rubber shock absorbers for vibration protection.
6. Universal power supply — operates from a built-in battery, external 12–24 V DC source, or 220 V mains.
7. Flexible configuration — possibility to install different types of antennas (cloverleaf, patch, quadrifilar) for specific tasks.
8. Compactness and lightness — convenient placement on positions, vehicles, or on the operator.
9. Reliability — protected braided cables and quick readiness time.

Capabilities of 4 jamming bands (customer's choice)

200 – 300 MHz
300 – 400 MHz
400 – 500 MHz
500 – 600 MHz
600 – 750 MHz
700 – 850 MHz
720 – 860 MHz

860 – 970 MHz
970 – 1100 MHz
1100 – 1280 MHz
2400 MHz
5800 MHz

The 4-band EW jammer "Amaga 4" is a professional solution for tactical electronic warfare with high mobility and rapid deployment. The device is suitable for placement on positions, installation on vehicles, or use in field conditions thanks to its protected housing, various power options, and a wide range of antennas. Manufacturer: Magura. Category: EW Jammers > Trench EW Jammers.

Other products in this category here Trench EW Jammers

Specifications

Jamming range Up to 500 m

Frequency range 300–750 MHz

Trench EW Jammer

Device type Trench & Vehicle EW Jammer

Number of jamming channels 4

Total system power 200 W

Power per channel 50 W

Suppression Frequencies 433 MHz; 868 MHz; 915 MHz

Antenna type Omnidirectional

Effective jamming range up to 100–300 m
