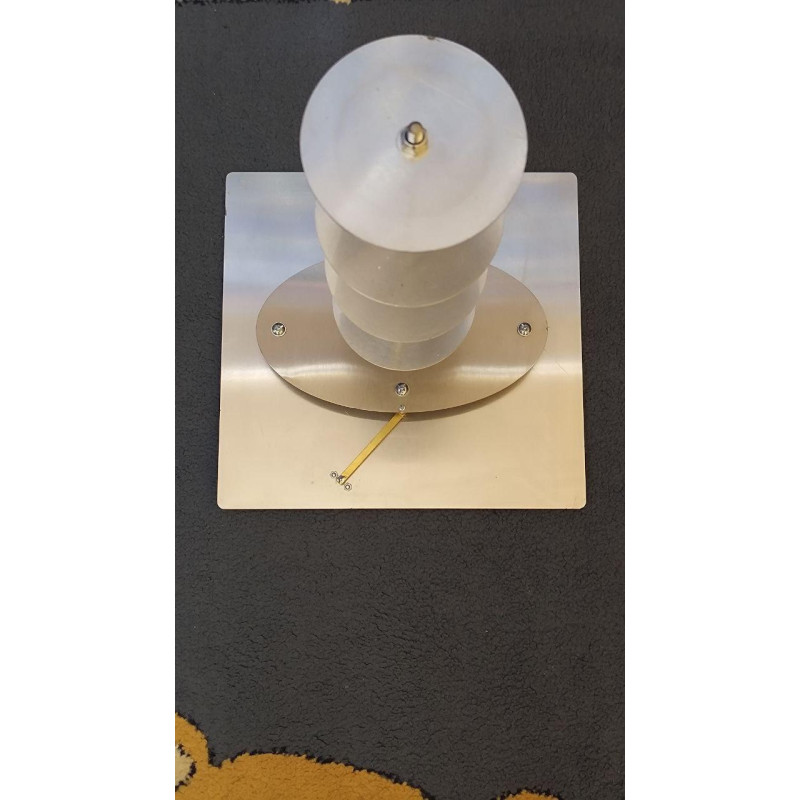

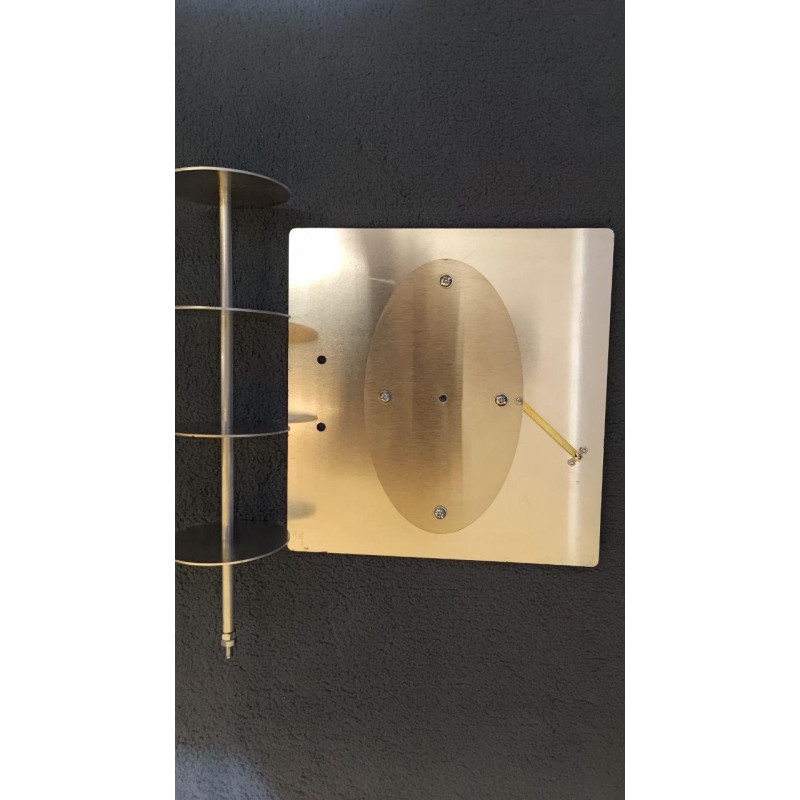

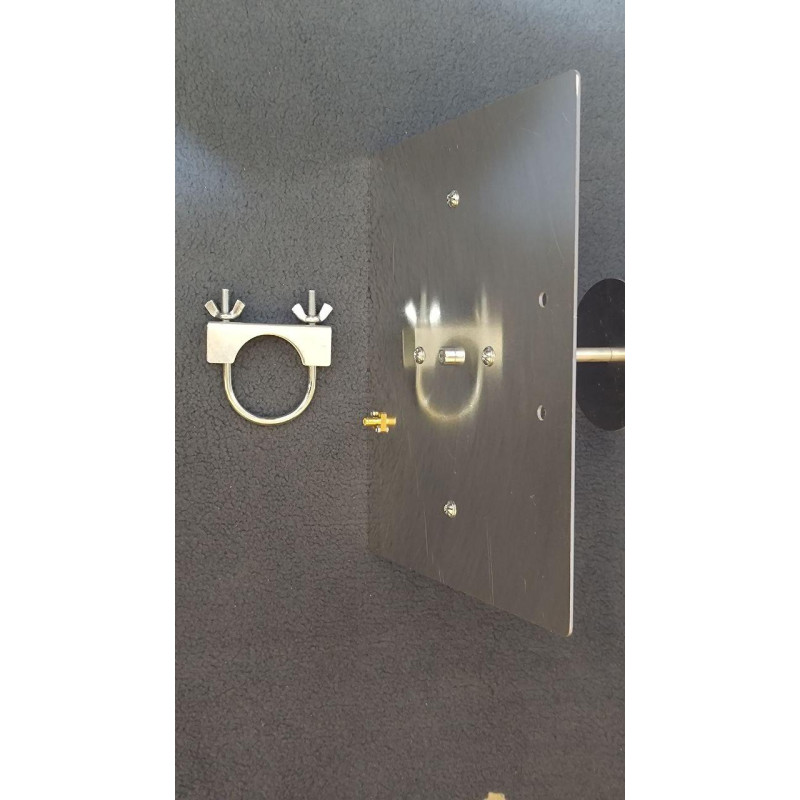

FPV Video Channel Receiving Antenna 1.2 - 1.3 GHz

Manufacturer: Aeronetix. Product Type: Antennas > Log-periodic antenna. This receiving antenna is designed specifically for FPV applications in the 1.2–1.3 GHz range, combining compact dimensions, high gain, and pronounced directivity for stable video signal reception.

Technical Specifications

• Frequency Range: 1160–1360 MHz.
• Gain per Channel: 1160 MHz — 11 dBi; 1200 MHz — 13 dBi; 1240 MHz — 13 dBi; 1280 MHz — 13 dBi; 1320 MHz — 13 dBi; 1360 MHz — 10 dBi.
• Beamwidth: 40 degrees.
• Dimensions (in description): 230×240×350 mm.
• Weight (in description): 500 g.

Below are values from the product parameters/attributes, also present in the product card and complementing the overall picture of the device:

Note: the original description and attributes contain different values for dimensions and weight: the text specifies dimensions of 230×240×350 mm and a weight of 500 g, while the attribute table lists Length 20.0, Width 20.0, Height 35.0, and Weight 1.000 kg. We preserve and display all provided data for maximum transparency; before purchasing, we recommend clarifying the exact physical dimensions and mass with a manager if this is critical for your setup.

Practical application: the log-periodic antenna design provides an optimal balance between operating bandwidth and directivity, making this Aeronetix model suitable for FPV systems requiring reliable coverage in the 1.2–1.3 GHz range with moderate gain and a fixed beamwidth. The antenna is suitable for stationary receivers, ground stations, and mobile platforms where gain parameters in each channel and compact mounting dimensions are important.

Model Advantages

• Multiple frequency points with high gain (up to 13 dBi at central frequencies) ensure better reception quality;
• Compact dimensions compared to classic large antennas, simplifying installation;
• A clearly defined 40° beamwidth ensures directional reception and minimizes side interference;
• Aeronetix guarantees manufacturing quality and compliance with stated electrical characteristics.

If you need assistance with selecting an antenna for a specific FPV system configuration or checking compatibility with your receivers and transmitters, please contact our store consultants to choose the optimal model and verify compatibility.
