Patch Video Antenna is a flat, high-performance antenna used for receiving and transmitting video signals in various wireless systems, such as video surveillance systems, satellite networks, and other wireless video communications. Thanks to its flat shape, the antenna has compact dimensions and is easily integrated into various systems where aesthetics or space-saving are required.

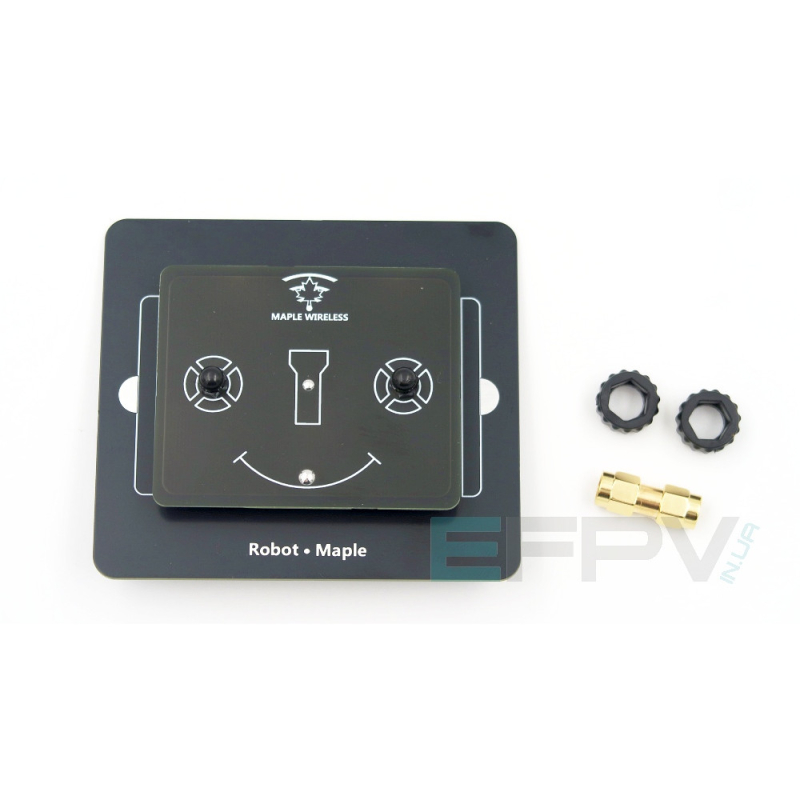

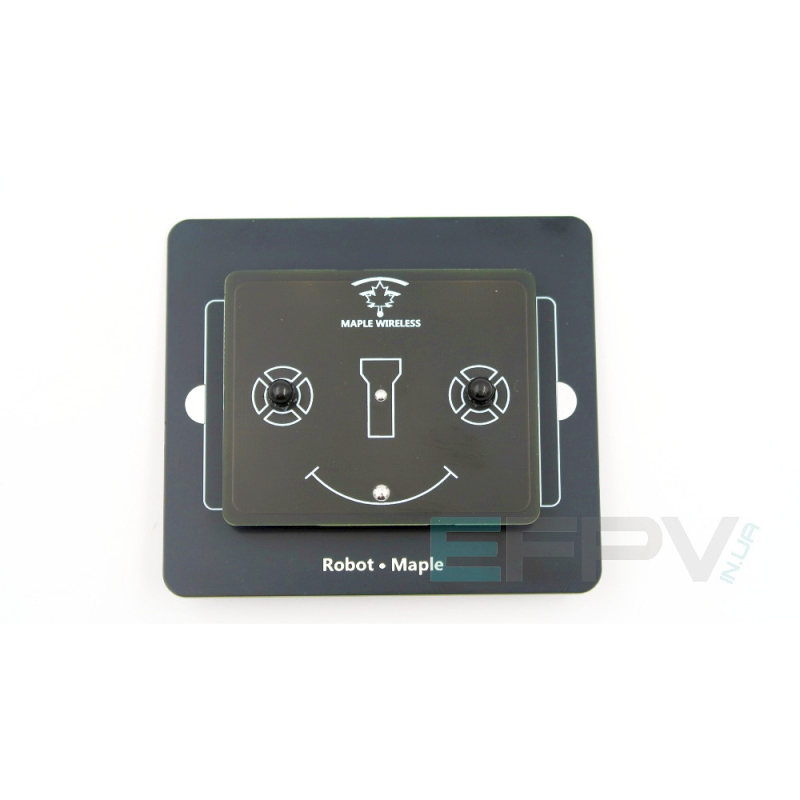

Maple Wireless 2.4G 9 dBi Patch Antenna — a highly efficient radio engineering element for operation in the 2.4 GHz band. It provides directional radiation with a gain of 9 dBi, which increases signal power and improves radio channel parameters at medium and long distances. The antenna is optimized for applications in wireless data transmission systems, telemetry, Wi-Fi modules, radio control channels, and IoT devices. Thanks to stable characteristics and low losses, it is a reliable component for deploying radio engineering complexes and experimental circuits.

In military conditions, Patch video antennas are widely used for real-time wireless video transmission. They are used for monitoring and surveillance on the battlefield, providing video communication between units, command posts, and other important objects. Thanks to their compactness and high efficiency, these antennas provide stable video communication in difficult conditions, such as in combat zones or at long distances, where minimizing physical and technological obstacles is important.

The Patch antenna is an excellent choice for those who need a high-quality, reliable, and compact solution for video signal transmission in any wireless system, including military operations, where compactness, efficiency, and signal stability are important.

Important!
Cable is not included.

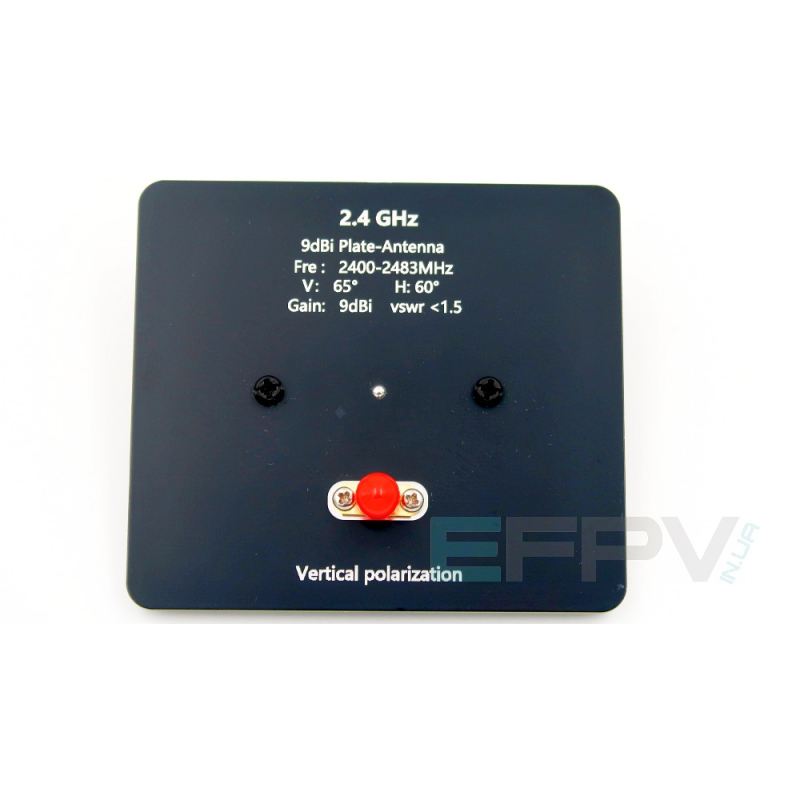

Specifications

• Frequency range 2400-2483 MHz
• Polarization Linear
• Beam angle ver. angle - 65°, hor. angle - 60°
• Connector SMA-F
• Material Composite materials
• Gain 9dBi
• Size 90x80x10 mm Weight 33 g
