KAYO BULL 200 — Detailed Overview and Specifications

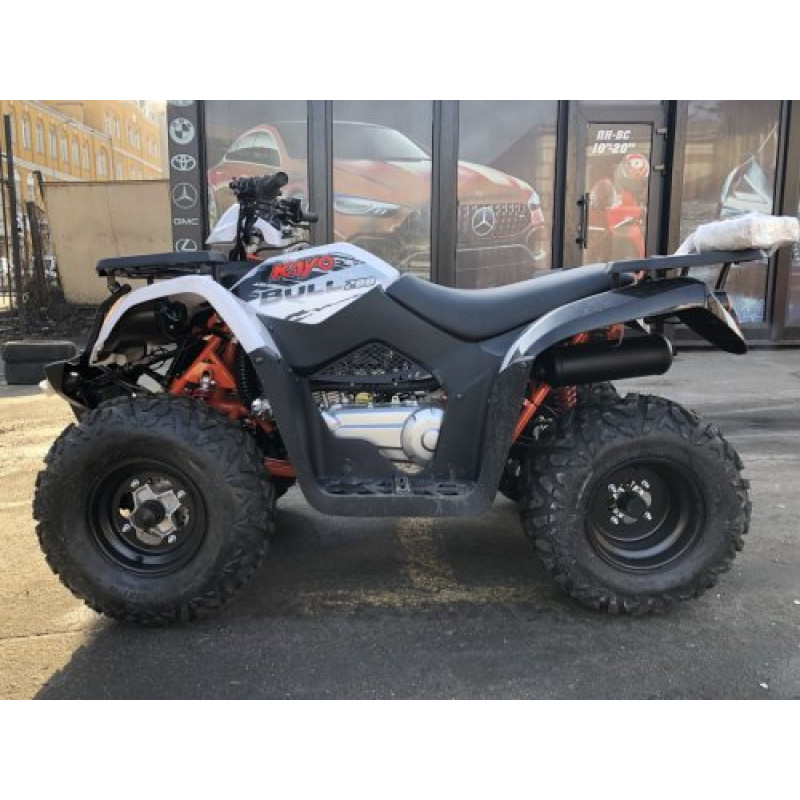

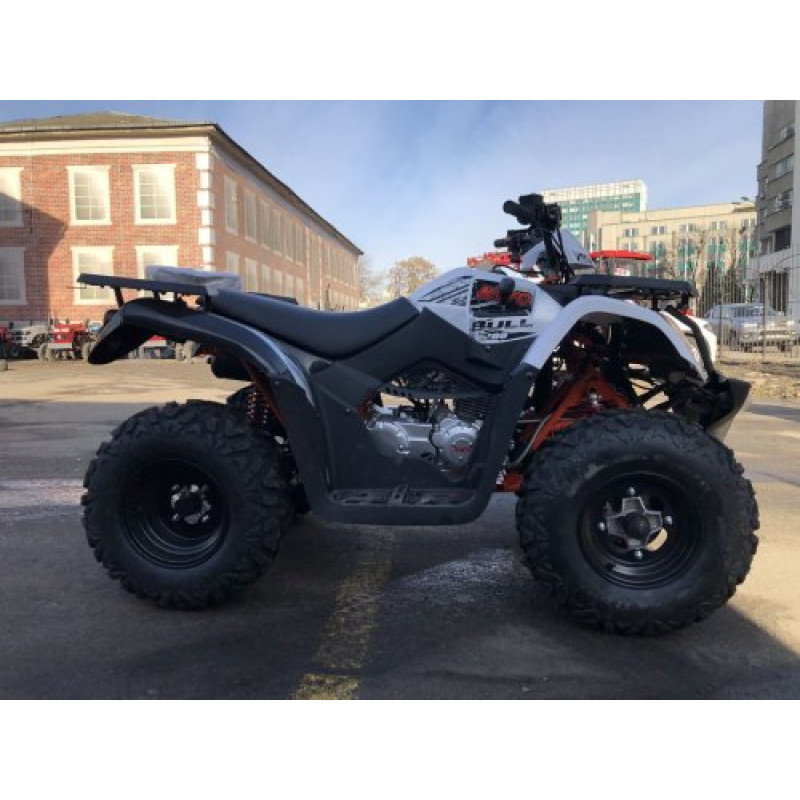

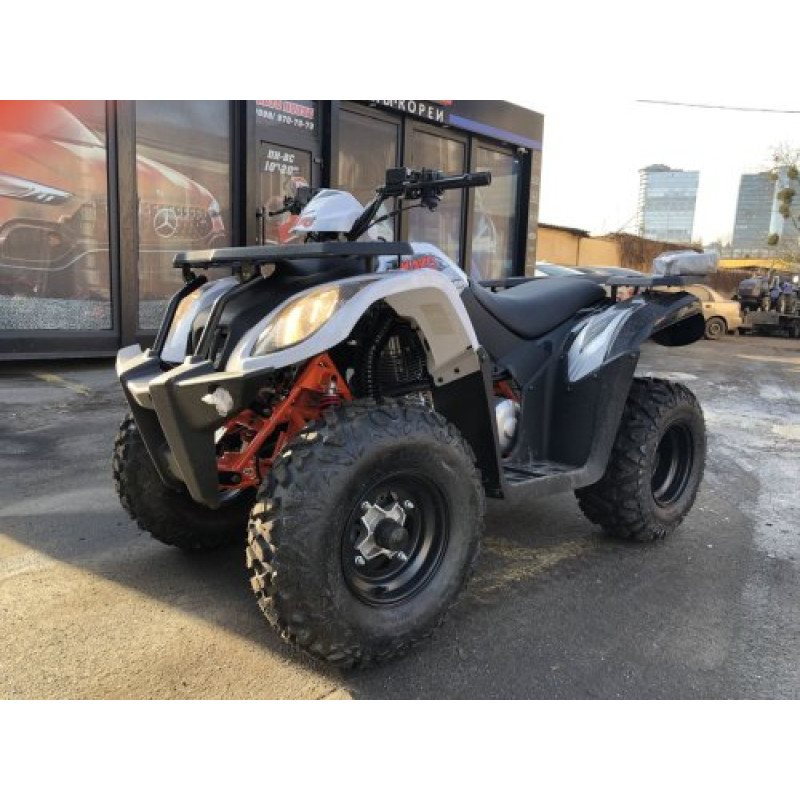

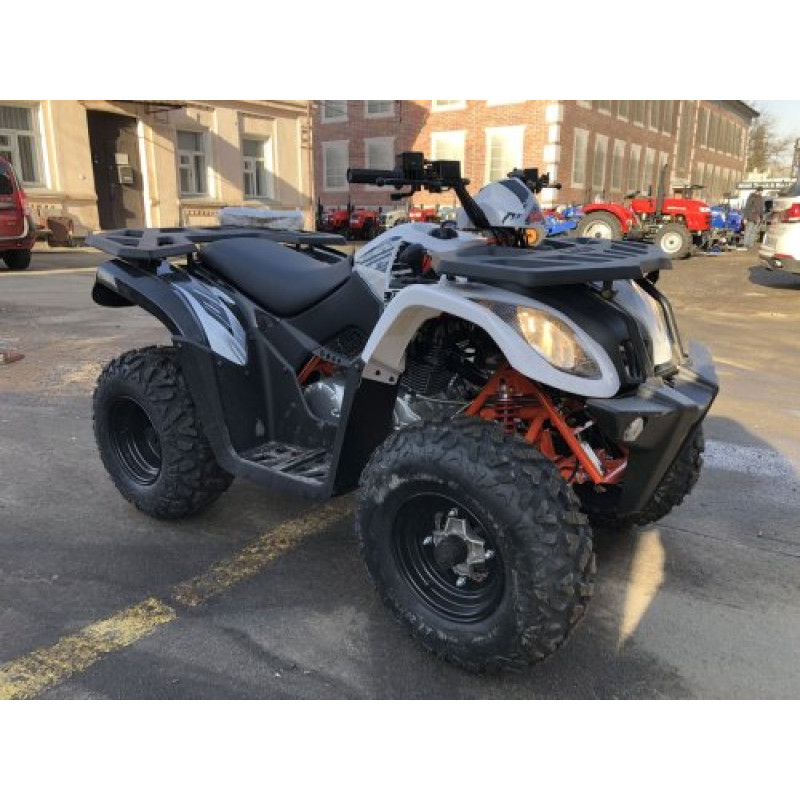

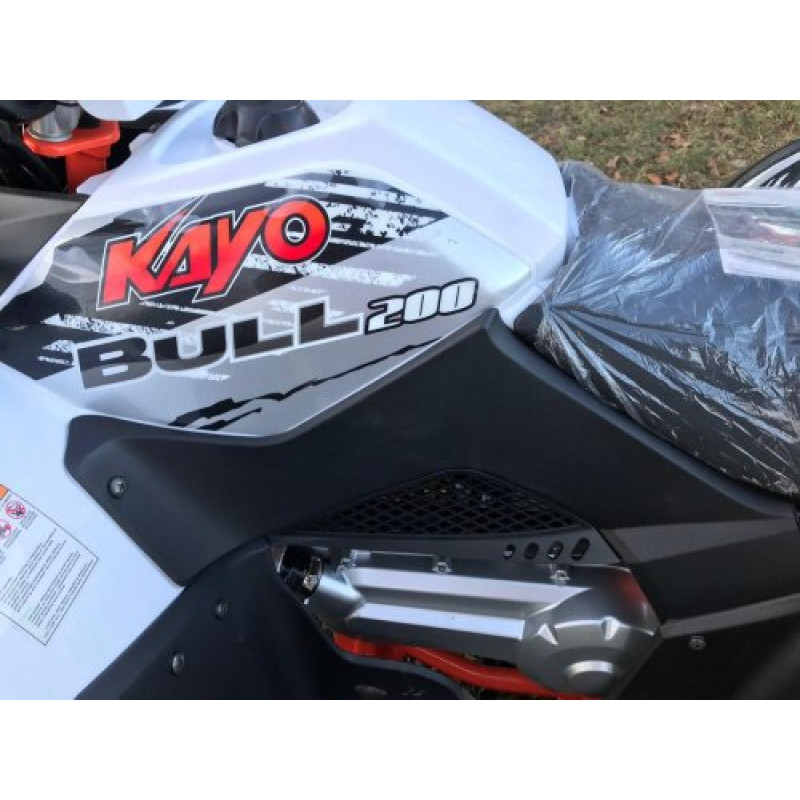

The KAYO BULL 200 ATV from the manufacturer Kayo combines stylish sports design, reliable construction, and an affordable price. This model is designed for work and recreation off-road, is easy to maintain, and is suitable for Ukrainian operating conditions. The design style features a slightly raised rear, contrasting black and white elements with orange suspension details, and bright accents, including the logo on the handlebars.
Optics and Safety

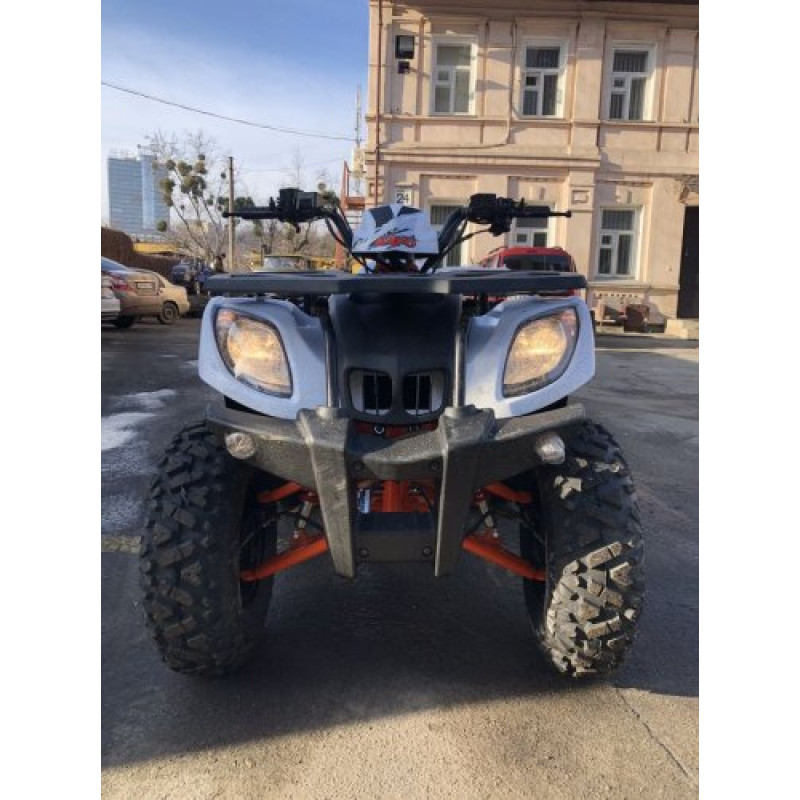

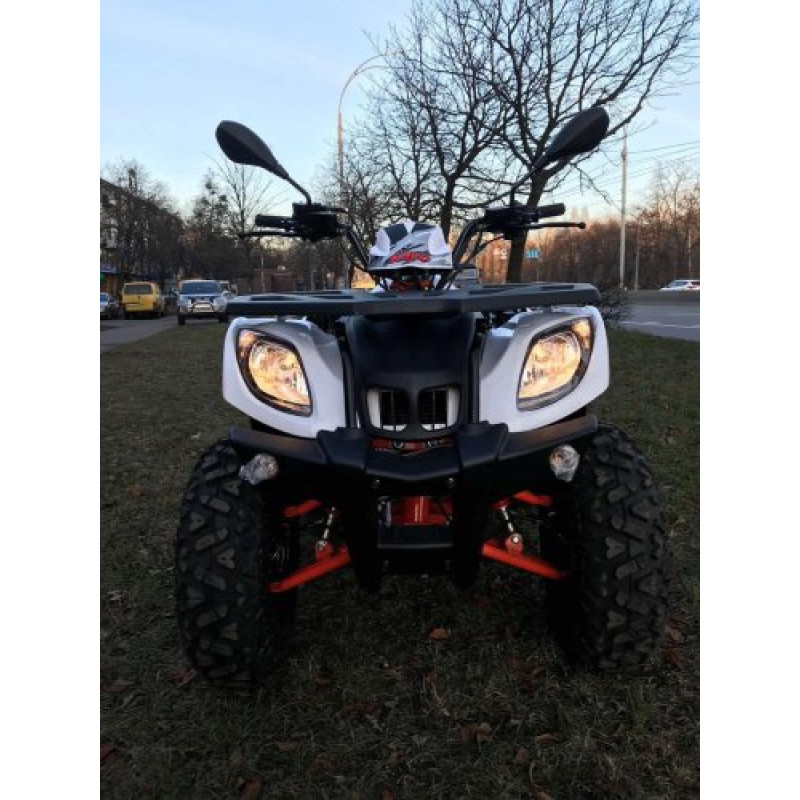

Front teardrop-shaped projector headlights that do not fog up in wet weather, as well as turn signals, brake lights, and reflectors, enhance road safety.
Frame, Wiring, and Protection
The frame is made of tubular steel with high-quality welds. The electrical wiring is flexible, housed in sealed connectors, and features integral insulation. Snorkels or air intakes are provided to protect the variator; fuel hoses in an additional metal casing increase system durability.
Engine and Fuel System
The KAYO BULL 200 is equipped with a single-cylinder, four-stroke engine with a displacement of 177 cm3 and a power output of 15 hp. A vibration damper is installed on the balance shaft. The cooling system is air-cooled, with an oil cooler installed. The recommended service interval is oil change every 500-600 km; if recommendations are followed, the engine can run 6000 km or more without major overhaul. The fuel tank capacity is 10 L, fuel consumption: in calm mode about 2.5 L/100 km, with intense riding up to 3.5 L/100 km. Engine start is via electric starter, with starting only possible in neutral gear (an additional safety measure).
Battery and Filtration
The basic configuration includes a gel battery, resistant to voltage fluctuations. The air filter is a large element with a diameter of about 20 cm, extending engine life.
Chassis and Brakes
The front suspension is an independent double-wishbone type with A-arms; large travel ensures comfort over uneven terrain. The rear suspension is a dependent swingarm type with a rectangular cross-section profile and a wide bushing with a diameter of about 10 cm. The braking system is based on ventilated discs; the rear caliper is simple but effective. The hubs are designed as a single knuckle to withstand heavy loads.
Front/rear wheel size: 23-10 / 22-10 inches.
Controls and Accessories

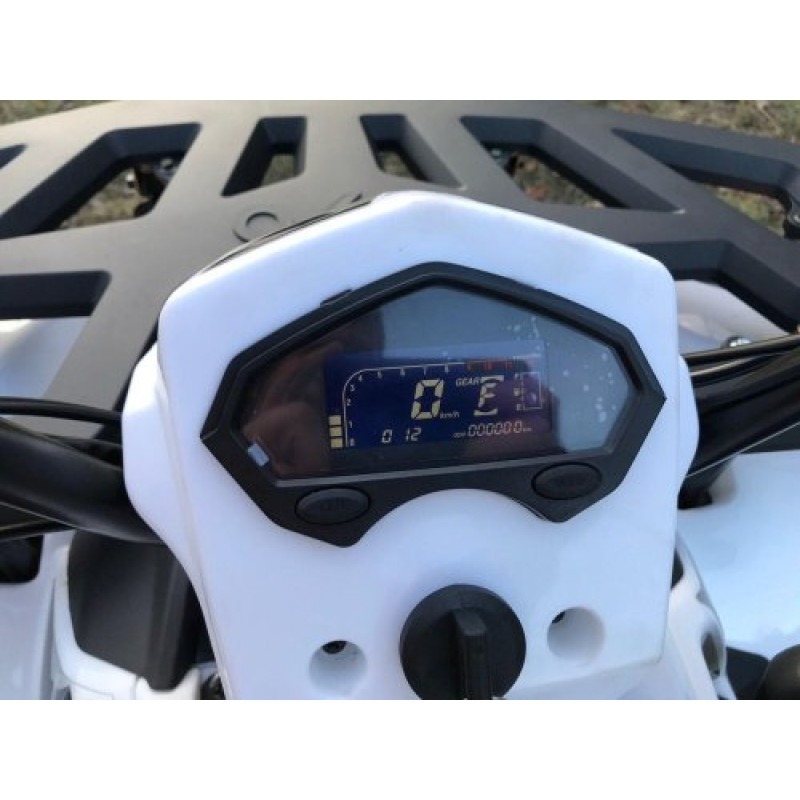

The ATV is equipped with convenient controls: the left handlebar control includes a mechanical choke, rear brake lever, turn signals, engine kill switch, and high/low beam switch; the right handlebar control features the front brake control and a long throttle lever. The instrument panel is polychromatic, displaying gear type, tachometer, fuel level, and hour meter.
Conveniences
- Soft seat designed for two average-sized adults.

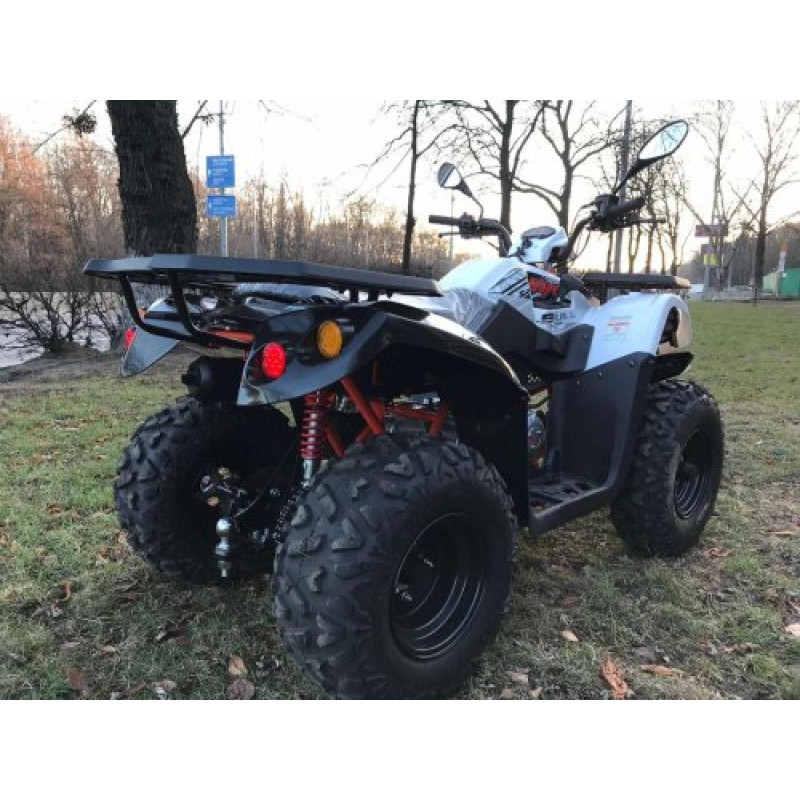

- Front and rear racks for securing cargo.
- Extended tow hitch reduces the risk of trailer caliper damage on turns.
Disadvantages
- No glove compartment for tools.
- Mudguards on the fenders may be insufficient — at high speeds, dirt gets onto the fender.

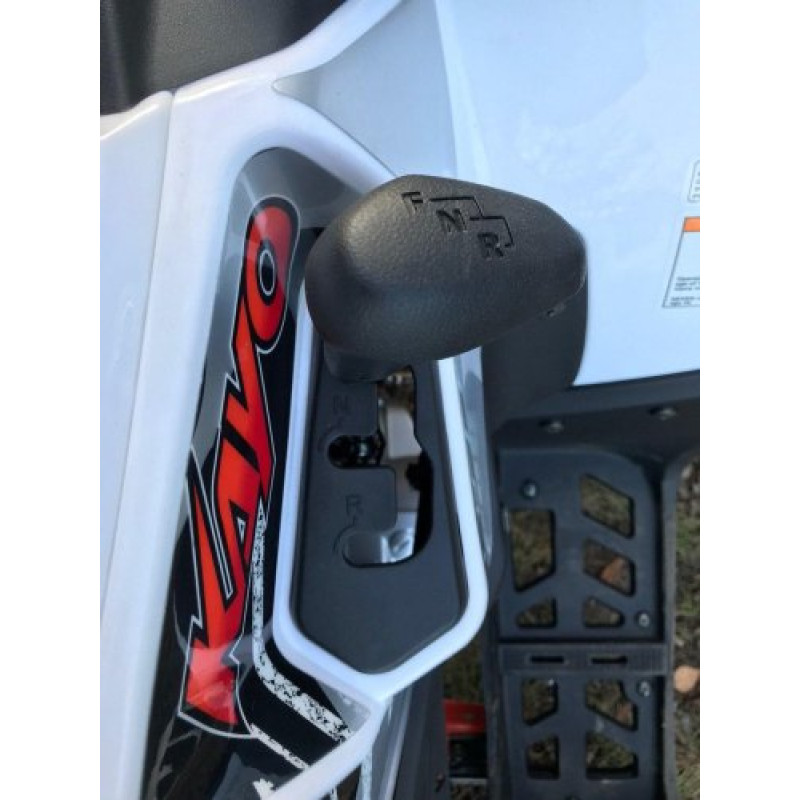

- Sometimes the variator gear lever requires adjustment after purchase if it does not fully engage the slot.
Maintenance Recommendations
Specialists advise periodically adding grease to the suspension articulation points, as these areas experience maximum friction and load; this will help double the lifespan of the parts.
Purpose and Operation
The KAYO BULL 200 is suitable for both utility work and active recreation. The 15 hp power is sufficient for most tasks. The automatic transmission with R / N / F modes makes operation simple even for less experienced users under adult supervision. The store offers ordering with delivery across Ukraine and payment upon receipt.
Technical Specifications:
| Engine type | 4-stroke |
| Cooling | air |
| Engine displacement, cm3 | 177 |
| Power, hp | 15 |
| Fuel system | carburetor |
| Starting system | electric starter |
| Transmission | automatic, R / N / F |
| Braking system | disc brakes |
| Tire size | 10,9 |
| Weight, kg | 154 |
| Dimensions LхWхH, mm | 1680х960х980 |
| Max speed, km/h | 80 |
| Min ground clearance, mm | 150 |
| Seat height, mm | 730 |
The model belongs to the category: Motor Vehicles > ATVs. If you have any questions or wish to inspect the equipment in person, leave a request on the website or contact a manager — we will arrange a viewing at one of our locations in Ukraine.
