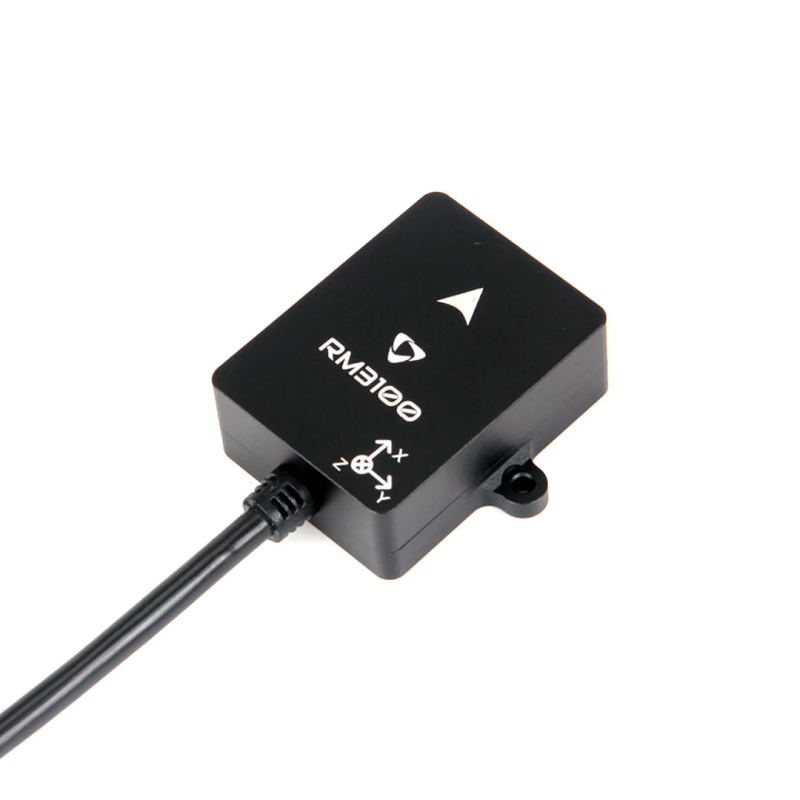

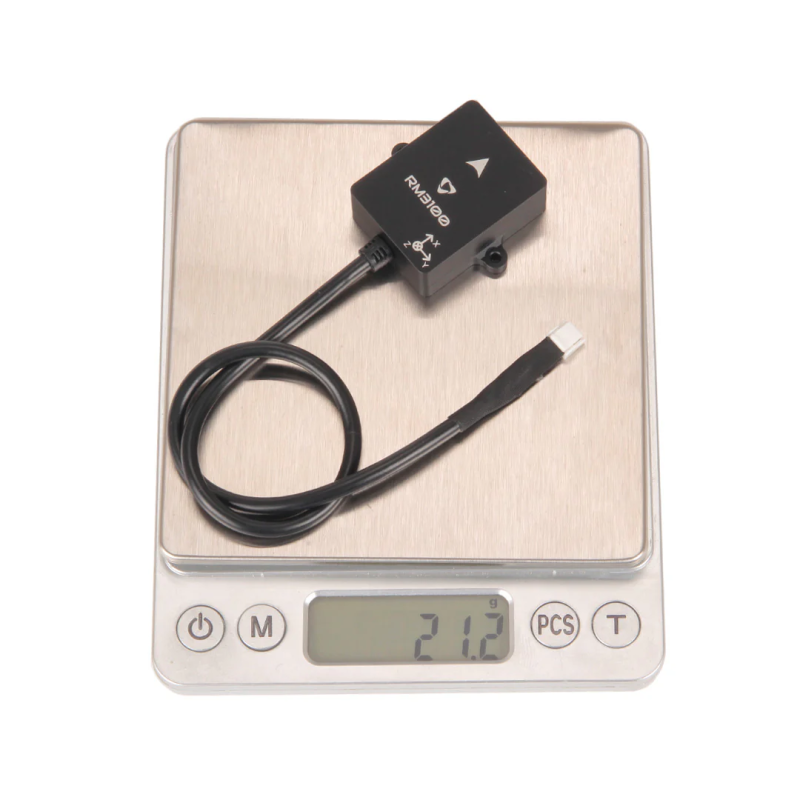

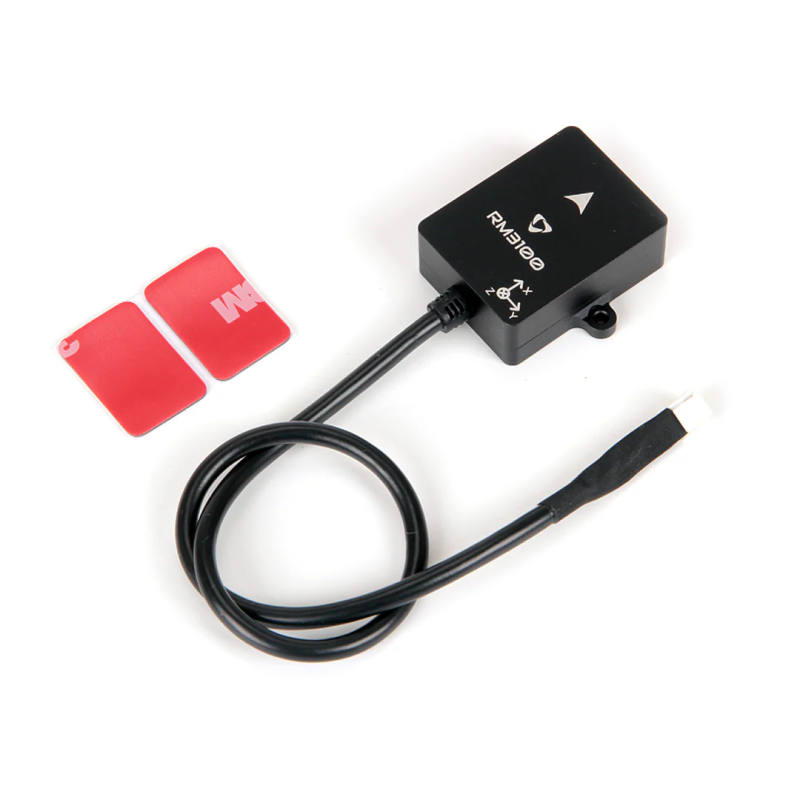

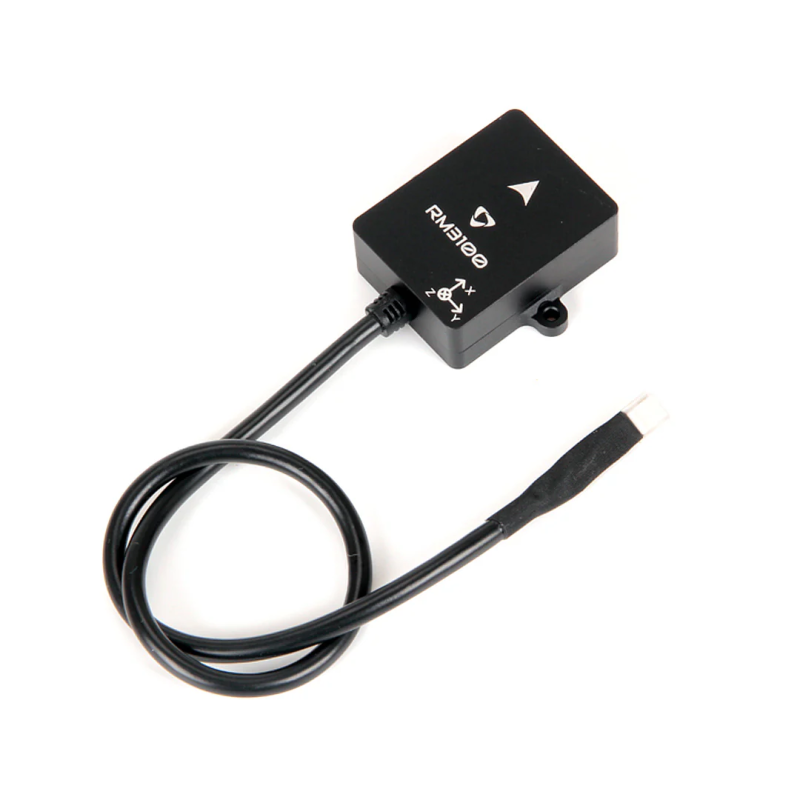

Holybro DroneCAN RM3100 Professional Grade Compass (42cm cable length)

Description: The compact professional RM3100 magnetometer from Holybro is a top-tier solution for precise direction and orientation sensing for your drone. The model features PNI's leading magneto-inductive technology, providing an excellent signal-to-noise ratio, virtually no drift, and exceptional reading stability. With high resolution (10 nT) and ultra-low magnetic hysteresis, this compass is ideal for applications requiring the highest navigation accuracy and compensation for magnetic distortions from motors or metal components.

The device has a built-in DroneCAN output protocol, allowing for a robust and reliable connection over significant distances. Integration via the DroneCAN bus simplifies wiring and allows multiple peripheral devices to be connected via a single interface, without occupying additional serial ports on the flight controller. The 42cm cable length makes installation convenient in various quadcopter designs.

Advantages and Applications

This magnetometer ensures smooth and precise operation of the navigation system: it reduces the impact of magnetic distortions from motor coils and metal parts, increasing overall flight stability and track accuracy. The RM3100 is suitable for professional drones, research platforms, mapping, agricultural drones, and any projects where high orientation accuracy is critical.

Specifications:

• Field measurement range: -800 to +800 µT
• Gain: 20, 38, 75 LSB/µT
• Sensitivity: 50, 26, 13 nT
• Noise: 30, 20, 15 nT
• Maximum sample rate for a single axis (divide by 3 for maximum 3-axis sample rate): 1600, 850, 440 Hz
• Operating temperature range: -40 to +85°C
• Output connector: 4-pin JST-GH1.25
• Interface: DroneCAN
• Sensor technology: PNI magneto-inductive
• Cable length: 42 cm

Compatibility and Integration: The device is designed for direct connection to hardware platforms that support DroneCAN. Using the DroneCAN bus minimizes the occupation of flight controller serial ports and allows for a simple peripheral connection network. The 4-pin JST-GH1.25 connector provides a standard reliable connection for power and data.

Technical Notes: Thanks to its high resolution of 10 nT and low hysteresis, the RM3100 demonstrates excellent measurement repeatability and minor errors during long-term operation. Noise and sensitivity parameters allow for optimal mode selection for specific tasks, and the wide temperature range from -40 to +85°C ensures stability in challenging operating conditions.

Brand: Holybro. Product category: Drones and Quadcopters > Drone Accessories. Model: Compass RM3100 Professional Grade with 42cm cable length. This compass will be a reliable component of your navigation system, providing professional accuracy and ease of integration.
