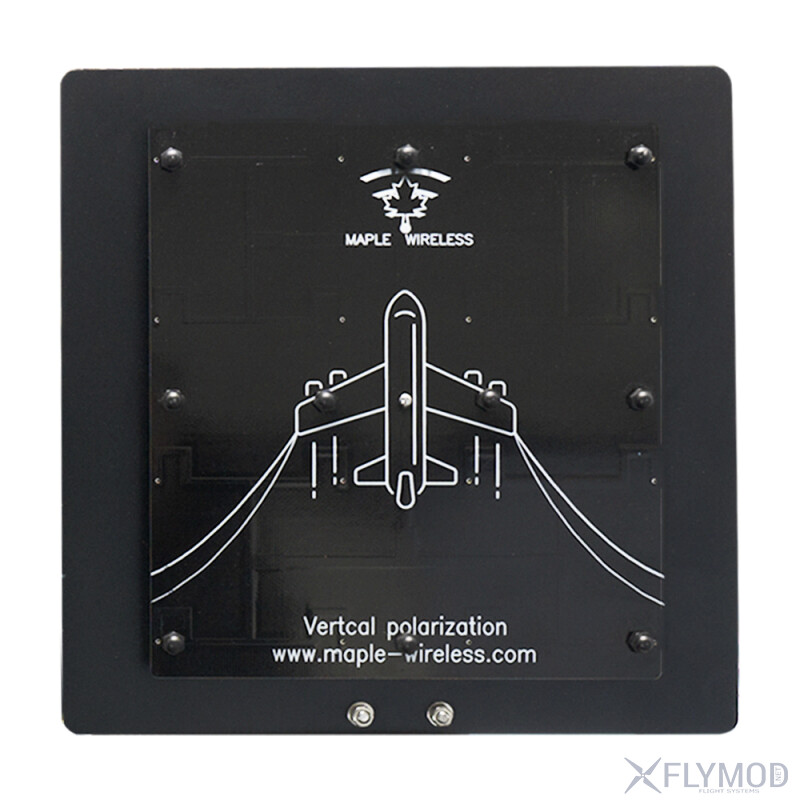

The Maple Wireless 4.9G/5.5G 21dBi directional patch antenna, with vertical polarization, is designed to operate in the 4.9GHz and 5.5GHz frequency bands. The antenna has a high gain of 21 dBi and is suitable for long-distance operation. The 15° beam angle can be compensated by using an AAT tracker for automatic tracking. The manufacturer managed to combine high-quality materials – solid aviation aluminum and Teflon coating – without affecting the product's price!

Features

• Antenna has a high gain of 21dBi
• Effective over long distances
• Suitable for HD image transmission, as well as analog communication
• Made of high-quality materials: aviation aluminum with Teflon coating

Specifications

• Gain: 21dBi
• Operating frequency range:
  • 4.9G - 4,500-5,400Ghz
  • 5.5G - 5,180-5,800Ghz
• Input impedance: 50Ω
• VSWR: ≤1.5
• Antenna polarization: linear
• Half-power beamwidth:
  • 15°H-plane
  • 15°E-plane
• Connector: SMA
• Size: 168×168×15mm
• Weight: 162g

Tests of Maple Wireless 5.5G Patch Antenna

Package Contents

• 1 x Maple Wireless 21dBi patch antenna

Files

• User Manual for Maple Wireless 4.9G 21dBi Patch Antenna
