Product Code: 19110-867-107
In Stock
84 000 грн.
Buy this product in 1 click:
Main specifications
Jamming range:
Up to 500 m
Device type:
Trench and Vehicle EW Jammer
Number of jamming channels:
3
Total system power:
150 W
Power per channel:
50 W
All specifications
We will deliver this product:
Payment
Description

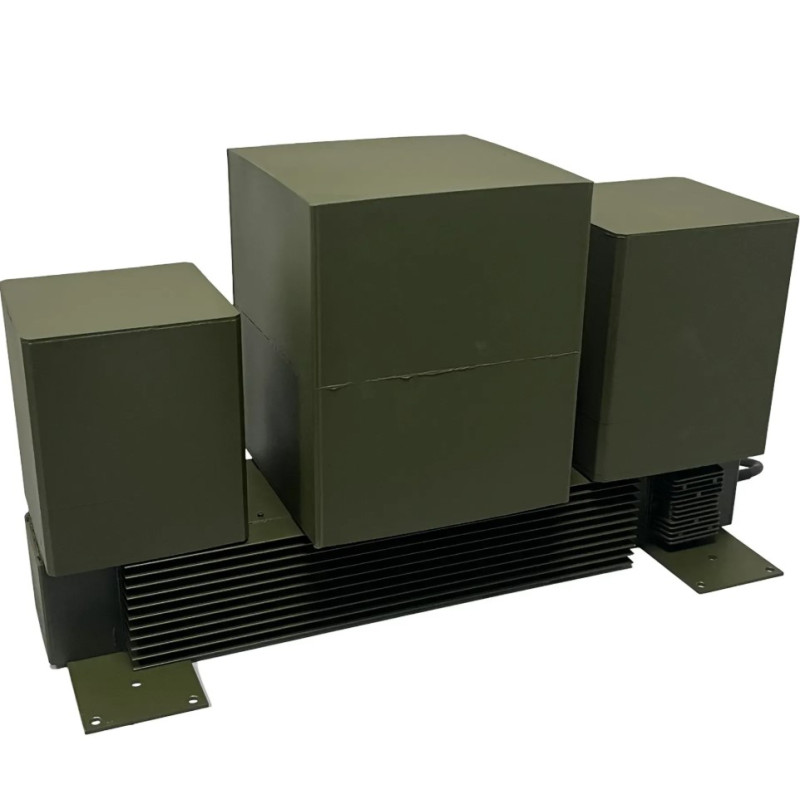

OTAMAN-2 EW Jammer with Three Jamming Bands.
The device features a unique trio of bands from 400 to 700 MHz, corresponding to FPV drone control frequencies. The series covers all non-standard drone frequencies.
The device also has a remote control with EW operation indication.
Its release is driven by the idea of providing military personnel with maximum protection against 90 percent of FPV drones. Jamming in each of the three bands is generated by three modules, each with a power of 50 W. The device can create dome protection thanks to omnidirectional antennas.
| Total output power | 150W |
| Power consumption | 360W |
| Power supply | 10-16V |
| Device range (UAV suppression distance) | Depends on the location of the device and operator. If the operator is 1600 meters from the drone and the power is 1 W, the drone will lose connection 200-500 meters from the EW jammer. |
| Antenna radiation pattern of each device | 360° dome |
| Device cooling system | passive cooling. |
| Casing | moisture-resistant and with passive cooling, allowing use in rain. |
| EW Jammer device | 1 pc. |
| Control panel and connection cables | 1 pc. |
| Quadrifilar antennas |
Specifications
Jamming range
Up to 500 m
Frequency range
300–600 MHz
Trench EW Jammer
Device type
Trench and Vehicle EW Jammer
Number of jamming channels
3
Total system power
150 W
Power per channel
50 W
Suppression Frequencies
433 MHz
Antenna type
Omnidirectional
Effective jamming range
200–500 m
Power Supply
10–16 V
Power source
Battery
Cooling type
Passive
Mounting Type
Trench/Vehicle
