Product Code: 59729-866-107
In Stock
67 200 грн.
Buy this product in 1 click:
Main specifications
Cooling type:
Passive
Frequency range:
300–600 MHz
Jamming range:
200–500 m
Power source:
External DC
Power Supply:
10–16 V
All specifications
We will deliver this product:
Payment
Description

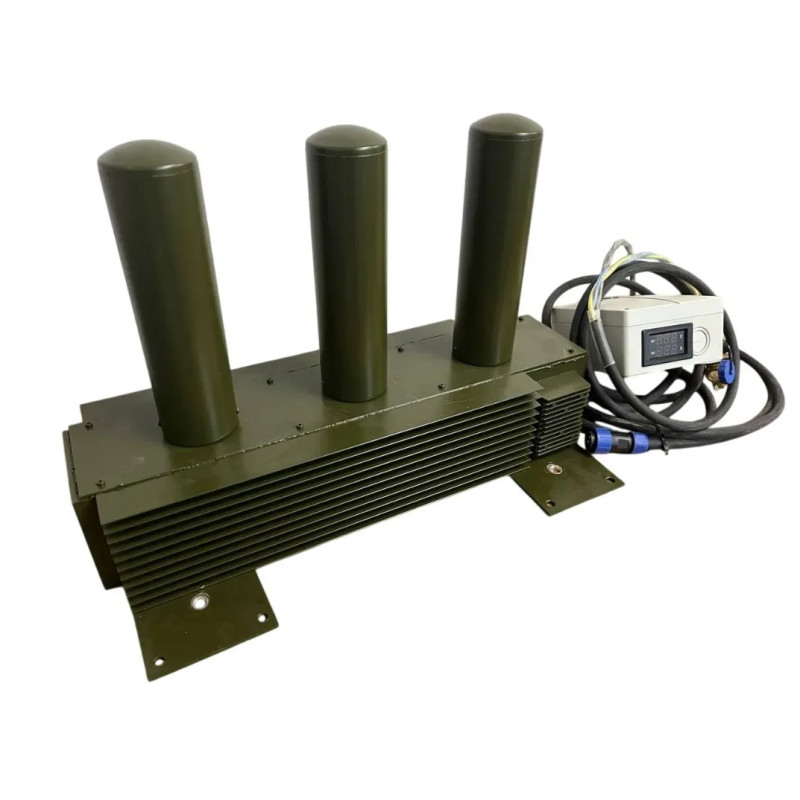

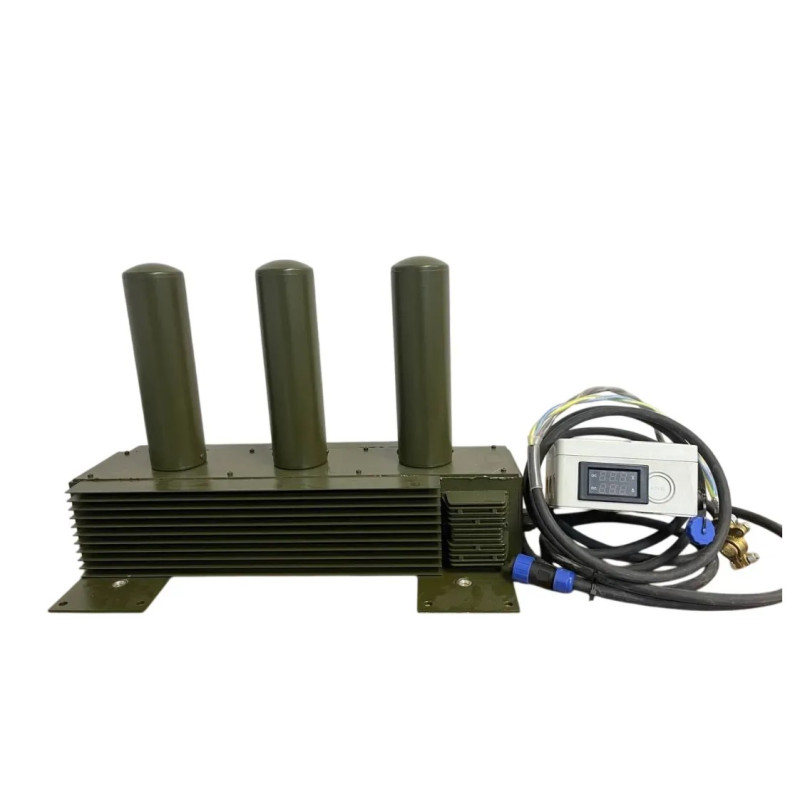

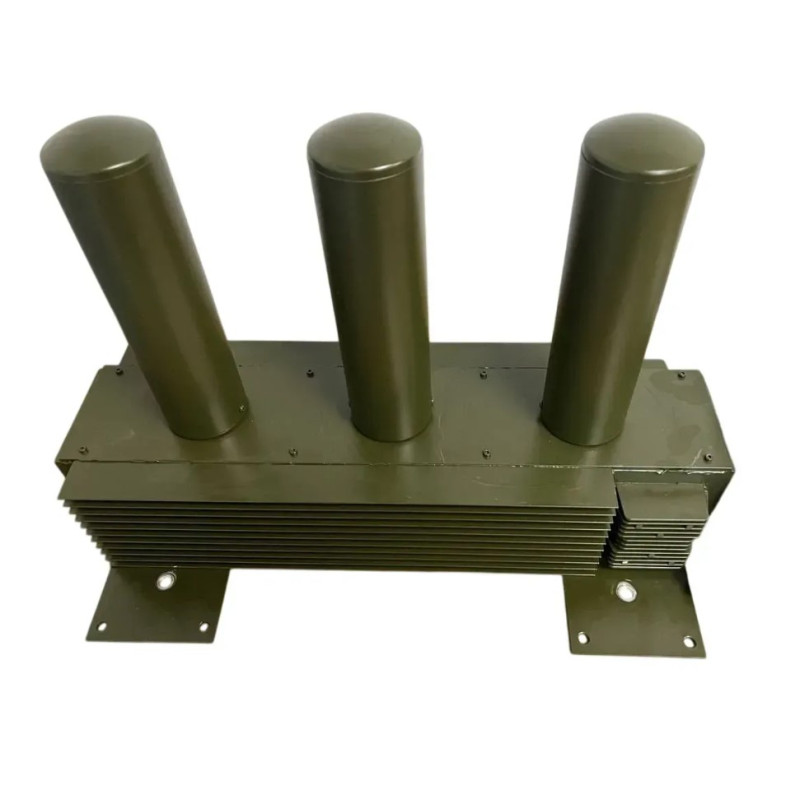

OTAMAN-A EW jammer with three radio jamming bands.
The device features a unique trio of bands from 300 to 600 MHz, corresponding to FPV drone control frequencies. The series covers all non-standard drone frequencies.
The device also has a remote control with EW operation indication.
Its release is driven by the idea of providing military personnel with maximum protection against 90 percent of FPV drones. Jamming in each of the three bands is generated by three modules, each with a power of 50 W. The device can create dome protection thanks to omnidirectional antennas.
PRODUCT SPECIFICATIONS
- Total output power — 150 W.
- The device's range (UAV suppression distance) depends on the location of the device and the operator.
- When the operator is 1600 meters from the drone and the power is 1 W, the drone will lose connection 200-500 meters from the EW jammer.
- Antenna radiation pattern of each device: 360° dome.
- Power supply - 10-16 volts.
- Power consumption - 360 watts (real-time device operation monitoring capability).
- Reverse polarity protection.
- Device cooling system: passive cooling.
- The EW jammer casing is moisture-resistant and has passive cooling, allowing use in the rain.
PACKAGE CONTENTS:
- EW jammer — 1 pc.
- Antennas - 3 pcs.
- Control panel and connection wires - 1 pc.
Specifications
Cooling type
Passive
Frequency range
300–600 MHz
Jamming range
200–500 m
Power source
External DC
Power Supply
10–16 V
Frequency range
300–1050 MHz
Trench EW Jammer
Device type
Trench & Vehicle EW Jammer
Number of jamming channels
3
Total system power
150 W
Power per channel
50 W
Suppression Frequencies
433 MHz, 868 MHz, 915 MHz
Antenna type
Omnidirectional
Effective jamming range
up to 500 m
Power Supply
12 V
Power source
Battery
Cooling type
Passive
Mounting Type
Trench & Vehicle
