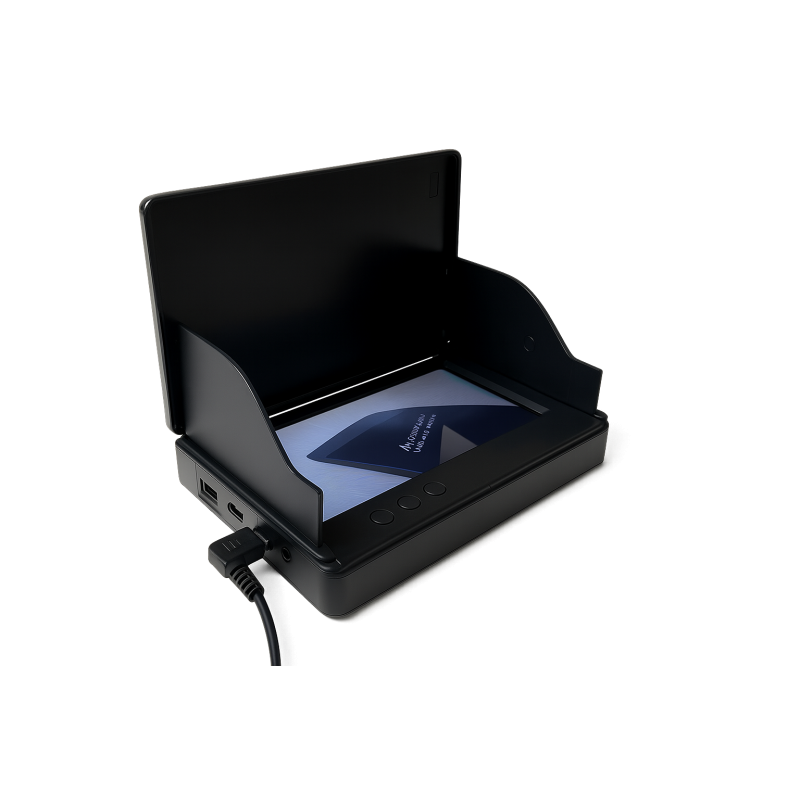

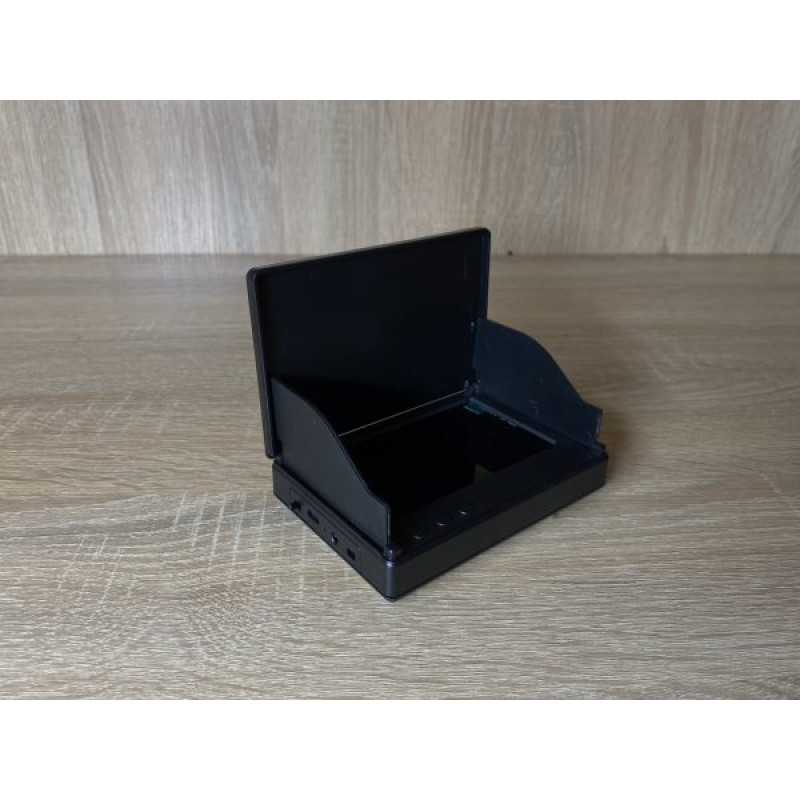

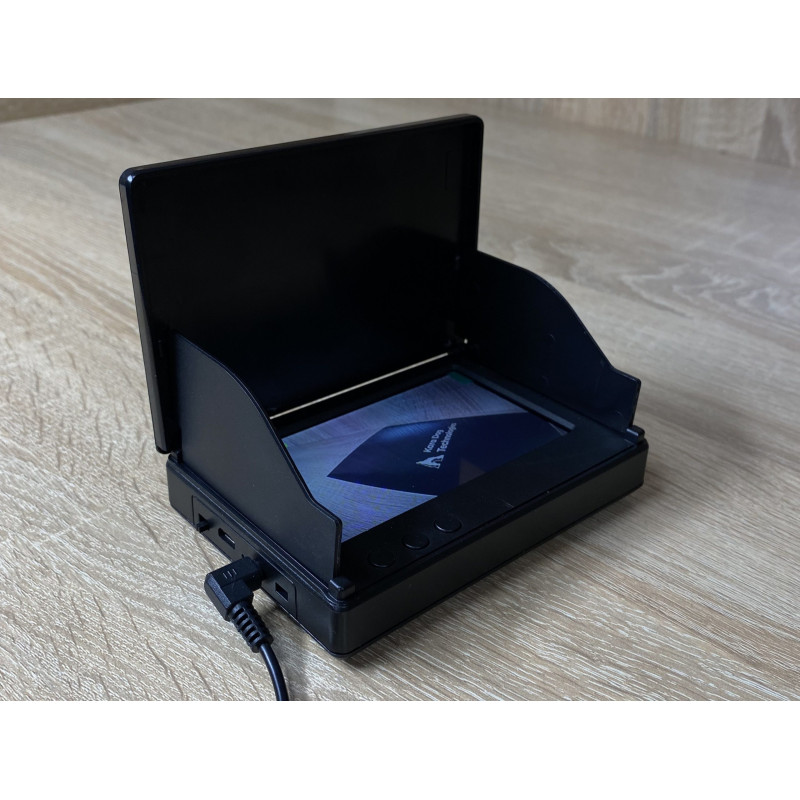

Portable monitor for displaying intercepted drone video — the Kara Dag portable monitor is designed as a compact and convenient device for displaying intercepted analog FPV video. The device has a 4.3-inch screen, a built-in battery, and is intended as an accessory for the Obriy 1.3 system, ensuring full compatibility without the risk of damage due to pinout mismatch. A standard 3.5mm Jack connector is provided for video signal output, ensuring simple connection to the screen.
Monitor advantages

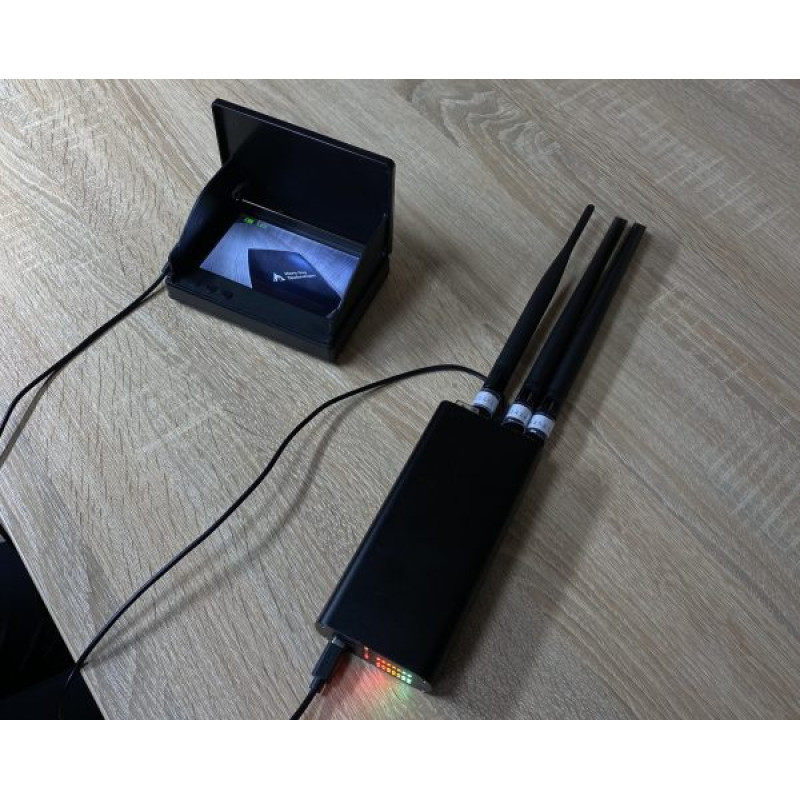

- Full compatibility with the Obriy 1.3 drone detector — secure connection without additional adaptations.
- Automatic reception of video signal upon detection of a drone transmitting video at 1.2 GHz, 2.4 GHz, or 4.9-6.0 GHz.
- Ability to switch between 1.2 GHz, 2.4 GHz, and 4.9-6.0 GHz bands if multiple signal sources are detected.
- Simple and fast connection via standard 3.5mm Jack.
- Built-in battery provides up to 8 hours of autonomous operation, making the monitor extremely convenient for field conditions.
Operation and application description
The monitor receives and displays intercepted video in real time, allowing the operator to instantly see the FPV stream on an external screen. This is an effective solution for inspections, security, and rapid response when quick visual information from a drone is needed. Thanks to its wide interception range, the device is compatible with most analog video transmitters used in FPV systems and allows for quick image acquisition during field operations.
Package contents and power supply

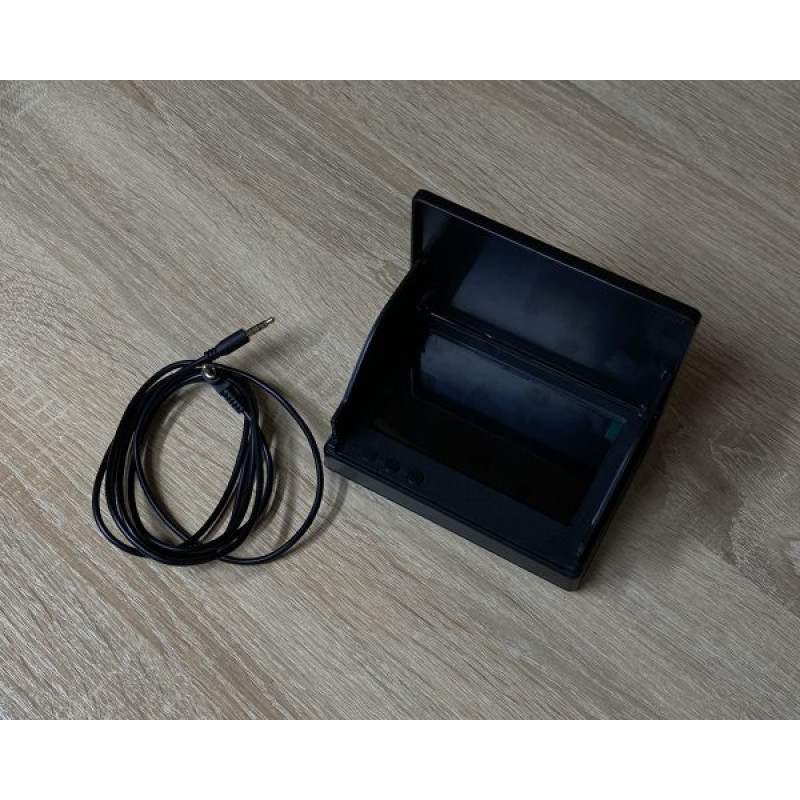

The package includes the monitor and an adapter. A micro-USB port is provided for charging, allowing the use of standard chargers and power banks for quick recharging. Thanks to the micro-USB port, charging is maximally versatile.
Specifications
| Screen size | 4.3 inches |
| Operating principle | Receives and displays intercepted video in real time on the screen, allowing switching between channels via the Obriy 1.3 detector |
| Video interception range | 1.2 GHz, 2.4 GHz, 4.9-6.0 GHz |
| Charging connector | micro-USB |
| Package contents | Monitor, adapter |
| Battery life | Up to 8 hours |
By choosing the Kara Dag portable monitor, you get a reliable tool for displaying FPV video and effective operation with the Obriy 1.3 drone detector. The Kara Dag monitor is designed for rapid deployment in field conditions: sufficient battery life, simple 3.5mm Jack connection, universal reception frequencies, and micro-USB charging make the device a versatile companion for inspections, security, and operational activities.
