Product Code: 49604-999
27 500 грн.
Buy this product in 1 click:
Main specifications
Battery capacity:
10,000 mAh
Housing material:
anodized aluminum
Indication:
vibration, sound, light indication with the ability to disable each mode
Main Frequencies:
1040–6050 MHz
Operating time:
6-8 hours
All specifications
We will deliver this product:
Payment
Description
!!! Display not included, purchased separately
If connecting to a PC/laptop, an additional adapter + easycap is required (purchased separately)
When connecting a third-party monitor, an adapter is required (non-standard Jack 3.5-Jack 3.5 pinout)
The adapter is available in two lengths - 15cm and 1.5m - 750 UAH
Obriy 1.3C is the first all-frequency detector in Ukraine that detects FPV/Mavic/reconnaissance drones with video links on frequencies from 1040 to 6050 MHz, which accounts for 95%-99% of all threats.
Advantages
1. Frequencies from 1 to 6 GHz, covering almost all drones
Other detectors cover only 30-50% of all possible frequencies.
No one detects drones at 2200-3000, 3000-4000 MHz
2. Only Obriy reliably detects "digital" signals
Mavic and reconnaissance drones operate on digital video, which almost no other detector can detect
3. Metal, shielded body, IP65
Will not get wet, will not break from impacts, protects against EW jamming that, if it penetrates inside, would reduce detection range several times over
4. Will not burn out from EW or static, has self-diagnostics
If the device fails, it will notify you, and we will gladly repair it
5. Manufactured since 2023
Three years of experience means a lot of feedback from military personnel, trips to the front line, and hours of device testing. Experience = reliability
Features and advantages
Warranty Terms
If connecting to a PC/laptop, an additional adapter + easycap is required (purchased separately)
When connecting a third-party monitor, an adapter is required (non-standard Jack 3.5-Jack 3.5 pinout)
The adapter is available in two lengths - 15cm and 1.5m - 750 UAH
Obriy 1.3C is the first all-frequency detector in Ukraine that detects FPV/Mavic/reconnaissance drones with video links on frequencies from 1040 to 6050 MHz, which accounts for 95%-99% of all threats.
Advantages
1. Frequencies from 1 to 6 GHz, covering almost all drones
Other detectors cover only 30-50% of all possible frequencies.
No one detects drones at 2200-3000, 3000-4000 MHz
2. Only Obriy reliably detects "digital" signals
Mavic and reconnaissance drones operate on digital video, which almost no other detector can detect
3. Metal, shielded body, IP65
Will not get wet, will not break from impacts, protects against EW jamming that, if it penetrates inside, would reduce detection range several times over
4. Will not burn out from EW or static, has self-diagnostics
If the device fails, it will notify you, and we will gladly repair it
5. Manufactured since 2023
Three years of experience means a lot of feedback from military personnel, trips to the front line, and hours of device testing. Experience = reliability
Features and advantages
- All-frequency capability – the device operates from 1 GHz to 6 GHz. Reliable detection of drones even on non-standard and modified frequencies, where most drone detectors remain blind.

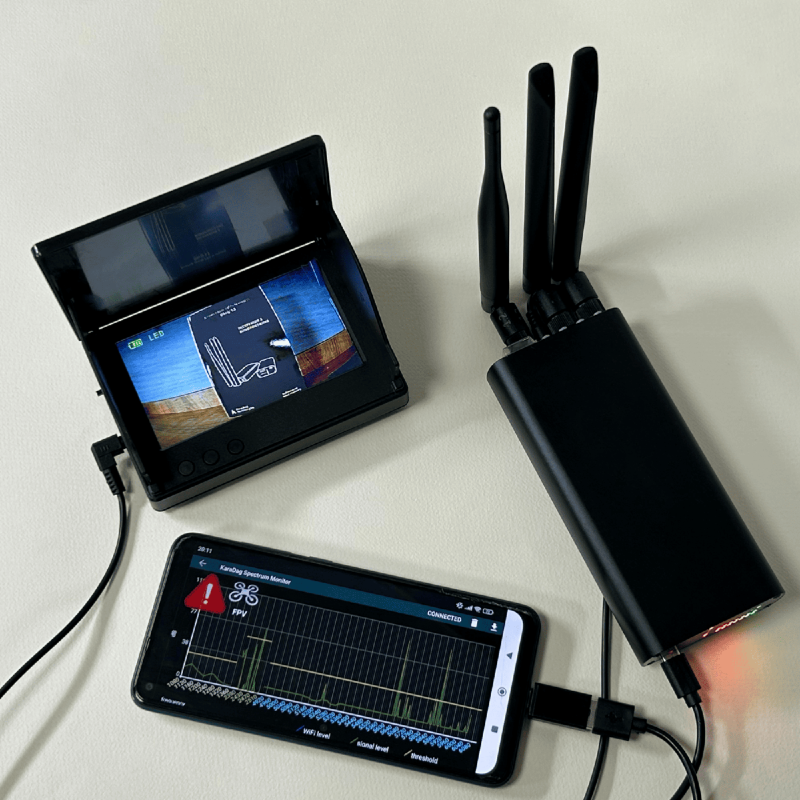

- Video signal interception with the ability to output to a separate monitor (not included, available for separate order) or PC for analyzing the image from the drone's camera.
- Intelligent WiFi/Bluetooth filtering – the system identifies frequencies of household networks and automatically excludes them from monitoring, eliminating false positives.
- Compatibility with EW systems – built-in output for automatic activation of electronic warfare systems upon threat detection. Minimal modifications allow integration with most EW complexes.

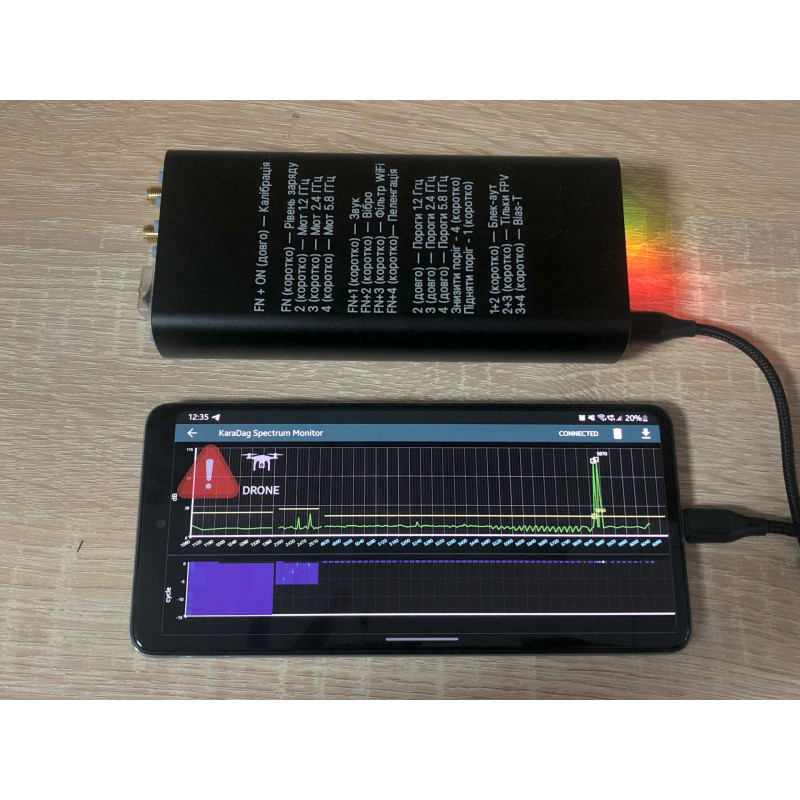

- Real-time spectral analysis – view the radio spectrum via an Android mobile app or computer, transmit data to a command center, integrate with operational monitoring systems. Data is transmitted via the Type-C port using the Serial over USB protocol.
- Automatic adaptive calibration for a specific antenna and radio environment – a key function for accurate operation. Calibration adapts the detector to local conditions and antenna characteristics, ensures stable operation in various radio environments, minimizes false alarms, and detects non-standard signals. The device automatically analyzes the environment and sets optimal parameters.
- Flexible sensitivity adjustment – individual threshold regulation for different wide-range frequency zones according to specific tasks and application conditions.
- Threat direction finding – determining the direction to the signal source using a directional antenna for precise drone localization.
- Specialized "FPV Only" mode – filters all signals except FPV, ideal for operating in areas with intense EW and dense WiFi infrastructure.
- "Blackout" stealth mode – complete deactivation of light indicators to mask the operator's position.
- Bias-T power for active 5.8 GHz antennas – support for external antennas with amplifiers on cables up to 10 meters long, powered directly from the detector.
- Selective band disabling – the mute function for individual frequency bands within 1040-6050 MHz allows ignoring certain signals even when thresholds are exceeded.
Warranty Terms
- 6 months factory warranty
- 14-day return period if product appearance is preserved
- Option to order for inspection and testing, with return
- Free replacement of damaged antenna elements
Technical Specifications
| Operating Ranges | 1040 to 6050 GHz |
| Step | 1 – 10 MHz |
| Battery | 10,000 mAh |
| Battery Life | Up to 8 hours |
| Battery Charging Time | 6-8 hours |
| Connector | USB Type-C |
| Material | Anodized aluminum (100%), 1-2 mm thickness |
| Protection Rating | IP66 |
| Ports | USB Type-C, Jack 3.5, SMA(x3) |
| Package Contents | Antennas, USB Type-C cable, manual |
| Alert Methods | Vibration, sound, light indication with the ability to disable each alert method as needed |
| Weight with antennas | 380 ±10 g |
| Weight without antennas | 330 ±10 g |
Other products in this category here Drone Detector
Specifications
Battery capacity
10,000 mAh
Housing material
anodized aluminum
Indication
vibration, sound, light indication with the ability to disable each mode
Operating time
6-8 hours
Power Supply
built-in battery, USB Type-C
Protection
IP65
Weight, g
330 ±10 g (without antennas); 380 ±10 g (with antennas)
Detectors
Main Frequencies
1040–6050 MHz
