DZYGA Drone Detector

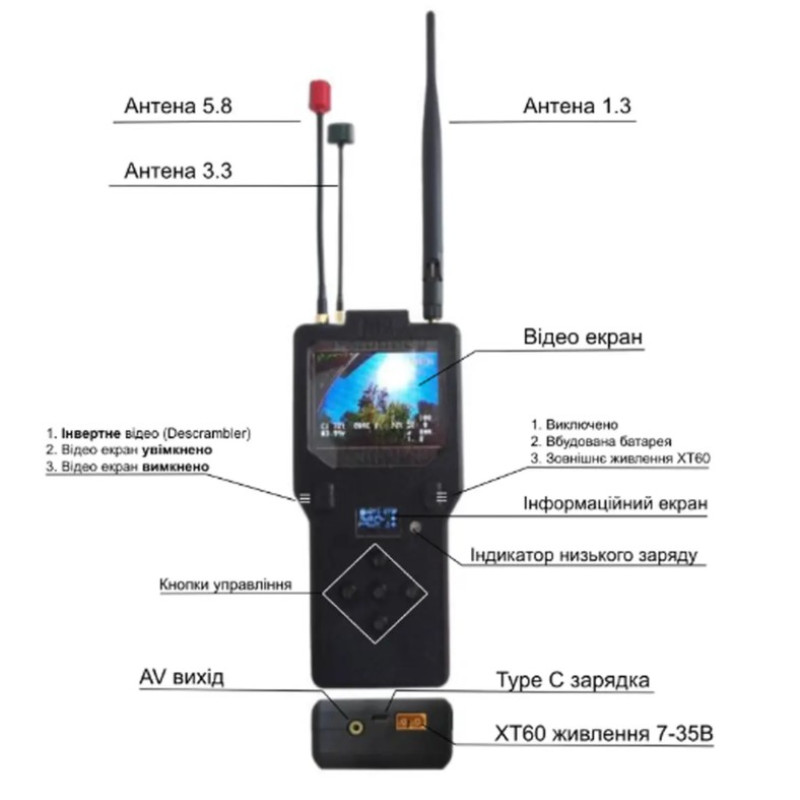

The DZYGA is a portable drone detector that operates on the principle of passive signal reception, without emitting into the air. The device allows for timely drone detection and provides visual information from its video channel.

Detection Ranges:

• 1000 – 1800 MHz (primary)
• 850 – 2100 MHz (optional)
• 2870 – 4060 MHz (optional, for an additional fee)
• 4860 – 6060 MHz (primary)

Automatic Scanning: continuous search for active signals within specified ranges.

Visualization:

• Large screen for displaying video signal from the drone.

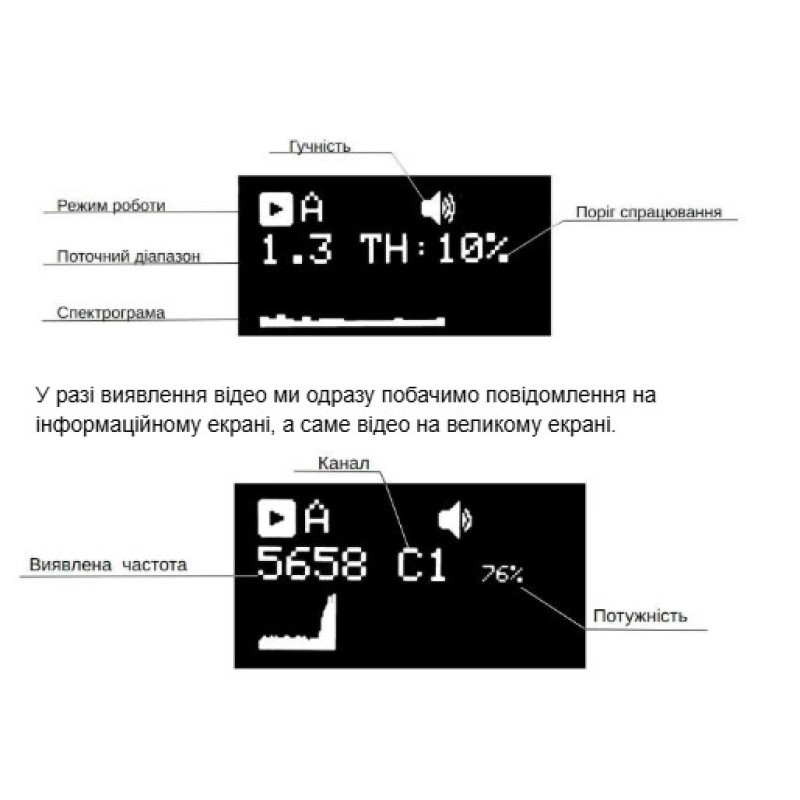

• Small auxiliary screen with technical data (frequency, channel, additional information).

Audible Alarm: 3 volume levels + mute mode.

Absolute Stealth: the device only receives signals, without emitting into the air — invisible to SIGINT.

Ease of Use:

• Simple to use: just turn it on and place/hang/attach it with the antenna facing up.
• Operates similarly to FPV goggles, but fully automated.

Power Supply:

• Low battery indicator: glows blue when the battery is low.
• Operates until fully discharged. If the voltage drops below 3V, the LED turns off, and incorrect functioning may occur.

Operating Mode

When a signal is caught, it beeps (3 volume modes or off) and displays video on the large screen, as well as additional information on the small screen (frequency, channel name, etc.). In scanning mode, the device emits nothing into the radio air, only listens, invisible to SIGINT. The operating principle is similar to goggles, but in automatic mode. Simply turn it on and place it on something, hang it, or wear it with the antenna facing up.

Frequently Asked Questions

What is the detection range of the device?
If a signal is present and its strength is above the set threshold, the device will display it.

Can an antenna be connected with a long cable?
Yes, of course. Each connection will introduce signal loss, and losses will also occur due to the length of the cable you use. Losses should not exceed the antenna's gain coefficient in the frequency band you will be monitoring.
