Kulbaba STX 710-1010 MHz — FPV Control Jamming System by AWEDYNE
Kulbaba STX (710-1010) is a portable modular EW system designed to significantly increase the probability of preserving rolling stock, trenches, and stationary objects during FPV kamikaze drone attacks. Manufacturer: AWEDYNE. Category: EW Jammers. The system operates in the frequency range of 710-1010 MHz and provides targeted jamming of FPV drone control.

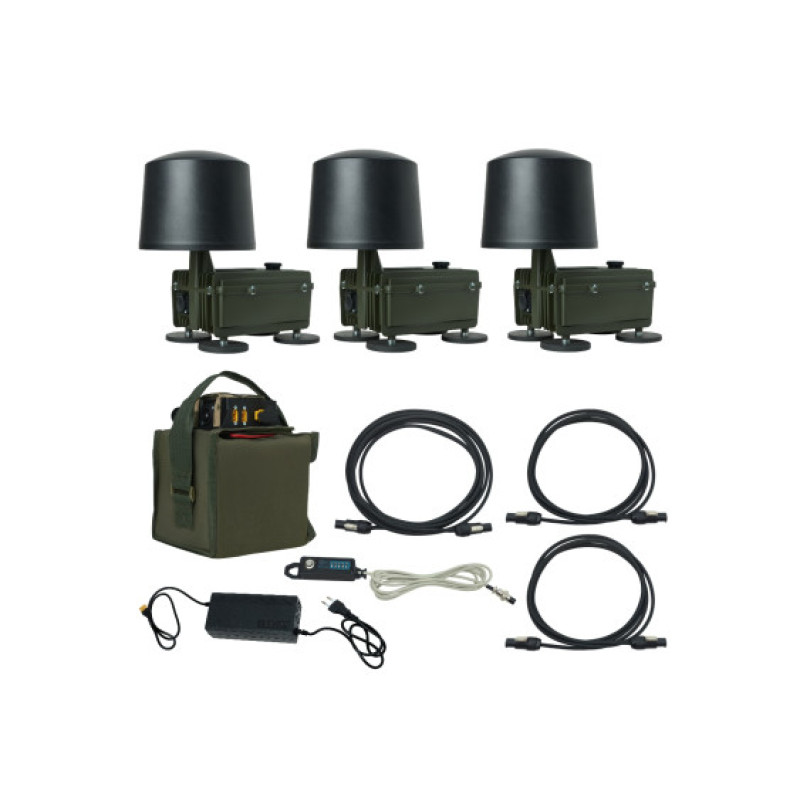

Structurally, the system consists of independent modules: each module has its own housing, an integral antenna, and a connector for power supply from a portable 24V LiFePo4 battery. Power is only possible from the included battery; vehicle mains power or other sources are not provided. The description states that the kit includes a 24V – 12 Ah LiFePo4 battery, while the technical specifications mention a battery capacity of 24 Ah – please note this discrepancy in the supplier's documentation. The operating time from one battery pack is approximately 2.5 hours when using two units.
The antennas in each unit are designed specifically for the corresponding frequency and are non-removable – this prevents connecting the unit without an antenna, which can lead to damage to the amplifier elements. The antennas have a reinforced design to maintain geometry under the influence of weather conditions and vehicle vibrations. Neodymium magnets with rubber coating are provided for quick and reliable mounting of the units on the vehicle body.
Operating Conditions and Recommendations
It is important to use only original devices from the manufacturer AWEDYNE, as many outwardly similar devices have appeared on the market that have nothing in common with the original design. Avoid combined housings with multiple bands and antennas in one unit – antennas must be spaced apart for correct operation. Do not use solutions with collinear whip dipoles that form a "donut-shaped" field with a vulnerable zone above the object; prefer antennas for dome protection. Power – exclusively from the included battery pack; do not modify for vehicle mains. If a longer operating time is needed, purchase additional battery packs. Avoid devices with active cooling: it can disable the device in rain, snow, or mud, and the device may burn out without cooling – choose systems with passive cooling.
- 1. Be careful: the original manufacturer is AWEDYNE.
- 2. Antenna spacing is mandatory for correct operation.
- 3. Avoid collinear whip dipoles due to the vulnerable "hole" above the object.
- 4. Power only from the included 24V LiFePo4 battery (the description mentions a 12 Ah battery; the technical specifications state 24 Ah).
- 5. Prefer passive cooling.
Technical Specifications
| Parameter | Value |
|---|---|
| Frequency range, MHz | 710-1010 |
| Codification | Yes |
| Module power, W | 50 |
| Supply voltage, V | 24 |
| Battery capacity, Ah | 24 (12 also mentioned in description) |
| Number of modules, pcs. | 3 |
| Operating time from one battery pack | Approximately 2.5 hours (for two units) |
The Kulbaba STX system is a mobile modular solution for protection against FPV drones, with an emphasis on reliable antenna design, ease of installation, and operation in field conditions. Before purchasing, verify the device's origin (AWEDYNE) and follow the recommendations for power and cooling for long-lasting operation. To extend operating time, use additional battery packs from the manufacturer, not self-made modifications for other power sources.
