Universal EW Jammer «Odin-5» with Five Antennas
Model: Universal EW Jammer Odin-5 with Five Antennas. Manufacturer: Loki. Brand: Asgard Defence Technologies. Product type: EW Jammers (category: Trench EW Jammers). This is a universal anti-drone system in a box form factor, designed for mounting on a vehicle roof or in a trench (dugout) to protect equipment, positions, and vehicles from FPV drones. The device comes with a remote control with a range of up to 3,000 meters and provides operational monitoring via a built-in diagnostic display.
Functionality and Efficiency Description
According to the manufacturer, the system blocks frequencies in the range of 300–5850 MHz at a distance of up to 500 m under certain conditions; the technical specifications indicate an effective operating range of — 350 m (provided the distance between the drone and the drone operator is — 3000 m). The average output power of the system is 47 dBm. The device uses GaN semiconductor technology, which provides higher efficiency, less heat generation, and a more compact size, in addition to the benefits of dual active cooling for effective heat dissipation. Reverse polarity protection is provided.
Technical Specifications
- Frequency range: from 200 to 5850 MHz. Ability to select any available ranges: 200-300 MHz, 300-400 MHz, 400-500 MHz, 500-610 MHz, 610-720 MHz, 720-840 MHz, 840-950 MHz, 950–1050 MHz, 1050–1200 MHz, 1200–1350 MHz, 1350–1500 MHz, 2400-2500 MHz, 5150-5350 MHz, 5725-5850 MHz.
- Number of antennas (model): 5 antennas (Odin-5 model).
- Power per antenna: 50 W per antenna (for 5 antennas, total power is approximately 50 W * 5 = 250 W).
- Maximum (total) power: up to 250 W.
- Effective operating range: 350 m (technical specifications), up to 500 m under certain conditions.
- Built-in battery: 35,000 mAh.
- Power supply: DC 12V–24V (autonomous) and AC 110–240V.
- Operating temperature: -25 °C to +85 °C.
- Kit weight: 12 kg (housing + antennas).
- Semiconductor technology: GaN.
- Cooling: dual active cooling.
- Protection: reverse polarity protection.
- Wireless control: up to 3,000 meters (remote control).
- Vehicle mounting: magnetic vehicle mount (four magnets for roof attachment).
- Monitor: diagnostics of operational status and key characteristics.
- Antenna switches: ability to control power to individual antennas.

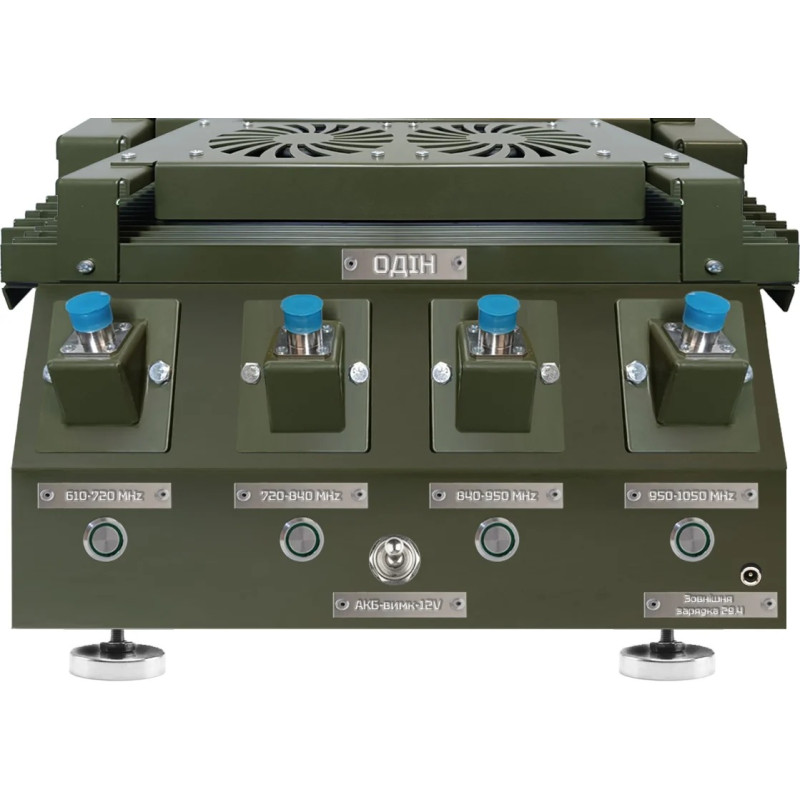

Design Features of the Front Panel and Interfaces
- Mounting: on 4 magnets for vehicle installation.
- External charging: supports external charger (29.4V mentioned as an external charging parameter).
- Power switch: switches from battery to external charging.
- Power buttons: separate power buttons for each antenna.

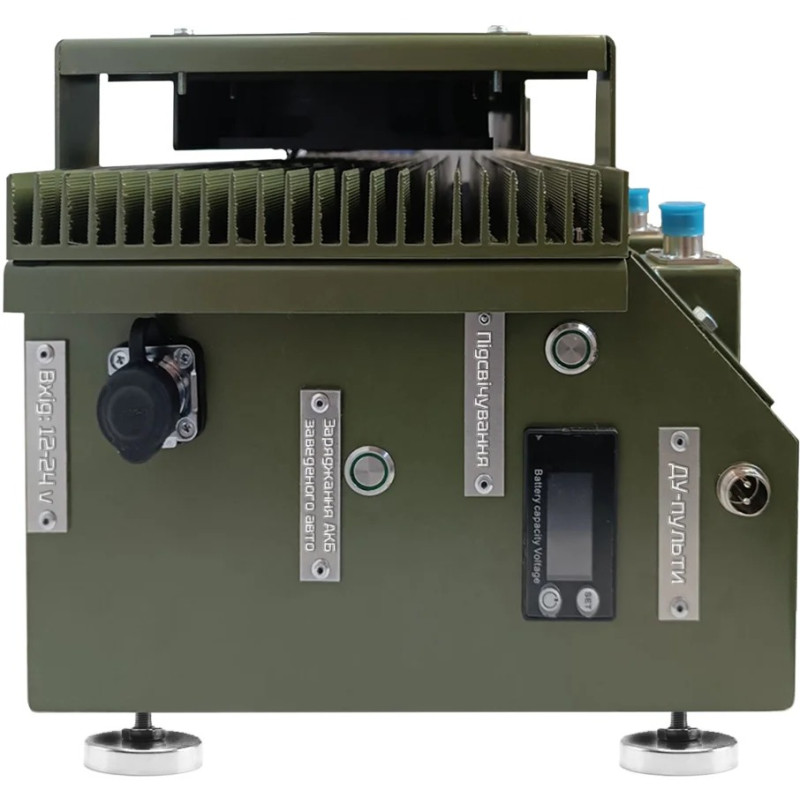

- Connectors: connectors for antennas and a connector for remote controls; 12–24 V power connector.
- Diagnostic module and indication: monitor for system status control, backlighting, and status indication.
Package Contents and Options
- Antennas: the original package specifies 3 antennas (marked as «Odin-3»), but the Odin-5 model comes with 5 antennas; any of the possible ranges can be selected for each antenna.
- In-cabin control panel: 1 pc.

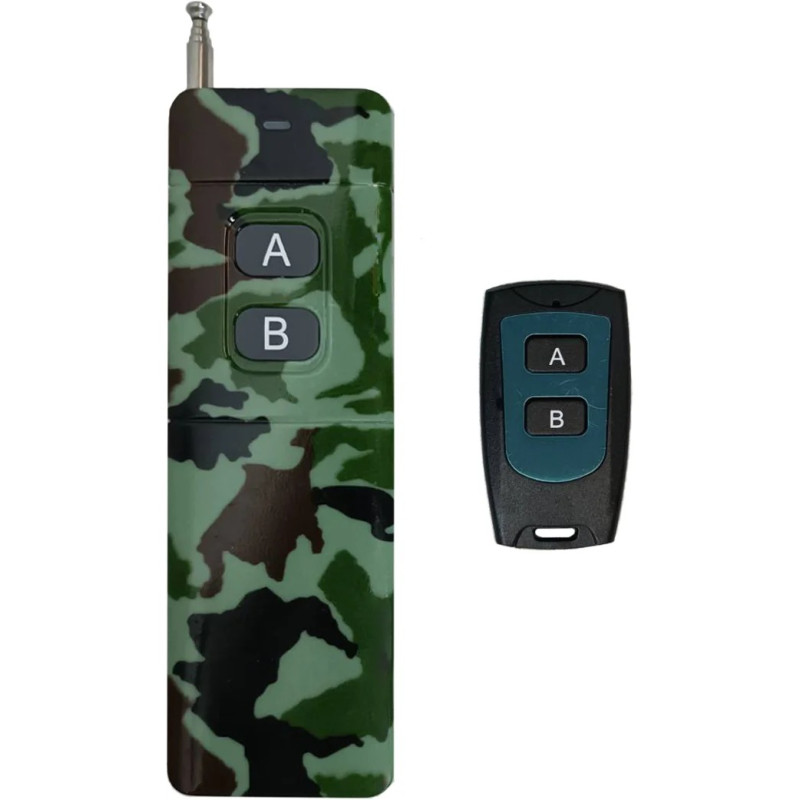

- Remote control: 1 pc., range up to 3,000 m.
- Power cable: cable for connecting to the vehicle's electrical system.
- Assembled «Odin» system: 1 pc.
- Battery pack: power supply unit for the onboard battery — 1 pc.
- Documentation: passport and user manual — 1 pc.
- Additional: photos of the system and spare parts, control panel and power cable, additional battery, and high-speed charger are mentioned as options, not included in the standard package.
This system is ideal for rapid deployment on vehicles or stationary defense in trenches, providing selectable ranges for each antenna, individual antenna power control, reliable diagnostics, and power protection. Frequency blocking from 300–5850 MHz, flexible configuration, power up to 250 W, and a high-capacity 35,000 mAh battery make the Odin-5 an optimal solution for counter-UAV tasks in field conditions.
