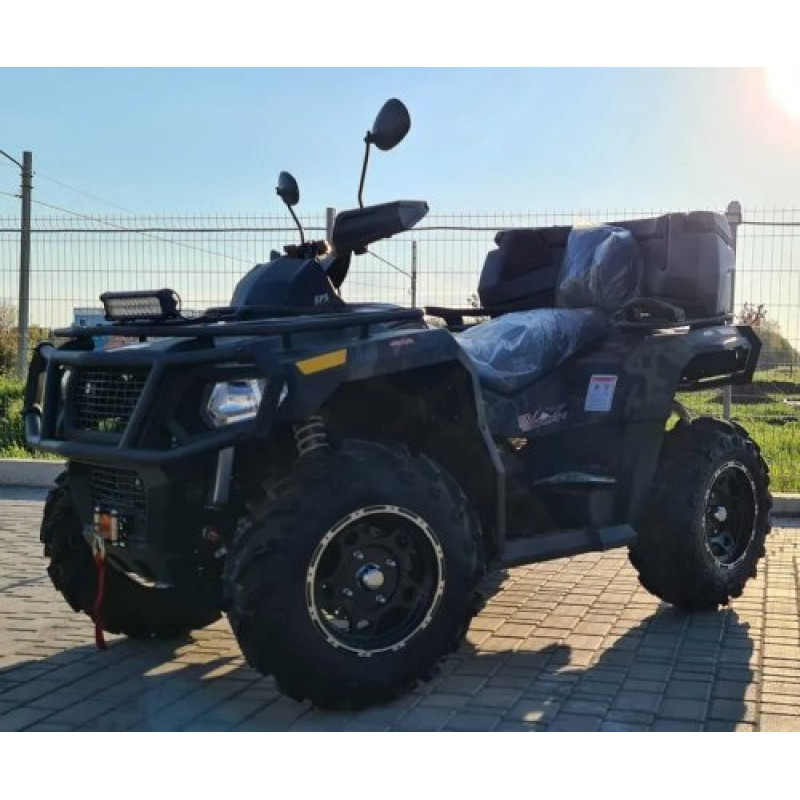

MotoLeader ML1000ATV Quad Bike
Introducing the powerful and versatile MotoLeader ML1000ATV quad bike from the manufacturer MotoLeader. This ATV combines durability, well-engineered technical solutions, and comfort for both work and recreation. Product category: Motor Vehicles > Quad Bikes. The ML1000ATV is built for challenging terrains: a robust tubular frame, the option to install additional storage boxes, and high-quality ABS plastic bodywork ensure reliable structural protection and long-term durability.
| Wheel formula | 4x4 |
| Engine power, hp | 68 hp at 7500 rpm |
| Engine type | gasoline, 4-stroke, Delphi EFI injector |
| Engine displacement, cm3 | 976 |
| Engine start system | electronic control unit (ECU) |
| Cooling system | liquid |
| Transmission (КП) | automatic (V-belt variator) |
| Transmission modes | high, low, forward, neutral, and reverse / all-wheel drive, 2WD/4WD/4WD Lock modes |
| Differential lock | yes |
| Final drive | direct |
| Front brakes | disc |
| Rear brake | disc |
| Wheelbase, mm | 1570 |
| Ground clearance, mm | 280 |
| Tire size | front 27x9-14, rear 27x11-14 |
| Fuel tank capacity, L | 20 |
| Dimensions, LxWxH mm | 2550x1310x1300 |
| Front suspension | independent, double A-arm, gas-oil shock absorbers with adjustment options |
| Rear suspension | independent, double A-arm, gas-oil shock absorbers with adjustment options |
| Average fuel consumption, L / 100 km | 8 |
| Weight, kg | 410 |
| Plastic bodywork | high-strength ABS plastic (front bumper, side mudguards, fender flares) |
| Metal bodywork | tubular, integrated into the frame with the option to install additional storage boxes |
Key Advantages of MotoLeader ML1000ATV
- Powerful Delphi EFI fuel-injected engine with a displacement of 976 cm3, developing 68 hp at 7500 rpm — for confident dynamics on the trail and in working conditions.
- Electronic Control Unit (ECU) and liquid cooling system ensure stable engine start and operation across a wide range of temperatures and loads.
- Automatic transmission with V-belt variator and 2WD/4WD/4WD Lock modes, as well as high/low gear and reverse — versatile control for any task.
- Differential lock and direct final drive enhance off-road capability and handling in challenging conditions.
- Independent double A-arm front and rear suspensions with gas-oil shock absorbers and adjustments guarantee a comfortable ride and control on uneven terrain.
- Disc brakes front and rear provide reliable braking even under intense loads.
- Durable bodywork construction: a tubular metal frame integrated into the chassis for cargo and storage box attachment, and high-quality ABS plastic protects components from mechanical damage.
Technical parameters for practical use: fuel tank capacity 20 L, average fuel consumption about 8 L/100 km, weight 410 kg. The quad bike has a ground clearance of 280 mm and a wheelbase of 1570 mm, ensuring stability and off-road capability. Dimensions of 2550x1310x1300 mm allow for maneuvering in narrow areas, and the tire sizes of front 27x9-14 and rear 27x11-14 are optimized for off-road conditions.
The MotoLeader ML1000ATV is an ideal choice for those who need a versatile and reliable quad bike for field work, hunting, fishing, or active recreation. The combination of a powerful engine, well-tuned suspension, and reliable brakes makes it an excellent solution for various tasks and challenging routes.
